Simpson Hangers | SKU:
SUR1.81/14

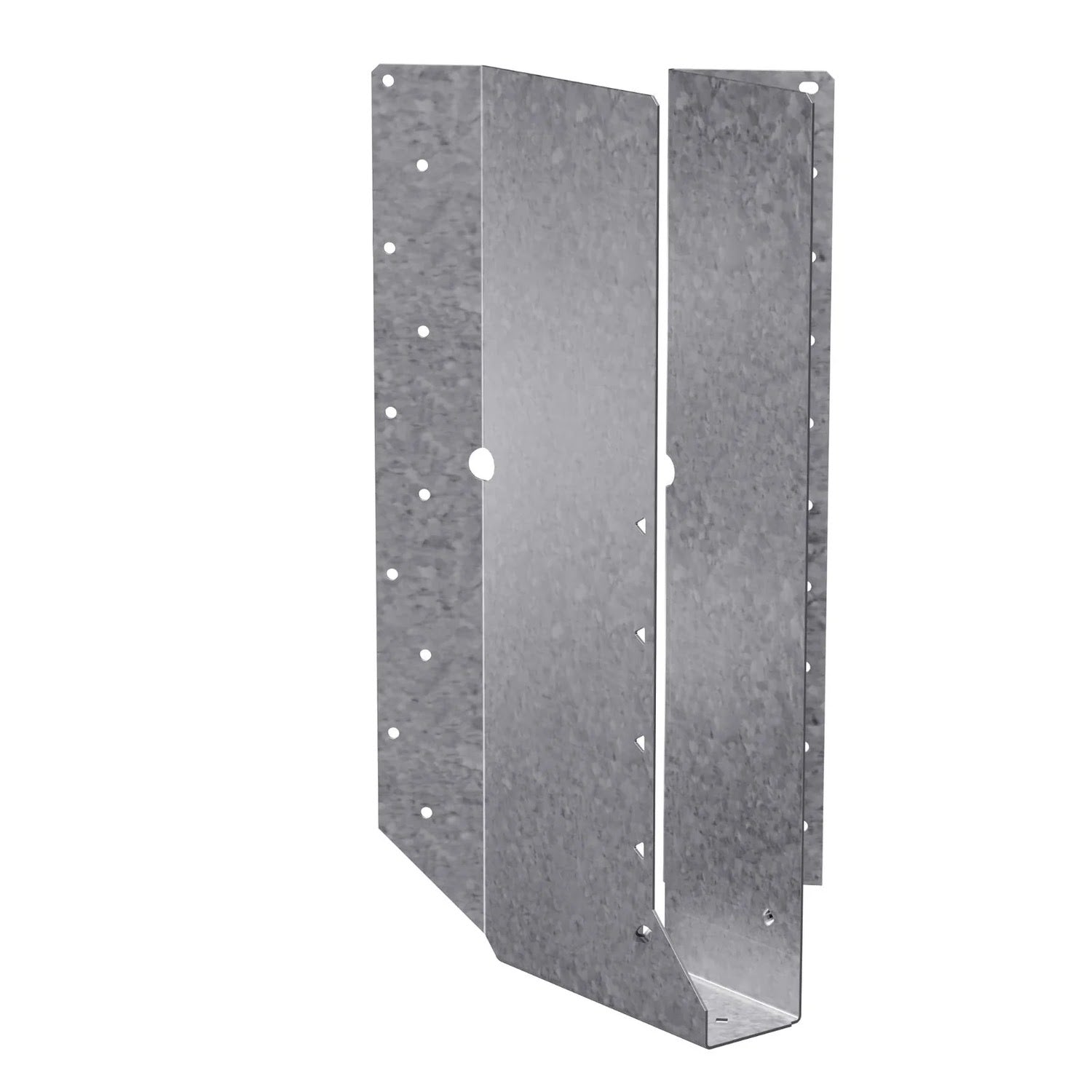

Simpson Strong-Tie SUR1.81/14 (1-3/4" x 14") Galvanized Right-Skewed U-Shaped Hanger
$28.47
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SUR1.81/14 Description
The Simpson SUR1.81/14 Joist Hanger is designed for engineered wood with a right skew, providing secure and reliable connections.
Simpson Strong-Tie SUR1.81/14 Includes
- (1) SUR1.81/14 Joist Hanger
Simpson Strong-Tie SUR1.81/14 Features
- Right-skewed design for angled joist connections
- G90 galvanized coating for corrosion resistance
- Compatible with solid sawn lumber and engineered wood
- Pre-punched nail and screw holes for easy installation
- Made from 16-gauge carbon steel
Simpson Strong-Tie SUR1.81/14 Applications

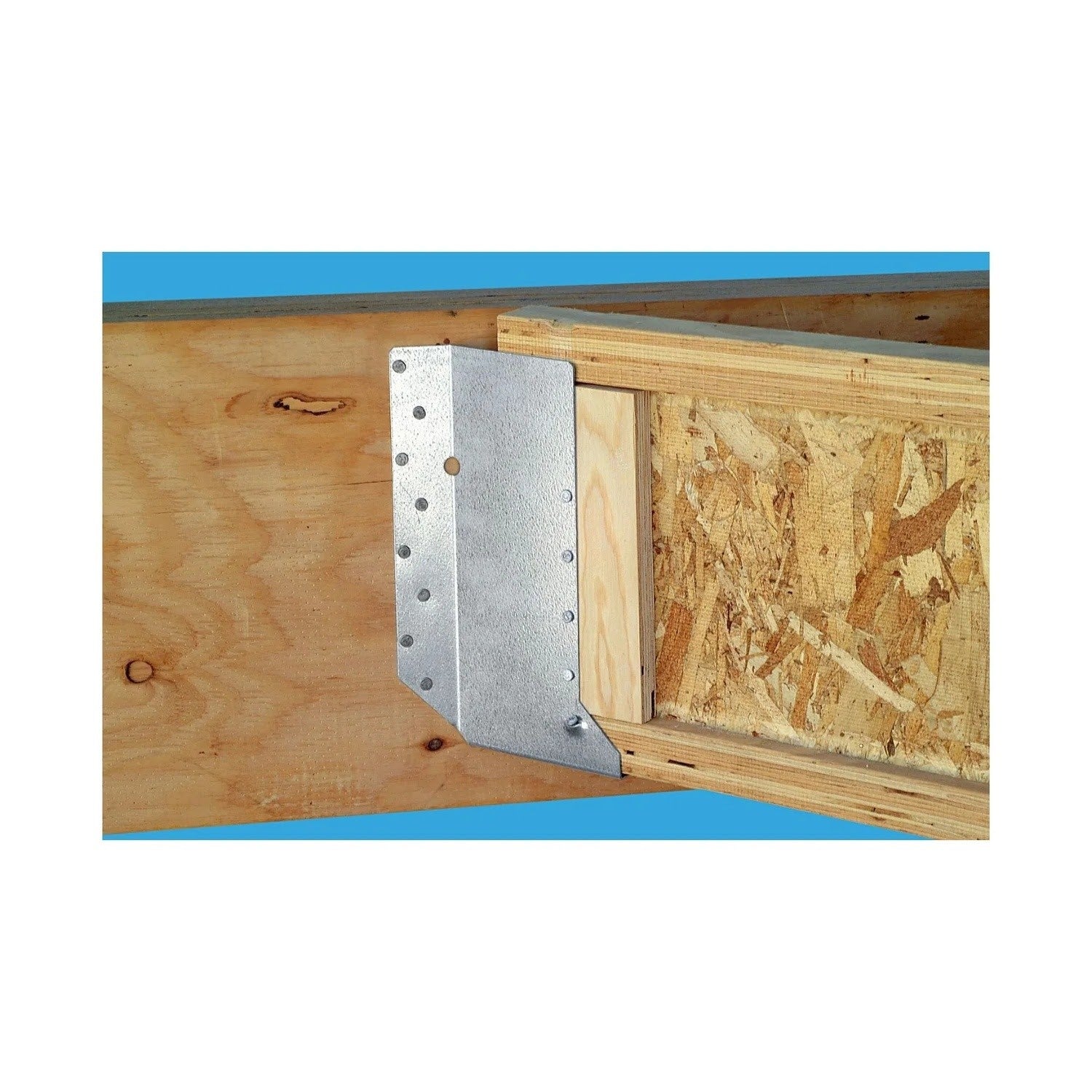

- Angled joist connections in decks, floors, and framing projects
- Structural reinforcement where skewed hanger support is required
- Residential and commercial wood construction requiring high-strength connectors
Simpson Strong-Tie SUR1.81/14 Installation Overview
- Use all specified fasteners as per guidelines
- Ensure joist ends are square or bevel cut
- Fill all nail holes with specified fasteners for optimal load capacity
- For I-joists with flanges less than 1-5/16", use web stiffeners
Simpson Strong-Tie SUR1.81/14 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (20) 0.162" x 3-1/2" Nails OR (20) SD9112 Screws, Joist - (2) 0.148" x 1-1/2" Nails OR (2) SD9112 Screws |
| For Treated Lumber | No |
| Height | 13-3/4" |
| Joist size | 1-3/4" X 14" |
| Thickness | 16 Gauge |
| Type | Right Skewed |
| Width | 1-13/16" |
