Simpson Hangers | SKU:
SUR1.81/9
Simpson Strong-Tie SUR1.81/9 (1-3/4" x 9-1/4" - 9-1/2") Galvanized Right-Skewed U-Shaped Hanger
$23.38
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SUR1.81/9 Description

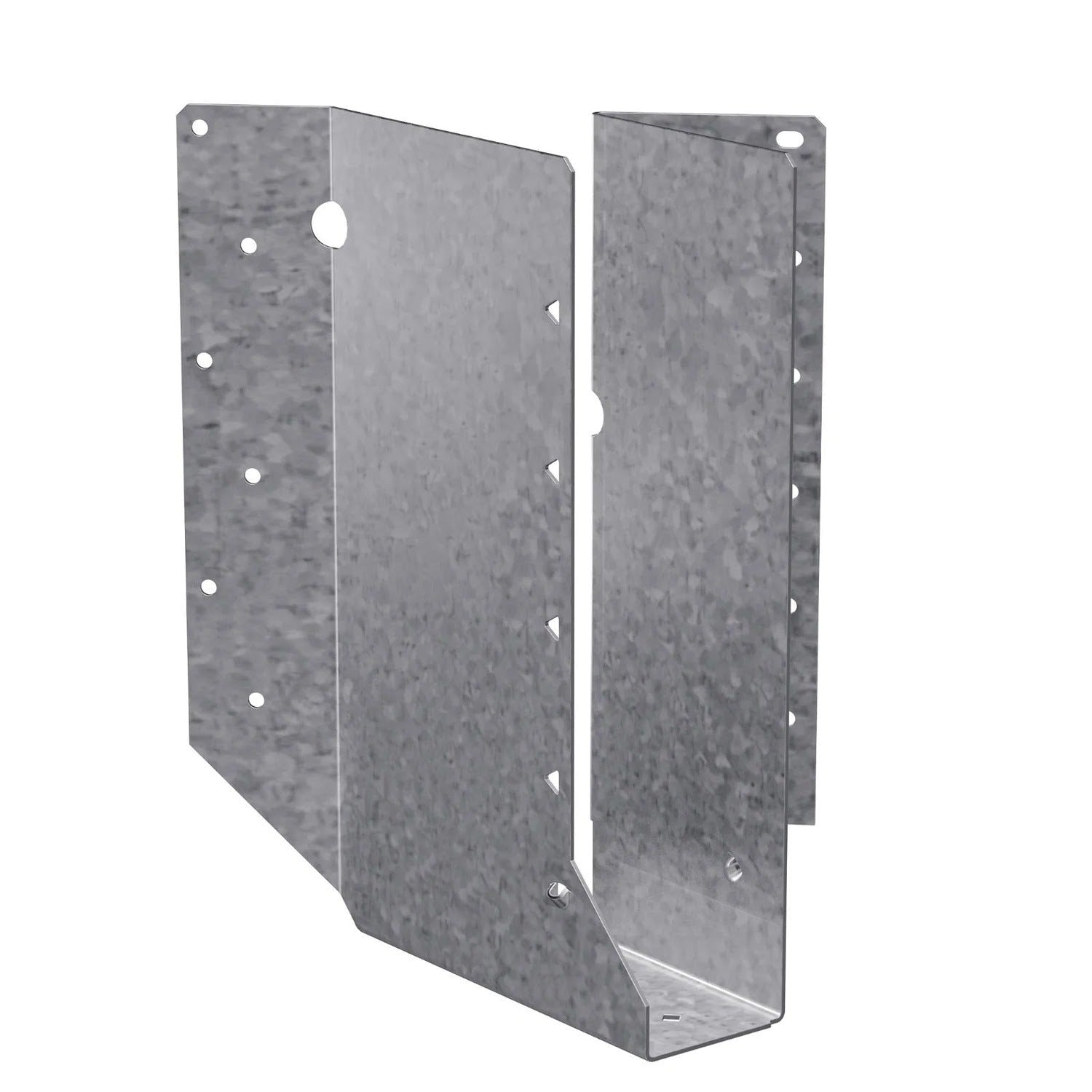

The Simpson SUR1.81/9 Right Skewed Joist Hanger is designed for secure angled connections in engineered wood and solid sawn lumber applications.
Simpson Strong-Tie SUR1.81/9 Includes
- (1) SUR1.81/9 Joist Hanger
Simpson Strong-Tie SUR1.81/9 Features
- Right-skewed design for angled joist connections
- G90 galvanized coating for corrosion resistance
- Precision U-shaped wrap for enhanced stability
- Compatible with solid sawn lumber and engineered wood
- Pre-punched nail and screw holes for easy installation
Simpson Strong-Tie SUR1.81/9 Applications

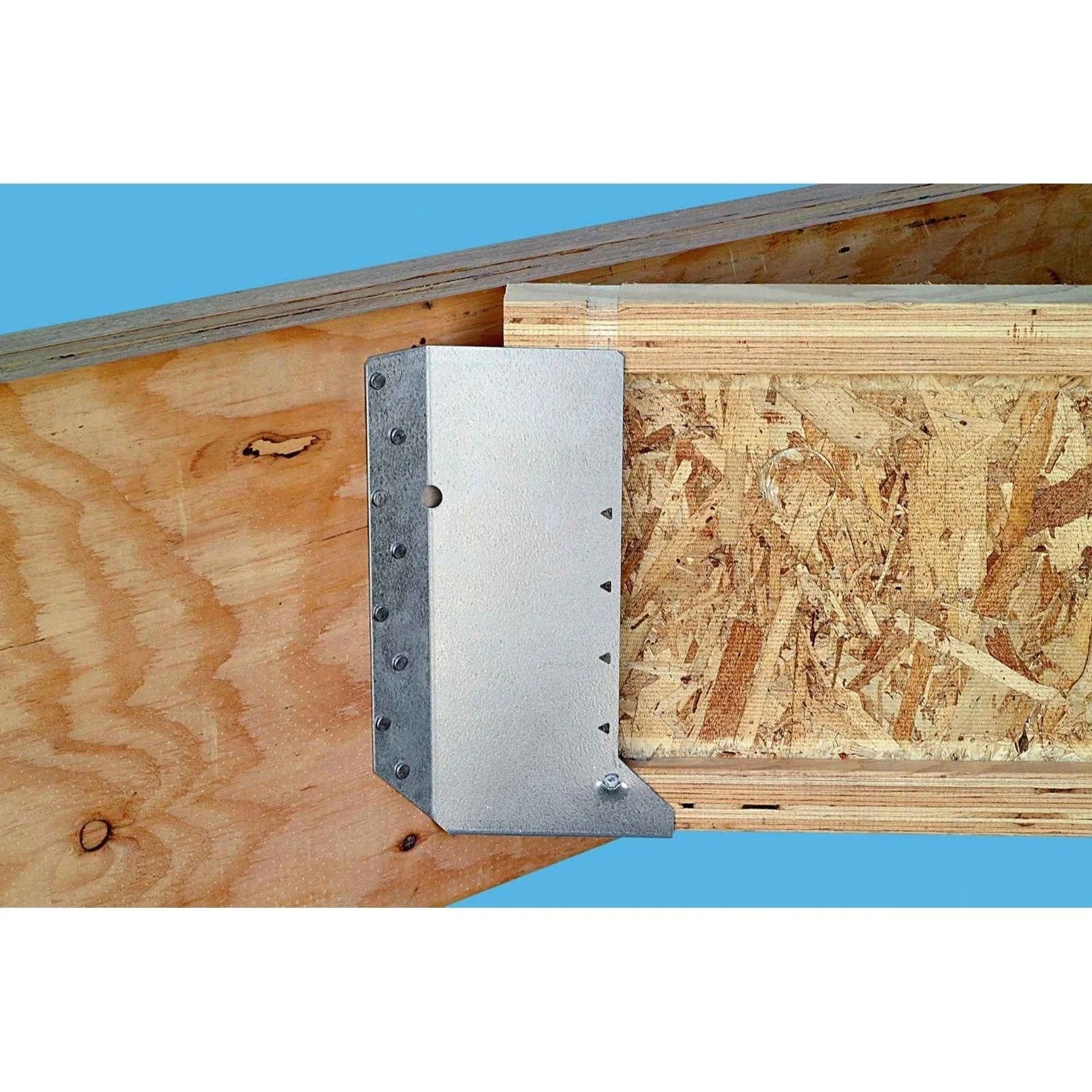

- Angled joist connections in decks, floors, and framing projects
- Structural reinforcement requiring skewed hanger support
- Residential and commercial wood construction
Simpson Strong-Tie SUR1.81/9 Installation Overview
- Use all specified fasteners as per guidelines
- Ensure joist ends are square or bevel cut
- Fill all nail holes with specified fasteners
- For I-joists with flanges less than 1 5/16", use web stiffeners
Simpson Strong-Tie SUR1.81/9 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (12) 0.162" x 3-1/2" Nails OR (12) SD9112 Screws, Joist - (2) 0.148" x 1-1/2" Nails OR (2) SD9112 Screws |
| For Treated Lumber | No |
| Height | 9" |
| Joist size | 1-3/4" X 9-1/2" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Type | Right Skewed |
| Width | 1-13/16" |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values.
