Simpson Hangers | SKU:
SUR2.06/9

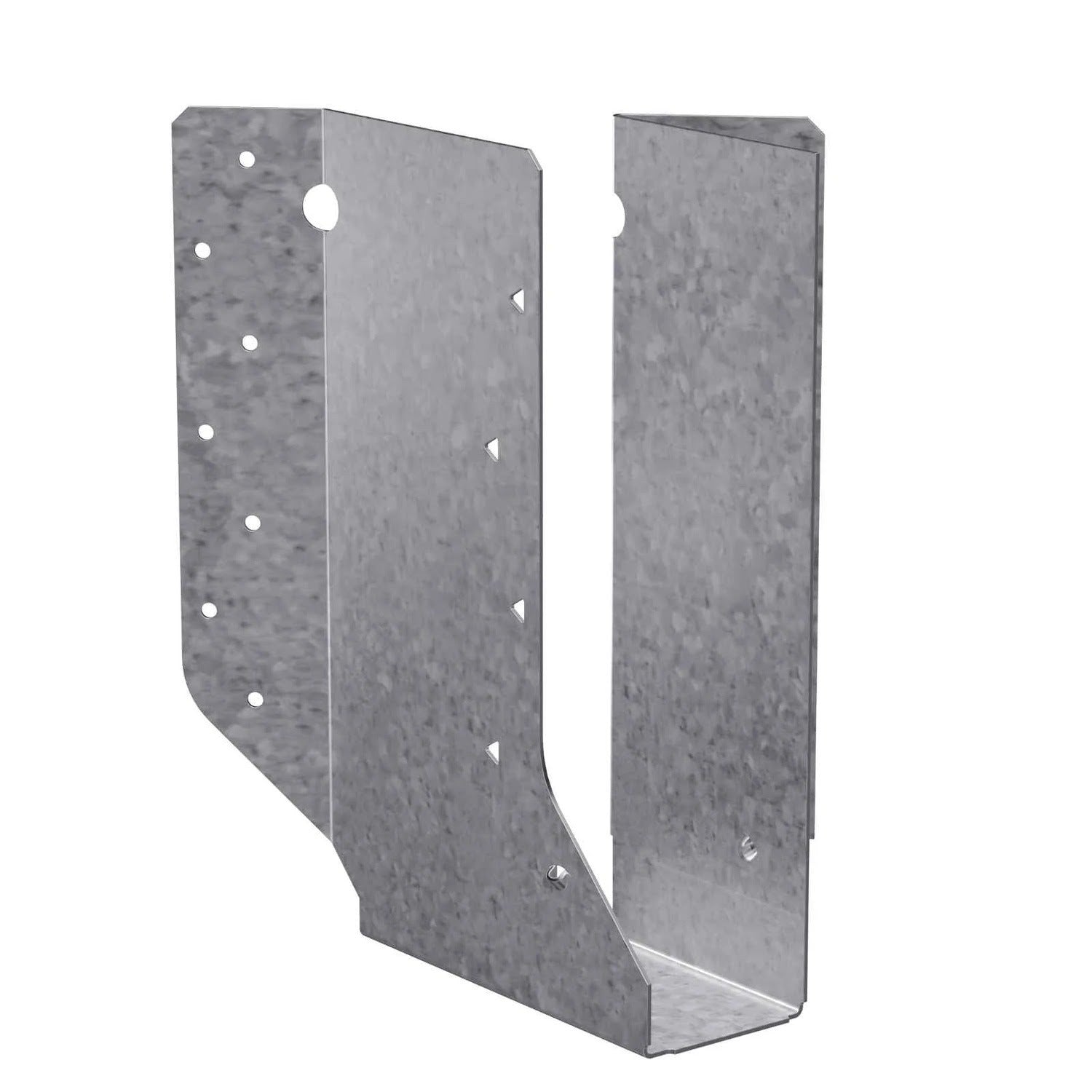

Simpson Strong-Tie SUR2.06/9 (2 in. x 9-1/2 in.) Galvanized Right-Skewed U-Shaped Hanger
$24.48
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SUR2.06/9 Description
The Simpson SUR2.06/9 Right Skewed Joist Hanger is designed for engineered wood, providing secure angled connections with a G90 galvanized finish for corrosion resistance.
Simpson Strong-Tie SUR2.06/9 Includes
- (1) Right Skewed Joist Hanger
Simpson Strong-Tie SUR2.06/9 Features
- Right-skewed design for angled joist connections
- G90 galvanized coating for corrosion resistance
- Compatible with engineered wood and solid sawn lumber
- Pre-punched nail and screw holes for easy installation
- Made from 16-gauge carbon steel
Simpson Strong-Tie SUR2.06/9 Applications
- Angled joist connections in decks, floors, and framing projects
- Structural reinforcement requiring skewed hanger support
- Residential and commercial wood construction
Simpson Strong-Tie SUR2.06/9 Installation Overview
- Use all specified fasteners as per guidelines
- Ensure joist ends are square or bevel cut
- Fill all nail holes with specified fasteners for optimal load capacity
- For I-joists with flanges less than 1 5/16", use web stiffeners
Simpson Strong-Tie SUR2.06/9 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 16 Gauge |
| Width | 2-1/16" |
| Height | 9-1/16" |
| Joist size | 2" X 9-1/2" |
| Fasteners required | Face - (14) 0.162" x 3-1/2" Nails OR (14) SD9112 Screws, Joist - (2) 0.148" x 1-1/2" Nails OR (2) SD9112 Screws |
