Simpson Hangers | SKU:
SUR2.1/11
Simpson SUR2.1/11 Strong-Tie Joist Hanger for Engineered Wood
$28.54
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SUR2.1/11 Description

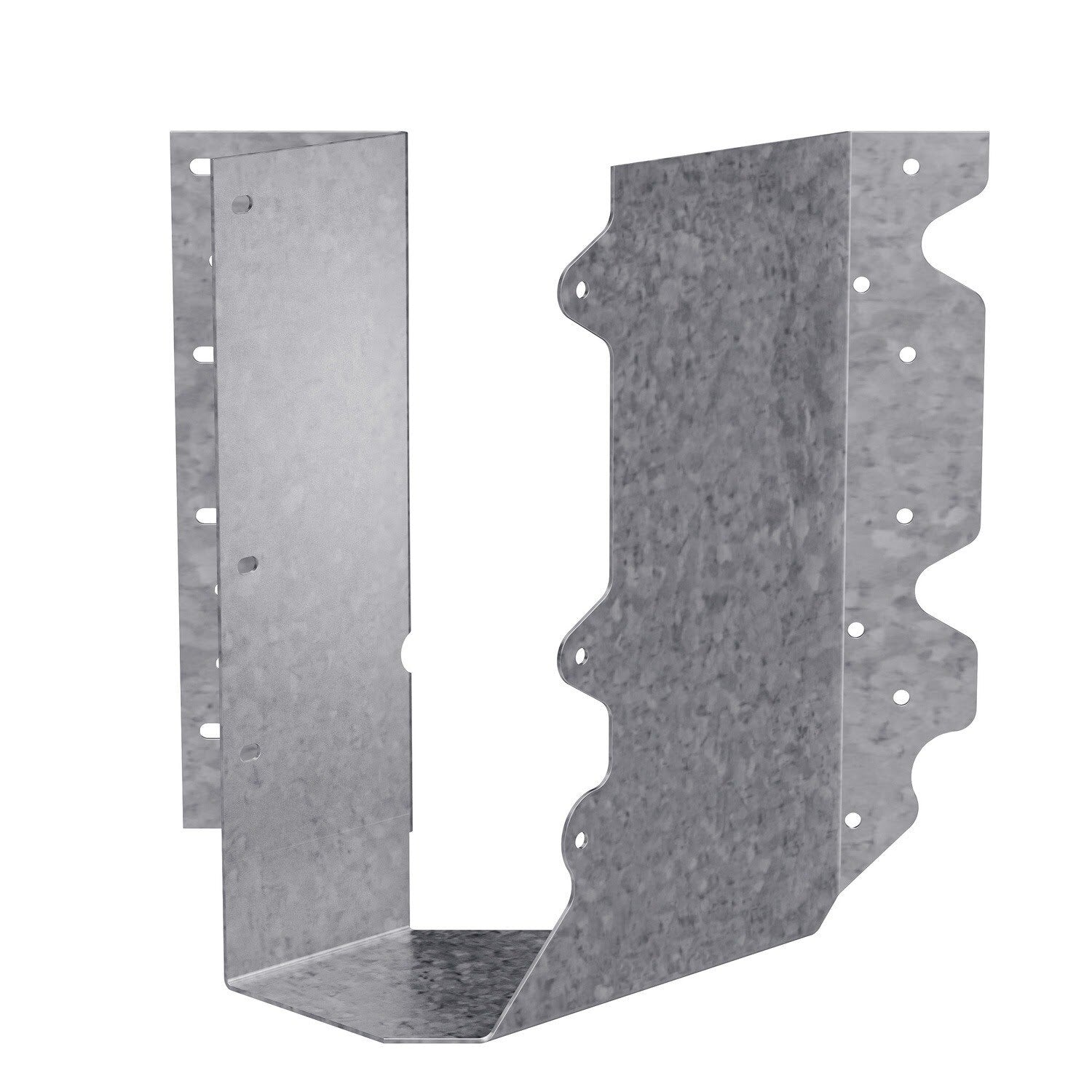

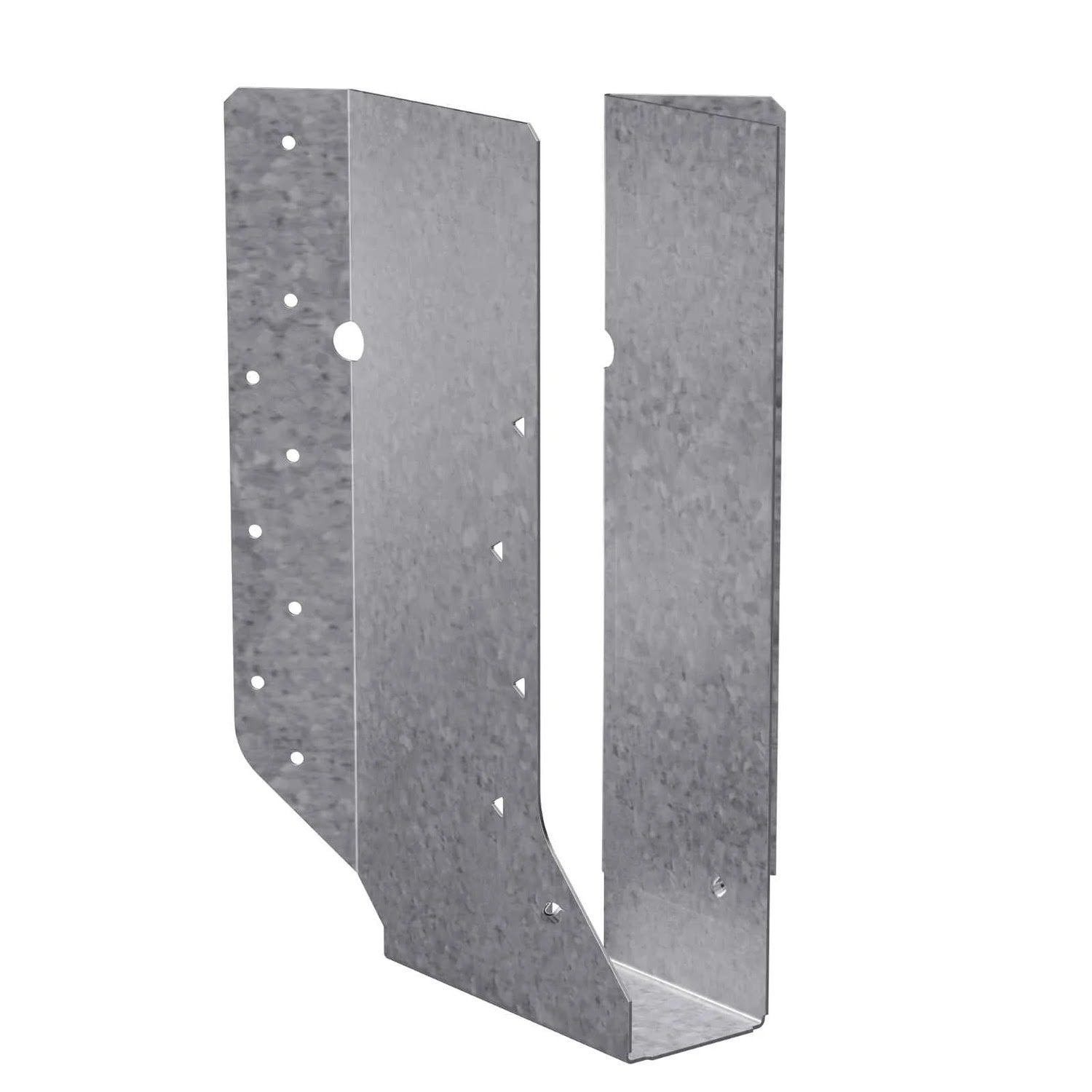

The Simpson SUR2.1/11 Right Skewed I-Joist Hanger is designed for secure angled joist connections, offering high strength and corrosion resistance.
Simpson Strong-Tie SUR2.1/11 Includes
- (1) Right Skewed I-Joist Hanger
Simpson Strong-Tie SUR2.1/11 Features
- Right-skewed design for angled joist connections
- G90 galvanized coating for corrosion resistance
- Precision U-shaped wrap for enhanced stability
- Compatible with solid sawn lumber and engineered wood
- Pre-punched nail and screw holes for easy installation
Simpson Strong-Tie SUR2.1/11 Applications

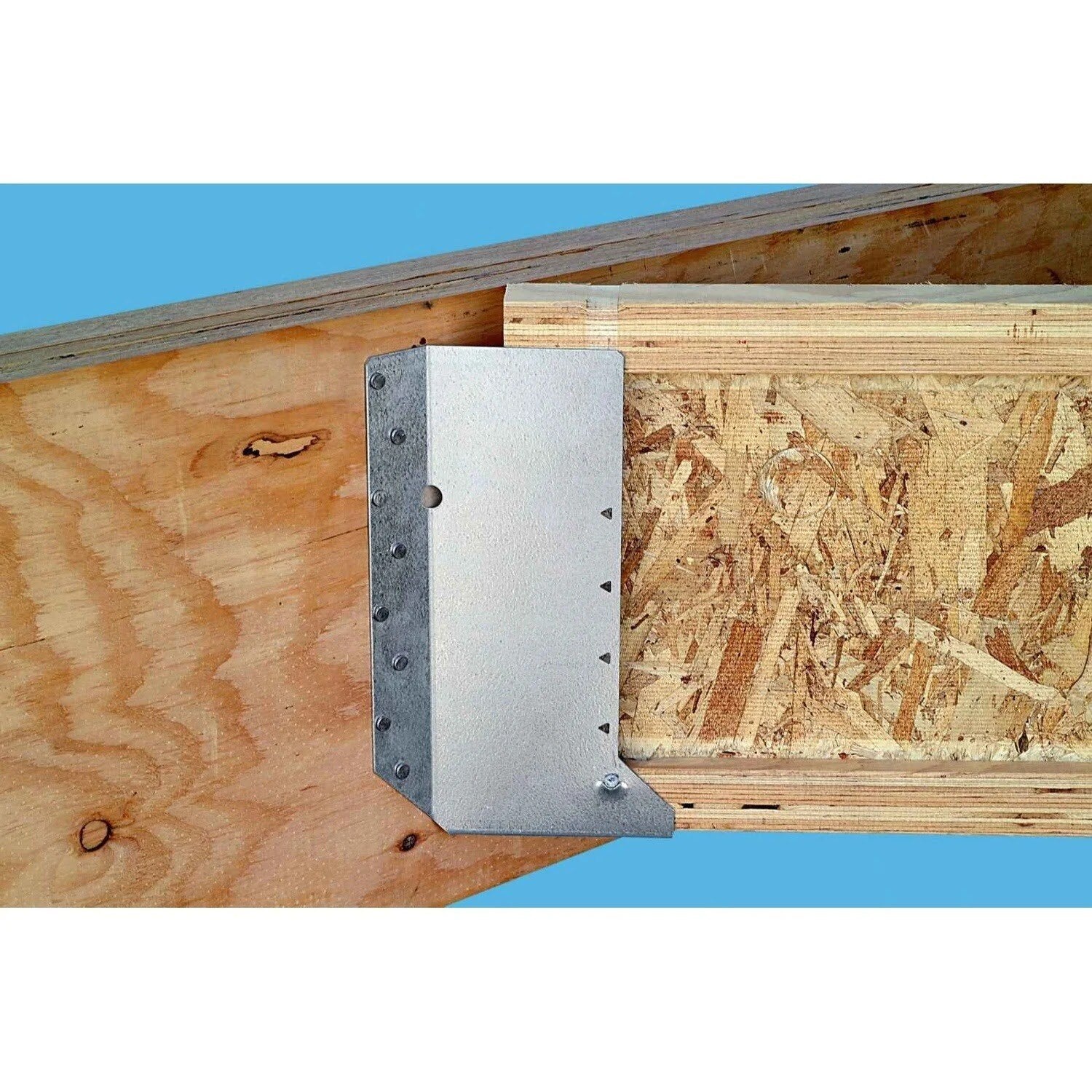

- Angled joist connections in decks, floors, and framing projects
- Structural reinforcement where skewed hanger support is required
- Residential and commercial wood construction requiring high-strength connectors
Simpson Strong-Tie SUR2.1/11 Installation Overview
- Use all specified fasteners as per guidelines
- Ensure joist end is square or bevel cut
- Fill all nail holes with specified fasteners for optimal load capacity
- For I-joists with flanges less than 1 5/16", use web stiffeners for double joist hangers
Simpson Strong-Tie SUR2.1/11 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (16) 0.162" x 3-1/2" Nails OR (16) SD9112 Screws, Joist - (2) 0.148" x 1-1/2" Nails OR (2) SD9112 Screws |
| For Treated Lumber | No |
| Height | 11-3/16" |
| Joist size | 2-1/16" X 11-7/8" |
| Thickness | 16 Gauge |
| Type | Right Skewed |
| Width | 2-1/8" |
