Simpson Strong-Tie SUR2.1/9 Description

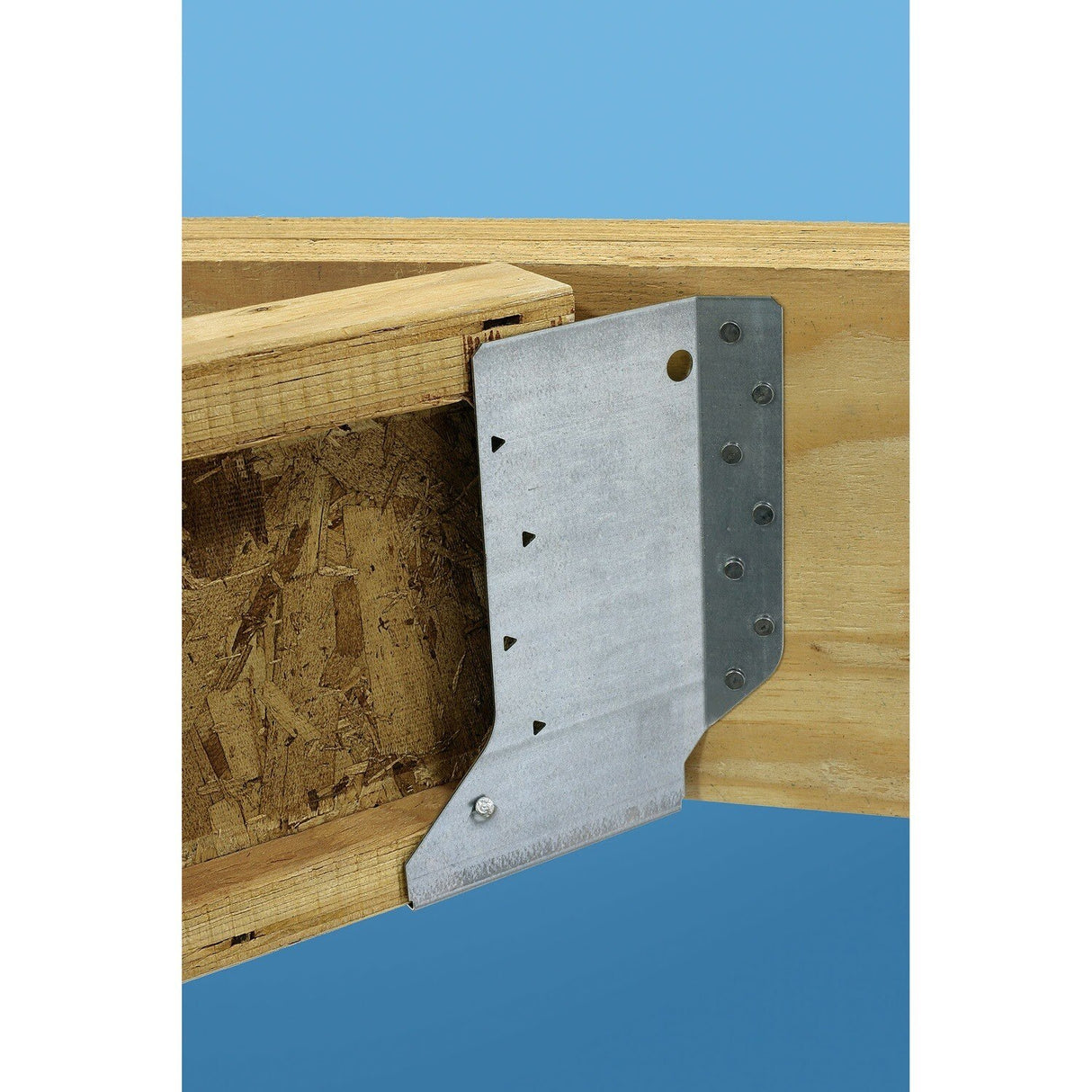

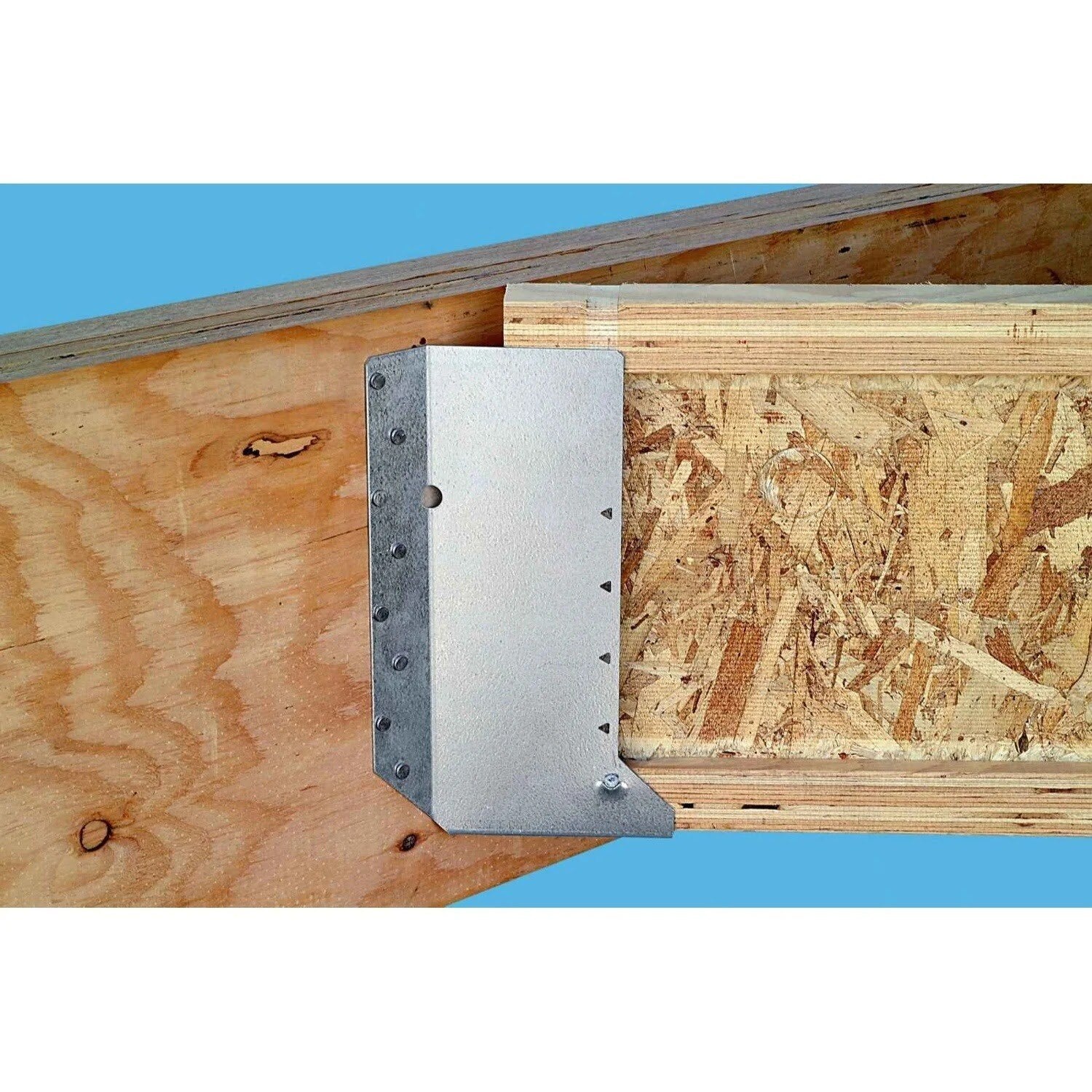

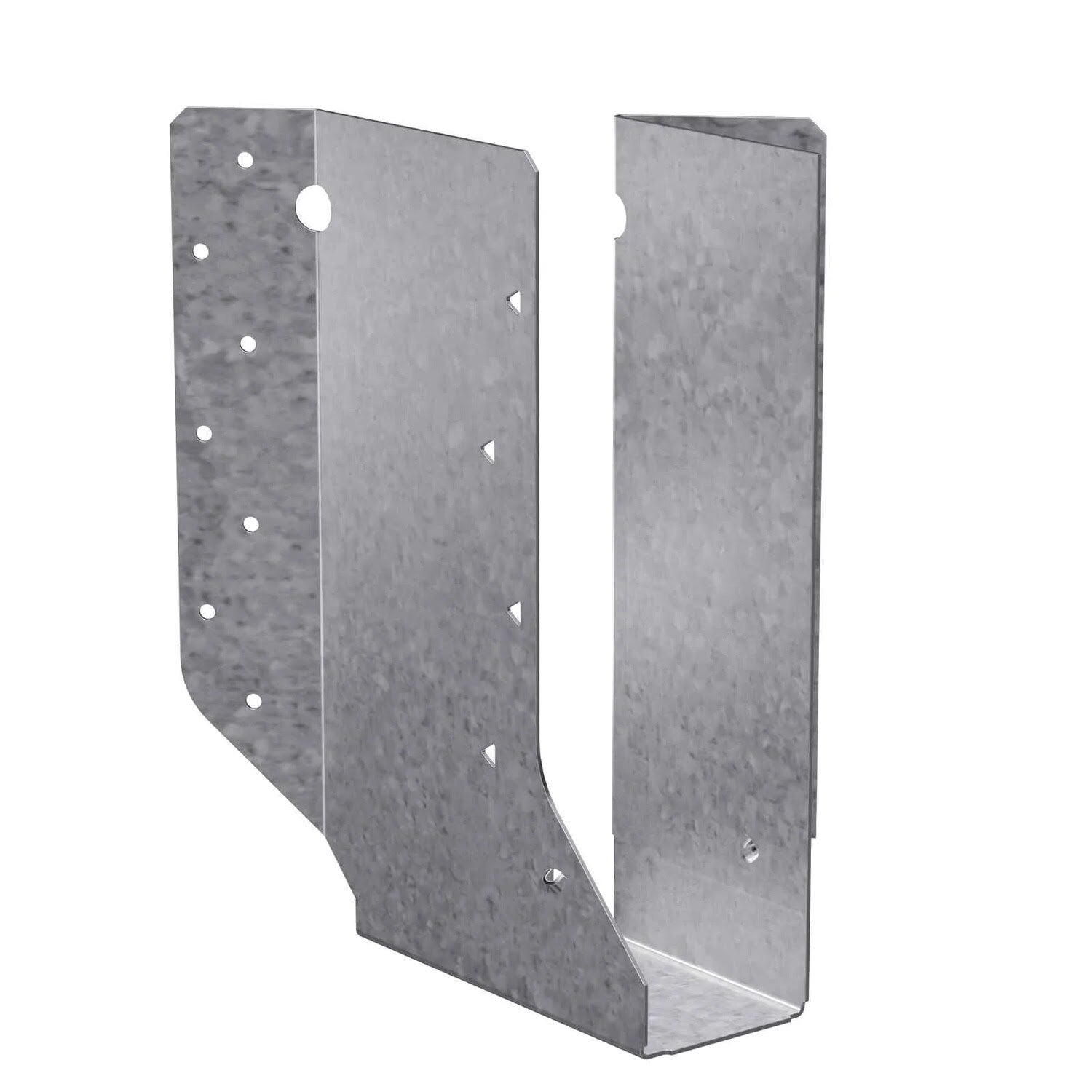

The Simpson SUR2.1/9 Right Skewed Joist Hanger is designed for secure angled connections in engineered wood and solid sawn lumber applications.
Simpson Strong-Tie SUR2.1/9 Includes
- (1) SUR2.1/9 Right Skewed Joist Hanger
Simpson Strong-Tie SUR2.1/9 Features
- Right-skewed design for angled joist connections
- G90 galvanized coating for corrosion resistance
- Compatible with engineered wood and solid sawn lumber
- Pre-punched nail and screw holes for easy installation
- Made from 16-gauge carbon steel
Simpson Strong-Tie SUR2.1/9 Applications
- Angled joist connections in decks, floors, and framing projects
- Structural reinforcement where skewed hanger support is required
- Residential and commercial wood construction
Simpson Strong-Tie SUR2.1/9 Installation Overview
- Use all specified fasteners as per guidelines
- Ensure joist ends are square or bevel cut
- Fill all nail holes with specified fasteners for optimal load capacity
- For I-joists with flanges less than 1 5/16", use web stiffeners
Simpson Strong-Tie SUR2.1/9 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 16 Gauge |
| Width | 2-1/8" |
| Height | 9-1/16" |
| Type | Right Skewed |
| Joist size | 2-1/16" X 9-1/2" |
| Fasteners required | Face - (14) 0.162" x 3-1/2" Nails OR (14) SD9112 Screws; Joist - (2) 0.148" x 1-1/2" Nails OR (2) SD9112 Screws |
Toolup Part # :
823937
