Simpson Hangers | SKU:
SUR2.37/11

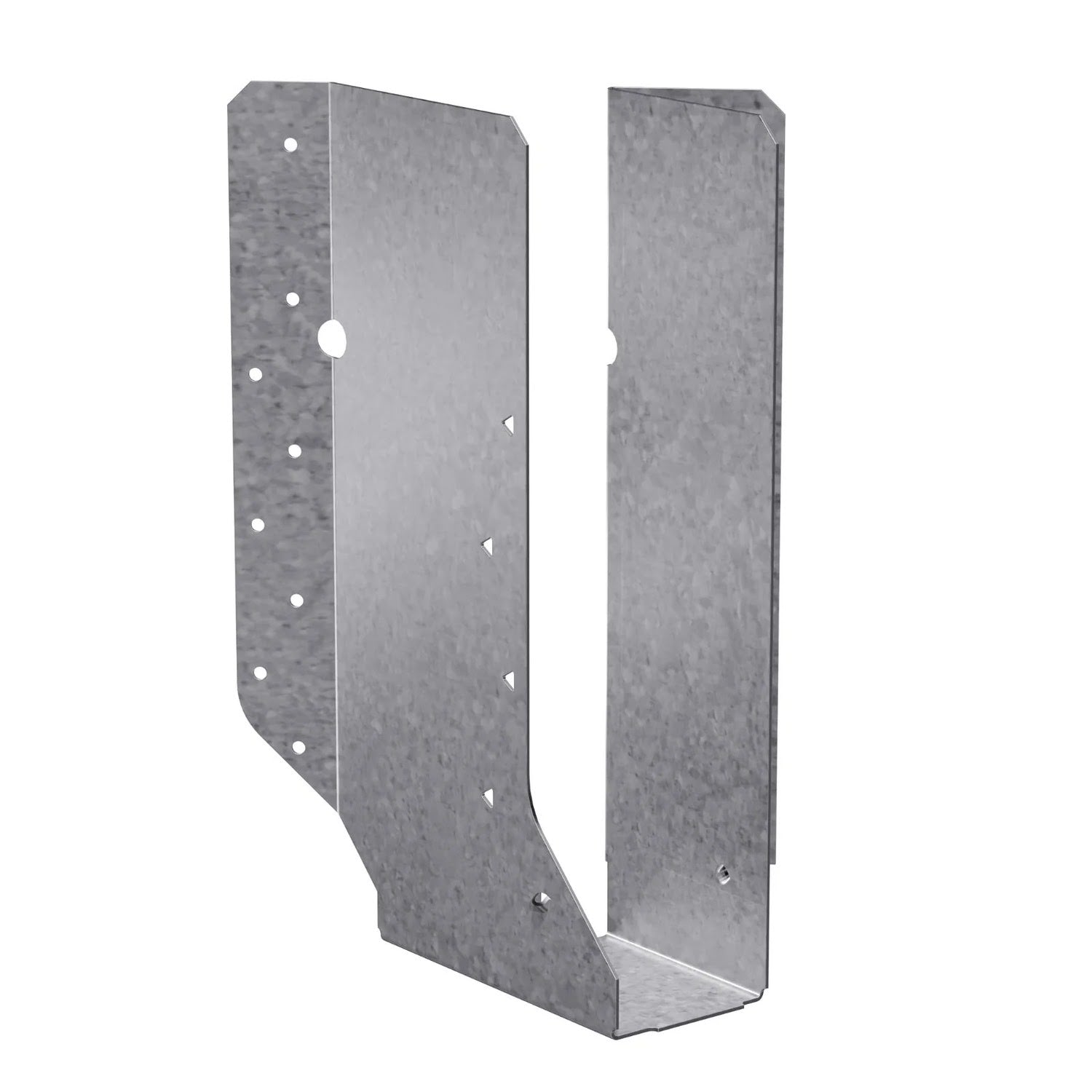

Simpson Strong-Tie SUR2.37/11 (2-1/4 to 2-5/16" x 11-7/8") Galvanized Right-Skewed U-Shaped Hanger
$27.72
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SUR2.37/11 Description
The Simpson SUR2.37/11 Right Skewed Joist Hanger is designed for secure angled connections in engineered wood applications, offering high strength and corrosion resistance.
Simpson Strong-Tie SUR2.37/11 Includes
- (1) Right Skewed Joist Hanger
Simpson Strong-Tie SUR2.37/11 Features
- Right-skewed design for angled joist connections
- G90 galvanized coating for corrosion resistance
- Compatible with solid sawn lumber and engineered wood
- Pre-punched nail and screw holes for easy installation
- Made from 16-gauge carbon steel
Simpson Strong-Tie SUR2.37/11 Applications

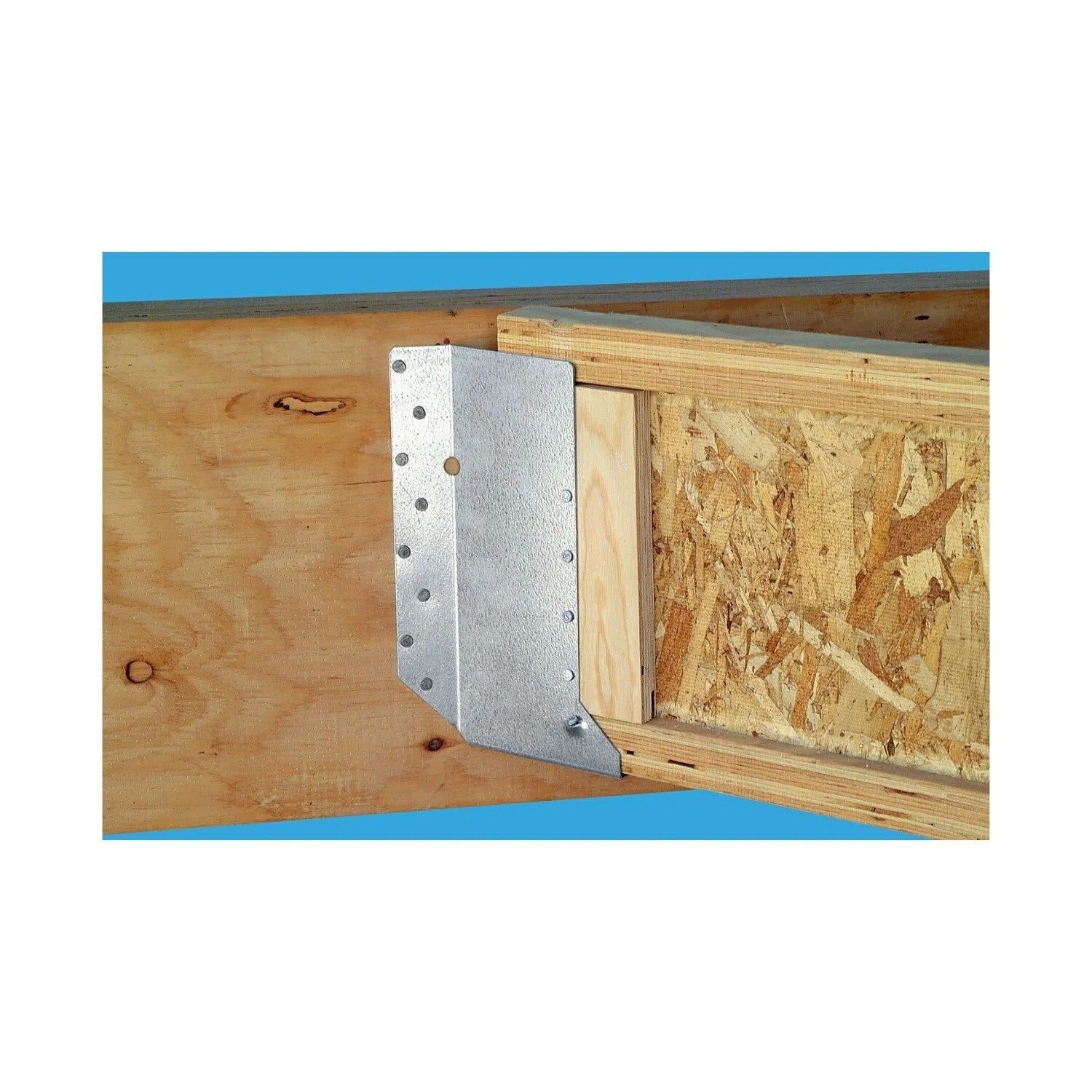

- Angled joist connections in decks, floors, and framing projects
- Structural reinforcement requiring skewed hanger support
- Residential and commercial wood construction
Simpson Strong-Tie SUR2.37/11 Installation Overview
- Use all specified fasteners as per guidelines
- Ensure joist ends are square or bevel cut
- Fill all nail holes with specified fasteners for optimal load capacity
- For I-joists with flanges less than 1 5/16", use web stiffeners
Simpson Strong-Tie SUR2.37/11 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 16 Gauge |
| Width | 2-3/8" |
| Height | 11-3/16" |
| Type | Right Skewed |
| Joist size | 2-1/4" X 11-7/8" |
| Fasteners required | Face - (16) 0.162" x 3-1/2" Nails OR (16) SD9112 Screws; Joist - (2) 0.148" x 1-1/2" Nails OR (2) SD9112 Screws |
