Simpson Hangers | SKU:
SUR2.56/14

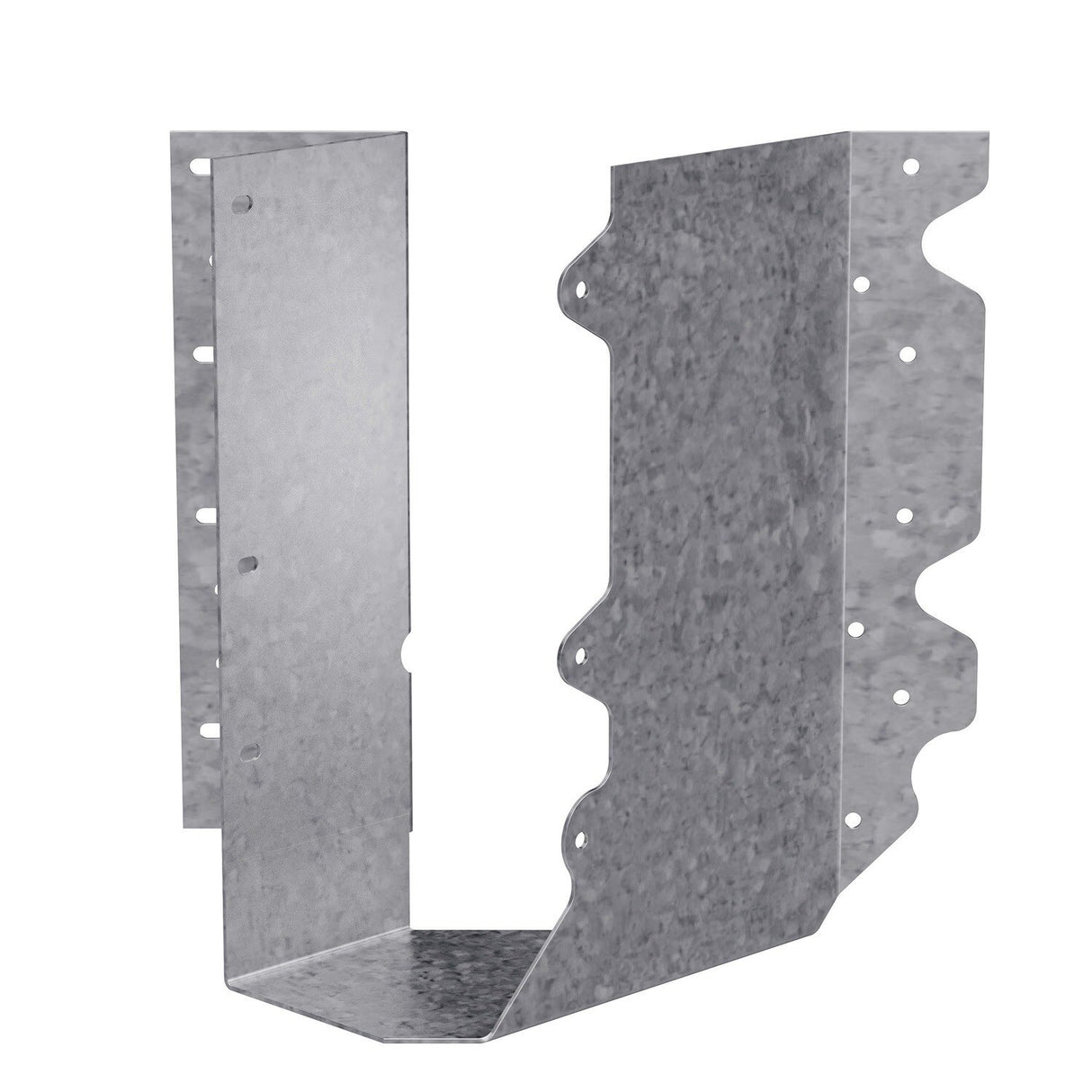

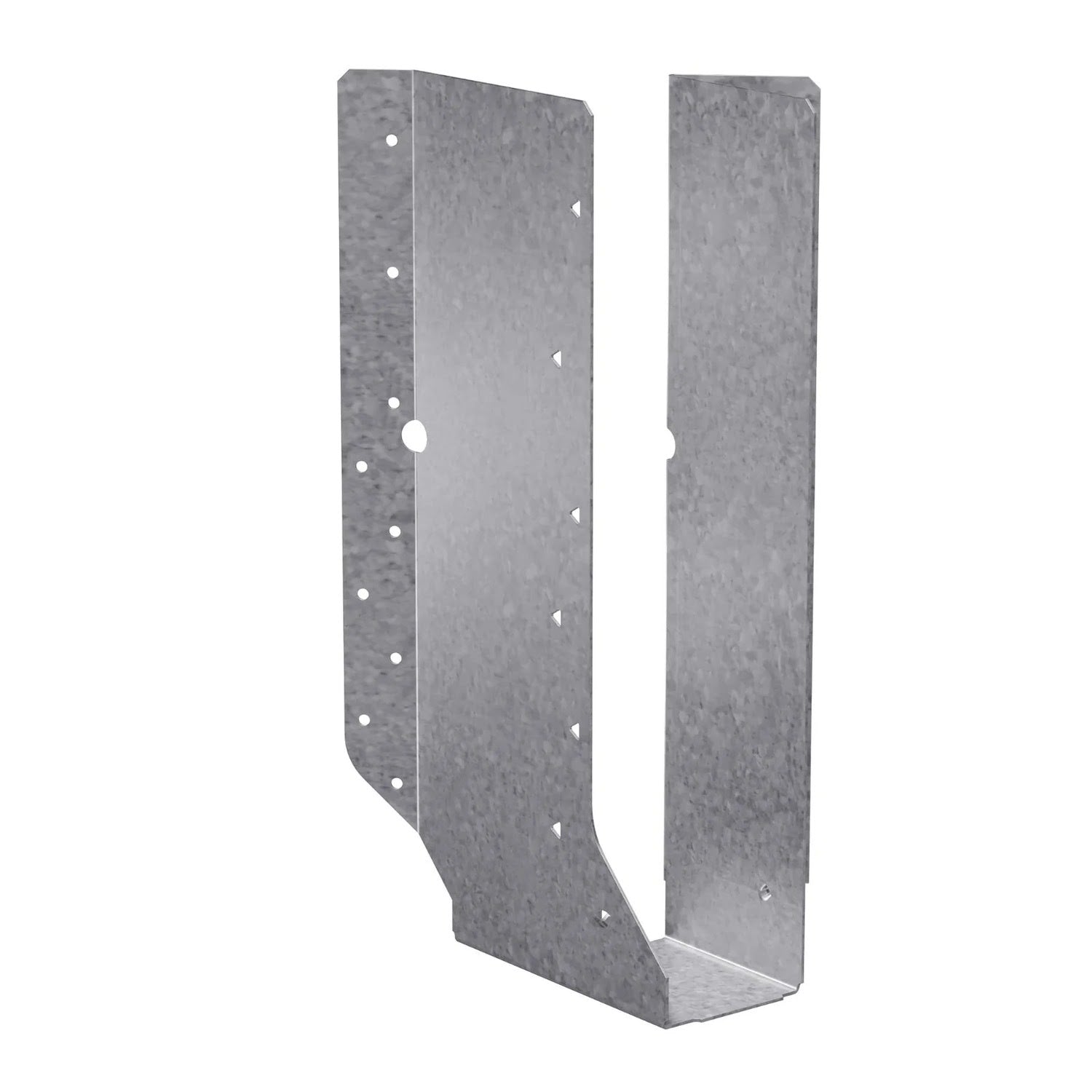

Simpson SUR2.56/14 Strong-Tie Joist Hanger for Engineered Wood
$32.10
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SUR2.56/14 Description
The Simpson SUR2.56/14 Right Skewed Joist Hanger is designed for secure angled connections in engineered wood applications, offering high strength and corrosion resistance.
Simpson Strong-Tie SUR2.56/14 Includes
- (1) Right Skewed Joist Hanger
Simpson Strong-Tie SUR2.56/14 Features
- Right-skewed design for angled joist connections
- G90 galvanized coating for corrosion resistance
- Precision U-shaped wrap for enhanced stability
- Compatible with solid sawn lumber and engineered wood
- Pre-punched nail and screw holes for easy installation
Simpson Strong-Tie SUR2.56/14 Applications

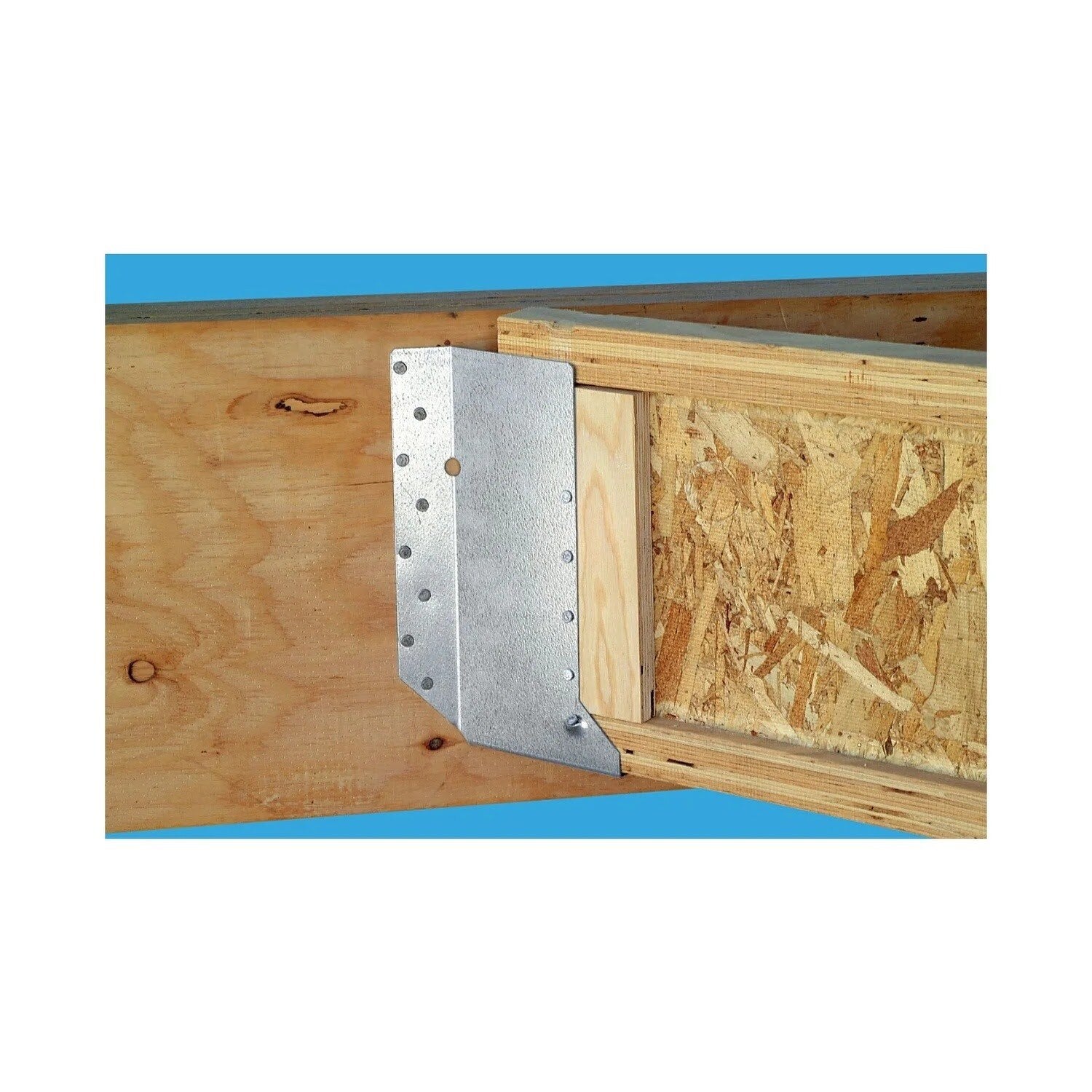

- Angled joist connections in decks, floors, and framing projects
- Structural reinforcement where skewed hanger support is required
- Residential and commercial wood construction requiring high-strength connectors
Simpson Strong-Tie SUR2.56/14 Installation Overview
- Use all specified fasteners as per guidelines.
- Ensure joist ends are square or bevel cut.
- Fill all nail holes with specified fasteners for optimal load capacity.
- For I-joists with flanges less than 1 5/16", use web stiffeners for double joist hangers.
Simpson Strong-Tie SUR2.56/14 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 16 Gauge |
| Width | 2-9/16" |
| Height | 13-5/16" |
| Joist size | 2-1/2" X 14" |
| Fasteners required | Face - (18) 0.162" x 3-1/2" Nails OR (18) SD9112 Screws, Joist - (2) 0.148" x 1-1/2" Nails OR (2) SD9112 Screws |
| For Treated Lumber | No |
