Simpson Hangers | SKU:
SUR2.56/9

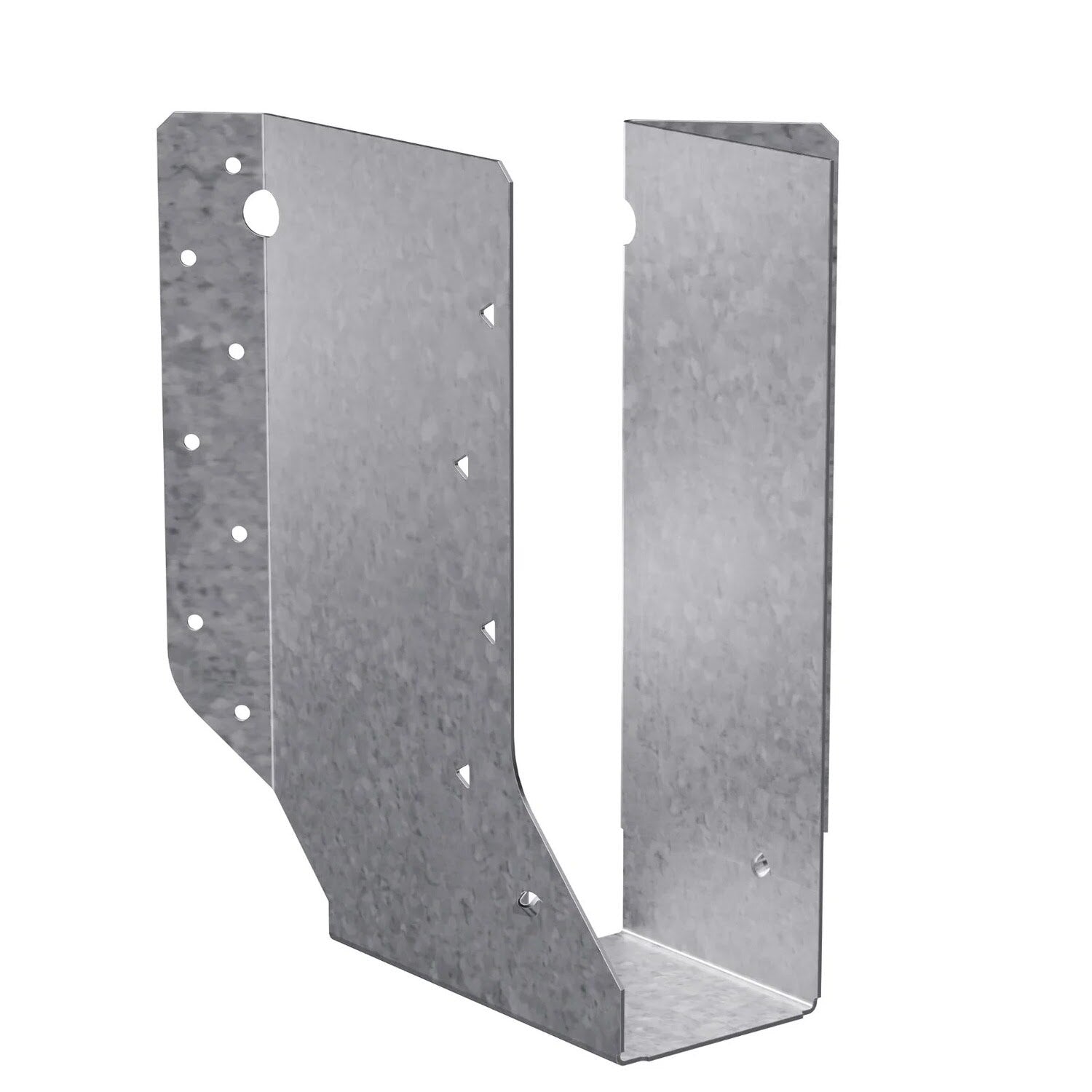

Simpson Strong-Tie SUR2.56/9 (2-1/2" x 9-1/2") Galvanized Right-Skewed U-Shaped Hanger
$24.02
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SUR2.56/9 Description
The Simpson SUR2.56/9 Joist Hanger is designed for secure connections in skewed joist applications, offering high structural integrity and corrosion resistance.
Simpson Strong-Tie SUR2.56/9 Includes
- (1) SUR2.56/9 Joist Hanger
Simpson Strong-Tie SUR2.56/9 Features
- Right-Skewed Design for angled joist connections
- G90 Galvanized Coating for corrosion resistance
- Precision U-Shaped Wrap for enhanced stability
- Versatile Compatibility with solid sawn lumber and engineered wood
- Pre-Punched Nail & Screw Holes for easy installation
Simpson Strong-Tie SUR2.56/9 Applications

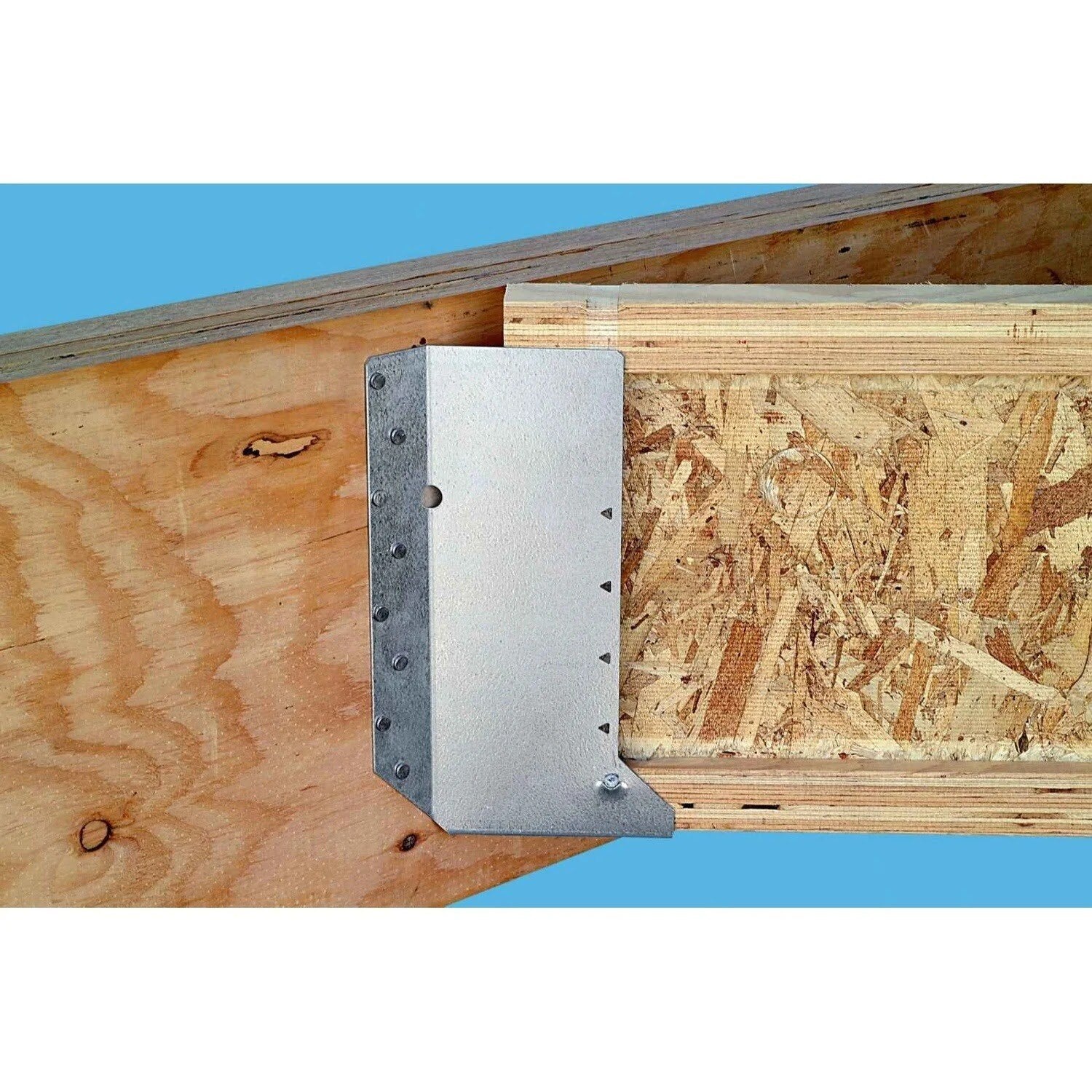

- Angled Joist Connections in decks, floors, and framing projects
- Structural Reinforcement where skewed hanger support is required
- Residential & Commercial Wood Construction requiring high-strength connectors
Simpson Strong-Tie SUR2.56/9 Installation Overview
- Use all specified fasteners as per guidelines.
- Ensure joist ends are square or bevel cut.
- Fill all nail holes with specified fasteners to achieve table loads.
- For I-joists with flanges less than 1 5/16", use web stiffeners for double joist hangers.
Simpson Strong-Tie SUR2.56/9 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (14) 0.162" x 3-1/2" Nails OR (14) SD9112 Screws, Joist - (2) 0.148" x 1-1/2" Nails OR (2) SD9112 Screws |
| For Treated Lumber | No |
| Height | 8-13/16" |
| Joist size | 3" X 10" |
| Thickness | 16 Gauge |
| Type | Right Skewed |
| Width | 2-9/16" |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values.
