Simpson Hangers | SKU:
SUR210-2Z

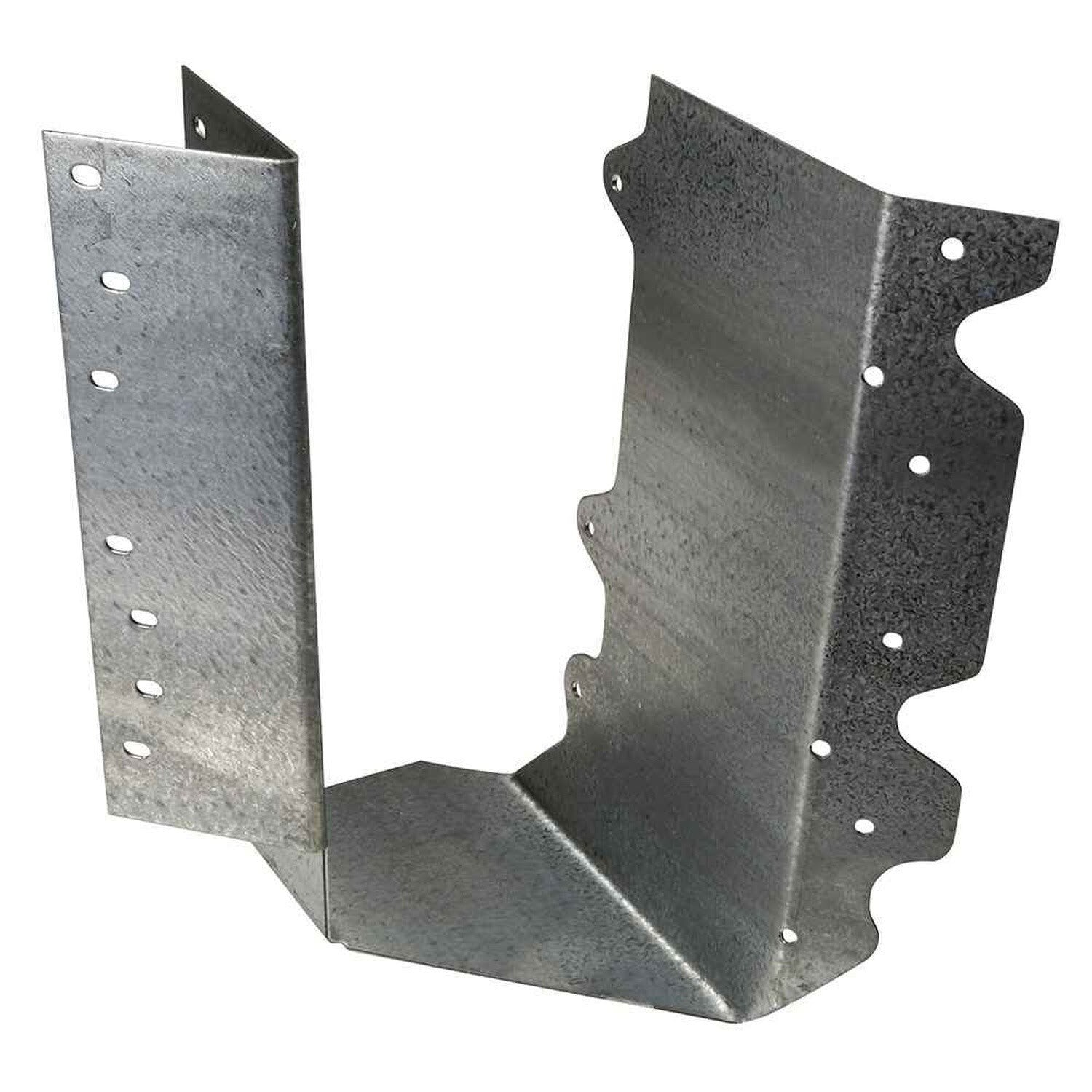

Simpson Strong-Tie SUR210-2Z (Double 2" x 10") Galvanized Right-Skewed U-Shaped Hanger
$37.65
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SUR210-2Z Description
The Simpson SUR210-2Z Joist Hanger is designed for secure, high-load wood-to-wood connections with a 45-degree right skew, ideal for decks, pergolas, and other structural framing projects.
Simpson Strong-Tie SUR210-2Z Includes
- (1) Joist Hanger
Simpson Strong-Tie SUR210-2Z Features
- ZMAX Galvanized Finish for corrosion resistance
- 45-Degree Right Skew for precise angled installations
- Heavy-Gauge Steel for durability and high-load capacity
- Reinforced U-Shaped Design for stability and weight distribution
- Compatible with Solid Sawn Lumber & Engineered Wood
Simpson Strong-Tie SUR210-2Z Applications
- Decks & Outdoor Structures: Provides a strong, skewed connection for deck joists, pergolas, and pavilions.
- Roof Framing: Ideal for hip and valley rafter connections where angled joists are required.
- Floor Systems: Ensures stability in framed floor structures with non-standard joist orientations.
- Engineered Wood Construction: Compatible with LVL, PSL, and other engineered wood framing.
Simpson Strong-Tie SUR210-2Z Installation Overview
- Use 10d or 16d common nails for solid sawn lumber.
- Use SDS Heavy-Duty Connector screws for engineered wood.
- Secure the hanger to the supporting beam using all pre-punched holes.
- Ensure the joist is fully seated within the hanger.
- Pre-drill when attaching to dense engineered wood to prevent splitting.
Simpson Strong-Tie SUR210-2Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (14) 0.162" x 3-1/2" Nails OR (14) SD9112 Screws, Joist - (6) 0.162" x 2-1/2" Nails OR (6) SD9112 Screws |
| For Treated Lumber | Yes |
| Height | 8-11/16" |
| Joist size | Double 2" X 10" |
| Thickness | 16 Gauge |
| Type | Right Skewed |
| Width | 3-1/8" |
