Simpson Hangers | SKU:
SUR210Z
Simpson Strong-Tie SUR210Z (2" x 10") 45 Degree Joist Hanger Skewed Right ZMAX Finish
$18.94
Unit price
/
Unavailable
Description
Description
Simpson SUR210Z Description

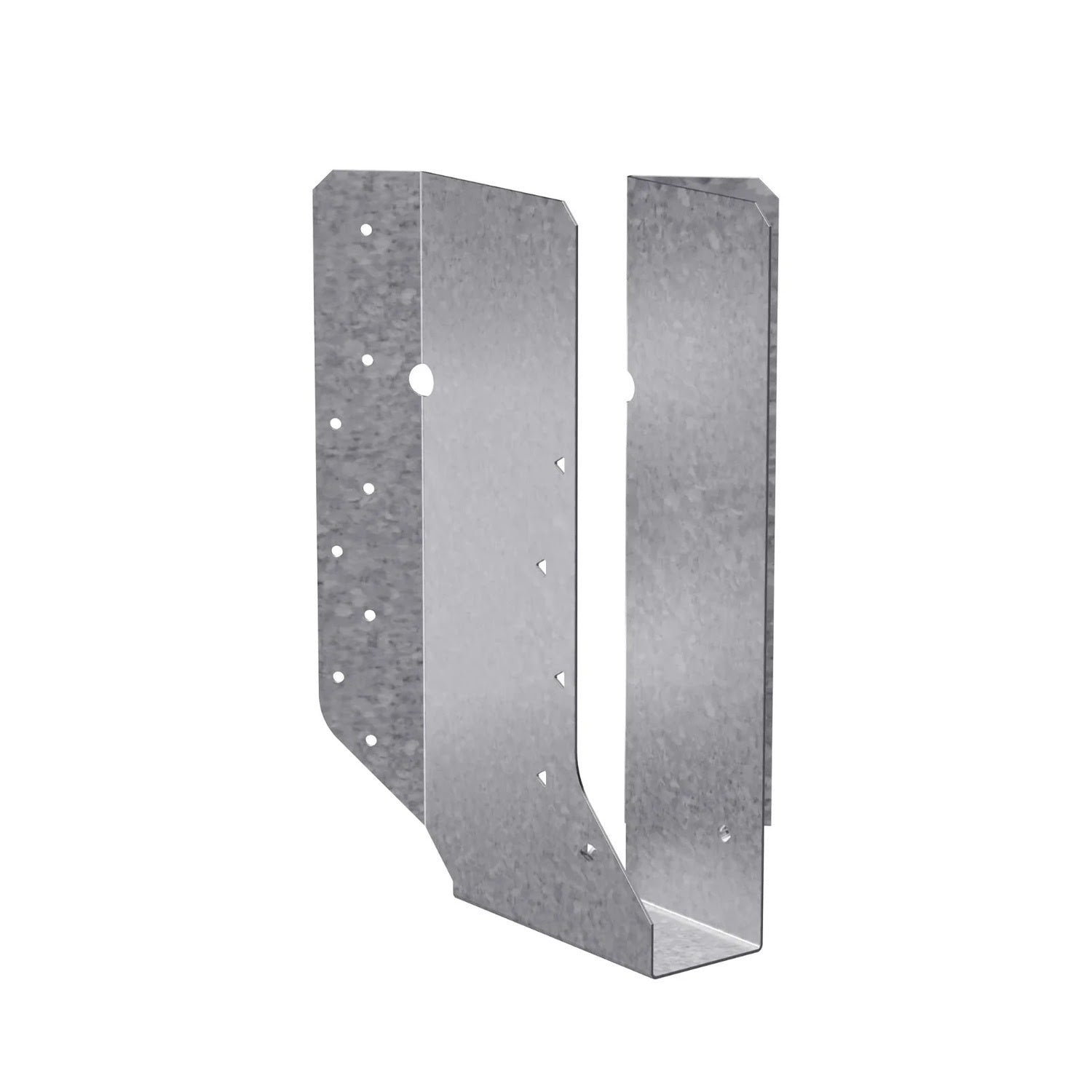

The Simpson SUR210Z Joist Hanger is designed for secure wood-to-wood connections with a 45-degree skew, featuring a ZMAX galvanized finish for enhanced corrosion resistance.
Simpson SUR210Z Includes
- (1) 45 Degree Joist Hanger Skewed Right ZMAX Finish for 2x10 Joists
Simpson SUR210Z Features
- ZMAX Galvanized Finish for corrosion resistance
- 45-Degree Right Skew for angled installations
- Heavy-Gauge Steel for durability
- Reinforced U-Shaped Design for stability
- Compatible with Solid Sawn Lumber & Engineered Wood
Simpson SUR210Z Applications
- Decks & Outdoor Structures: Provides strong connections for deck joists, pergolas, and pavilions.
- Roof Framing: Ideal for hip and valley rafter connections.
- Floor Systems: Ensures stability in framed floor structures.
- Engineered Wood Construction: Compatible with LVL, PSL, and other engineered wood framing.

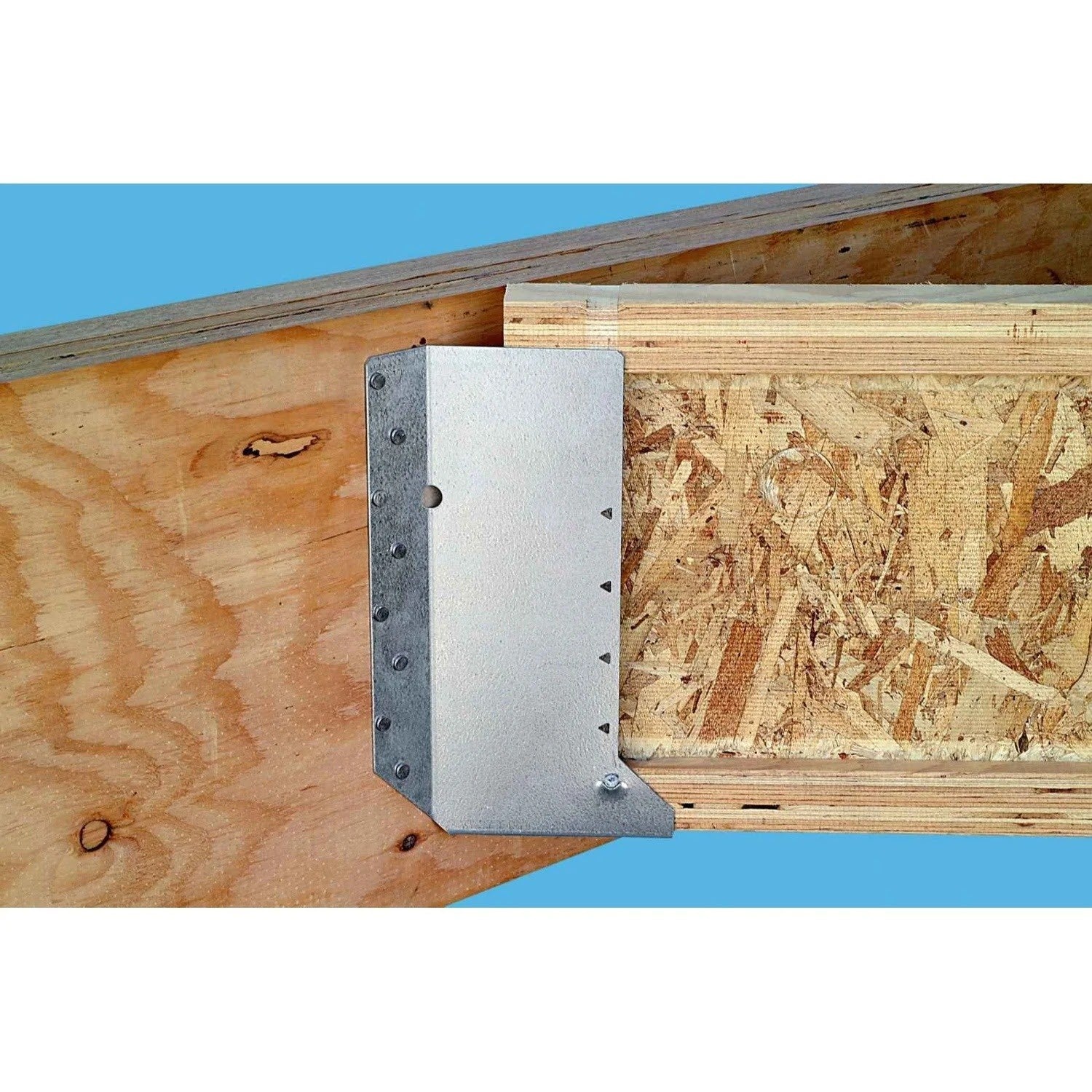

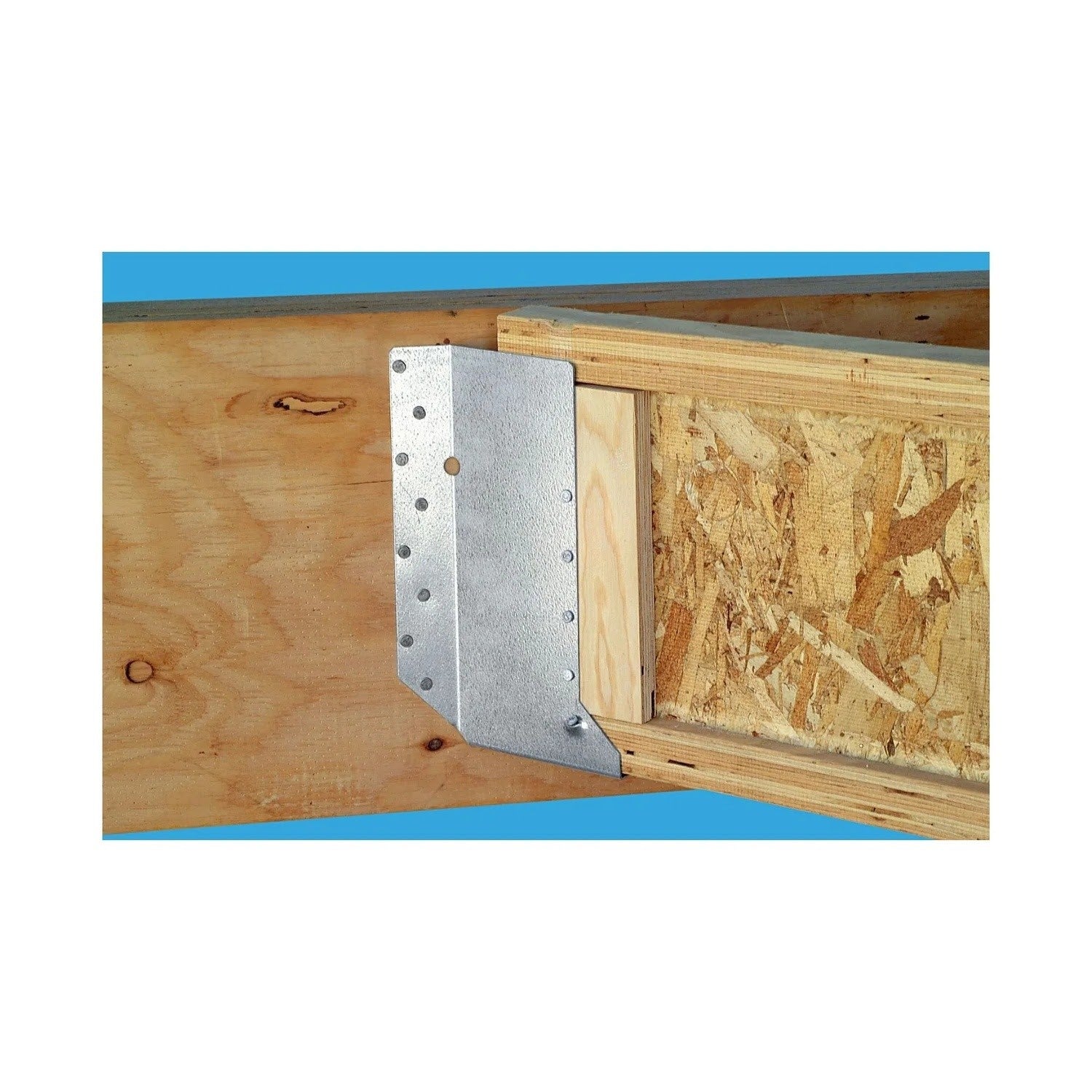

Simpson SUR210Z Installation Overview
- Use 10d or 16d common nails for solid sawn lumber.
- Use SDS Heavy-Duty Connector screws for engineered wood.
- Secure the hanger to the beam using all pre-punched holes.
- Ensure the joist is fully seated within the hanger.
- Pre-drill when attaching to dense engineered wood to prevent splitting.
Simpson SUR210Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (10) 0.162" x 3-1/2" Nails OR (10) SD9112 Screws, Joist - (10) 0.148" x 1-1/2" Nails OR (10) SD9112 Screws |
| For Treated Lumber | Yes |
| Height | 8-1/8" |
| Joist size | 2" X 10" |
| Thickness | 16 Gauge |
| Type | Right Skewed |
| Width | 1-9/16" |
NOTE: Ensure the joist is fully seated within the hanger for a snug and secure fit.
