Simpson Hangers | SKU:
SUR26-2
Simpson Strong-Tie SUR26-2 (Double 2x6) Galvanized Right-Skewed U-Shaped Hanger
$22.85
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SUR26-2 Description

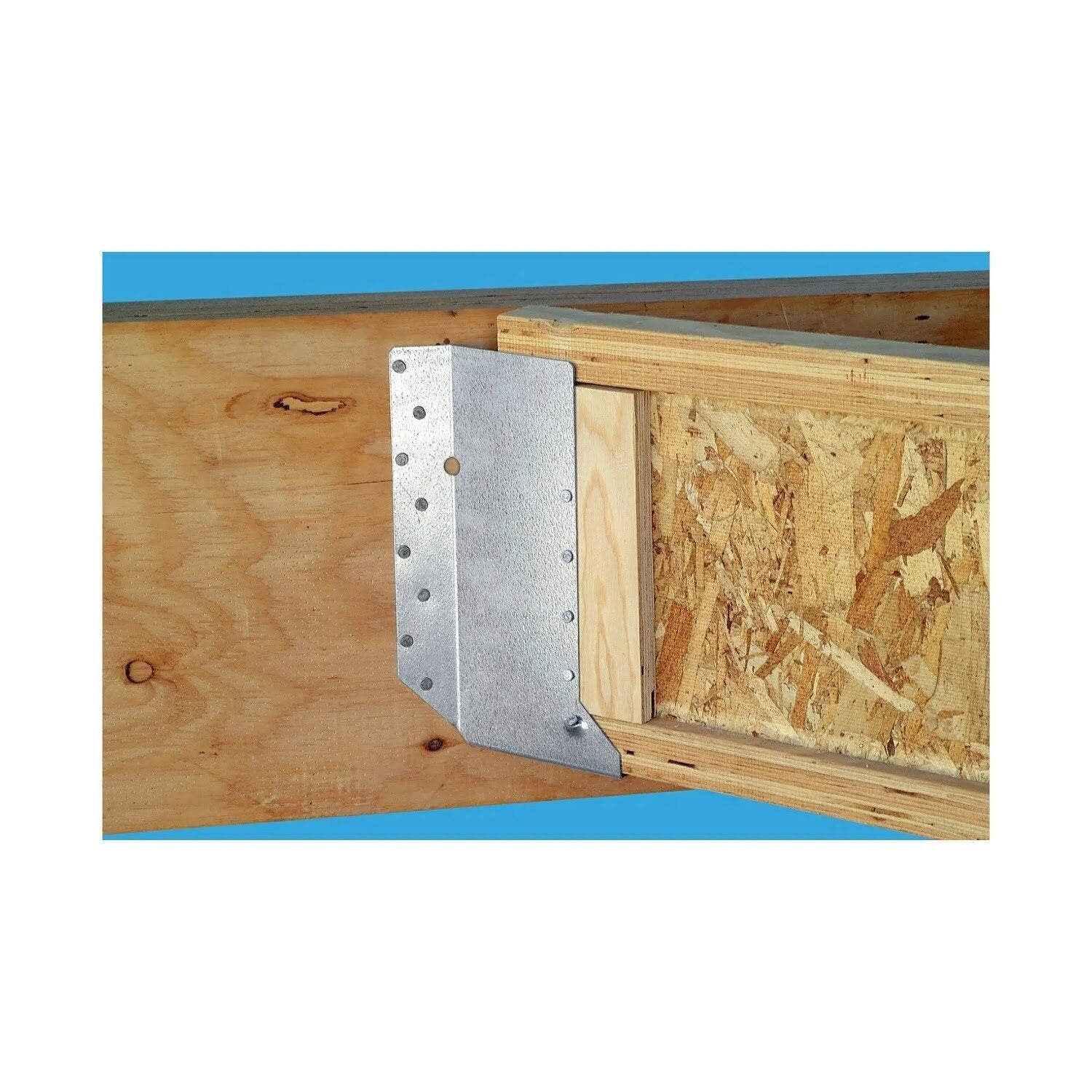

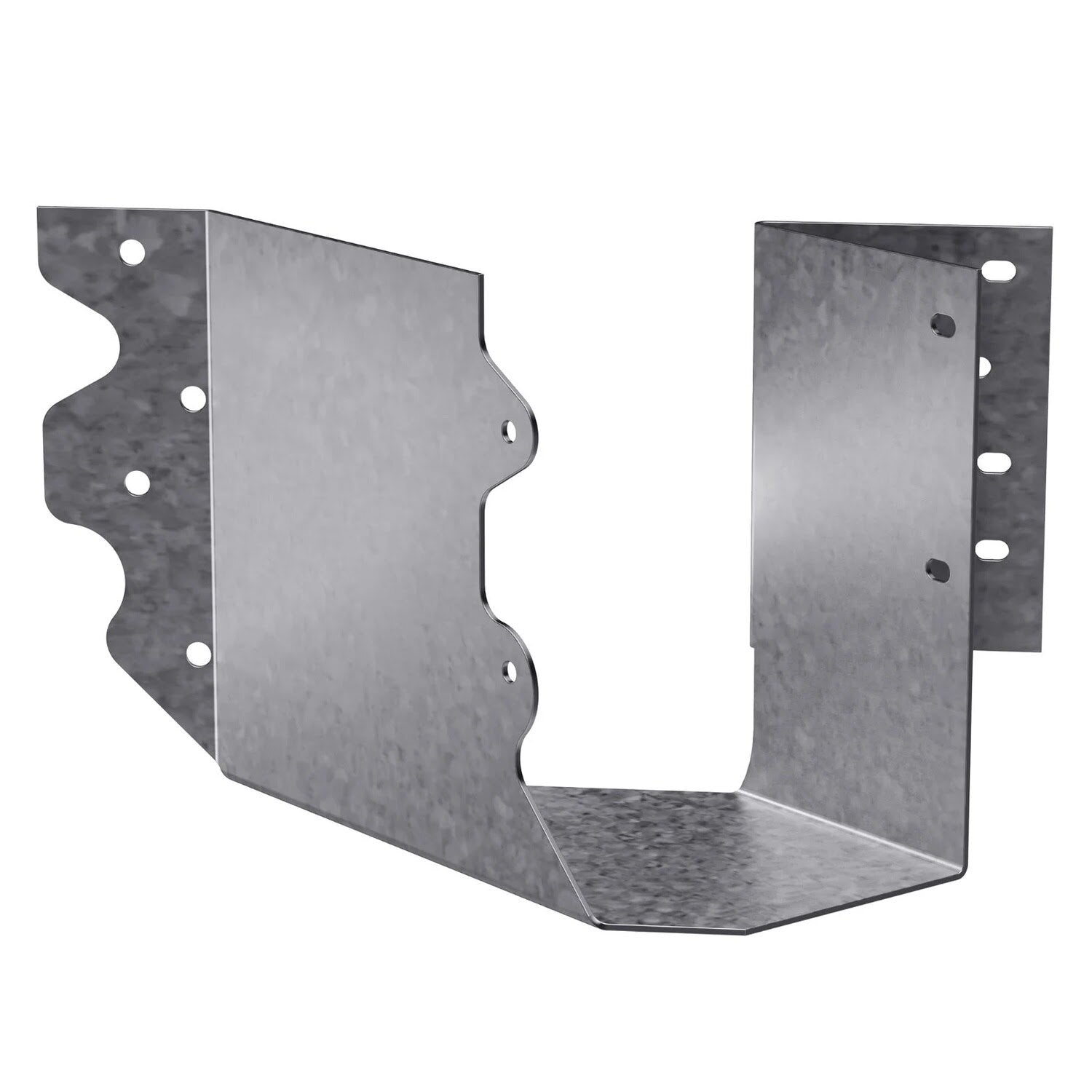

The Simpson SUR26-2 Joist Hanger is designed for secure connections of double 2x6 joists at a rightward skew, ensuring structural integrity and ease of installation.
Simpson Strong-Tie SUR26-2 Includes
- (1) SUR26-2 Joist Hanger
Simpson Strong-Tie SUR26-2 Features
- Right-Skewed Design for optimized load distribution
- G90 Galvanized Coating for superior corrosion resistance
- Precision U-Shaped Wrap for enhanced stability
- Versatile Compatibility with solid sawn lumber and engineered wood
- Pre-Punched Nail & Screw Holes for easy installation
Simpson Strong-Tie SUR26-2 Applications
- Angled Joist Connections in decks, floors, and framing projects
- Structural Reinforcement where skewed hanger support is required
- Residential & Commercial Wood Construction requiring high-strength connectors
Simpson Strong-Tie SUR26-2 Installation Overview
- Use all specified fasteners as per guidelines
- Ensure joist ends are square or bevel cut
- Fill all nail holes with specified fasteners to achieve table loads
- For I-joists with flanges less than 1 5/16", use web stiffeners for double joist hangers
Simpson Strong-Tie SUR26-2 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (8) SD9112 Screws, Joist - (4) SD9112 Screws |
| For Treated Lumber | No |
| Height | 4-15/16" |
| Joist size | Double 2" X 6" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Type | Right Skewed |
| Width | 3-1/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
