Simpson Hangers | SKU:
SUR410

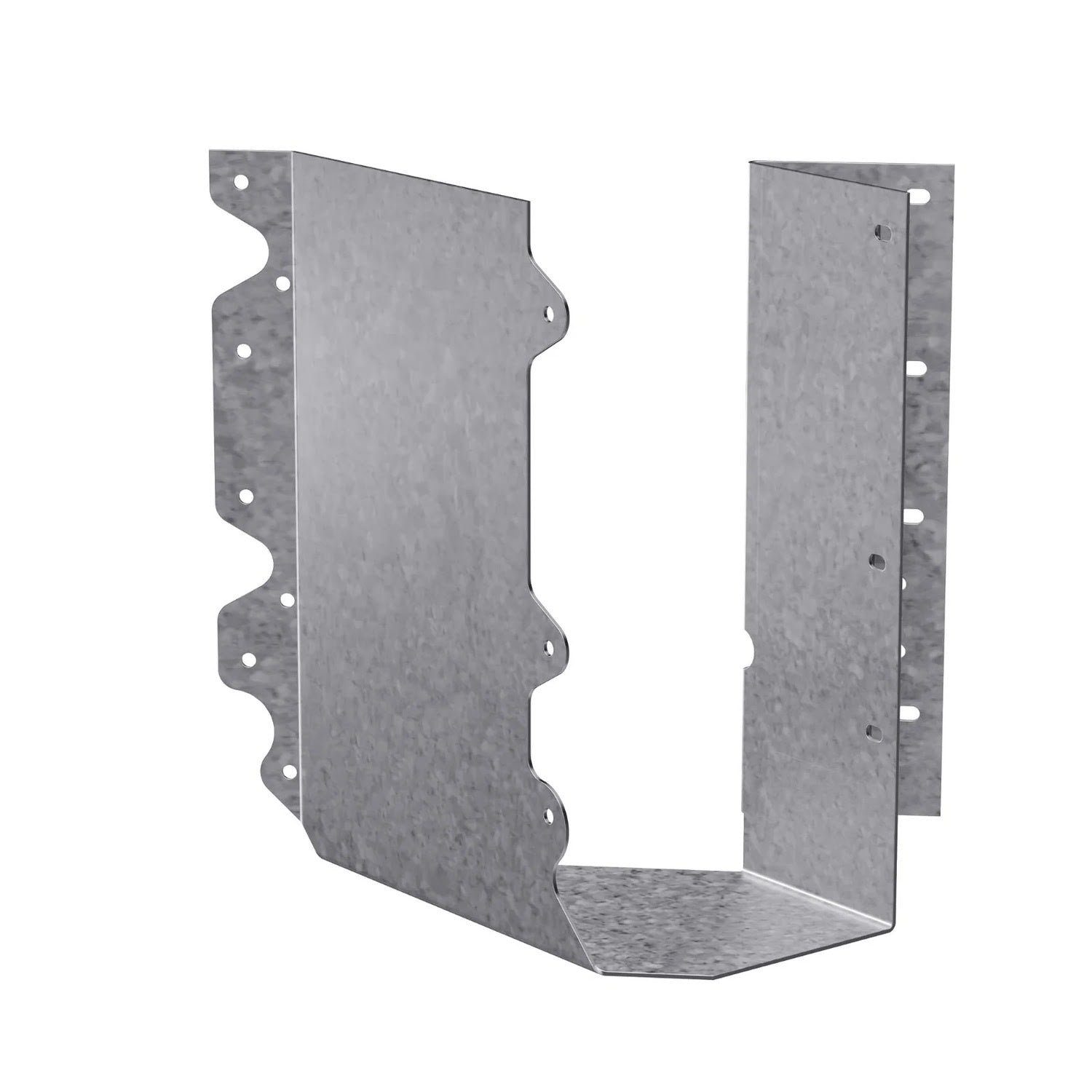

Simpson Strong-Tie SUR410 (4x10) Galvanized Right-Skewed U-Shaped Hanger
$26.50
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SUR410 Description
The Simpson SUR410 Joist Hanger is a right-skewed, galvanized steel connector designed for secure angled joist connections, offering high structural integrity and corrosion resistance.
Simpson Strong-Tie SUR410 Includes
- (1) Joist Hanger
Simpson Strong-Tie SUR410 Features
- Right-Skewed Design: Angled for secure connections where joists meet at a rightward skew, optimizing load distribution.
- G90 Galvanized Coating: Provides superior corrosion resistance, ideal for dry-service and protected exterior applications.
- Precision U-Shaped Wrap: Enhances stability and support, reducing movement under load.
- Versatile Compatibility: Suitable for solid sawn lumber and engineered wood, ensuring flexibility across multiple construction applications.
- Pre-Punched Nail & Screw Holes: Allows for easy installation with optimized fastener placement for maximum strength.
Simpson Strong-Tie SUR410 Applications

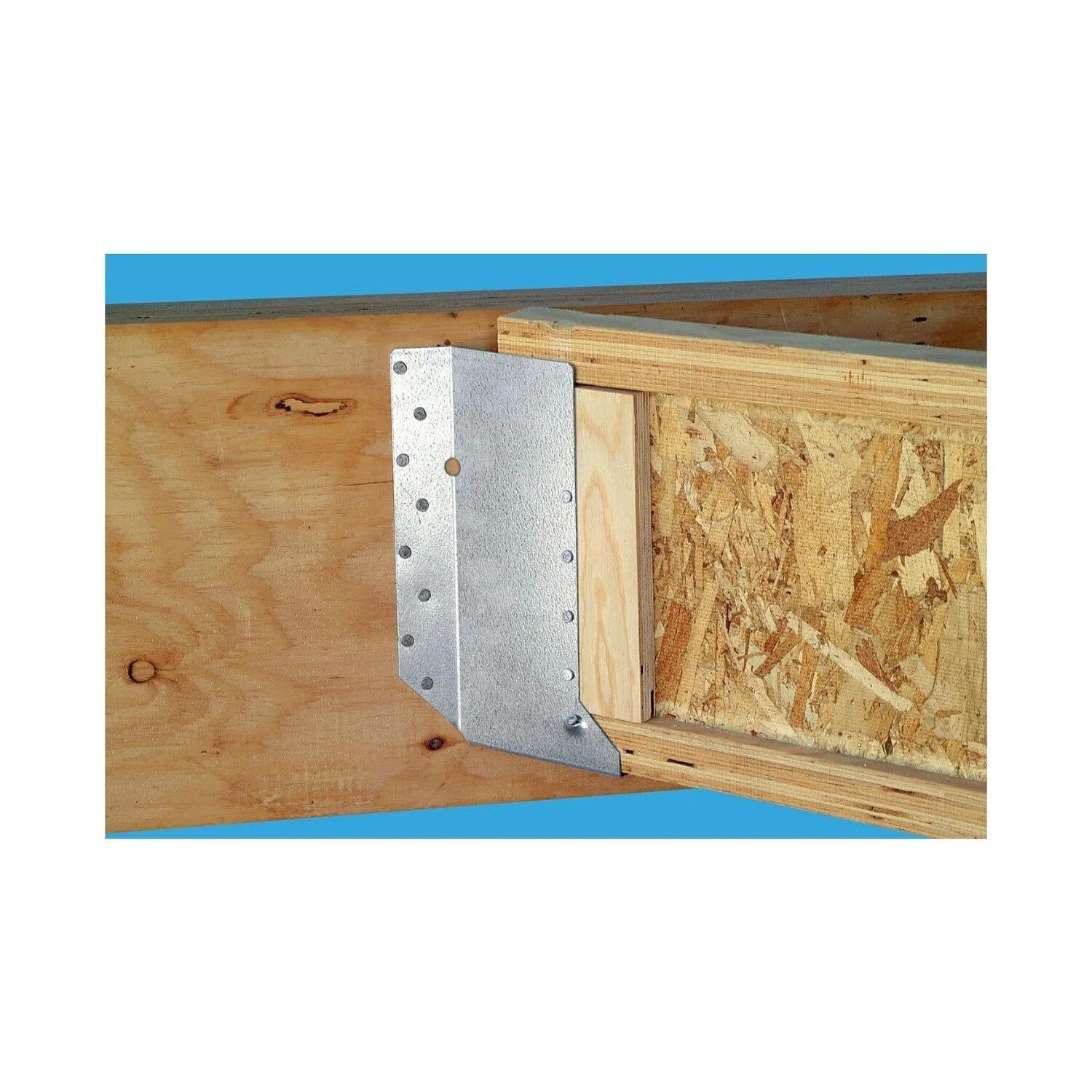

- Angled Joist Connections in decks, floors, and framing projects.
- Structural Reinforcement where skewed hanger support is required.
- Residential & Commercial Wood Construction requiring high-strength connectors.
Simpson Strong-Tie SUR410 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (14) 0.162" x 3-1/2" Nails OR (14) SD9112 Screws, Joist - (6) 0.162" x 3-1/2" Nails OR (6) SD9112 Screws |
| For Treated Lumber | No |
| Height | 8-1/2" |
| Joist size | 4" X 10" |
| Thickness | 16 Gauge |
| Type | Right Skewed |
| Width | 3-9/16" |
