Simpson Hangers | SKU:
SUR414
Simpson Strong-Tie SUR414 (4x14) Galvanized Right-Skewed U-Shaped Hanger
$39.38
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SUR414 Description

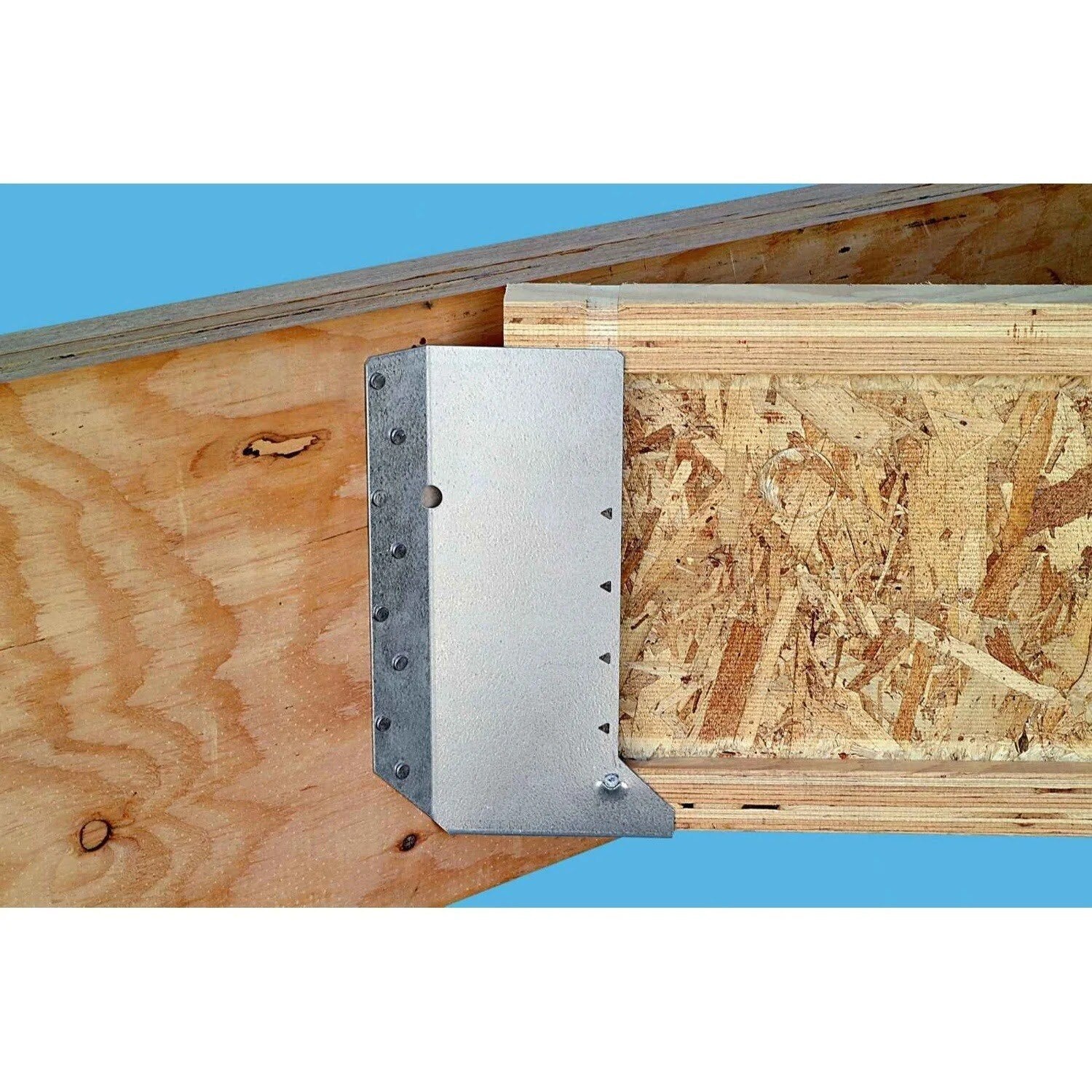

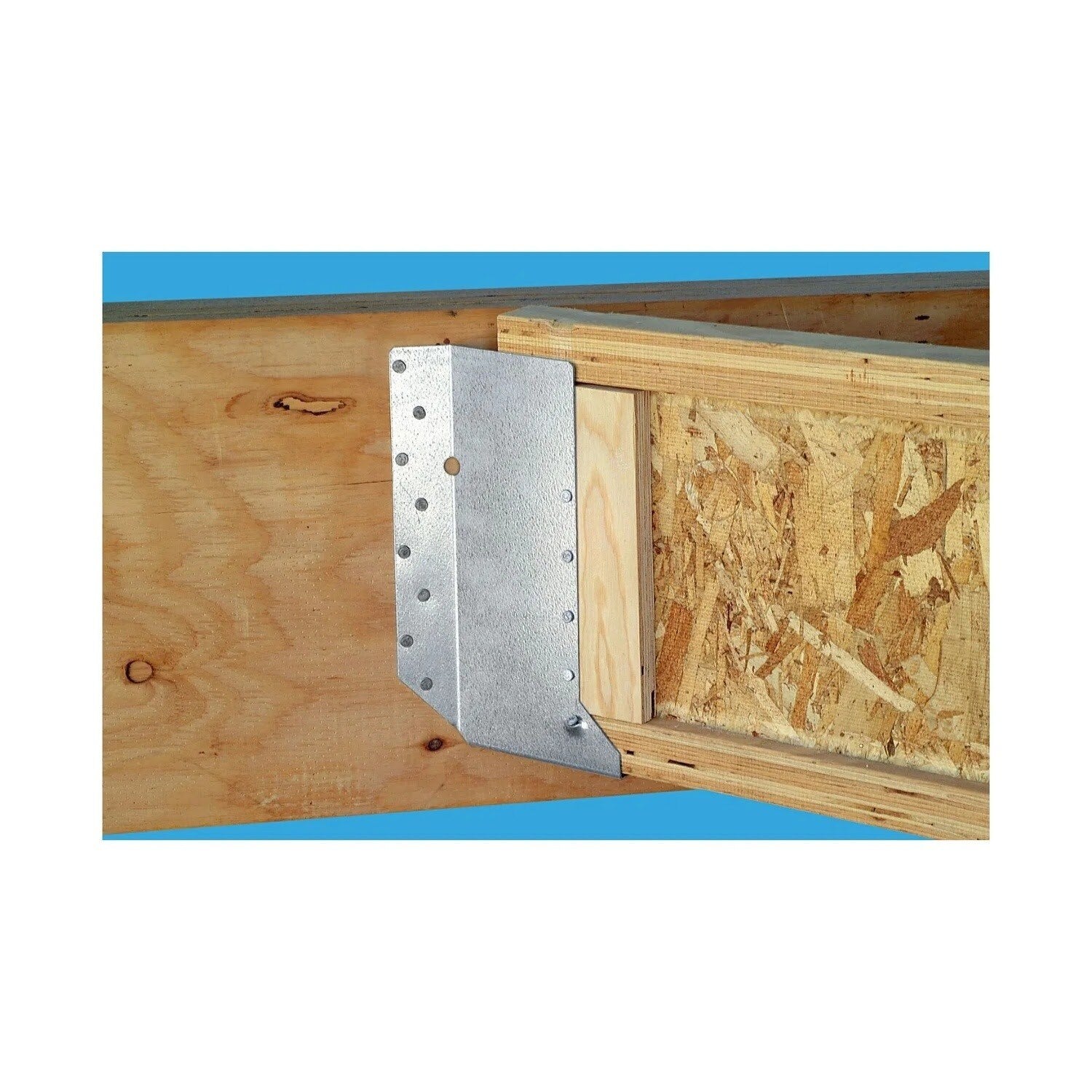

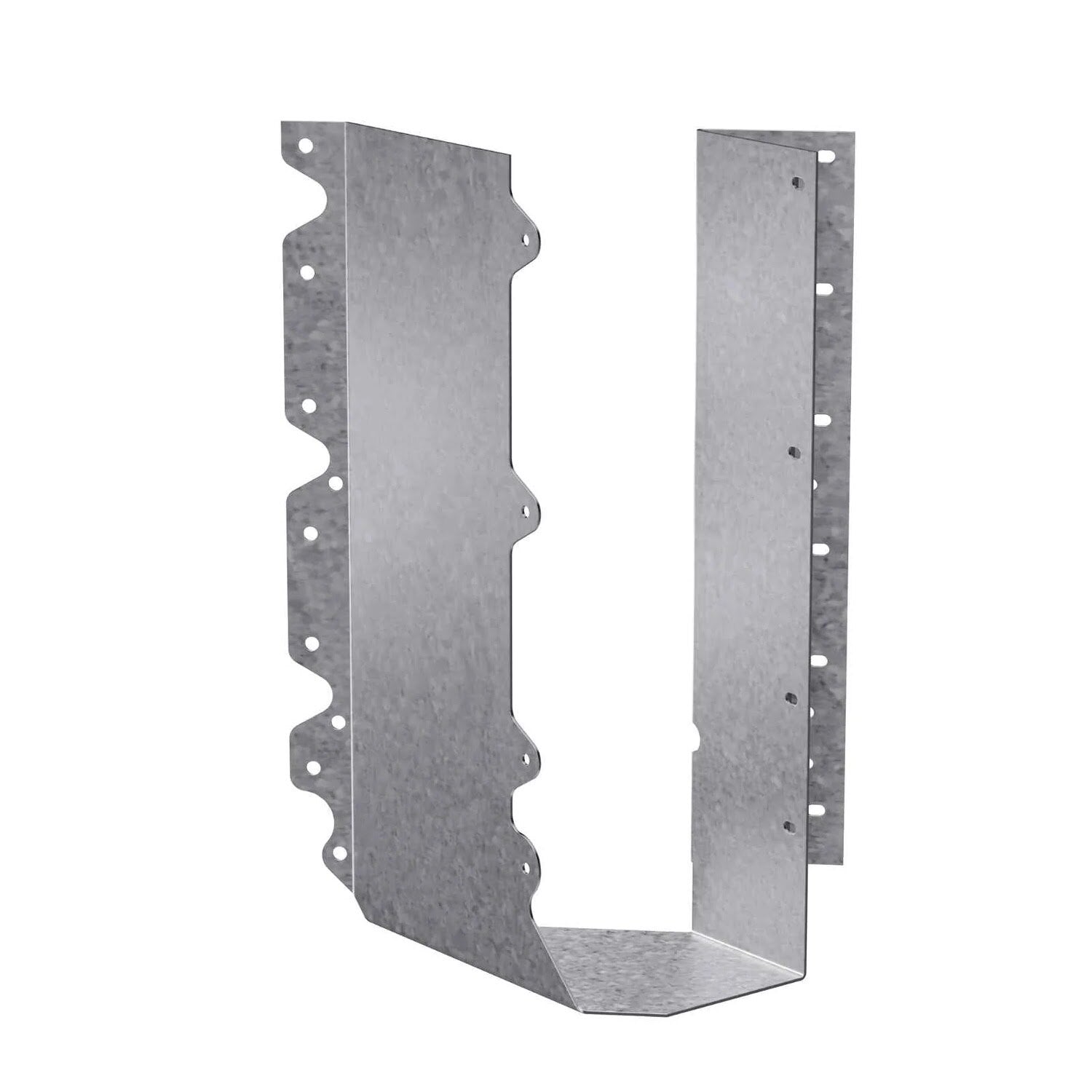

The Simpson SUR414 Joist Hanger is designed for secure right-skewed connections, supporting joists at an angle with high structural integrity.
Simpson Strong-Tie SUR414 Includes
- (1) SUR414 Joist Hanger
Simpson Strong-Tie SUR414 Features
- Right-skewed design for angled joist connections
- G90 galvanized coating for corrosion resistance
- Precision U-shaped wrap for enhanced stability
- Compatible with solid sawn lumber and engineered wood
- Pre-punched nail and screw holes for easy installation
Simpson Strong-Tie SUR414 Applications
- Angled joist connections in decks, floors, and framing projects
- Structural reinforcement where skewed hanger support is required
- Residential and commercial wood construction requiring high-strength connectors
Simpson Strong-Tie SUR414 Installation Overview
- Use all specified fasteners as per guidelines
- Ensure joist ends are square or bevel cut
- Fill all nail holes with specified fasteners for optimal load capacity
- For I-joists with flanges less than 1 5/16", use web stiffeners
Simpson Strong-Tie SUR414 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 16 Gauge |
| Width | 3-9/16" |
| Height | 12-1/2" |
| Joist size | 4" X 14" |
| Fasteners required | Face - (18) 0.162" x 3-1/2" Nails OR (18) SD9112 Screws, Joist - (8) 0.162" x 3-1/2" Nails OR (8) SD9112 Screws |
