Simpson Hangers | SKU:
SUR5.12/11

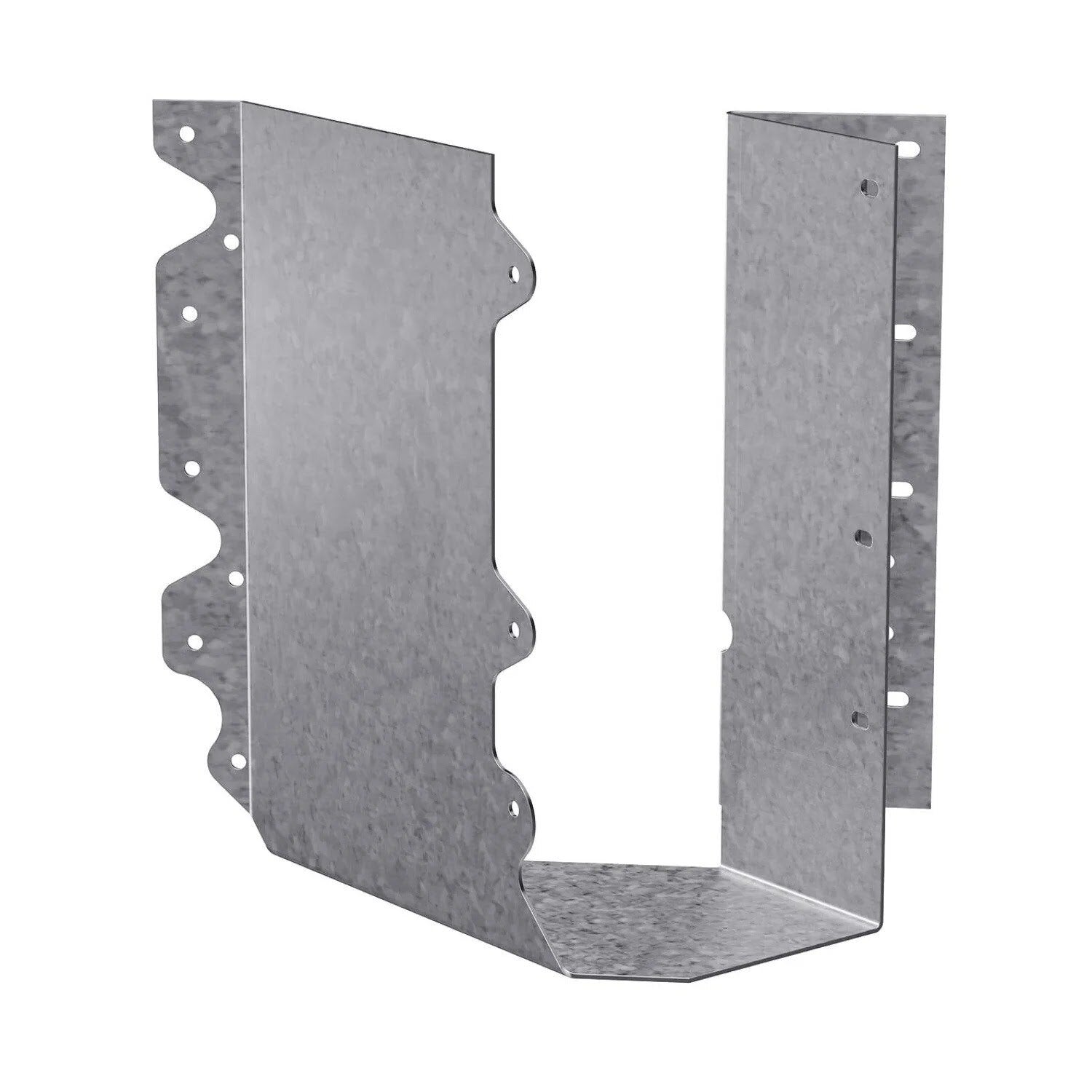

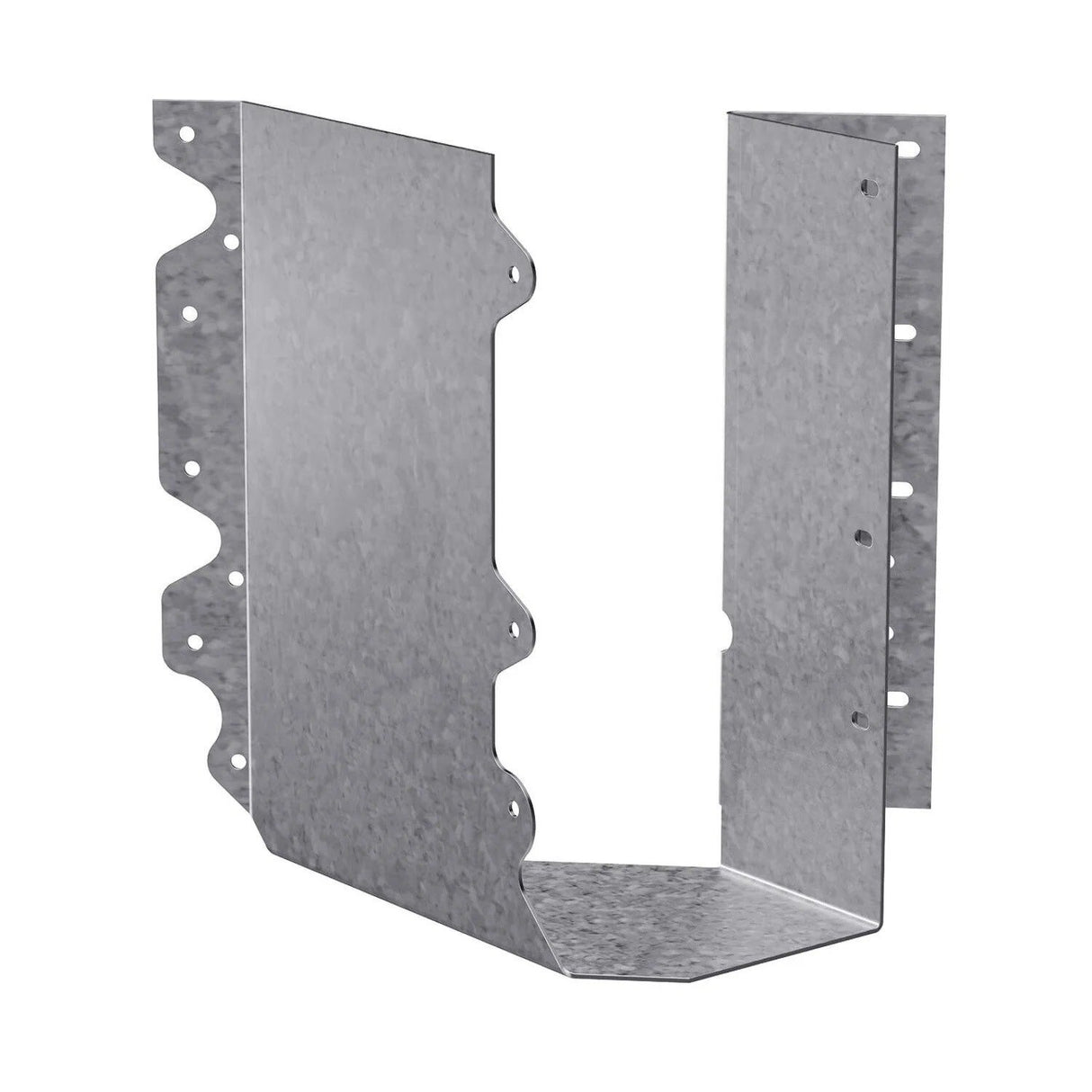

Simpson Strong-Tie SUR5.12/11 (5" x 11-7/8") Galvanized Right-Skewed U-Shaped Hanger
$40.85
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SUR5.12/11 Description
The Simpson SUR5.12/11 Joist Hanger is a right-skewed connector designed for engineered wood, providing secure and reliable support for angled joist connections.
Simpson Strong-Tie SUR5.12/11 Includes
- (1) Right Skewed Joist Hanger
Simpson Strong-Tie SUR5.12/11 Features
- Right-skewed design for angled joist connections
- Made from 16-gauge carbon steel for durability
- G90 galvanized finish for corrosion resistance
- Pre-punched nail and screw holes for easy installation
- Compatible with solid sawn lumber and engineered wood
Simpson Strong-Tie SUR5.12/11 Applications
- Angled joist connections in decks, floors, and framing projects
- Structural reinforcement where skewed hanger support is required
- Residential and commercial wood construction requiring high-strength connectors
Simpson Strong-Tie SUR5.12/11 Installation Overview
- Use all specified fasteners as per guidelines
- Ensure joist ends are square or bevel cut
- Fill all nail holes with specified fasteners to achieve table loads
- For I-joists with flanges less than 1 5/16", use web stiffeners for double joist hangers
Simpson Strong-Tie SUR5.12/11 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 16 Gauge |
| Width | 5-1/8" |
| Height | 11" |
| Joist size | 5" X 11" |
| Type | Right Skewed |
