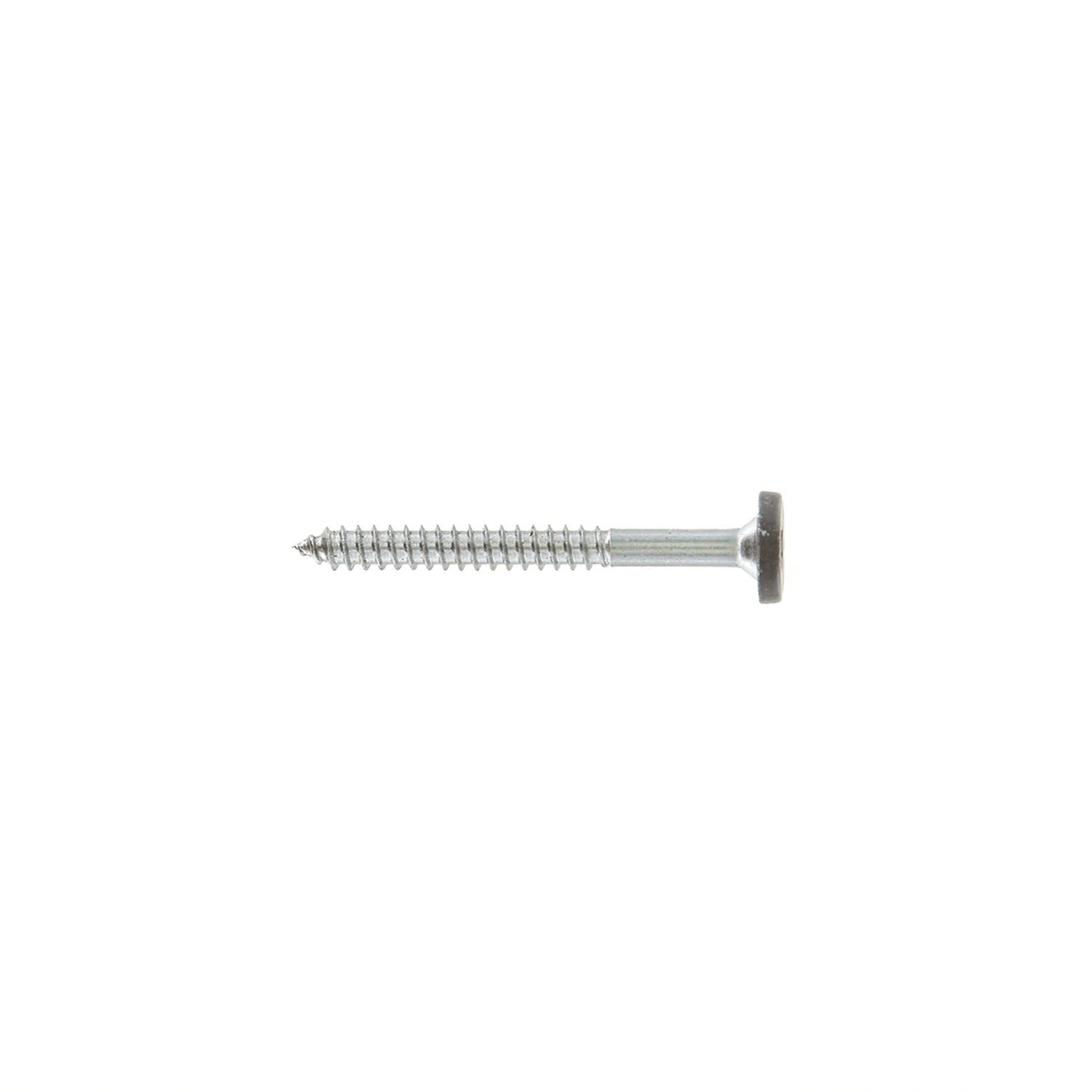

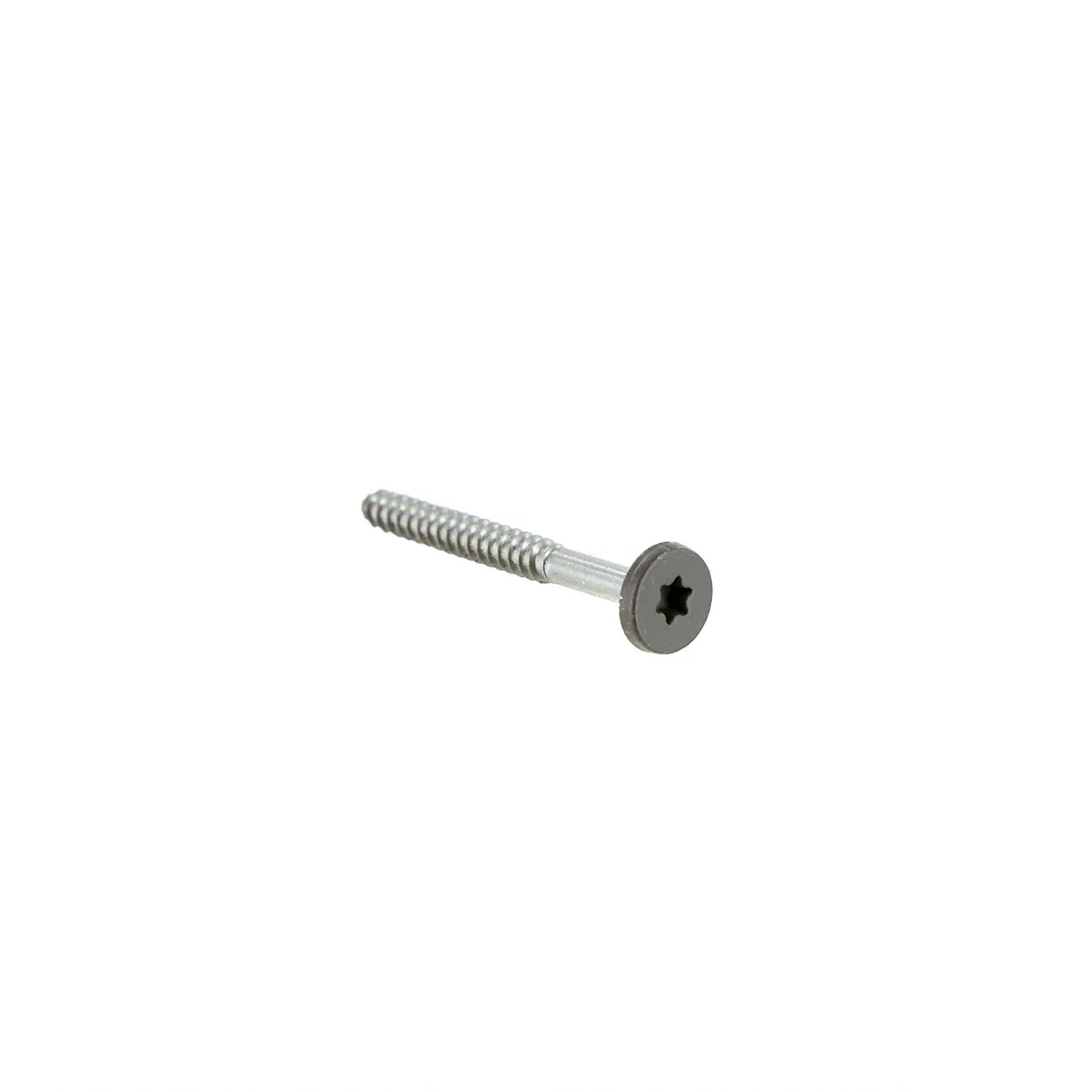

Simpson Strong-Tie T08175FS75BR01 Description
Simpson Strong-Tie Fascia Board Screws are designed for secure and durable installation of composite and PVC fascia boards, featuring Type 316 stainless steel for superior corrosion resistance.
Simpson Strong-Tie T08175FS75BR01 Includes
- (75) #8 x 1-3/4 in. Fascia Board Screws
Simpson Strong-Tie T08175FS75BR01 Features
- Type-17 tip for fast starts
- Type 316 stainless steel provides severe-level corrosion resistance
- Low-profile pancake head resists pullover
- Underhead chamfer for increased shear resistance
- Deep T20 6-lobe recess for reduced cam-outs
Simpson Strong-Tie T08175FS75BR01 Applications
- PVC and composite fascia board installations
- Securing fascia material while allowing for expansion and contraction
Simpson Strong-Tie T08175FS75BR01 Installation Overview

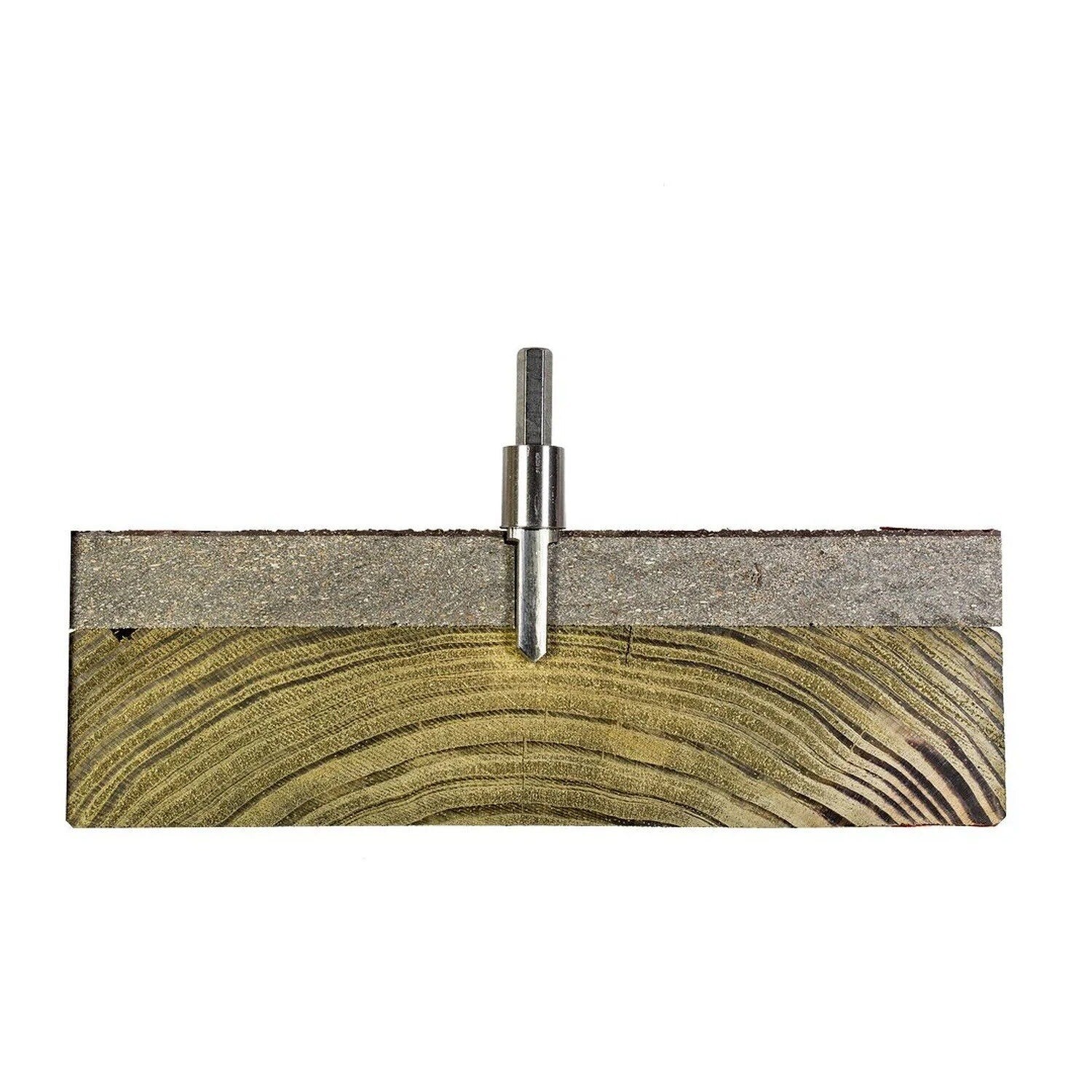

- Pre-drill oversized counterbore holes using the fascia counterbore bit.

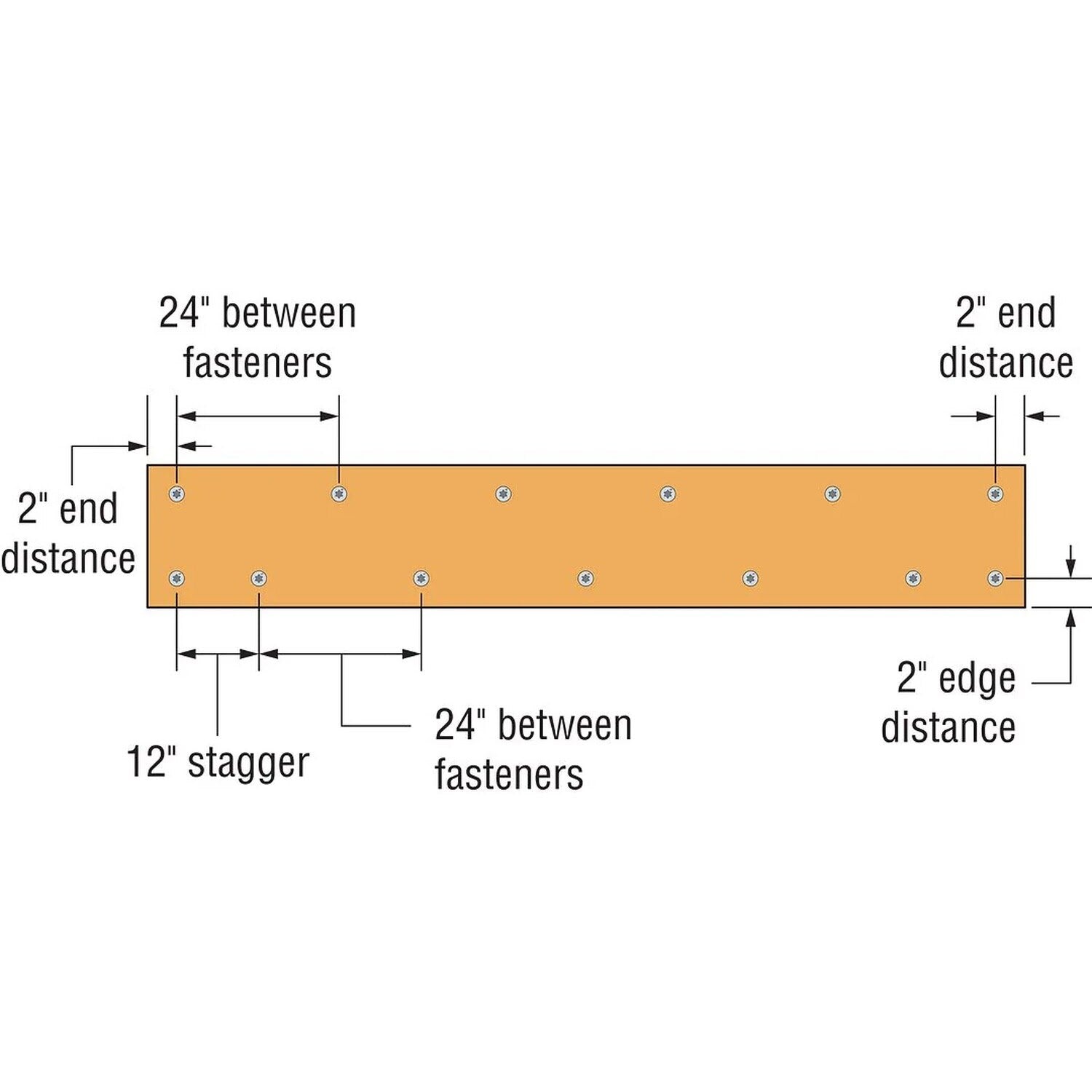

- Position holes 2 inches from edges and stagger every 24 inches.
- Drive screws flush with the board surface using a drill-driver motor.
- Avoid overdriving or overtightening screws.
Simpson Strong-Tie T08175FS75BR01 Specifications
| Diameter | #8 |
| Length | 1-3/4" |
| Material | 316 Stainless Steel |
| Color | Brown 01 |
| Drive Type | T20 Star Drive |
| Head Type | Pancake Head |
| Quantity | 75 |
NOTE: Ensure the screws are installed flush with the board surface and avoid overdriving or overtightening.
