Simpson Strong-Tie T08175FS75GR Description
Simpson Strong-Tie Fascia Board Screws are designed for composite and PVC fascia board installations, offering superior corrosion resistance and secure fastening.
Simpson Strong-Tie T08175FS75GR Includes

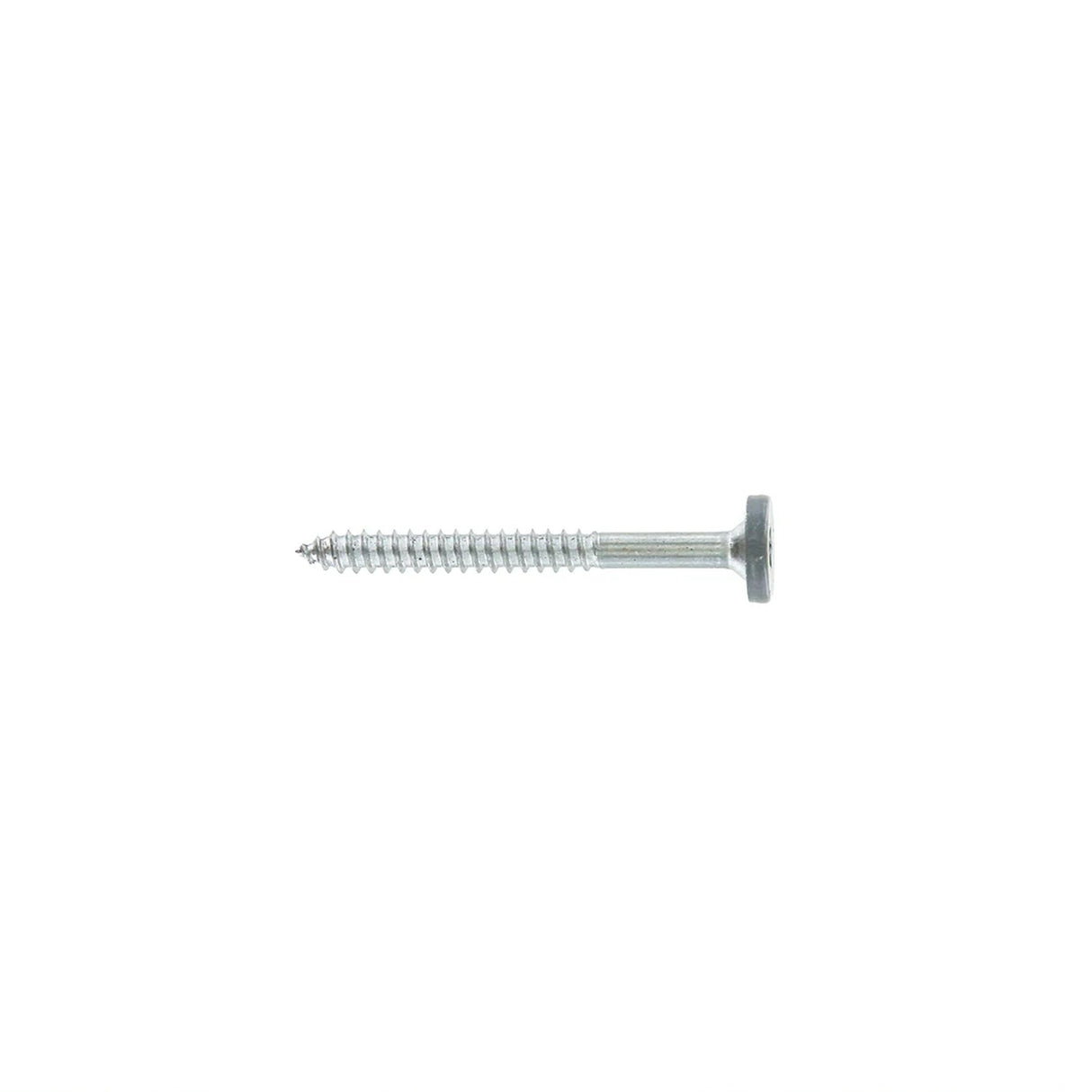

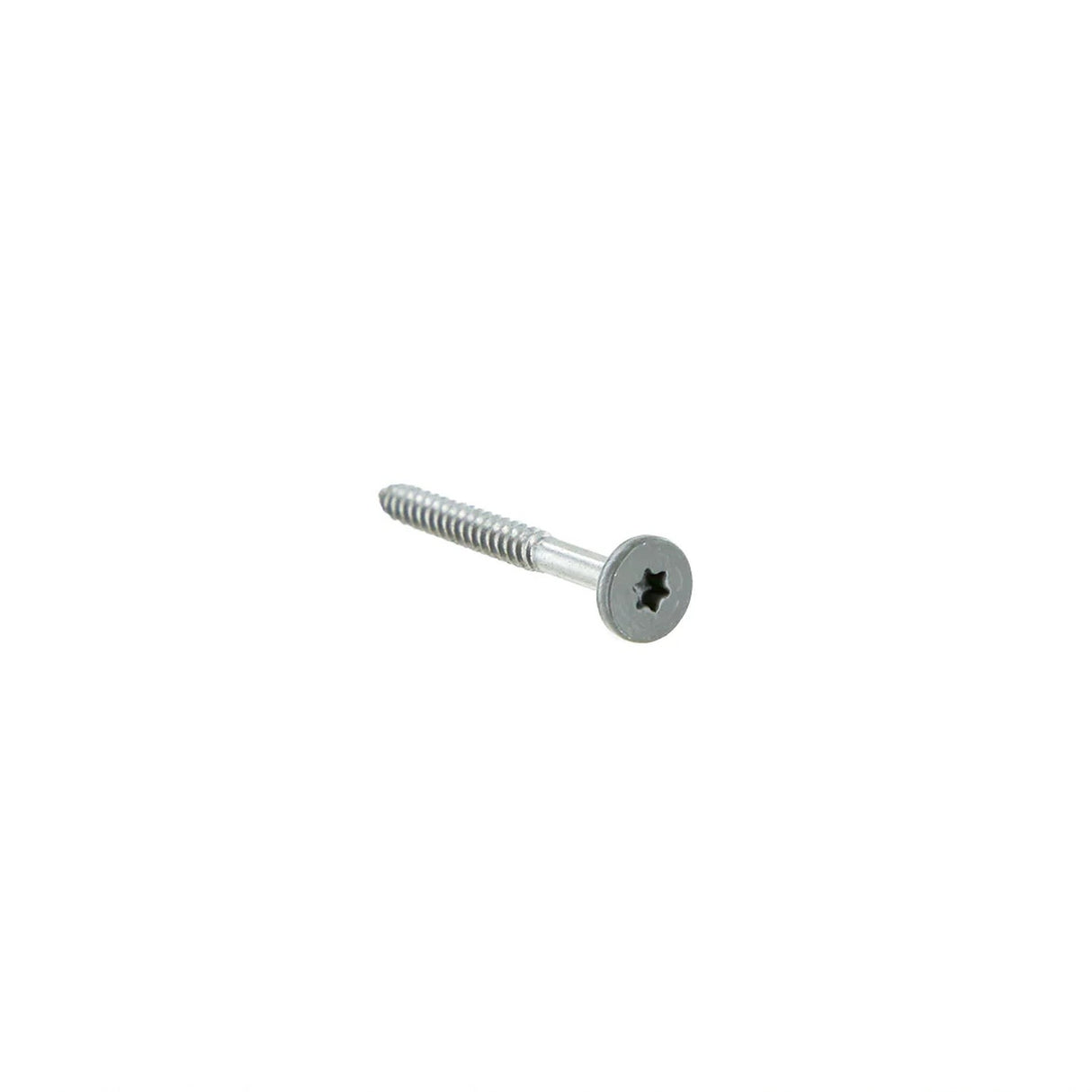

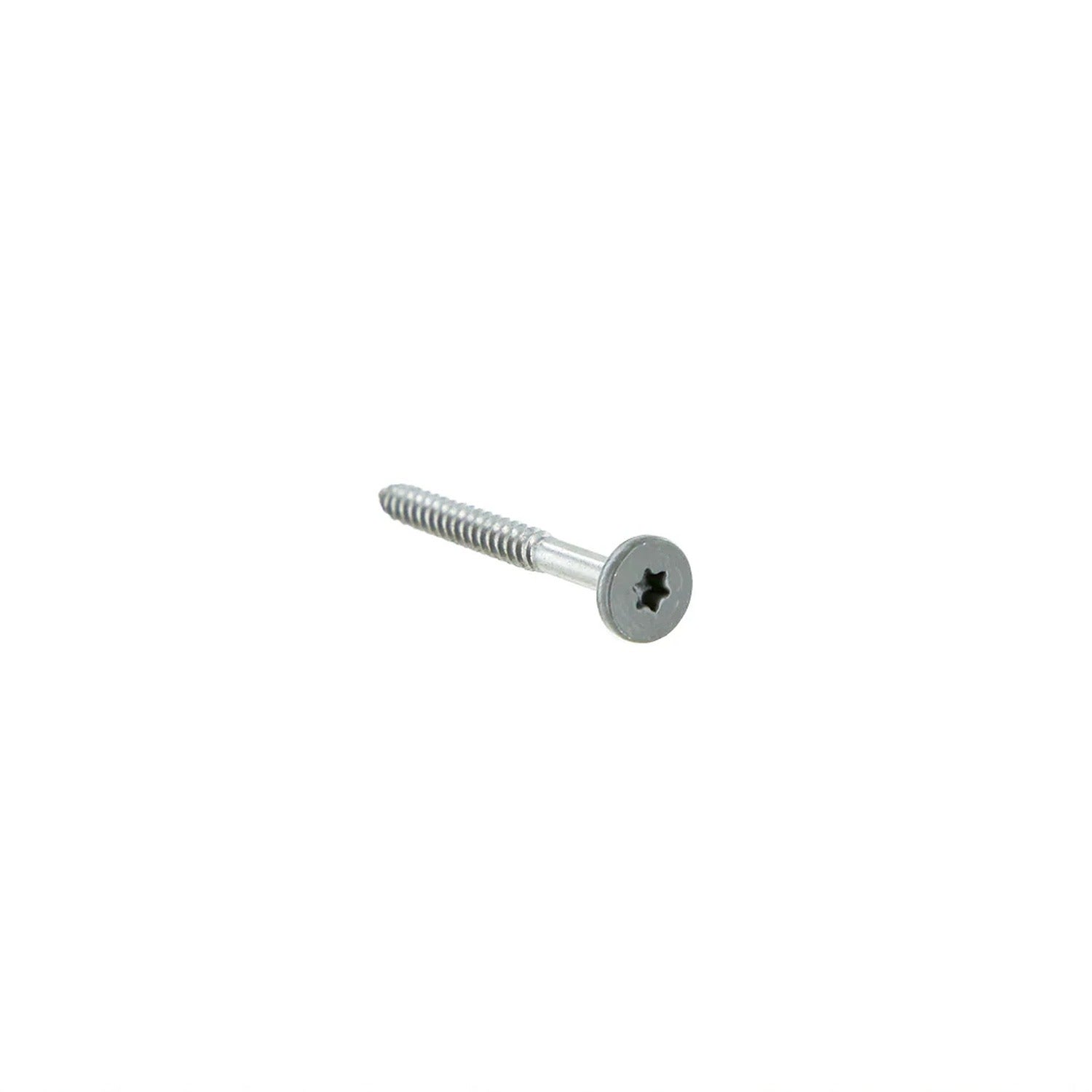

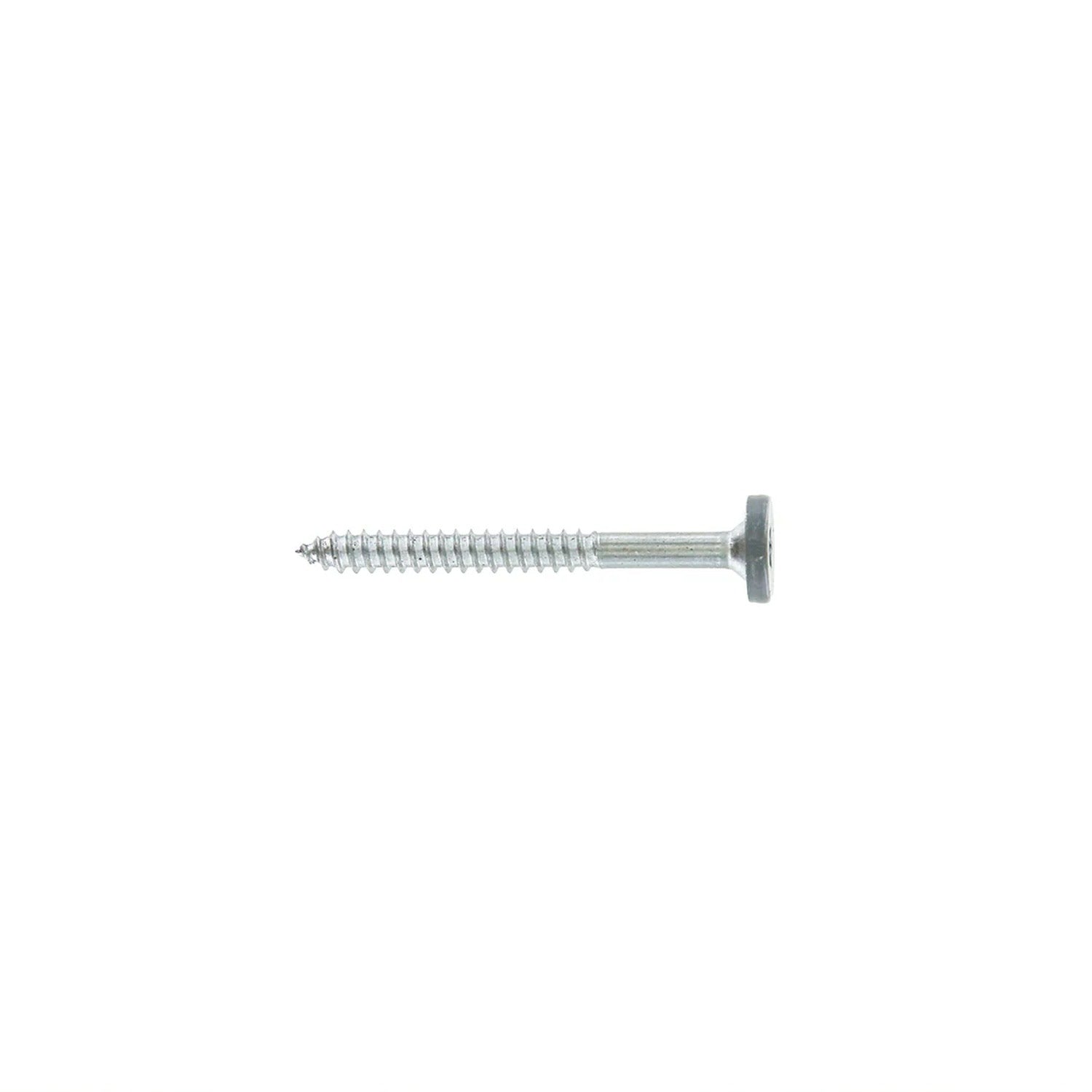

- (75) Fascia Board Screw #8 x 1-3/4" T-20 6-Lobe Pancake Head Type 316, Gray
Simpson Strong-Tie T08175FS75GR Features
- Type-17 tip for fast starts
- Type 316 stainless steel provides severe-level corrosion resistance
- Low-profile pancake head resists pullover
- Underhead chamfer for increased shear resistance
- Deep T20 6-lobe recess for reduced cam-outs
Simpson Strong-Tie T08175FS75GR Applications
- PVC and composite fascia board installations
- Securing fascia material while allowing for expansion and contraction

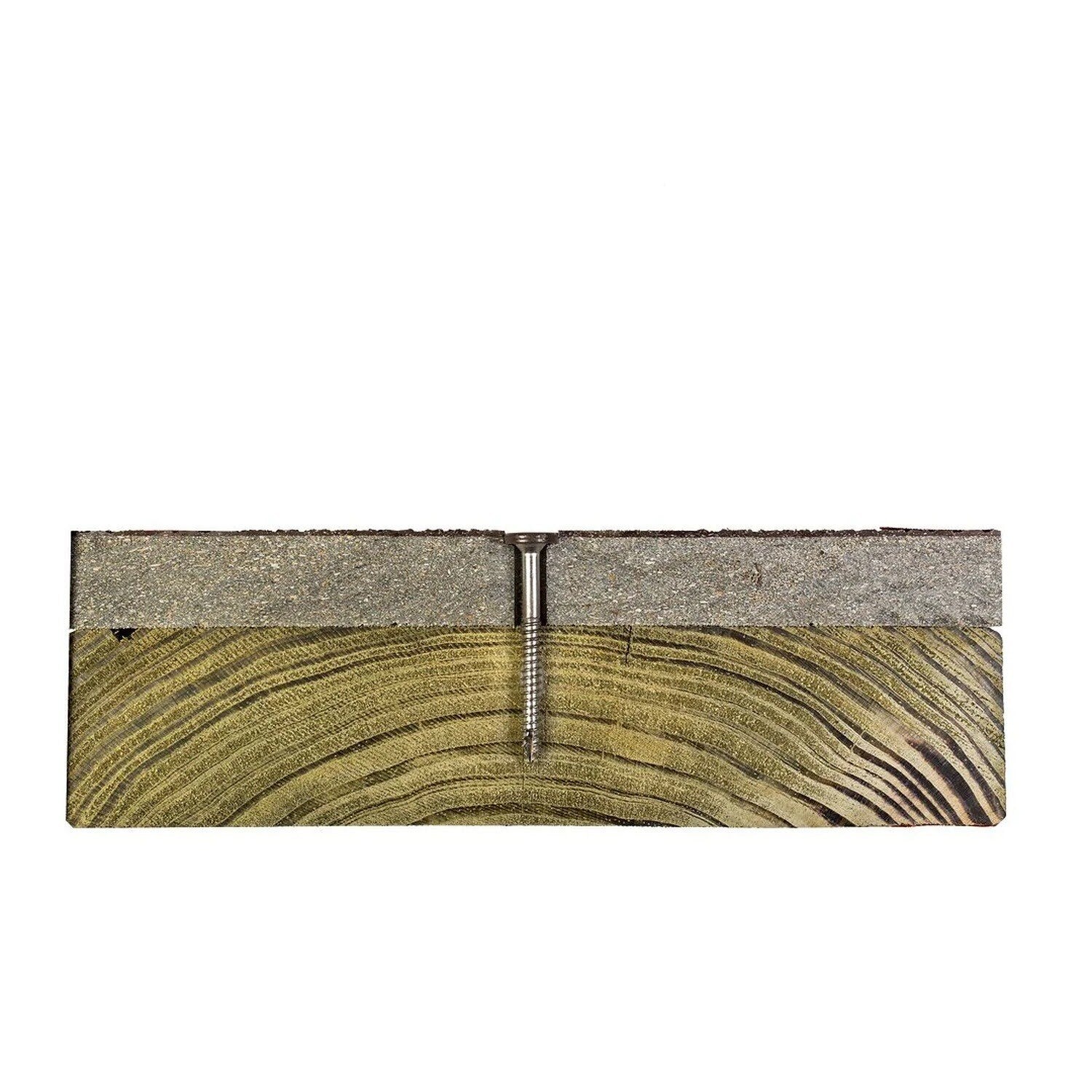

Simpson Strong-Tie T08175FS75GR Installation Overview

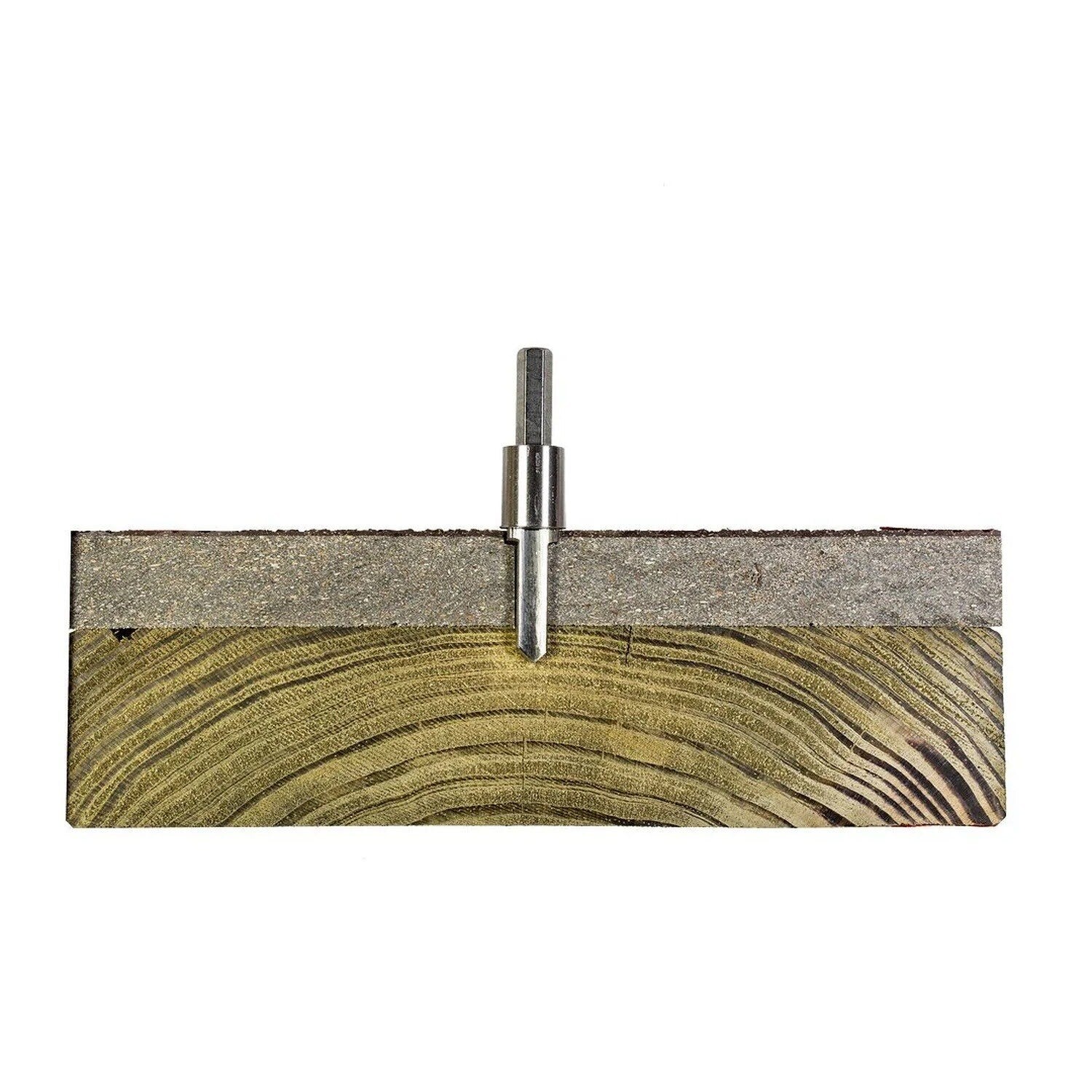

- Pre-drill oversized counterbore holes using the fascia counterbore bit.
- Position holes as per spacing diagram, starting at the upper left corner.
- Drive screws flush with the board surface using a drill-driver motor.
- Avoid overdriving or overtightening screws.
Simpson Strong-Tie T08175FS75GR Specifications
| Diameter | #8 |
| Length | 1-3/4" |
| Material | 316 Stainless Steel |
| Color | Gray |
| Drive type | T20 Star Drive |
| Head type | Pancake Head |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 75 |
NOTE: Ensure proper predrilling and installation to avoid overdriving or overtightening screws.
