Simpson Anchors | SKU:
T08175FS75GR01

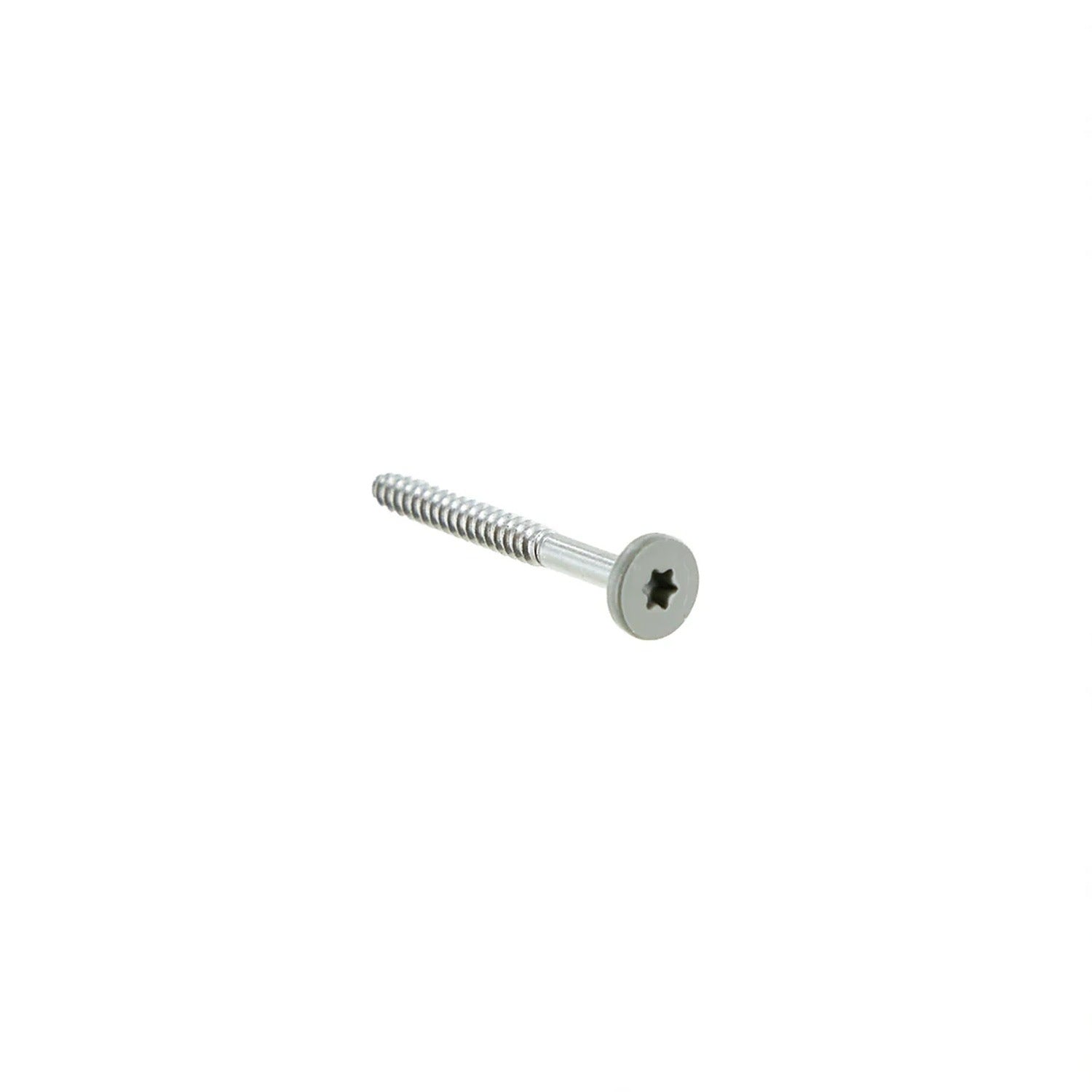

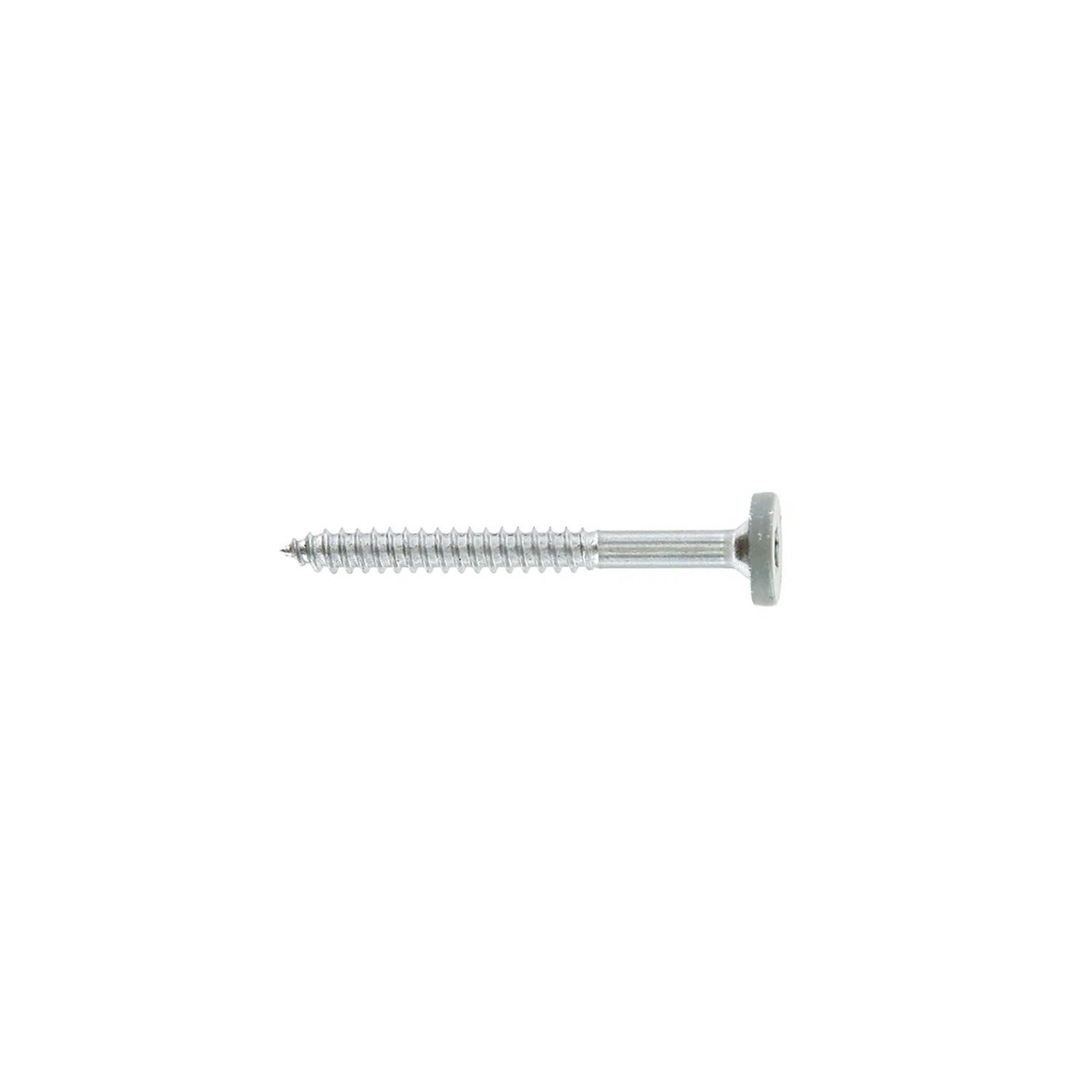

Simpson Strong-Tie T08175FS75GR01 (#8 x 1-3/4") T-20 6-Lobe Fascia Board Screw - Type 316, Gray 01 (75 Pack)
$34.62
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie T08175FS75GR01 Description
Simpson Strong-Tie Composite Fascia Screws are designed for secure and durable installation of PVC and composite fascia boards, offering superior corrosion resistance and professional results.
Simpson Strong-Tie T08175FS75GR01 Includes
- (75) #8 x 1-3/4 in. Fascia Board Screws
Simpson Strong-Tie T08175FS75GR01 Features
- Type-17 tip for fast starts
- Type 316 stainless steel provides severe-level corrosion resistance
- Low-profile pancake head resists pullover
- Underhead chamfer for increased shear resistance
- Deep T20 6-lobe recess for reduced cam-outs
Simpson Strong-Tie T08175FS75GR01 Applications
- PVC and composite fascia board installations
Simpson Strong-Tie T08175FS75GR01 Installation Overview

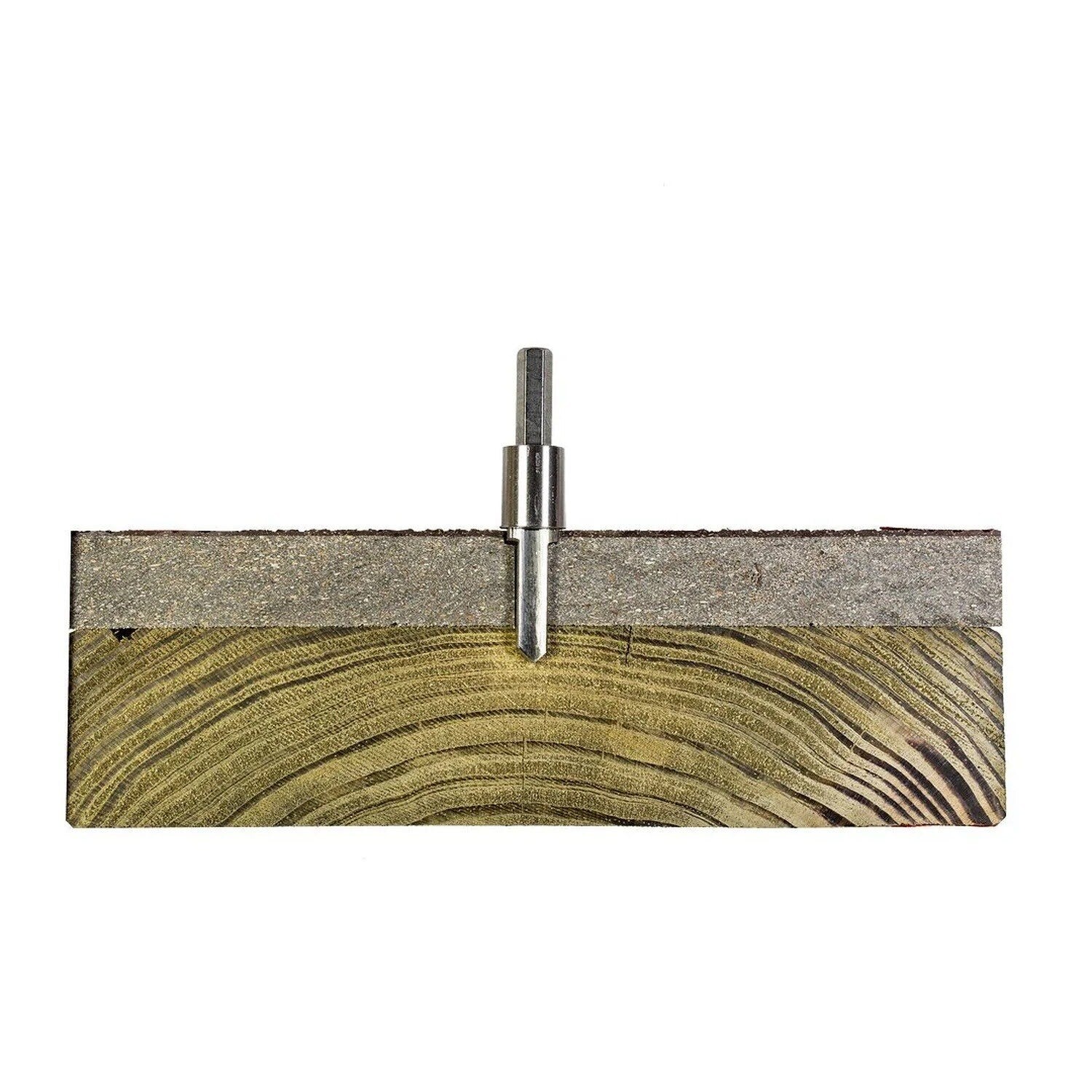

- Pre-drill oversized counterbore holes using the fascia counterbore bit.
- Position holes 2 inches from edges and stagger every 24 inches.

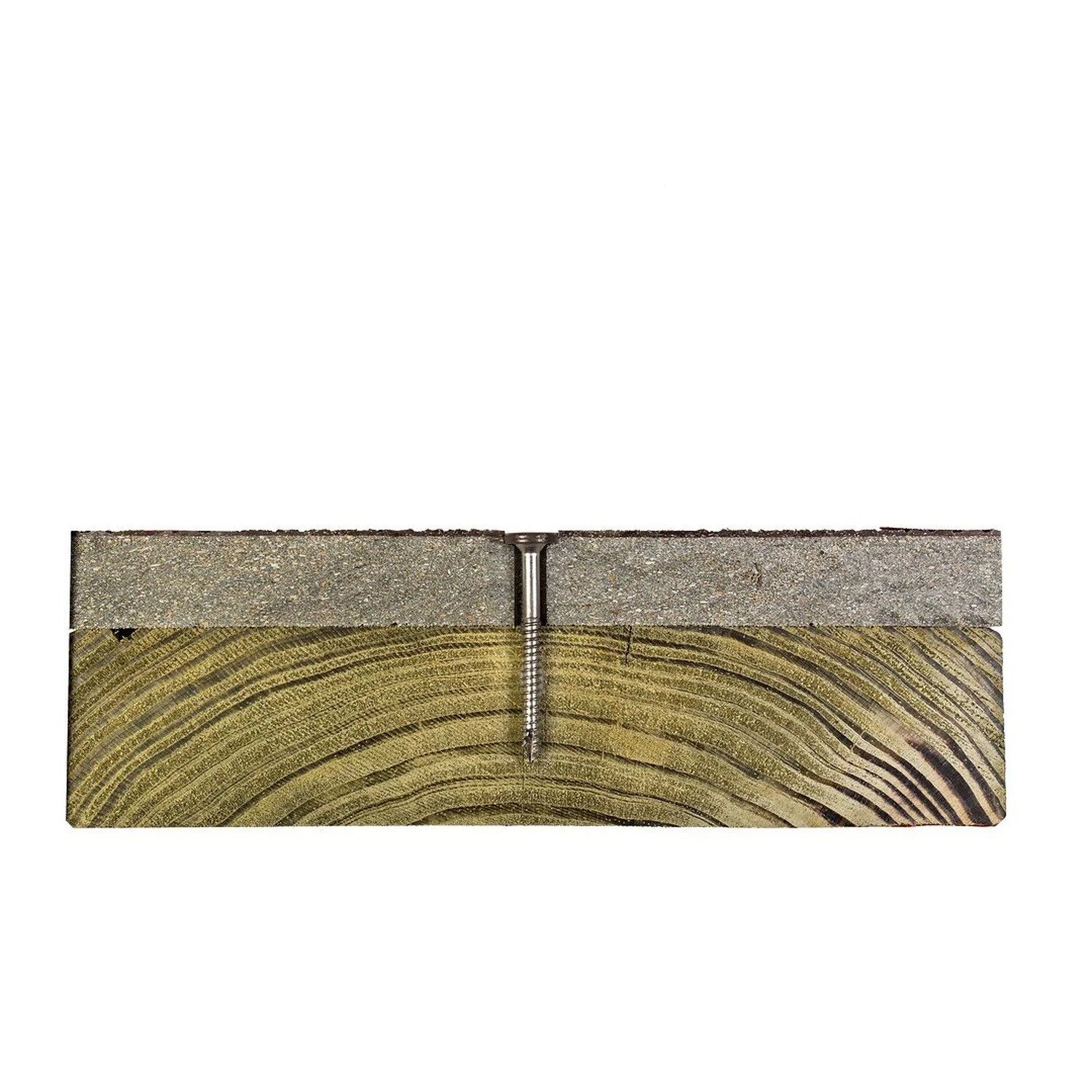

- Drive screws flush with the board surface using a drill-driver motor.
- Avoid overdriving or overtightening screws.
Simpson Strong-Tie T08175FS75GR01 Specifications
| Diameter | #8 |
| Length | 1-3/4" |
| Material | 316 Stainless Steel |
| Color | Gray 01 |
| Drive Type | T20 Star Drive |
| Head Type | Pancake Head |
| Manufacturer Name | Simpson Strong-Tie |
| Quantity | 75 |
NOTE: Ensure proper predrilling and installation to avoid overdriving or overtightening screws.
