Simpson Anchors | SKU:
T08175FS75RD

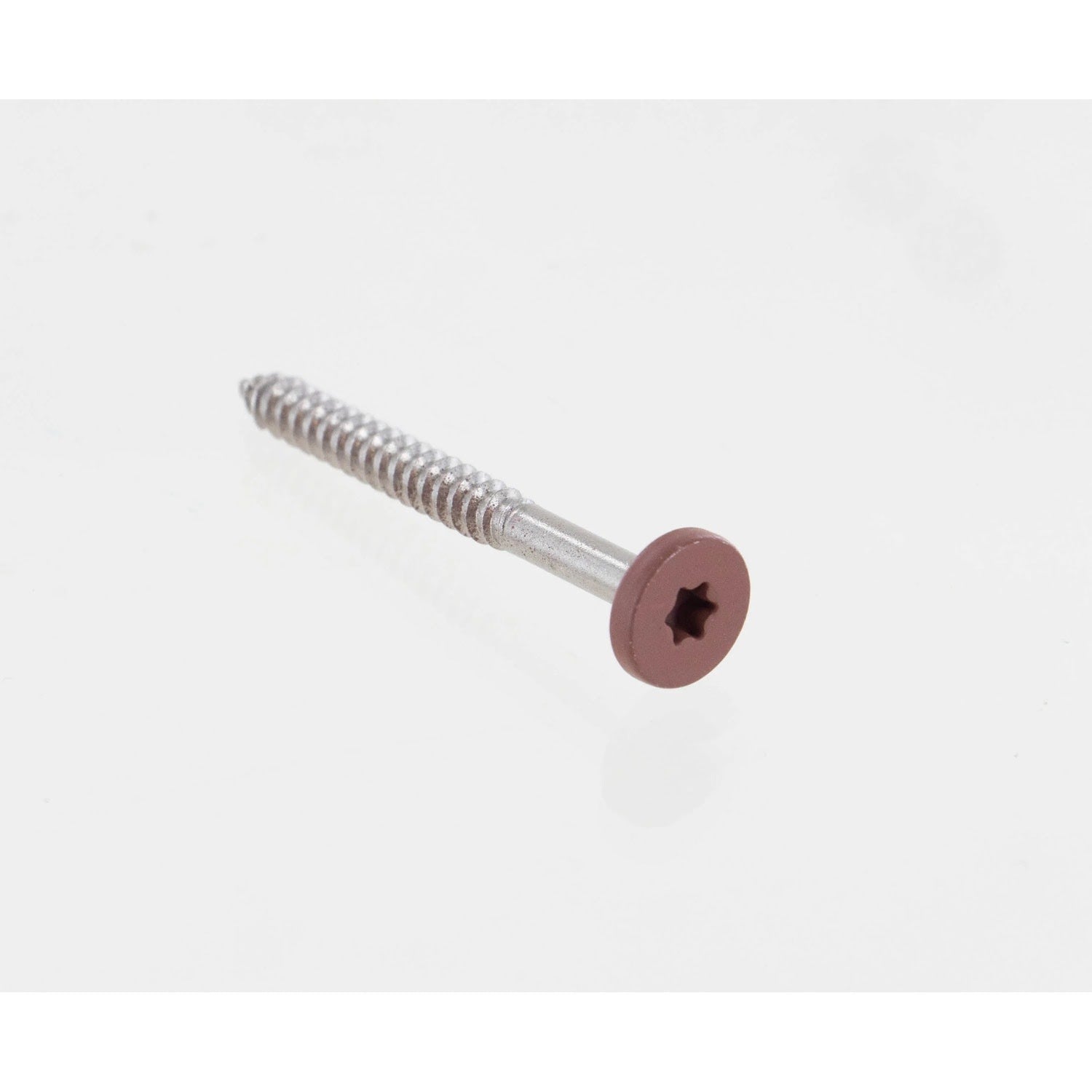

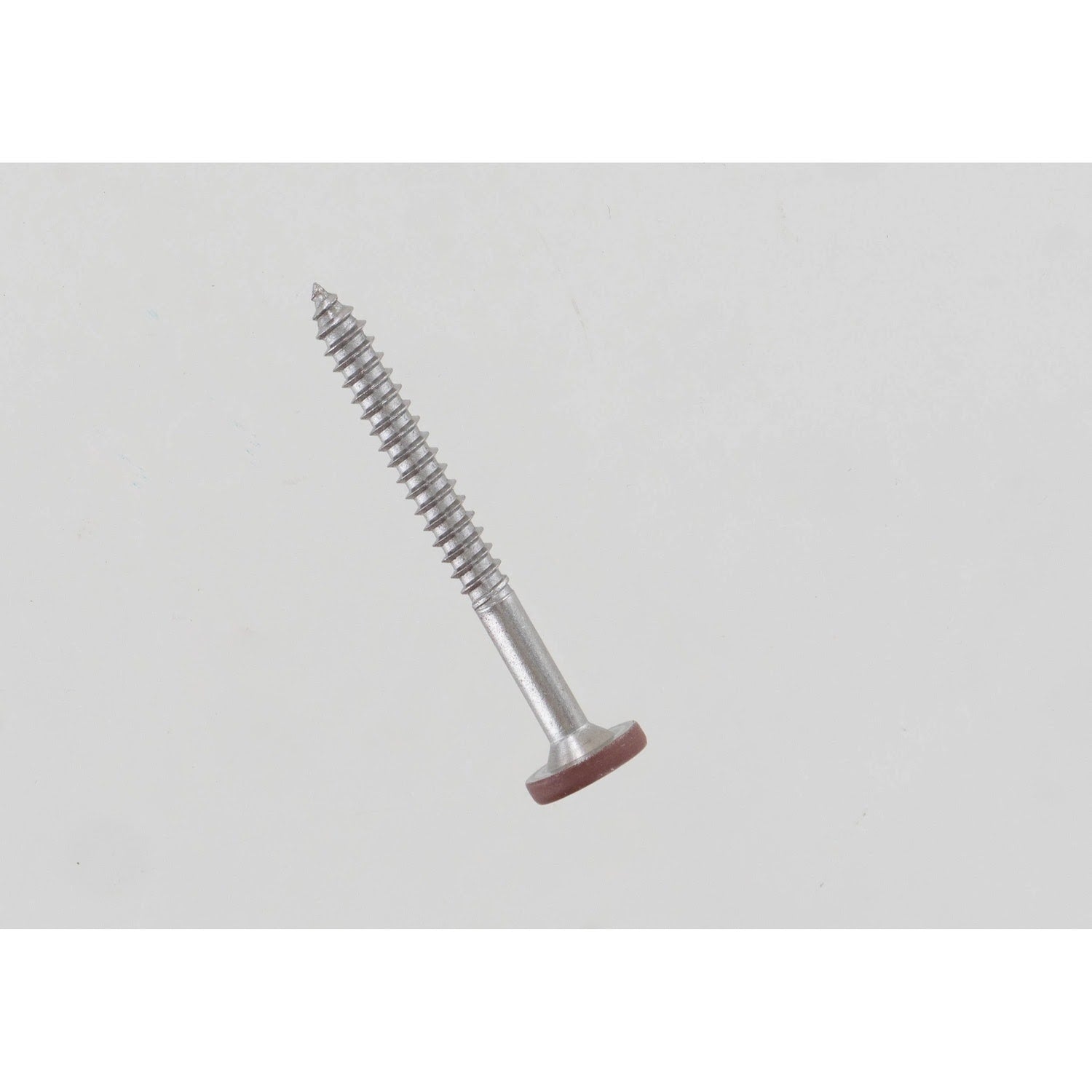

Simpson Strong-Tie T08175FS75RD (#8 x 1-3/4") T-20 6-Lobe Fascia Board Screw - Type 316, Red (75 Pack)
$29.91
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie T08175FS75RD Description
Simpson Strong-Tie Fascia Board Screws are designed for secure and durable fastening of composite and PVC fascia boards, featuring Type 316 stainless steel for superior corrosion resistance.
Simpson Strong-Tie T08175FS75RD Includes
- (75) #8 x 1-3/4 in. Fascia Board Screws
Simpson Strong-Tie T08175FS75RD Features
- Type-17 tip for fast starts
- Type 316 stainless steel provides severe-level corrosion resistance
- Low-profile pancake head resists pullover
- Underhead chamfer for increased shear resistance
- Deep T20 6-lobe recess for reduced cam-outs
Simpson Strong-Tie T08175FS75RD Applications
- PVC and composite fascia board installations
Simpson Strong-Tie T08175FS75RD Installation Overview

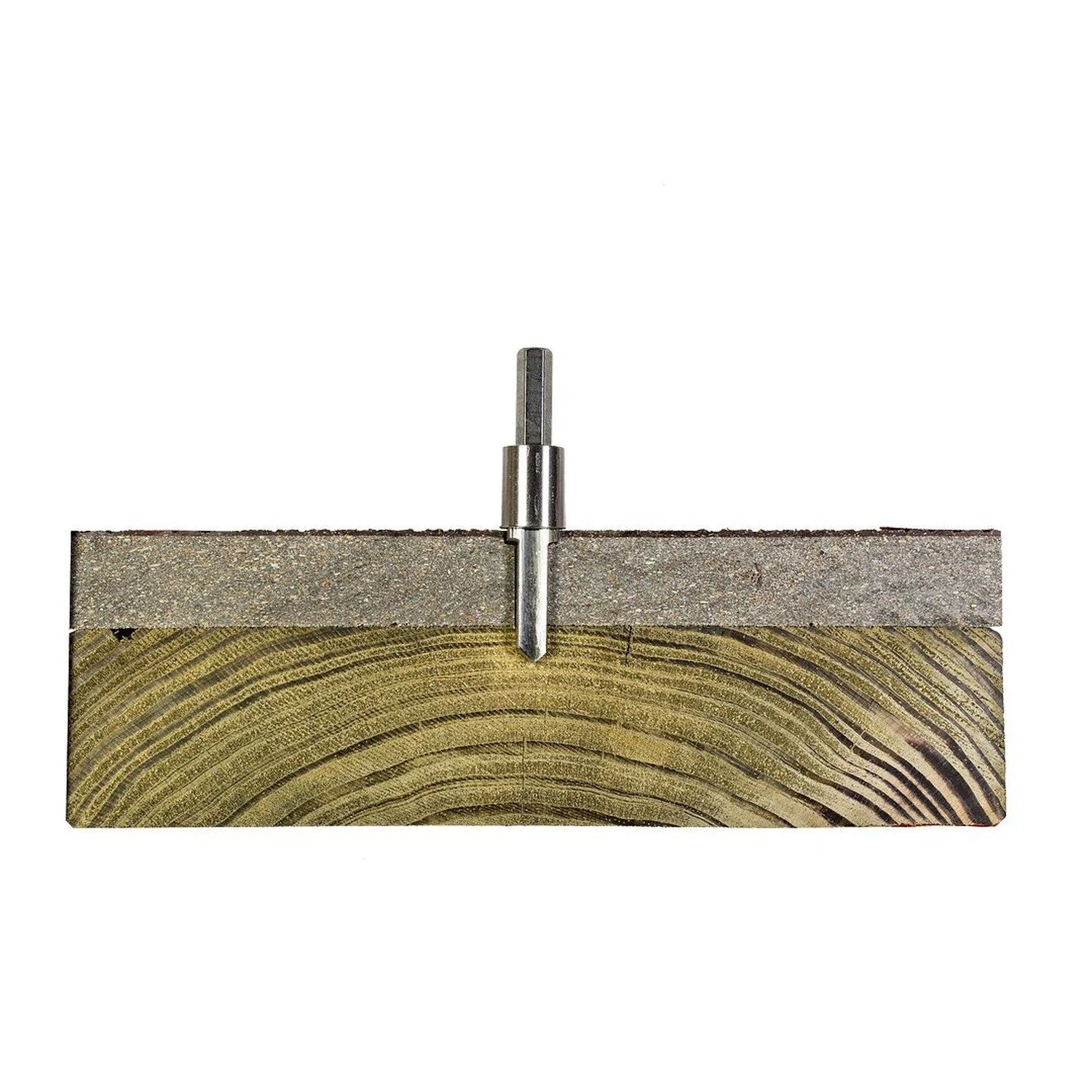

- Use the fascia counterbore bit to predrill oversized, counterbore holes into the fascia material.
- Position the first hole 2 inches from the upper and left edges, then predrill holes every 24 inches on center.

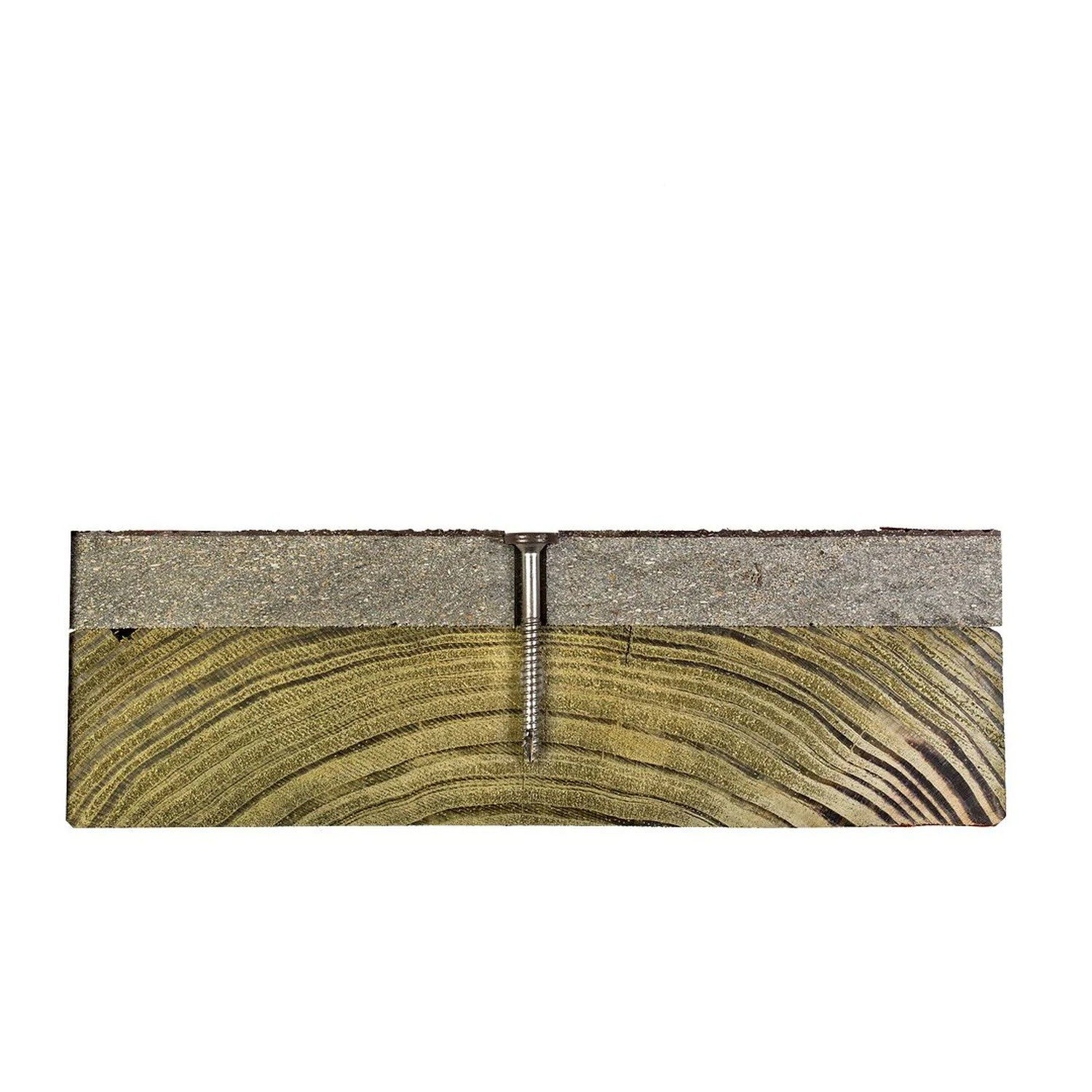

- Install fascia screws into each hole using a drill-driver motor, ensuring screws are flush with the board surface without overdriving.
Simpson Strong-Tie T08175FS75RD Specifications
| Fastener Type | Hand-Drive Screw |
| Material | 316 Stainless Steel |
| Color | Red |
| Drive Type | T20 6-Lobe |
| Head Type | Pancake Head |
| Thread Type | Coarse Threads |
| Point Type | Type-17 Point |
| Length | 1-3/4" |
| Diameter | #8 |
| Packaging Quantity | 75 |
