Simpson Anchors | SKU:
T08175FS75TN

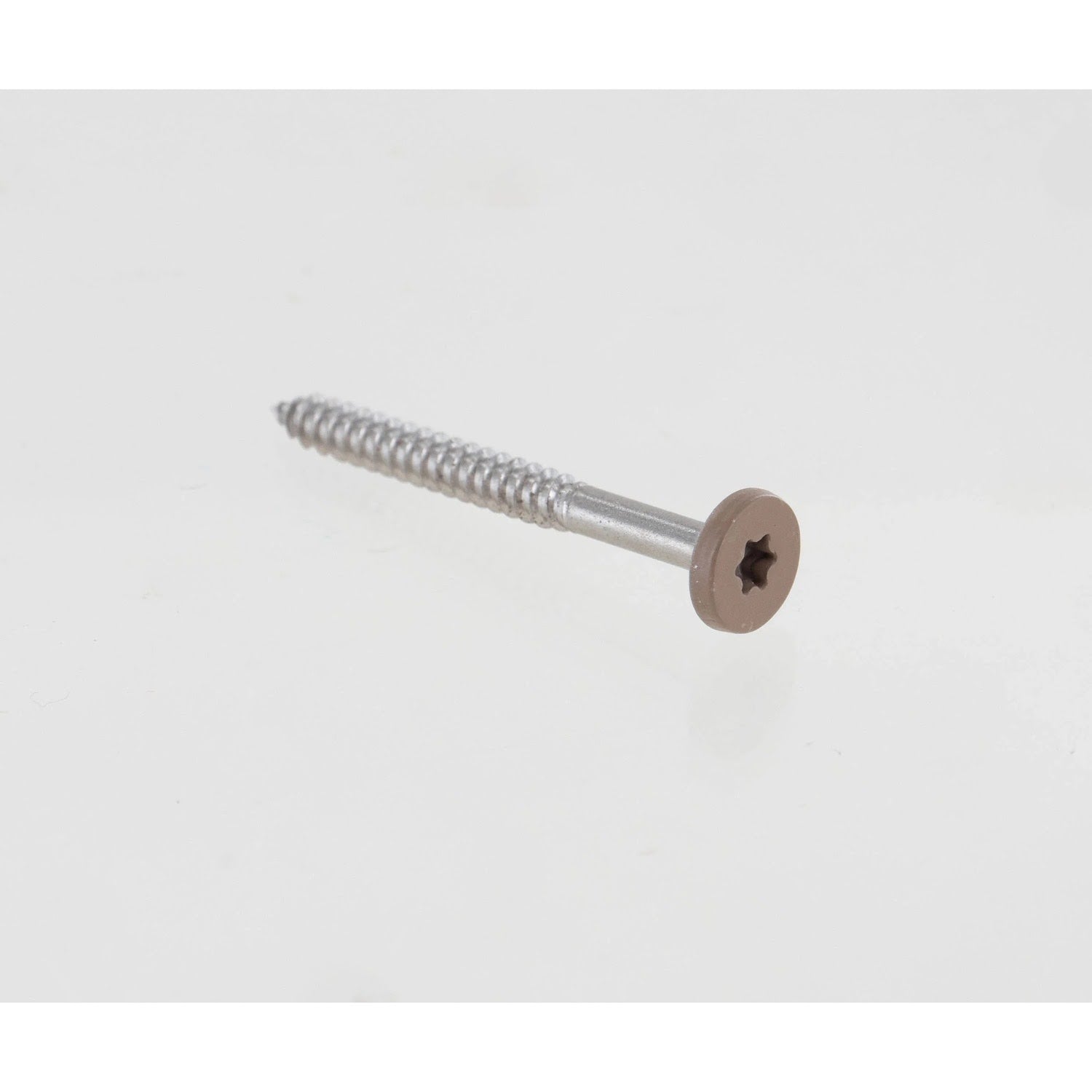

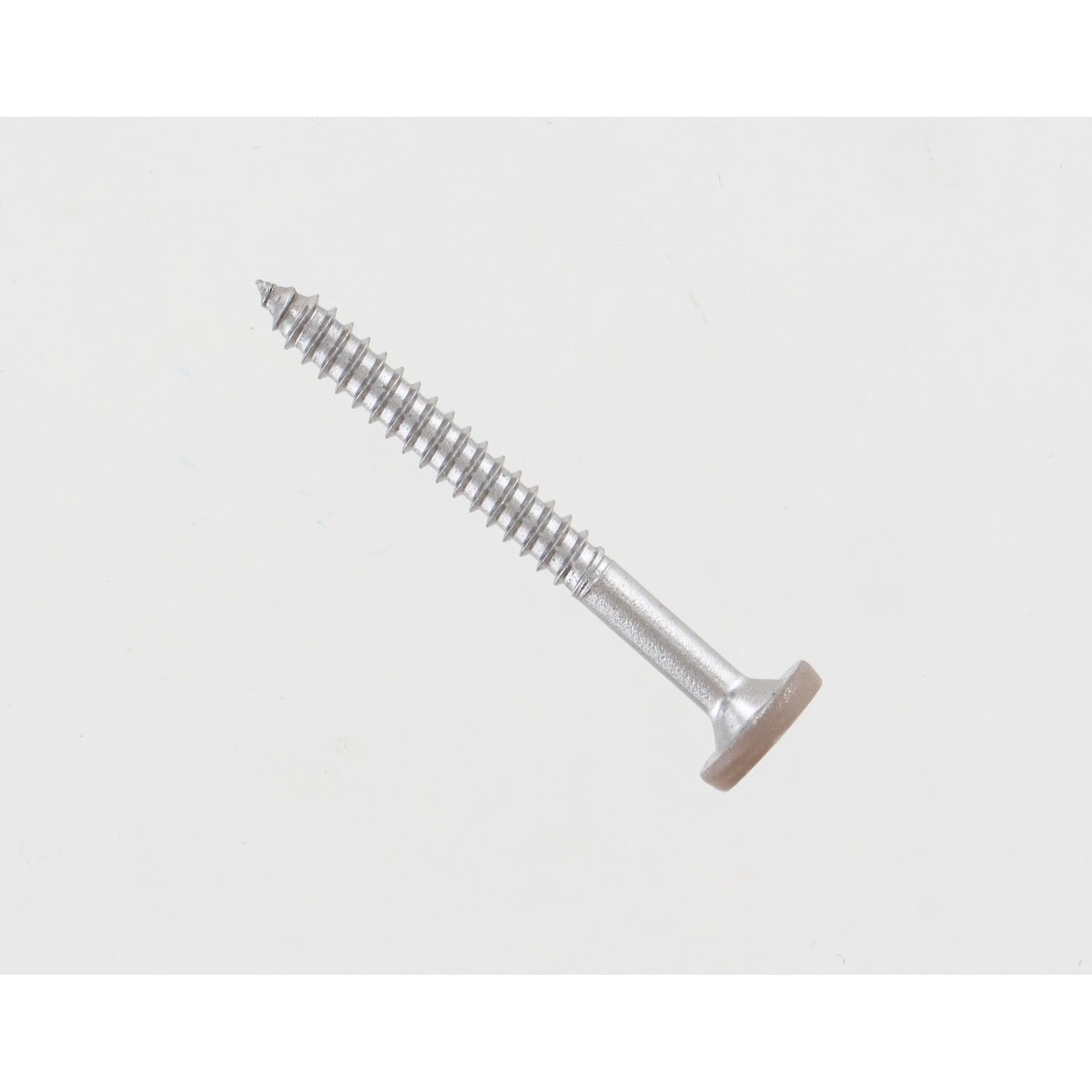

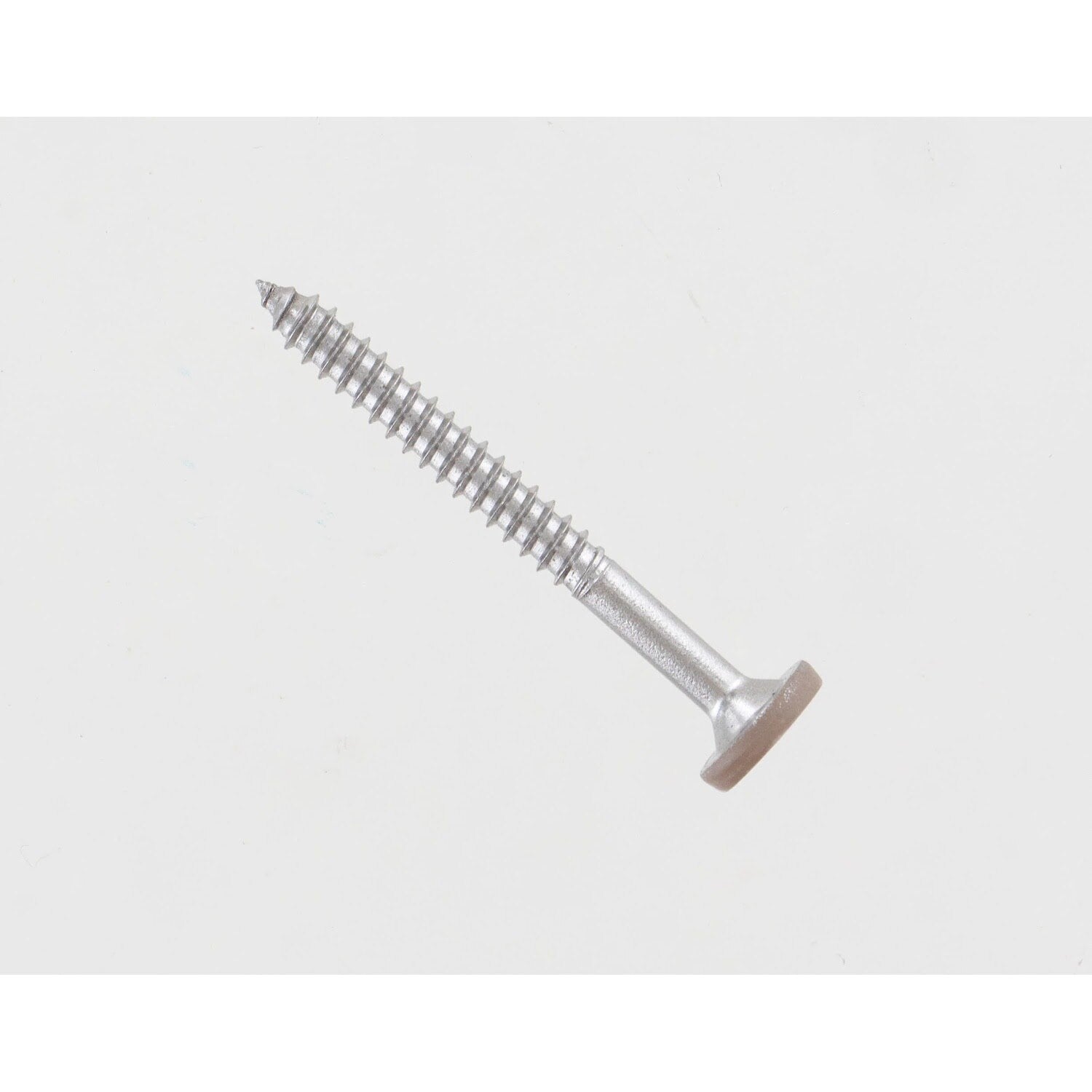

Simpson Strong-Tie T08175FS75TN (#8 x 1-3/4") T-20 6-Lobe Fascia Board Screw - Type 316, Tan (75 Pack)
$29.91
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie T08175FS75TN Description
Simpson Strong-Tie Fascia Board Screws are designed for composite and PVC fascia board installations, offering superior corrosion resistance and secure fastening.
Simpson Strong-Tie T08175FS75TN Includes
- (75) #8 x 1-3/4 in. Fascia Board Screws
Simpson Strong-Tie T08175FS75TN Features
- Type-17 tip for fast starts
- Type 316 stainless steel for severe-level corrosion resistance
- Low-profile pancake head resists pullover
- Underhead chamfer for increased shear resistance
- Deep T20 6-lobe recess for reduced cam-outs
Simpson Strong-Tie T08175FS75TN Applications
- PVC and composite fascia board installations
Simpson Strong-Tie T08175FS75TN Installation Overview

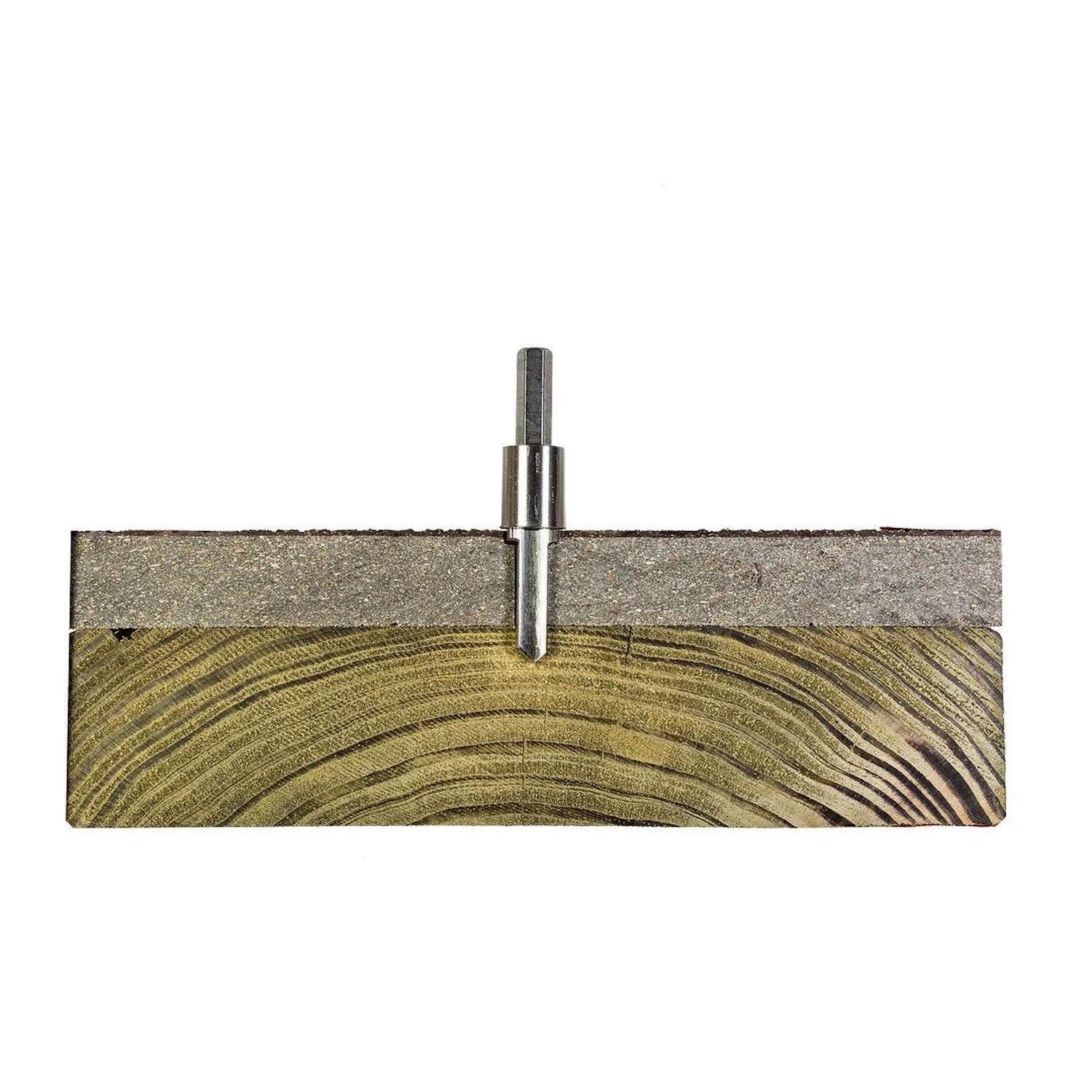

- Pre-drill oversized counterbore holes using the fascia counterbore bit.
- Position holes 2" from edges and stagger every 24" on center.

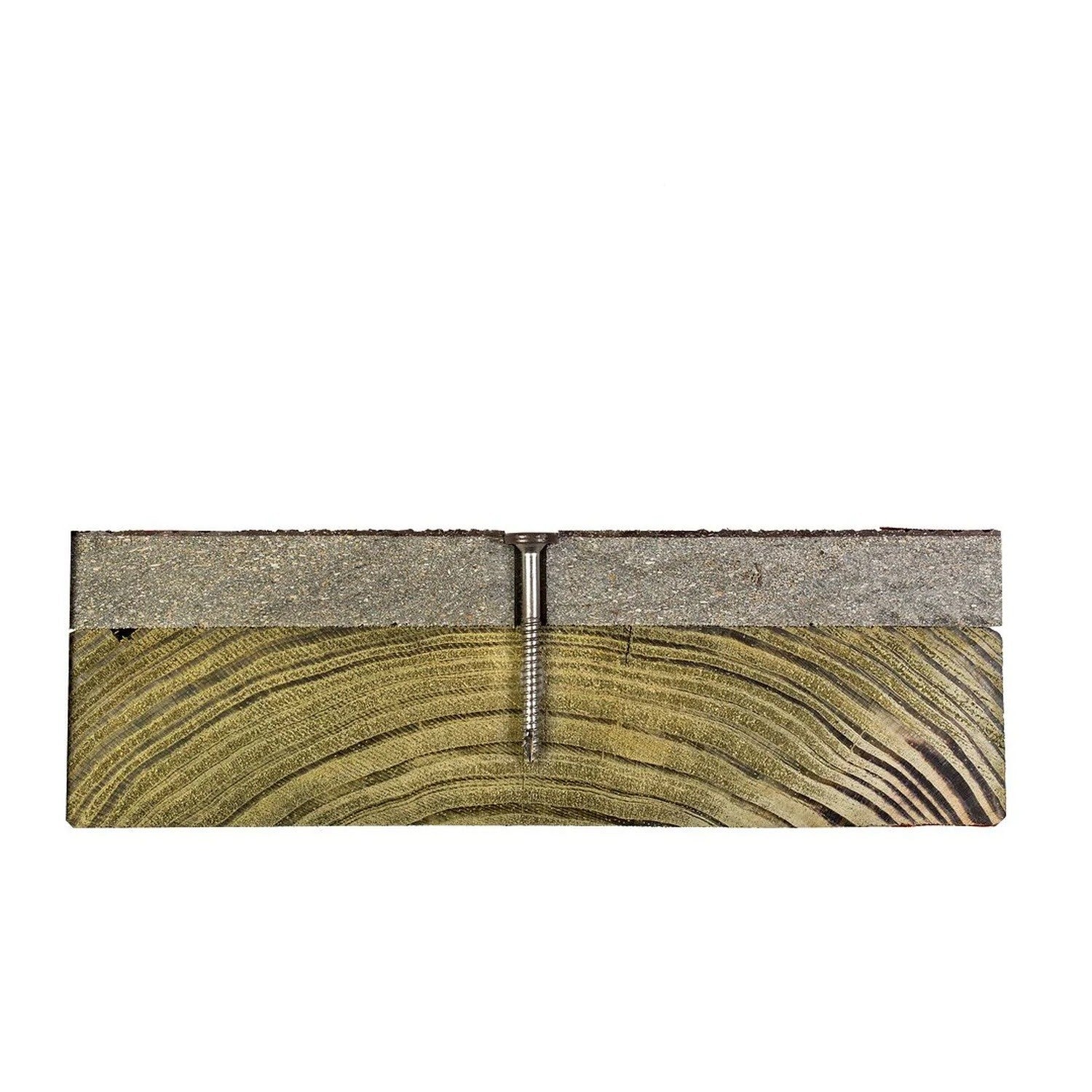

- Drive screws flush with the board surface using a drill-driver motor.
- Avoid overdriving or overtightening screws.
Simpson Strong-Tie T08175FS75TN Specifications
| Diameter | #8 |
| Length | 1-3/4" |
| Material | 316 Stainless Steel |
| Color | Tan |
| Drive type | T20 Star Drive |
| Head type | Pancake Head |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 75 |
NOTE: Ensure the screws are installed flush with the board surface and avoid overdriving or overtightening.
