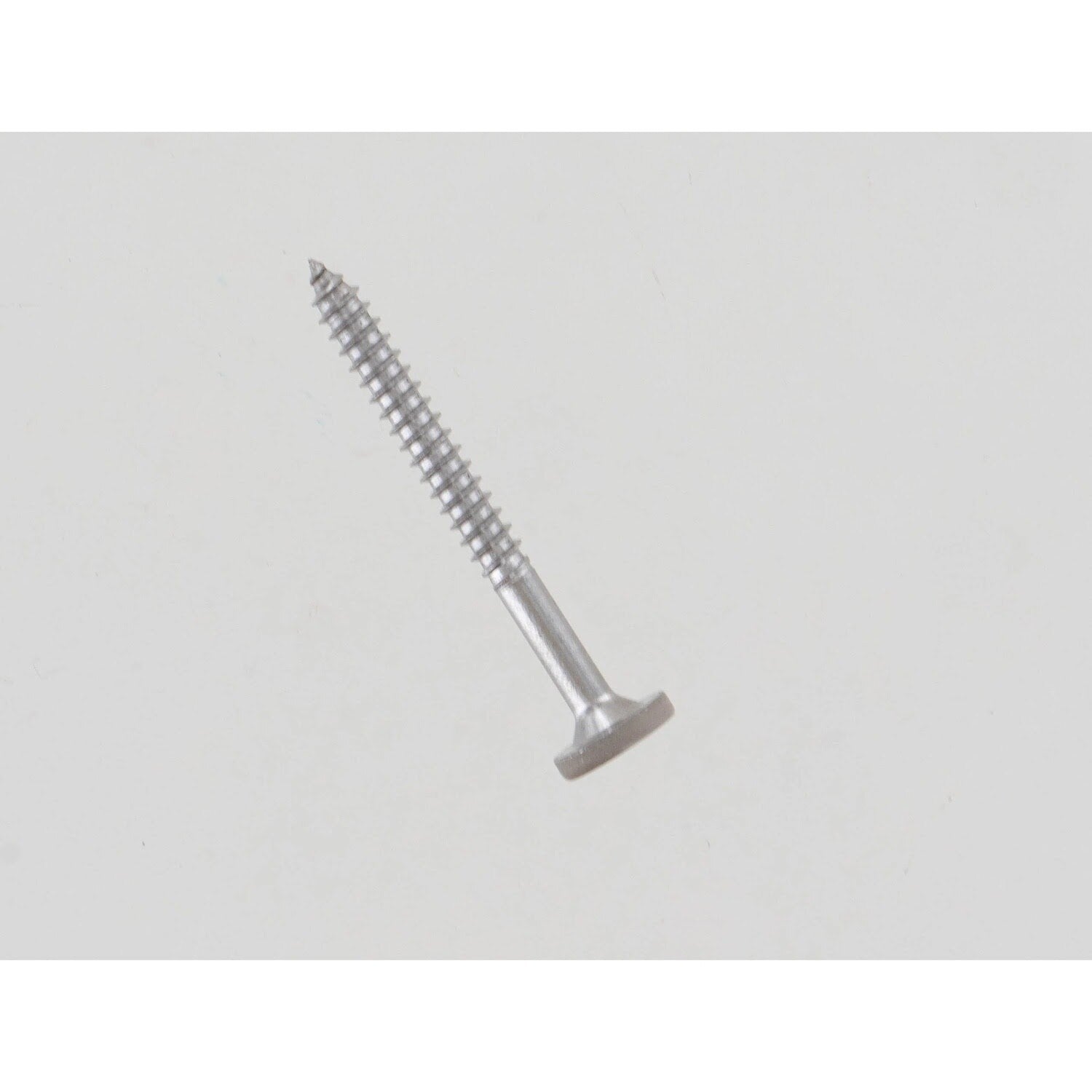

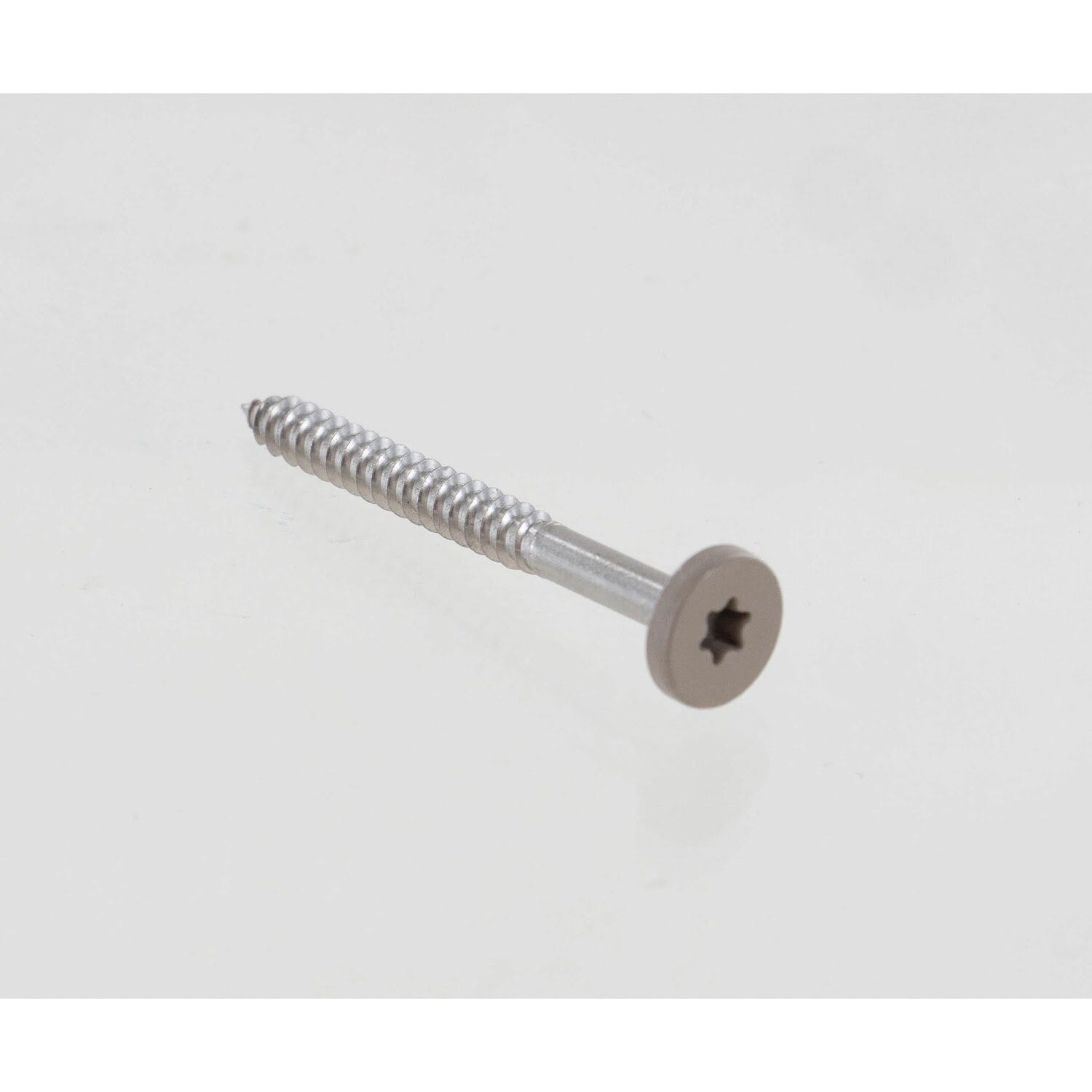

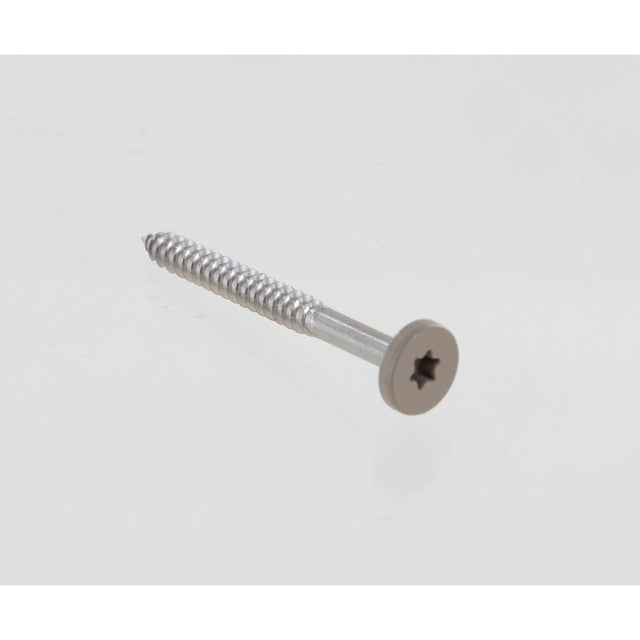

Simpson Strong-Tie T08175FS75TN02 Description
Simpson Strong-Tie Fascia Board Screws are designed for secure and durable installation of composite and PVC fascia boards, featuring Type 316 stainless steel for superior corrosion resistance.
Simpson Strong-Tie T08175FS75TN02 Includes
- (75) #8 x 1-3/4 in. Fascia Board Screws
Simpson Strong-Tie T08175FS75TN02 Features
- Type-17 tip for fast starts
- Type 316 stainless steel provides severe-level corrosion resistance
- Low-profile pancake head resists pullover
- Underhead chamfer for increased shear resistance
- Deep T20 6-lobe recess for reduced cam-outs
Simpson Strong-Tie T08175FS75TN02 Applications
- PVC and composite fascia board installations
Simpson Strong-Tie T08175FS75TN02 Installation Overview

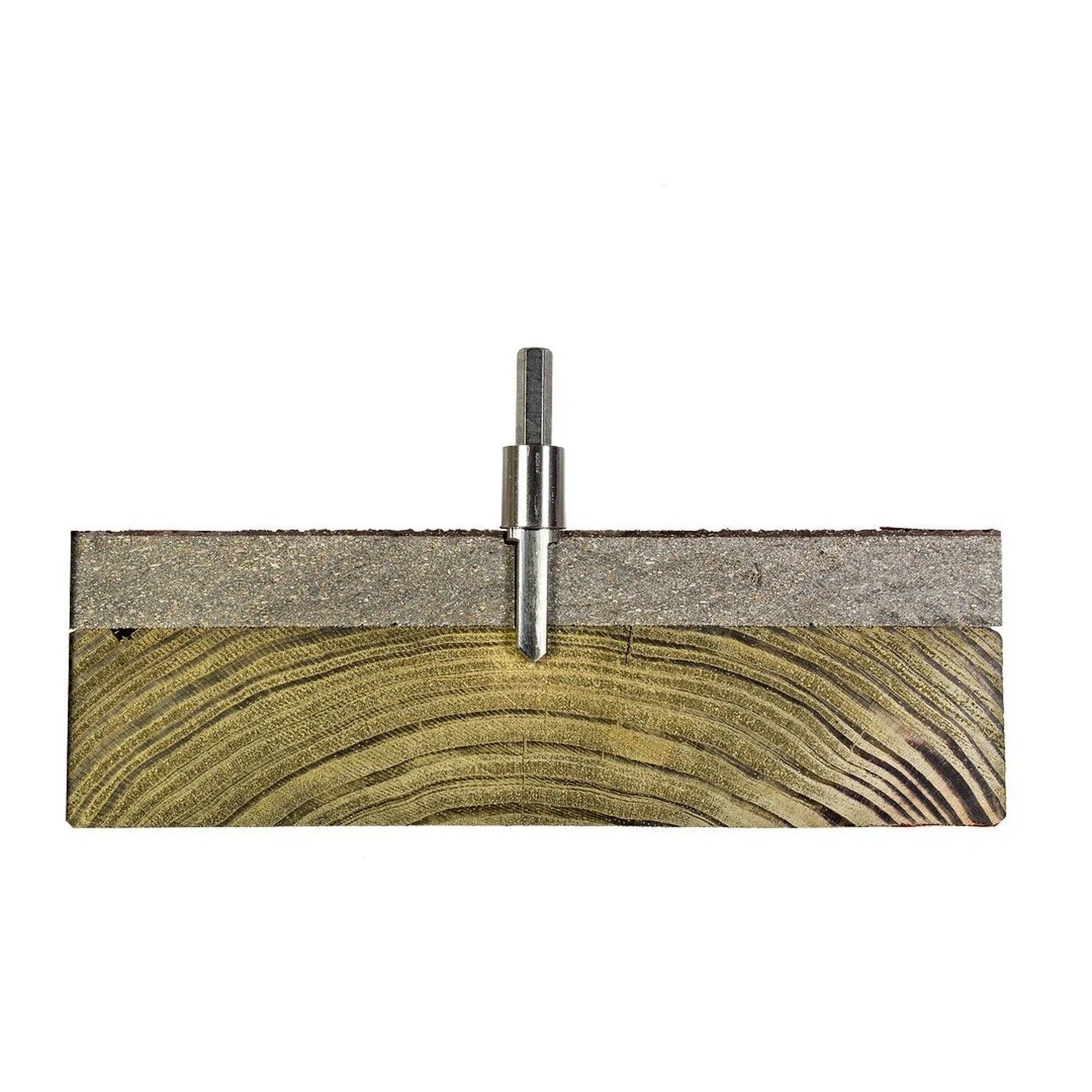

- Use the fascia counterbore bit to predrill oversized, counterbore holes into the fascia material.

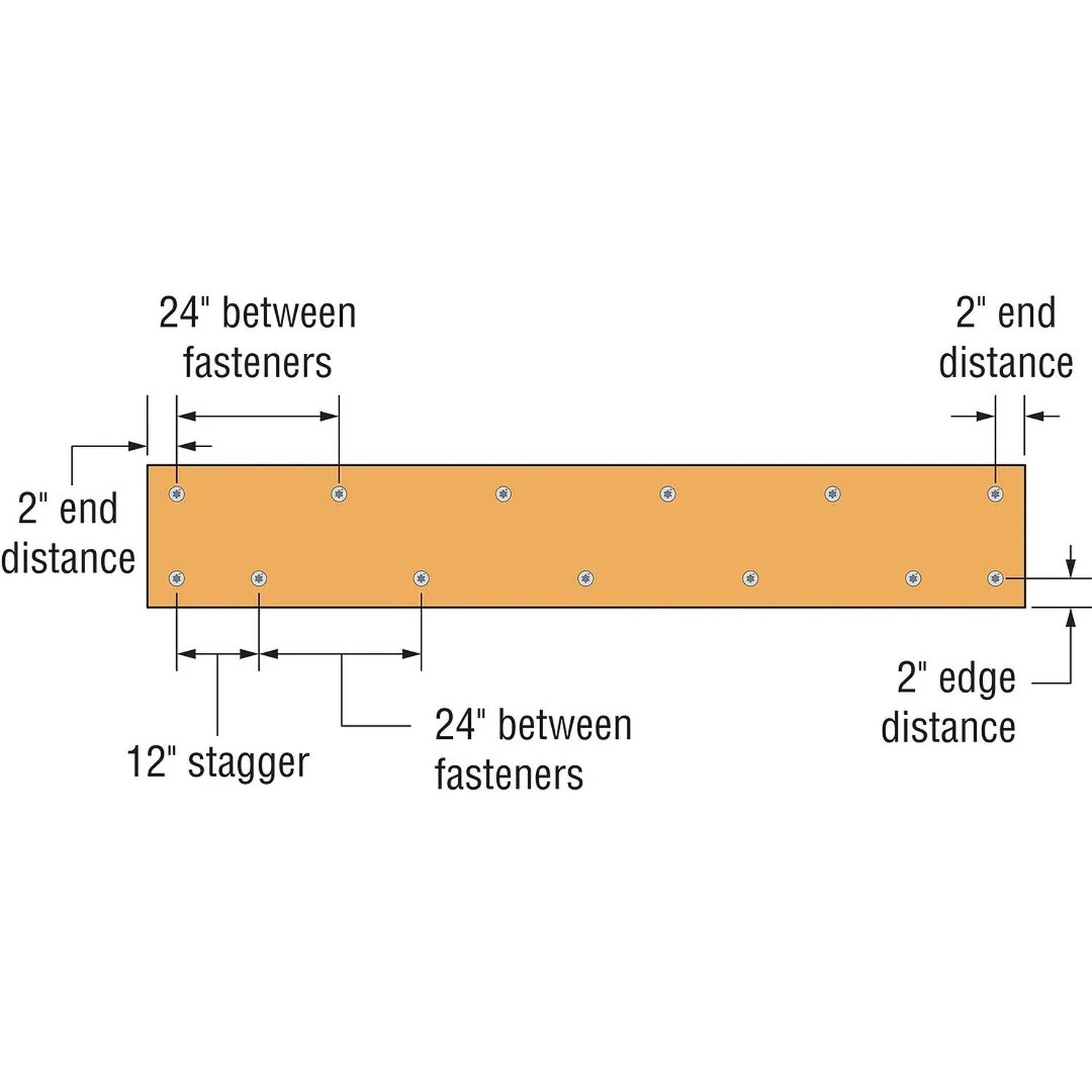

- Position the first hole 2 inches from the upper and left edges, then predrill holes every 24 inches on center.

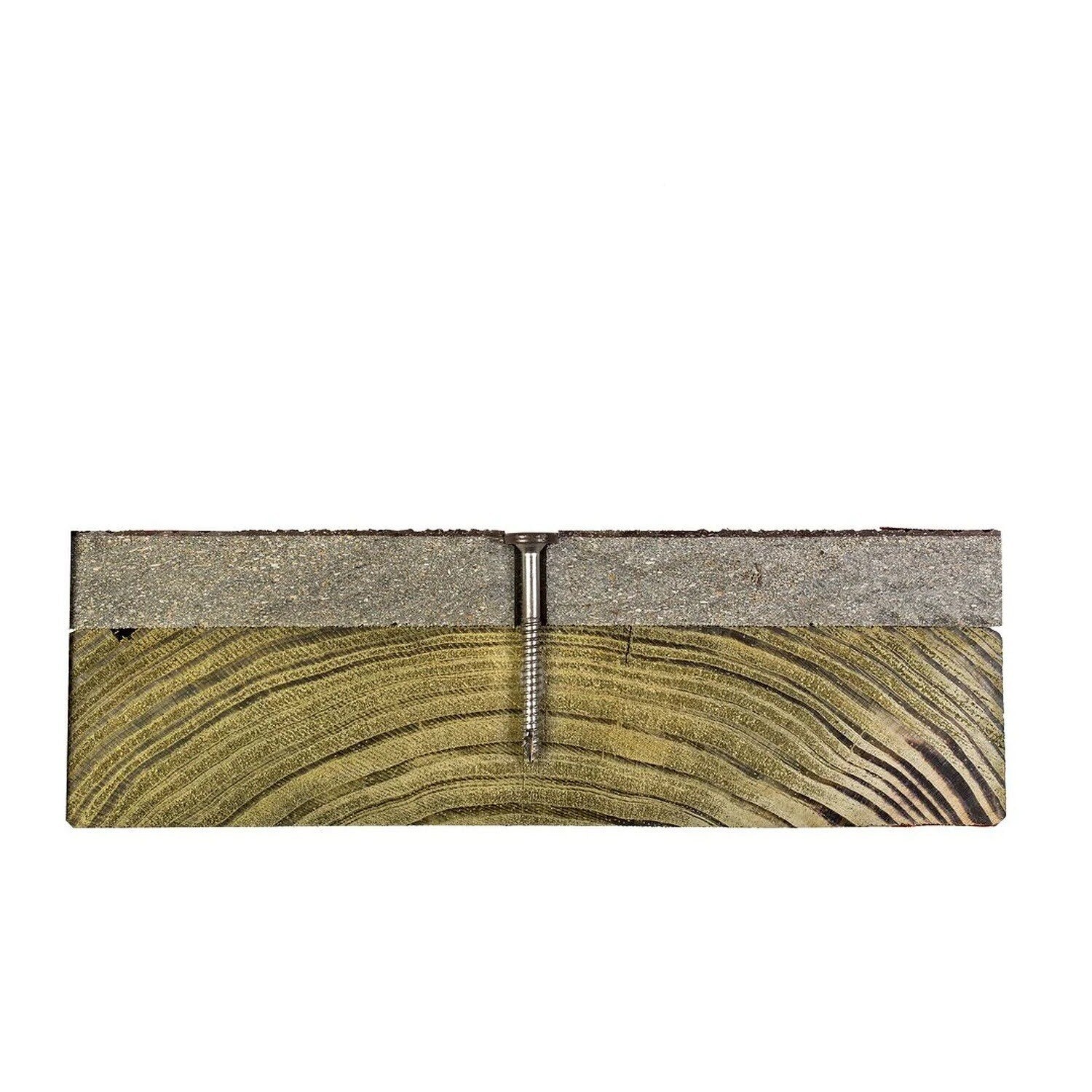

- Install fascia screws into each hole using a drill-driver motor, ensuring screws are flush with the board surface.
Simpson Strong-Tie T08175FS75TN02 Specifications
| Diameter | #8 |
| Length | 1-3/4" |
| Material | 316 Stainless Steel |
| Color | Tan 02 |
| Drive type | T20 Star Drive |
| Head type | Pancake Head |
| Quantity | 75 |
NOTE: Ensure proper predrilling and spacing for optimal installation.
