Simpson Anchors | SKU:
TB56

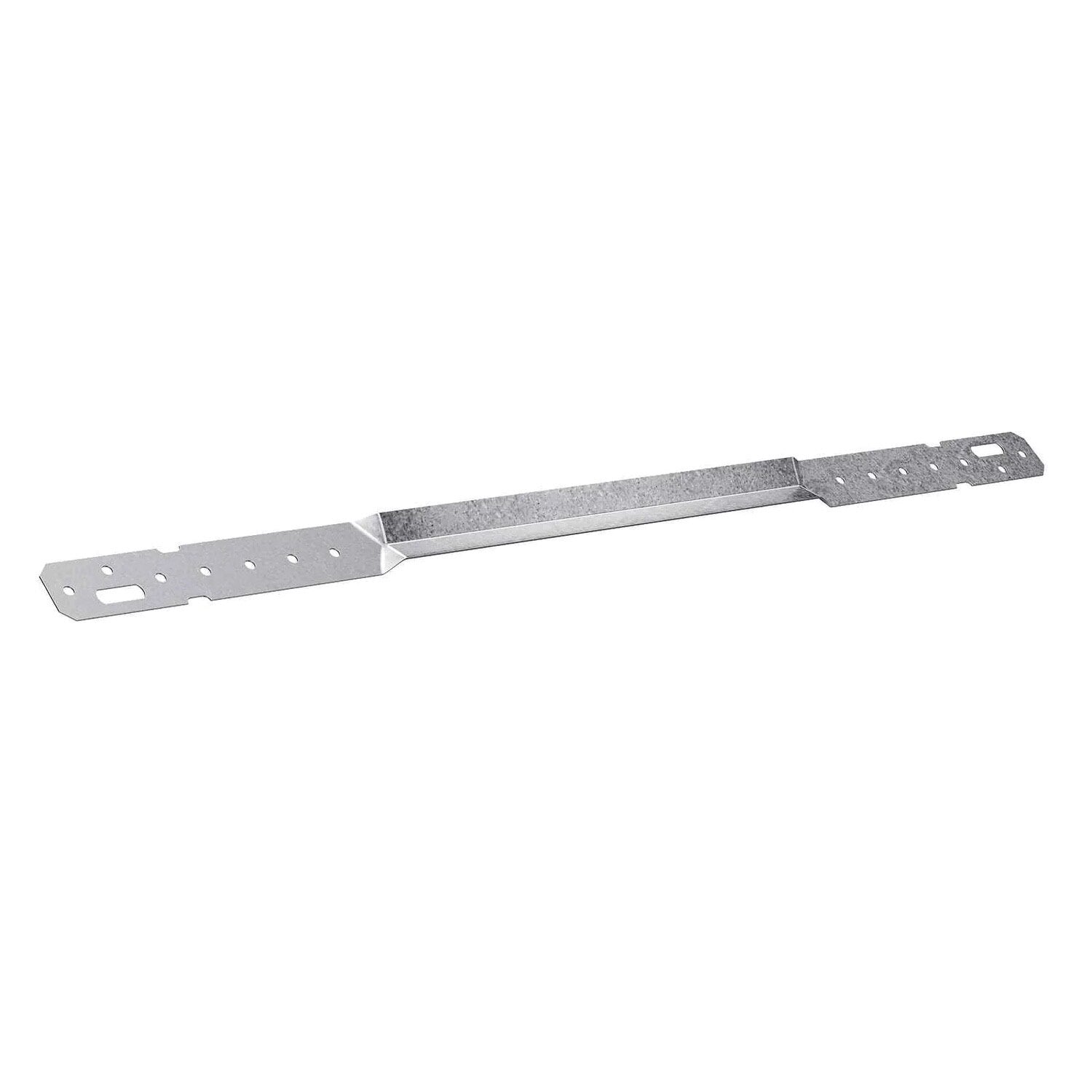

Simpson Strong-Tie TB56 (56 in.) 20 Gauge Galvanized Tension Bridging
$8.15
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TB56 Description
The Simpson Strong-Tie TB56 Tension Bridging provides cost-effective support between floor joists, reducing bounce and flex while distributing weight loads to prevent structural damage.
Simpson Strong-Tie TB56 Includes
- (1) TB56 Tension Bridging
Simpson Strong-Tie TB56 Features
- Cost-effective support for floor joists
- Reduces floor bounce and flex
- Distributes weight loads to prevent structural damage
- Maximum nailing flexibility with seven nail holes per end
- Made from durable G90 galvanized steel
Simpson Strong-Tie TB56 Applications
- Floor joist support in residential and commercial buildings
- Reducing floor movement and bounce
- Structural reinforcement to prevent damage
Simpson Strong-Tie TB56 Installation Overview
- Support floor joists with bridging at intervals not exceeding 8'.
- Install tightly to prevent floor movement.

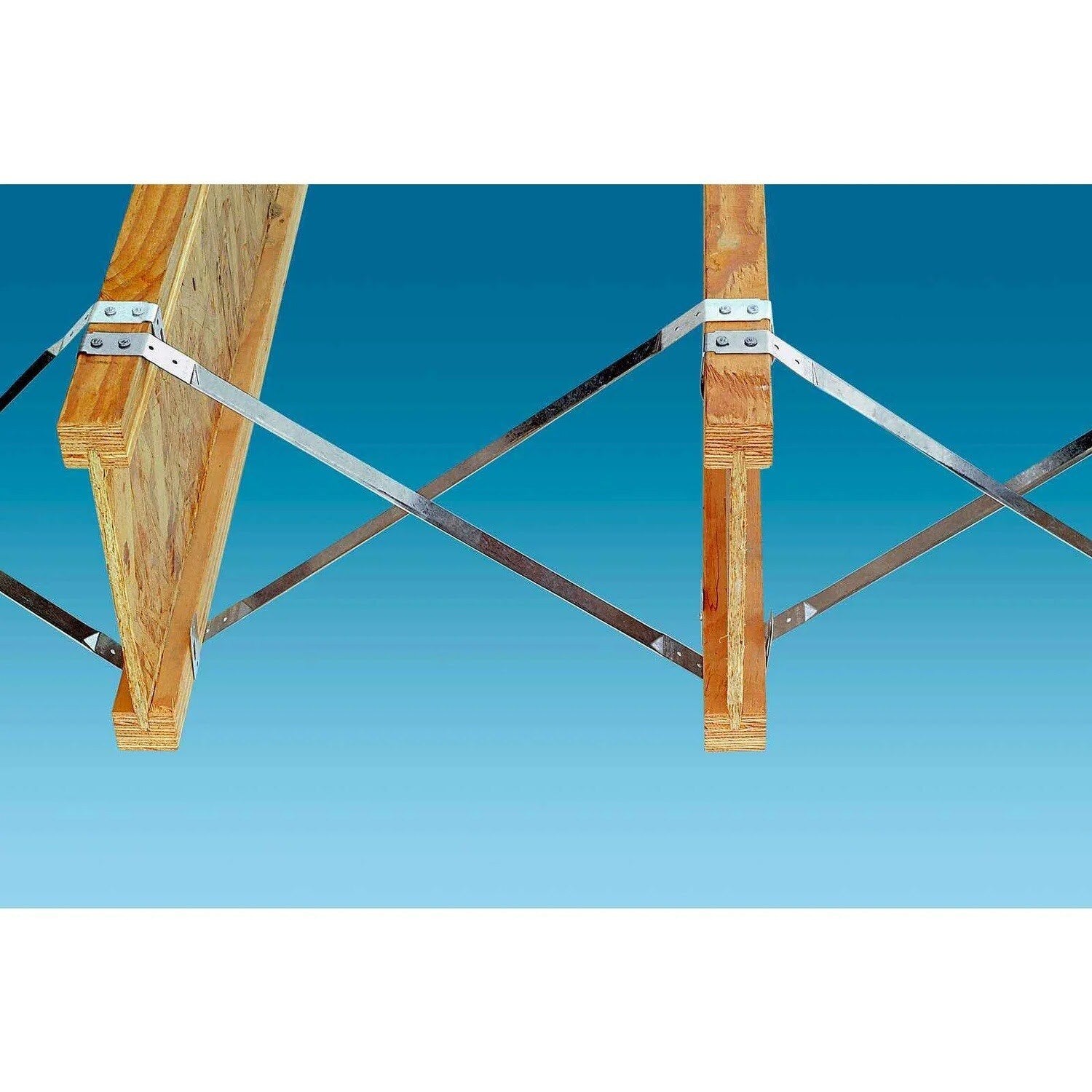

- Use in cross pairs for effective tension bridging.
- Requires two 0.148" x 1-1/2" fasteners per end.
- Can be installed before or after sheathing.
Simpson Strong-Tie TB56 Specifications
| Finish | G90 Galvanized |

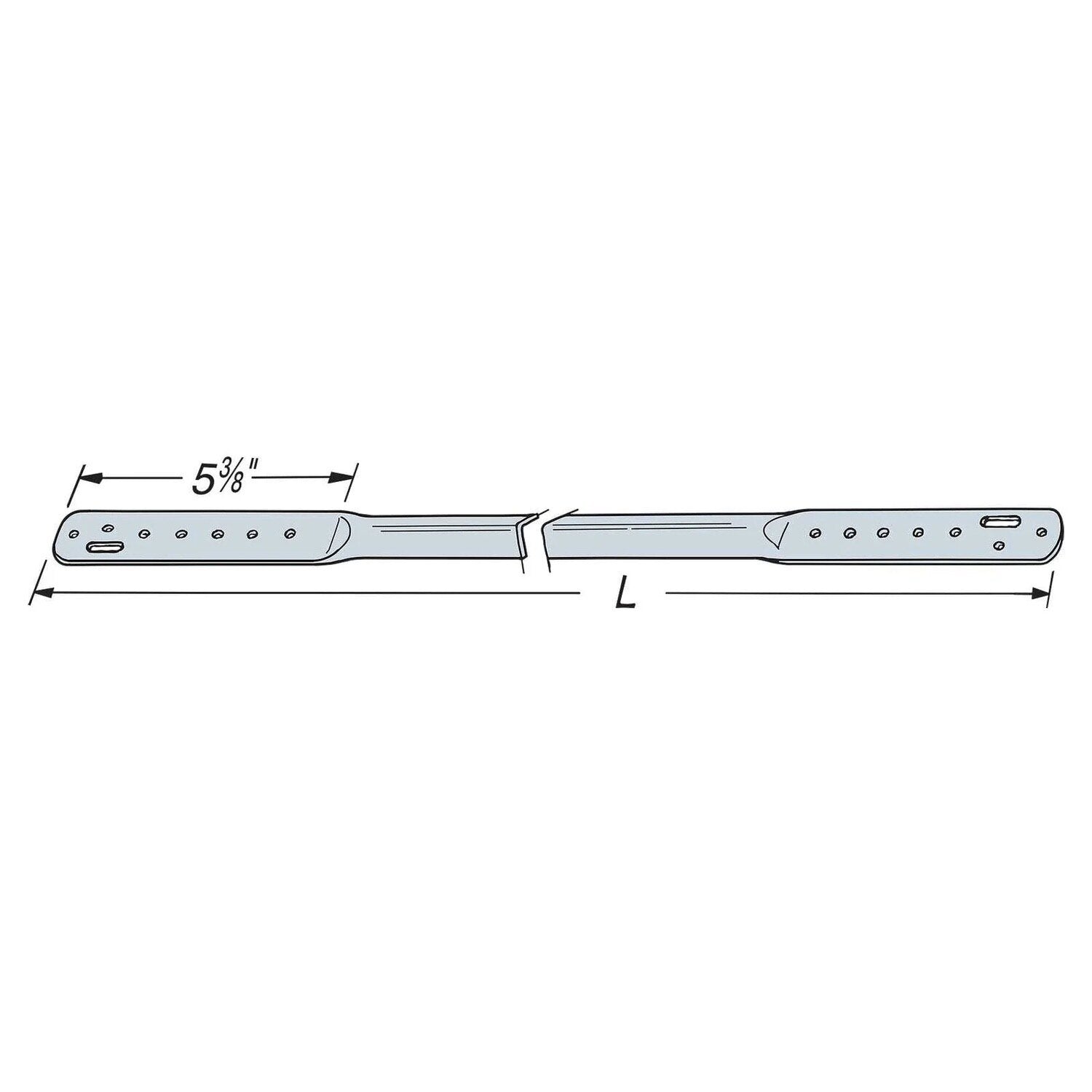

| Length | 56" |
| Material | Galvanized Steel |
| Fasteners required | (4) 0.148" X 1-1/2" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 20 Gauge |
NOTE: Ensure bridging is installed tightly to prevent floor movement.
