Simpson Anchors | SKU:
TB60

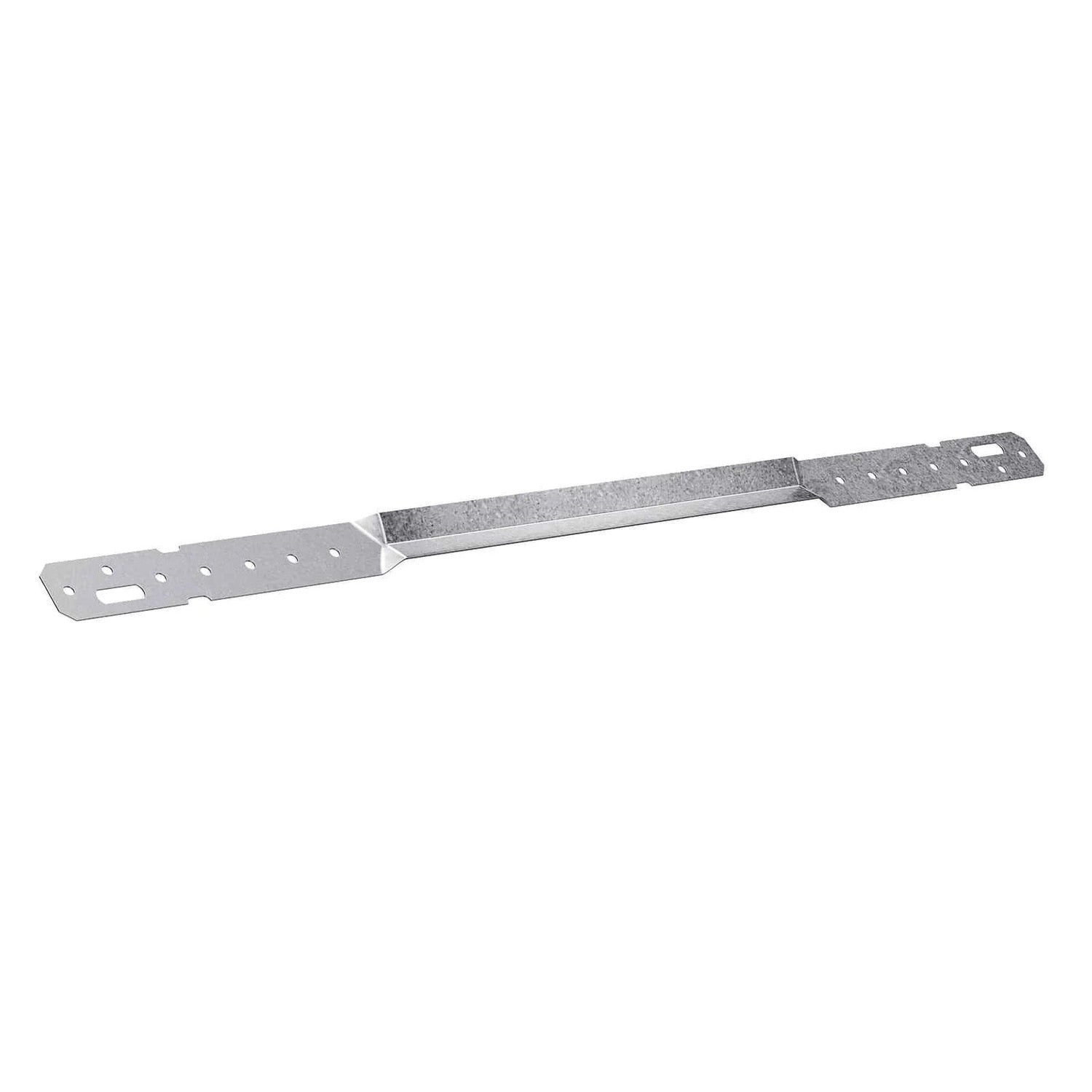

Simpson Strong-Tie TB60 (60 in.) 20 Gauge Galvanized Tension Bridging
$8.34
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TB60 Description

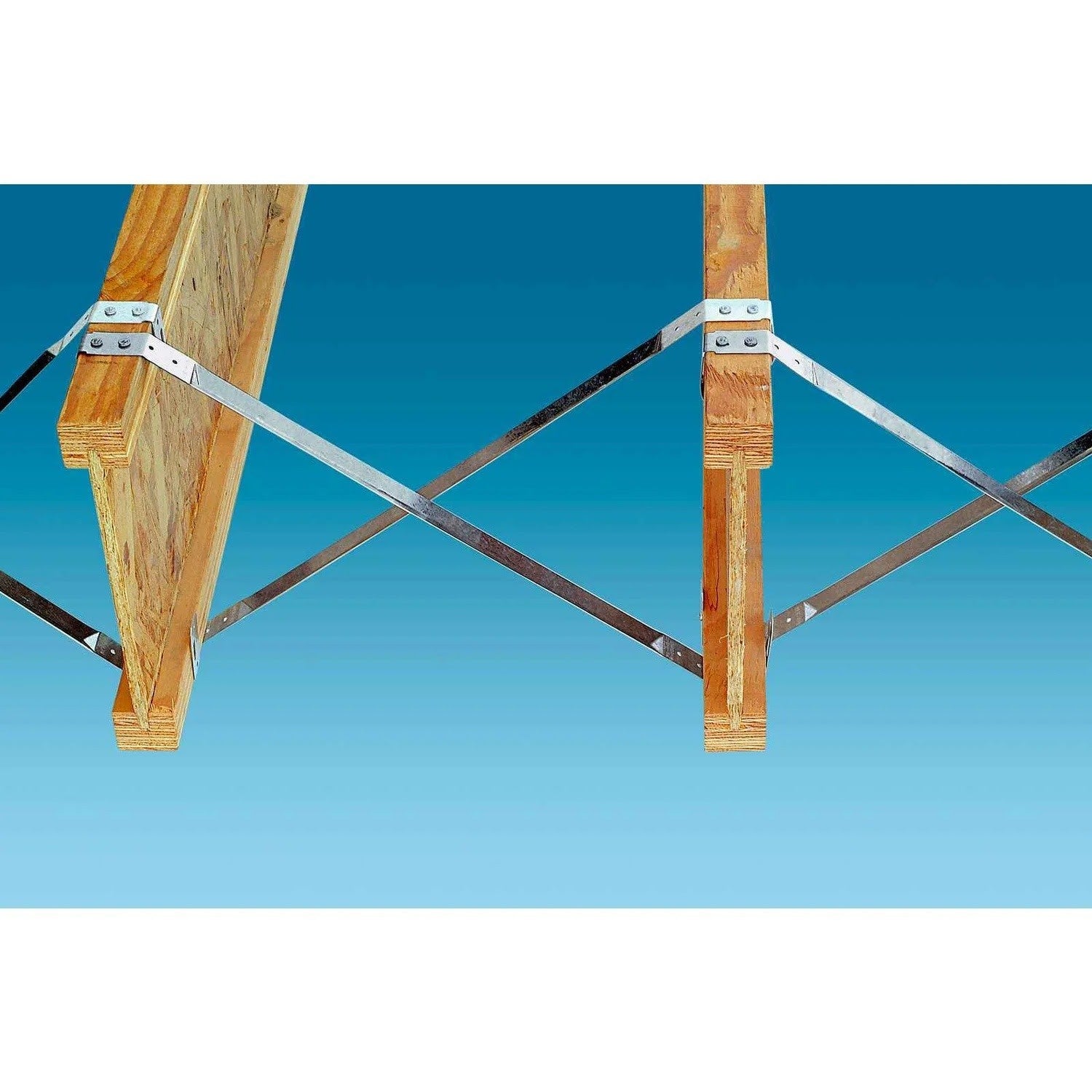

The Simpson Strong-Tie TB60 Tension Bridging provides additional support between floor joists, reducing floor bounce and flex.
Simpson Strong-Tie TB60 Includes
- (1) TB60 Tension Bridging
Simpson Strong-Tie TB60 Features
- Galvanized for corrosion resistance
- Prevents joist rotation and maintains floor system continuity
- Seven nail holes on each end for installation flexibility
Simpson Strong-Tie TB60 Applications
- Floor joist support in residential and commercial buildings
- Prevention of floor bounce and flex
- Structural reinforcement to reduce weight-load impact
Simpson Strong-Tie TB60 Installation Overview
- Support floor joists with a depth-to-thickness ratio of six or more with bridging at intervals not exceeding 8'.
- Install on 2x8 or larger joists for spans greater than 8'.
- Use more than one pair for spans greater than 16'.
- Install bridging tightly to prevent floor movement.
- Requires two 0.148" x 1 1/2" fasteners per end.
Simpson Strong-Tie TB60 Specifications
| Finish | G90 Galvanized |

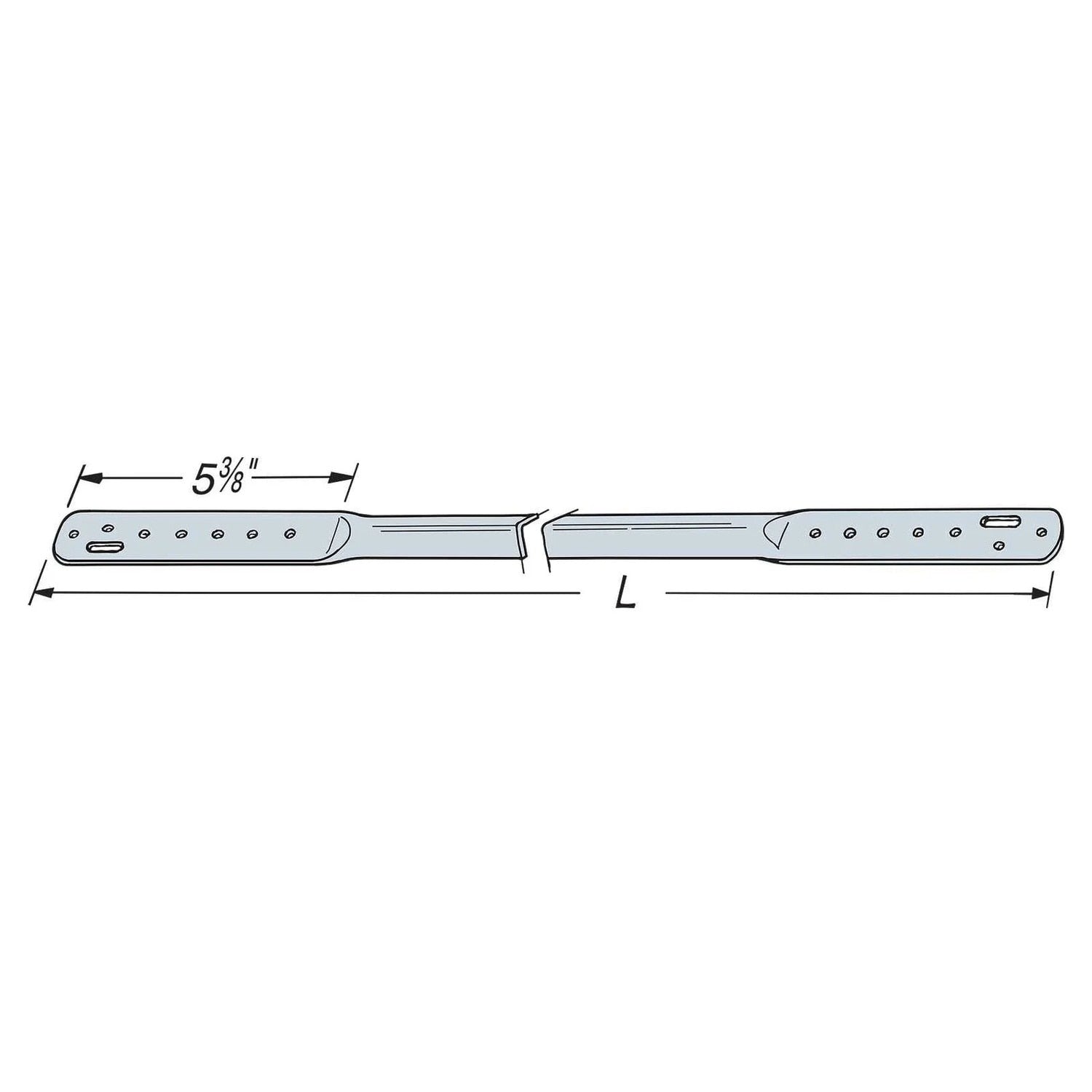

| Length | 60" |
| Material | Galvanized Steel |
| Fasteners required | (4) 0.148" X 1-1/2" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 20 Gauge |
NOTE: Ensure bridging is installed tightly to prevent floor movement.
