Simpson Anchors | SKU:
TBE4

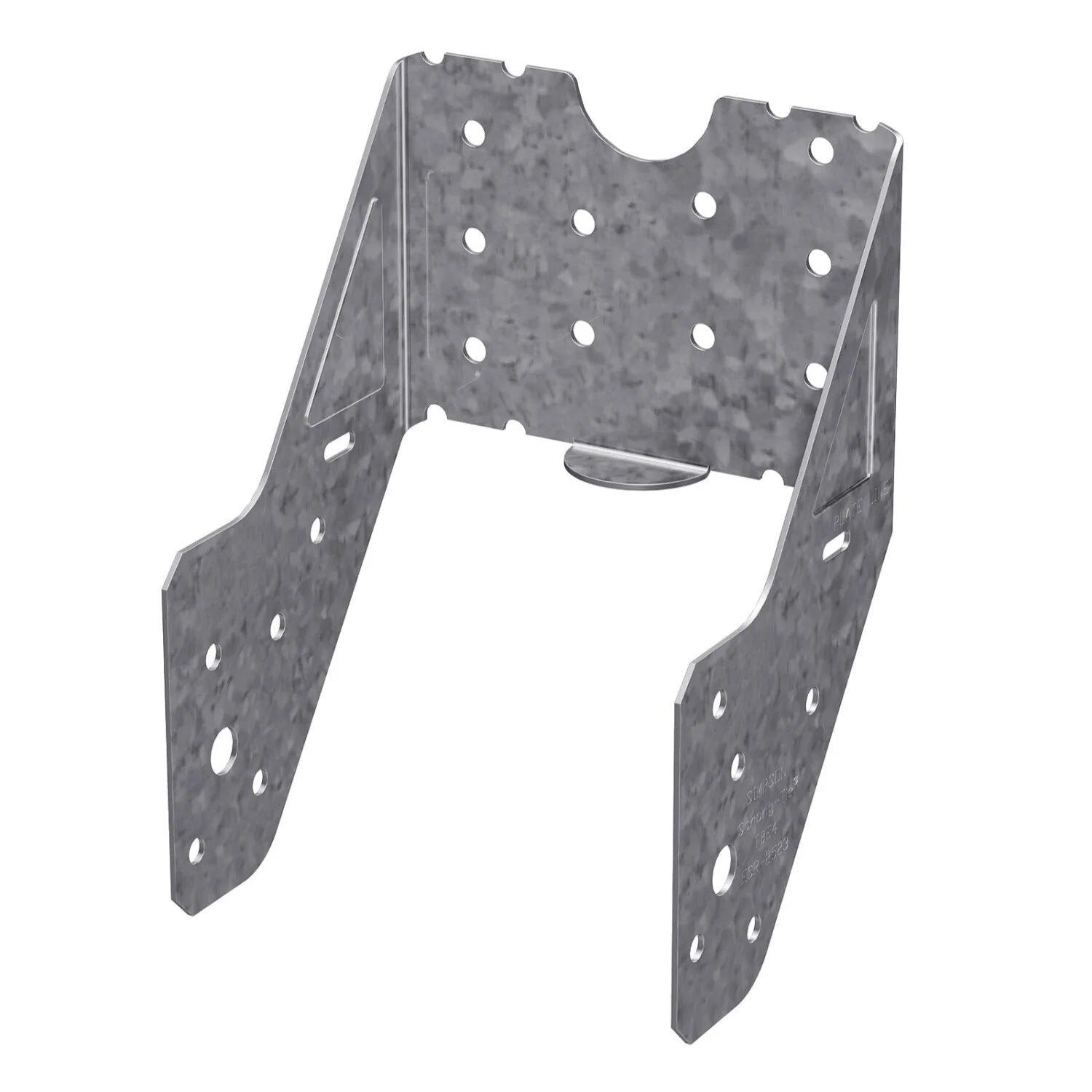

Simpson Strong-Tie TBE4 Truss Bearing Enhancer for 2x4 Top Plate
$7.81
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TBE4 Description
The TBE4 Truss Bearing Enhancer transfers load from the truss or girder to plates for bearing-limited conditions, providing exceptional uplift capacity.
Simpson Strong-Tie TBE4 Includes
- (1) TBE4 Truss Bearing Enhancer
Simpson Strong-Tie TBE4 Features
- Transfers load from truss or girder to plates for bearing-limited conditions
- Provides exceptional uplift capacity
- Replaces nail-on scabs for better load transfer
- Works with any number of girder plies
- G90 Galvanized finish for durability
Simpson Strong-Tie TBE4 Applications
- Used in bearing-limited conditions to transfer load from truss or girder to plates
- Enhances structural support in construction projects
- Suitable for use with 2x4 top plates
Simpson Strong-Tie TBE4 Installation Overview
- Install TBE4 in pairs as specified
- Use the correct fasteners for the number of truss plies
- Follow the Fastener Schedule and Alternate Installation tables for proper setup
Simpson Strong-Tie TBE4 Specifications
| Finish | G90 Galvanized |
| Fasteners required | 1 Truss Plies: (10) 0.148 x 1-1/2" 2+ Truss Plies: (10) 0.148 x 3" in both rafter and plate |
| Thickness | 18 Gauge |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
