Simpson Anchors | SKU:
TBE6
Simpson Strong-Tie TBE6 Truss Bearing Enhancer for 2x6 Top Plate
$10.04
Unit price
/
Unavailable
Description
Description

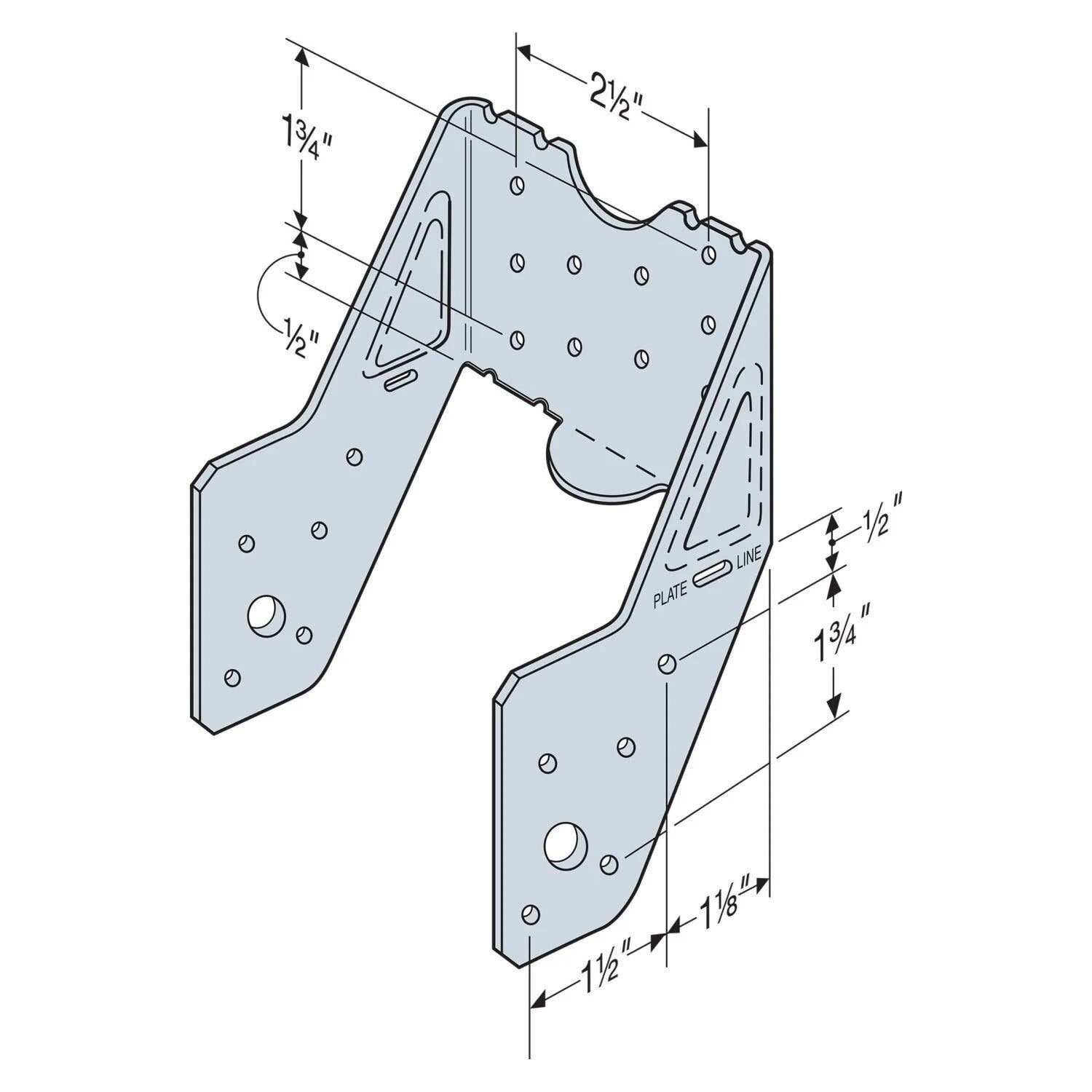

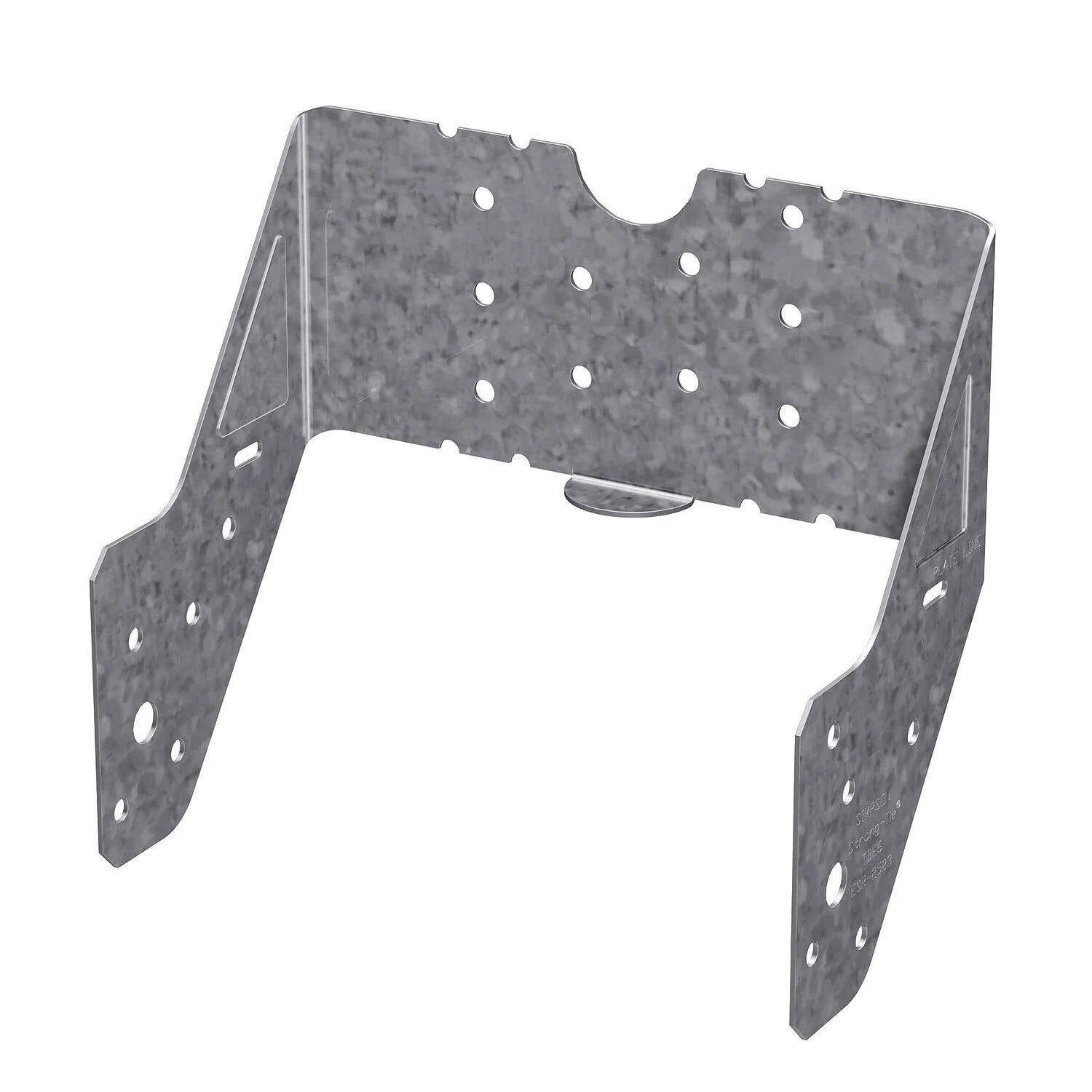

Simpson Strong-Tie TBE6 Description
The TBE6 Truss Bearing Enhancer transfers load from the truss or girder to plates for bearing-limited conditions, providing exceptional uplift capacity.
Simpson Strong-Tie TBE6 Includes
- (1) TBE6 Truss Bearing Enhancer
Simpson Strong-Tie TBE6 Features
- Transfers load from truss or girder to plates for bearing-limited conditions
- Provides exceptional uplift capacity
- Replaces nail-on scabs for better load transfer
- Works with any number of girder plies
- Must be installed in pairs
Simpson Strong-Tie TBE6 Applications
- Enhancing truss bearing in construction
- Improving load transfer in bearing-limited conditions
- Providing uplift capacity in structural applications
Simpson Strong-Tie TBE6 Installation Overview
- Install in pairs for optimal performance
- Use specified fasteners for truss plies and plates
- Follow Fastener Schedule and Alternate Installation tables
Simpson Strong-Tie TBE6 Specifications
| Finish | G90 Galvanized |
| Fasteners required | 1 Truss Plies: (10) 0.148 x 1-1/2" 2+ Truss Plies: (10) 0.148 x 3" in both rafter and plate |
| Thickness | 18 Gauge |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
