Simpson Anchors | SKU:
TC26
Simpson Strong-Tie TC26 (16 Gauge) Galvanized TC Scissor Truss Connector for 2x6 Wall
$11.40
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TC26 Description

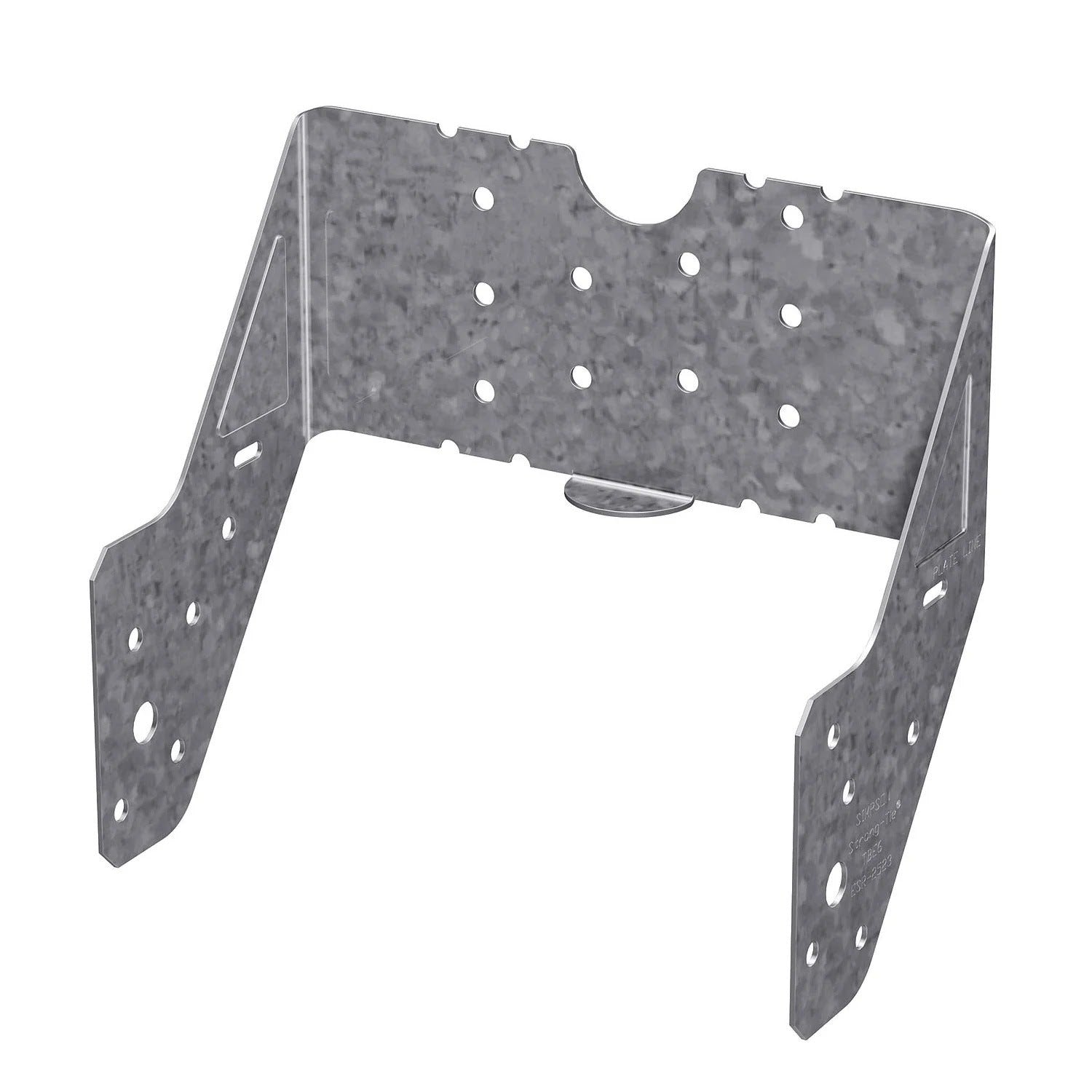

The TC26 Galvanized Truss Connector is designed for securing scissor trusses to top plates or sill plates, providing resistance against uplift forces and allowing horizontal movement up to 1 1/4".
Simpson Strong-Tie TC26 Includes
- (1) TC26 Galvanized Truss Connector
Simpson Strong-Tie TC26 Features
- Galvanized finish for corrosion resistance
- Designed for scissor trusses
- Allows horizontal movement up to 1 1/4"
- Resists uplift forces
- Can be used on one or both ends of truss
Simpson Strong-Tie TC26 Applications
- Securing scissor trusses to top plates or sill plates
- Providing resistance against uplift forces
- Allowing horizontal movement in truss connections
Simpson Strong-Tie TC26 Installation Overview
- Use all specified fasteners as per guidelines.
- Drive 0.148" x 3" nails into the truss at the inside end of the slotted holes, leaving room under the nail head for movement.
- After roofing materials installation, nails may need to be fully seated as required by the designer.
- Optional installation involves bending one flange up 90° and driving specified nails or screws into the top and face of the plates or masonry wall.
Simpson Strong-Tie TC26 Specifications
| Material | 16 Gauge |
| Finish | G90 Galvanized |
| Weight | 0.6 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
