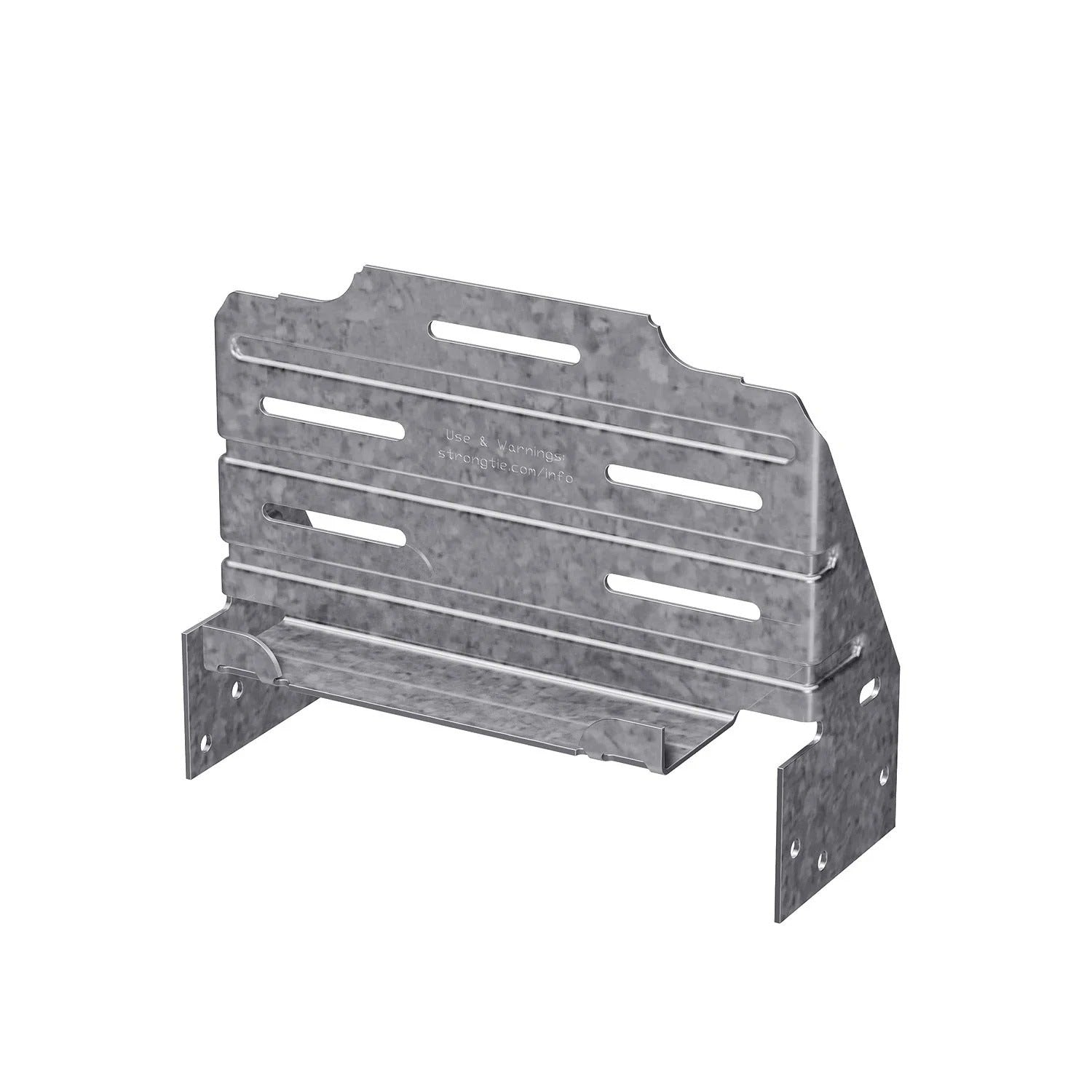

Simpson Strong-Tie TC28 Description
The TC28 Scissor Truss Connector by Simpson Strong-Tie is designed for wood-to-wood fastening applications, providing reliable structural support with a galvanized finish for corrosion resistance.
Simpson Strong-Tie TC28 Includes
- (1) TC28 Scissor Truss Connector
Simpson Strong-Tie TC28 Features
- Galvanized finish for corrosion resistance
- Designed for wood-to-wood fastening
- 16 gauge material for durability
Simpson Strong-Tie TC28 Applications
- Wood-to-wood fastening in construction
- Structural support for trusses
Simpson Strong-Tie TC28 Installation Overview
- Use all specified fasteners as per guidelines.
- Drive 0.148" x 3" nails into the truss at the inside end of the slotted holes.
- Allow room under the nail head for movement of the truss.
- After roofing materials installation, nails may need to be fully seated.

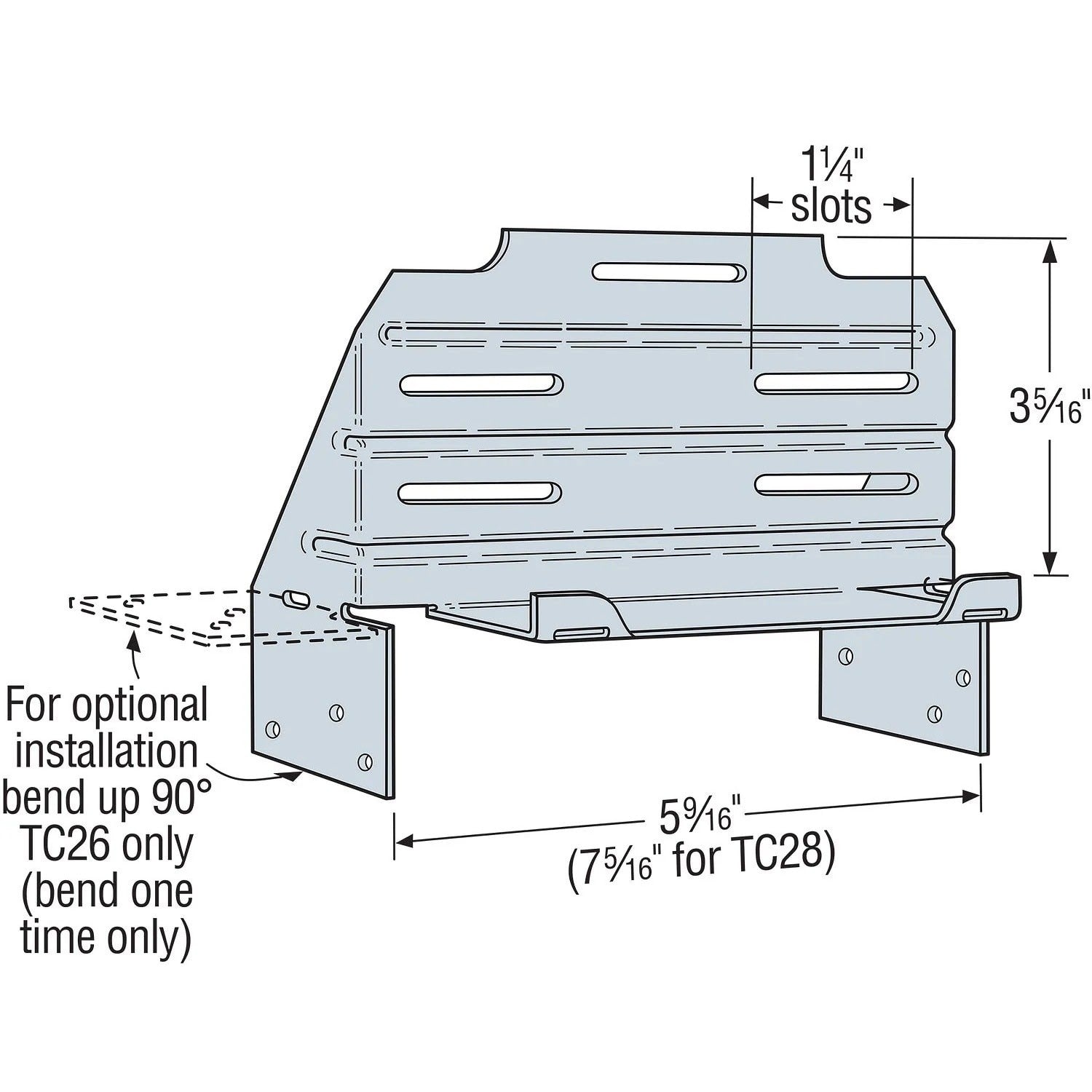

- Optional installation involves bending one flange up 90° and driving specified nails into the top and face of the top plates.
Simpson Strong-Tie TC28 Specifications
| Material | 16 gauge |
| Finish | Galvanized |
| Application | Wood-to-Wood Fastening |
| Packaging Quantity | 1 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
