Simpson Anchors | SKU:
TFG1475R1000
Simpson Strong-Tie TFG1475R1000 Strong-Drive (#14 x 3") T30 TF Wood-to-Steel Screw - N2000 Coated (1000 Pack)
Free Shipping
$305.07
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TFG1475R1000 Description

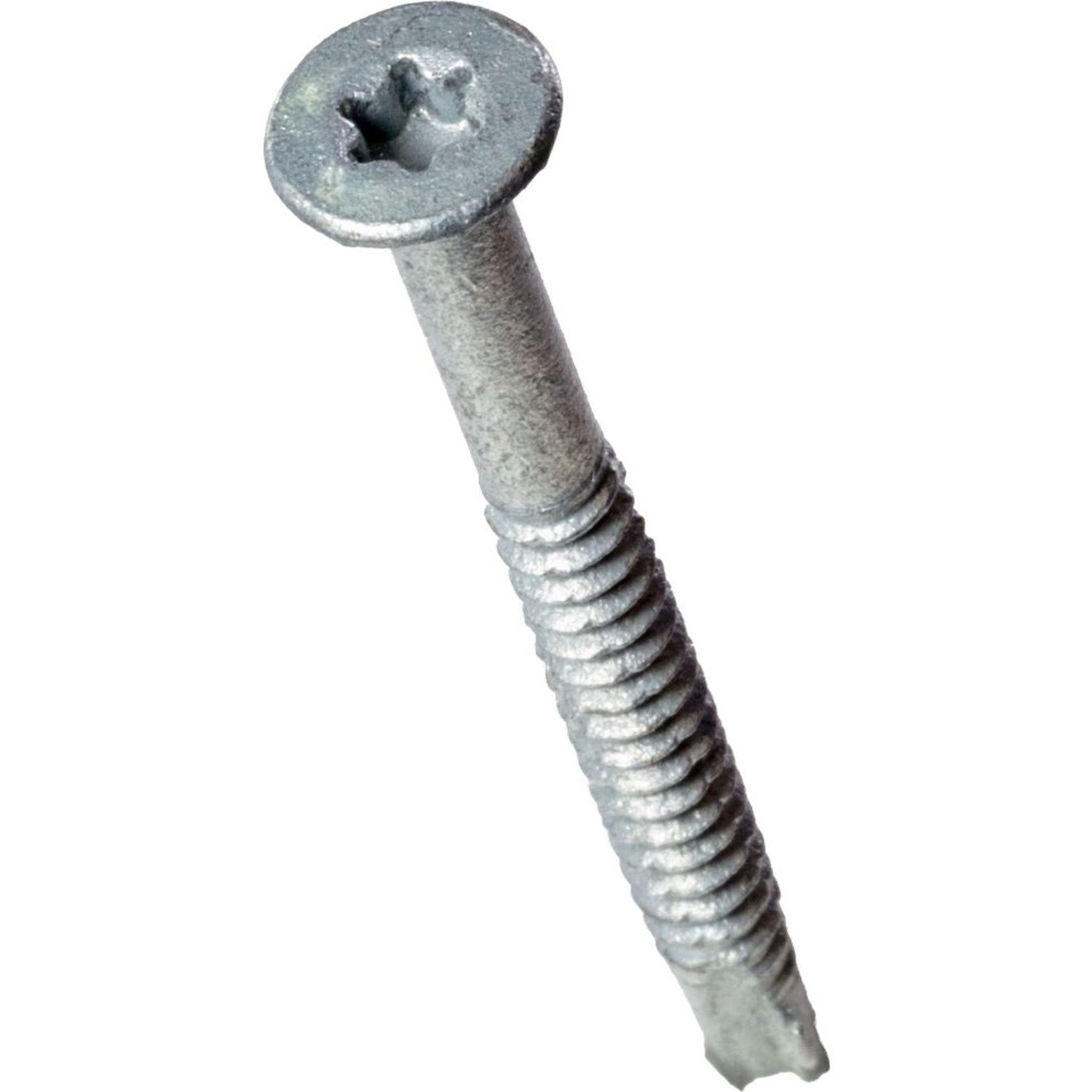

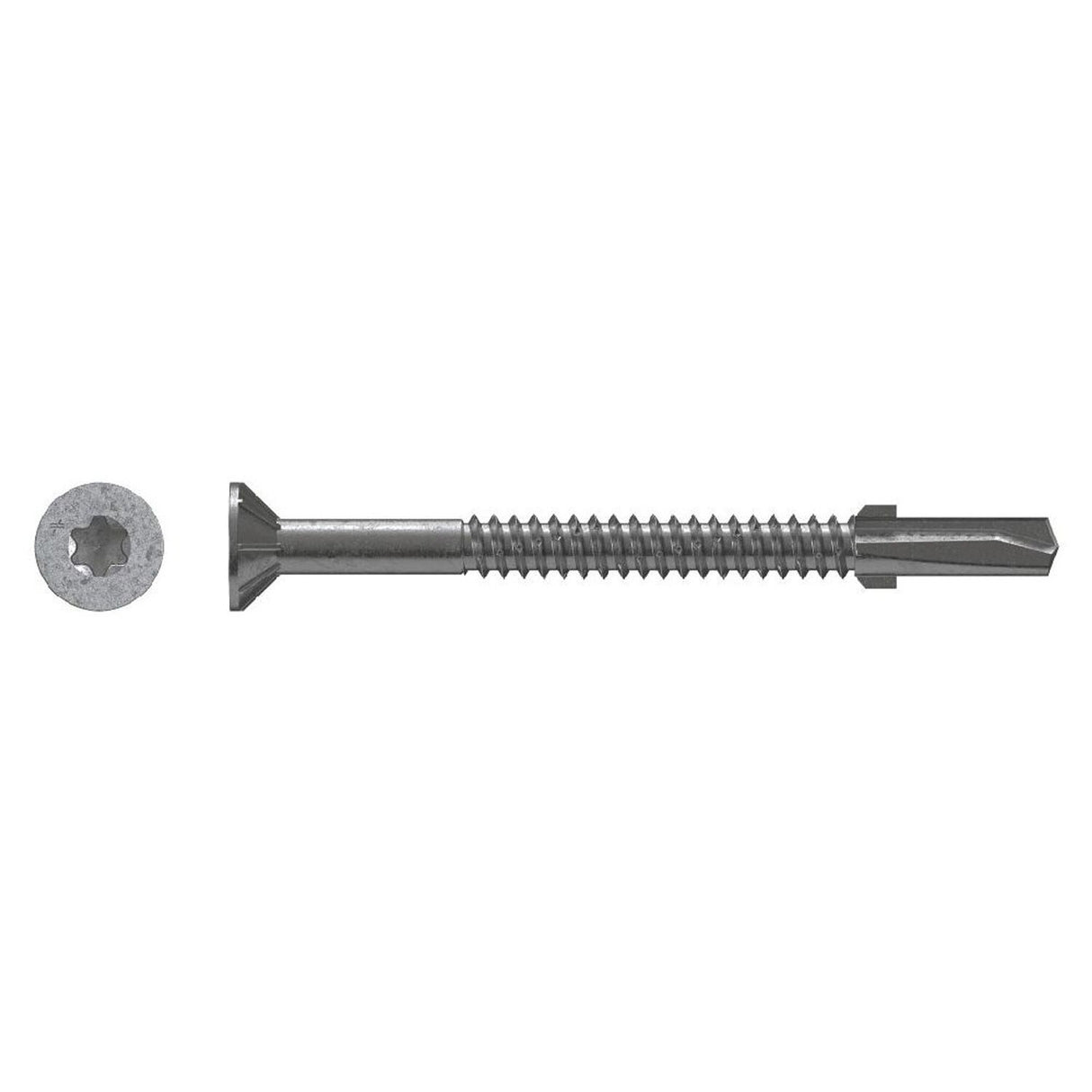

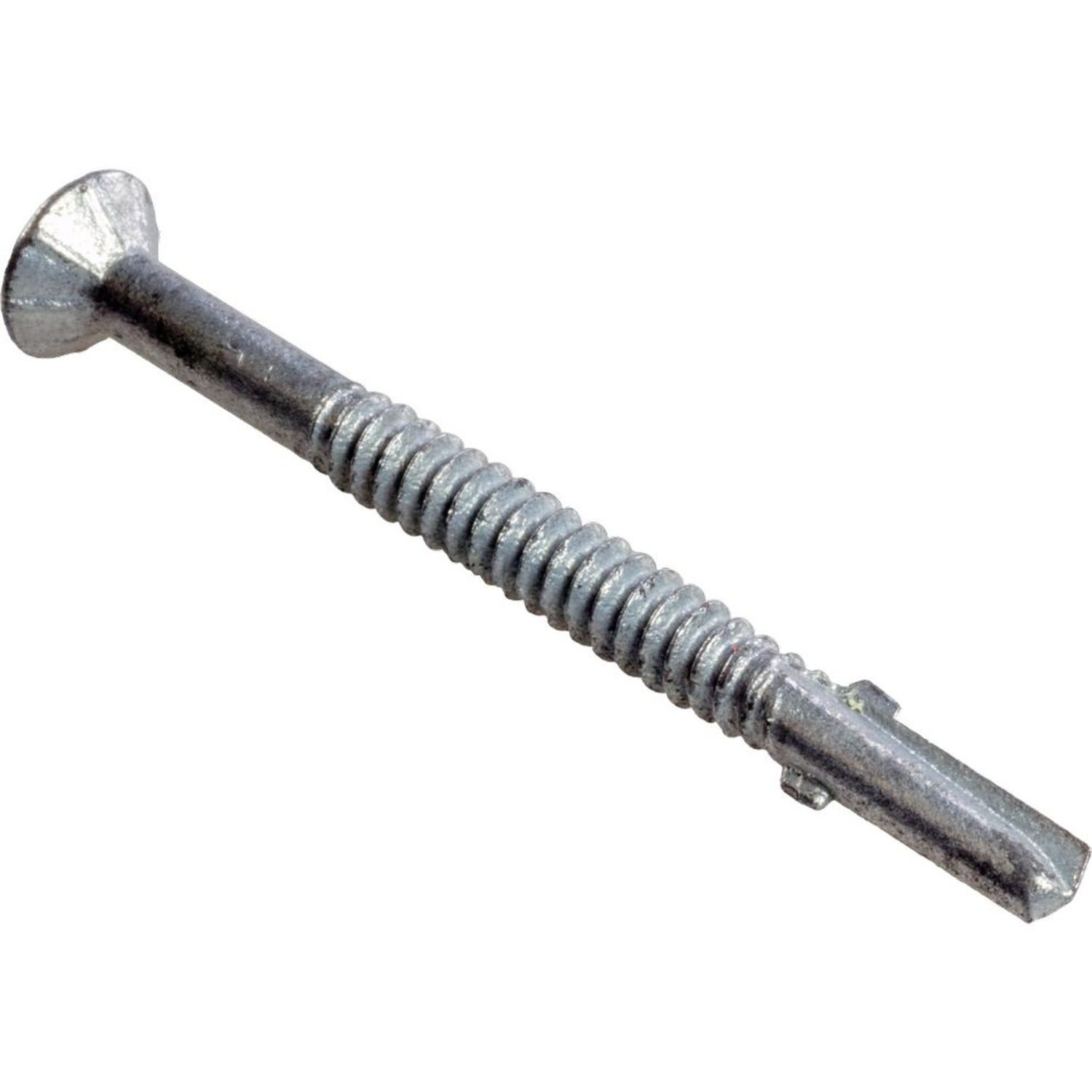

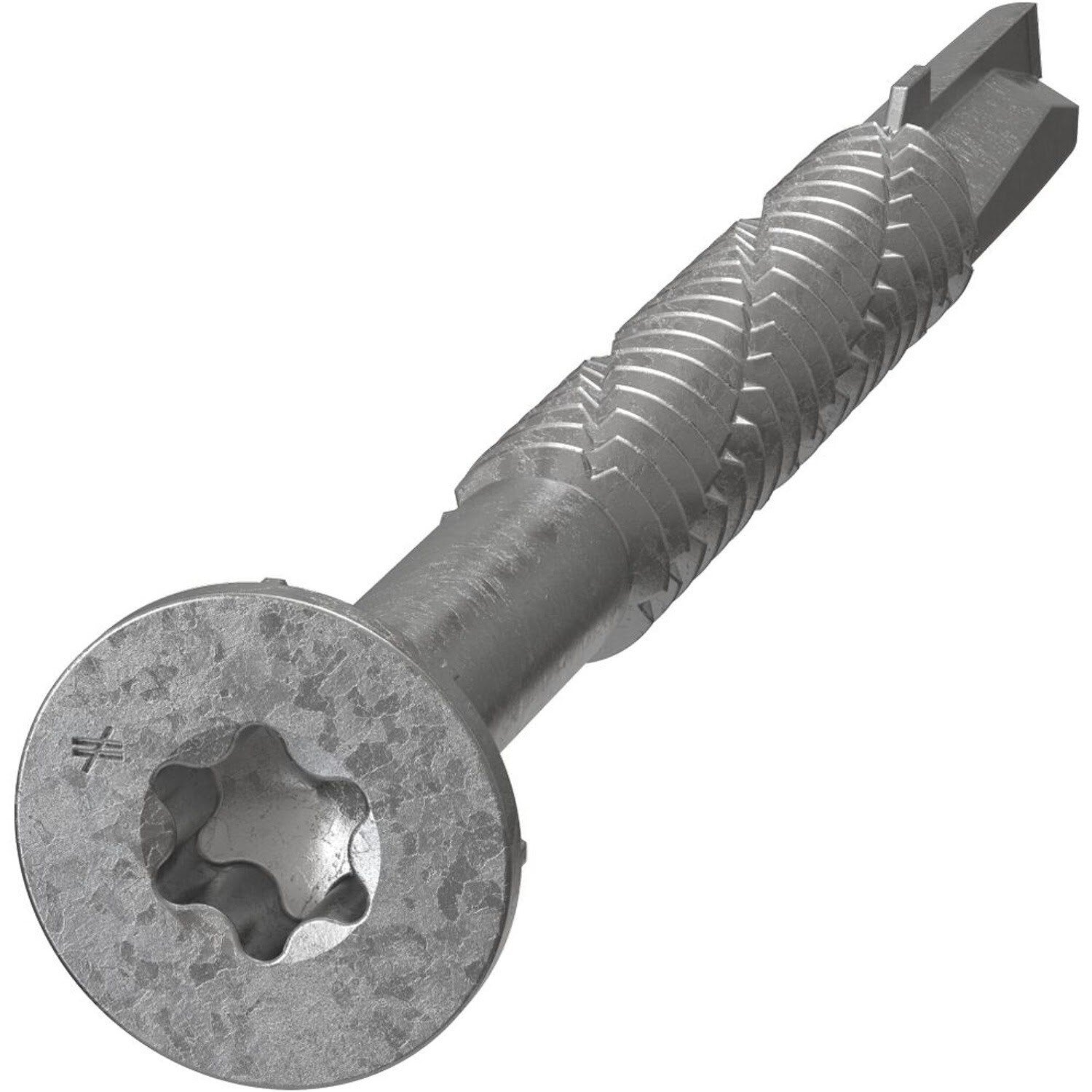

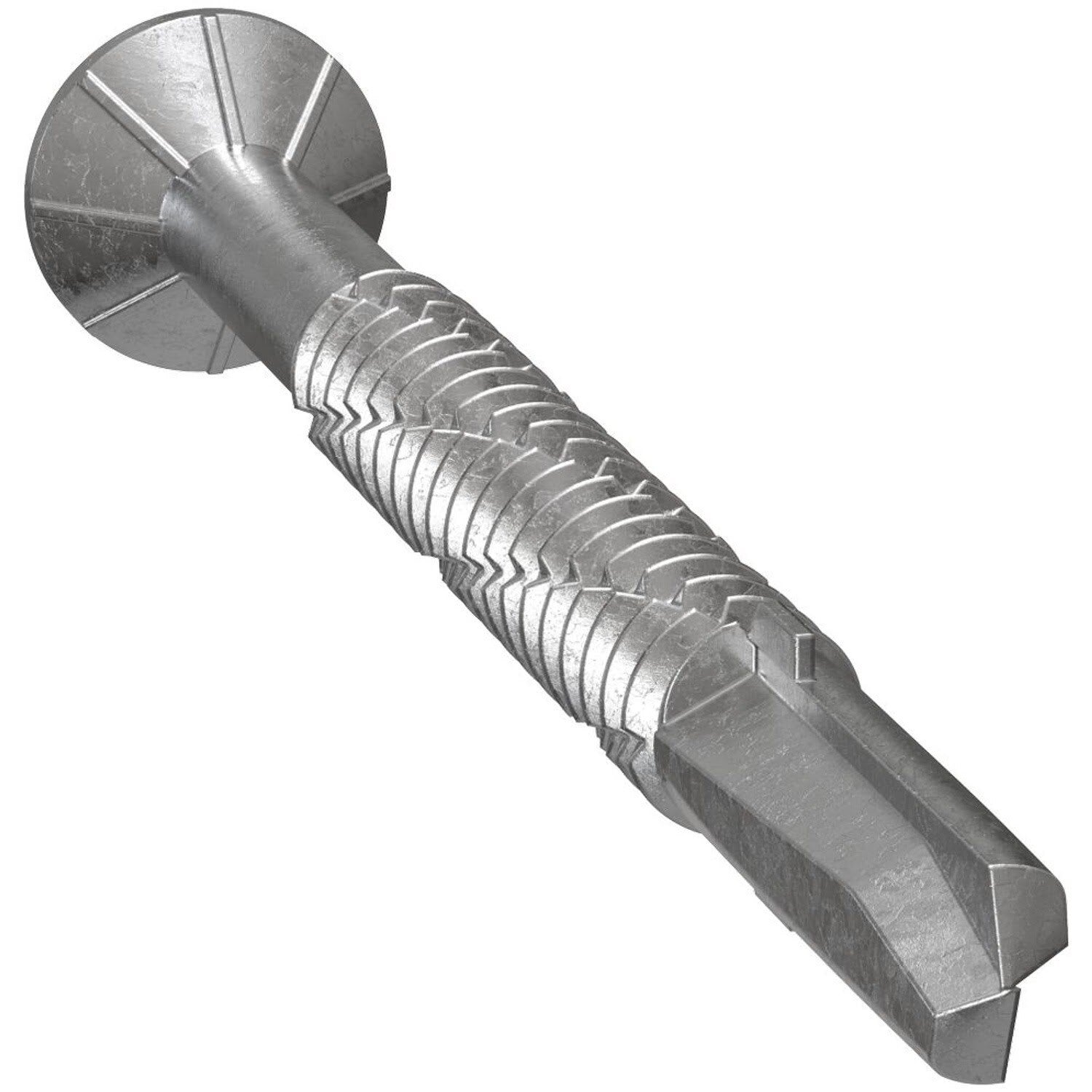

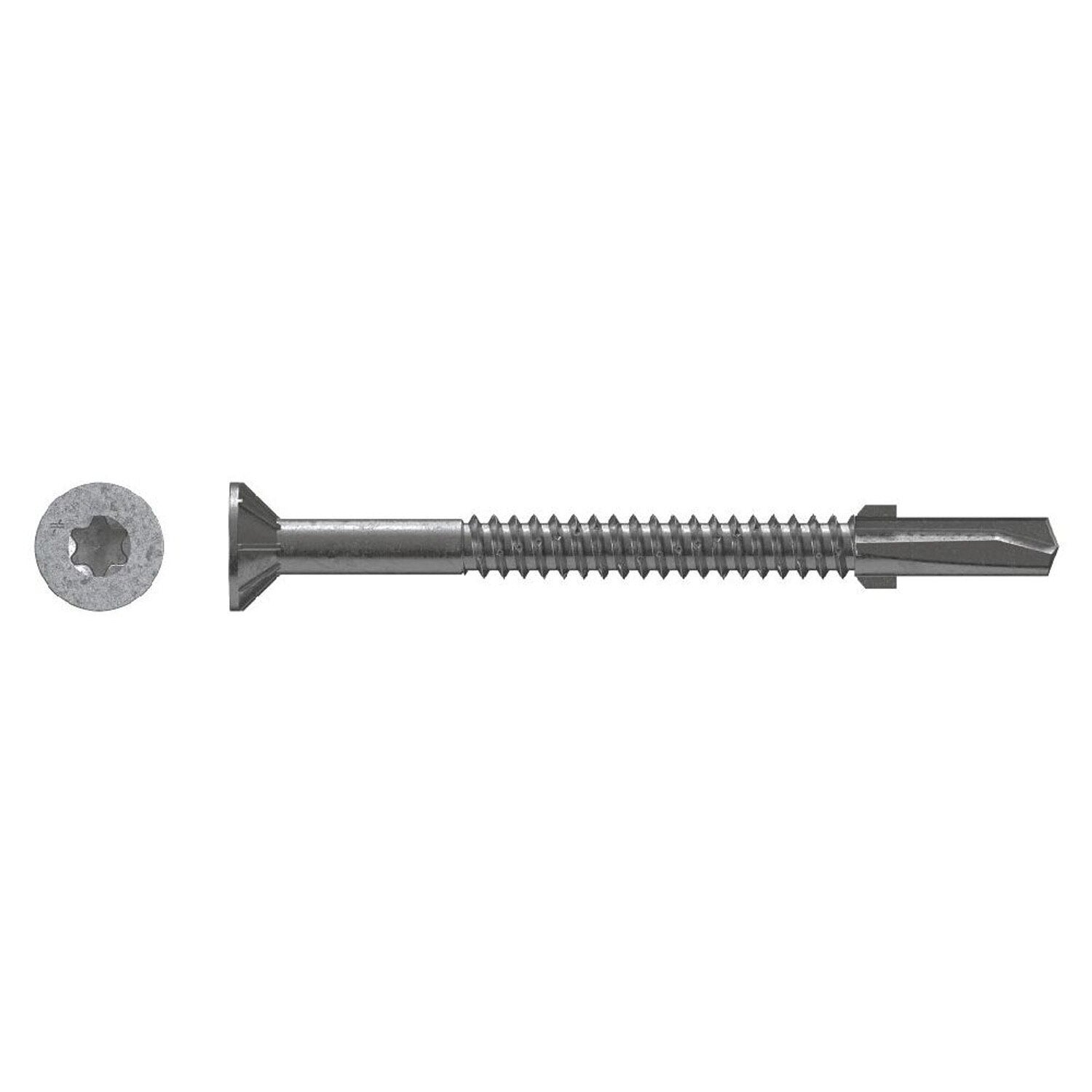

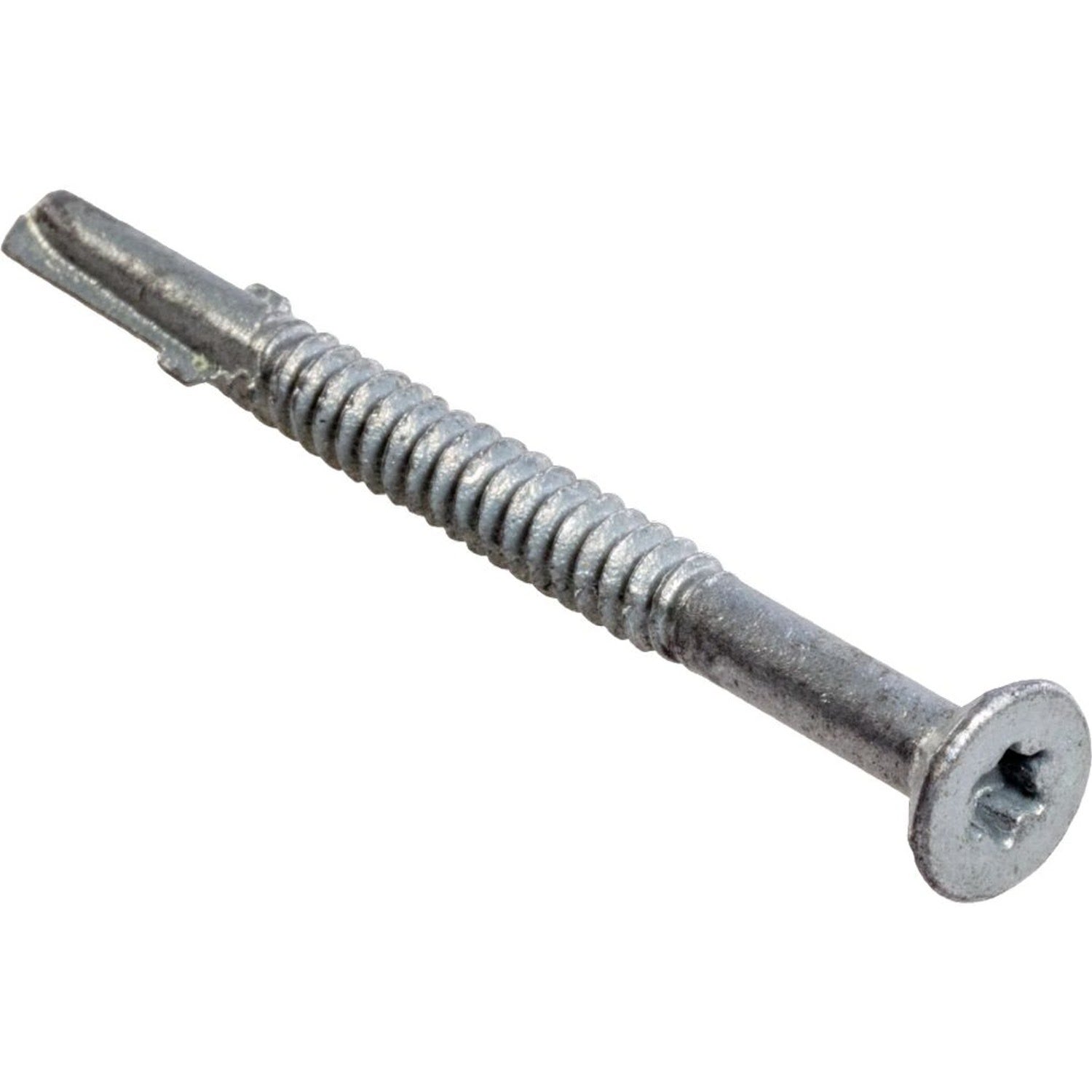

The Strong-Drive TF Wood-to-Steel Screw is designed for secure wood-to-steel connections, featuring a N2000 coating for enhanced durability.
Simpson Strong-Tie TFG1475R1000 Includes
- (1000) Strong-Drive TF Wood-to-Steel Screw
Simpson Strong-Tie TFG1475R1000 Features
- Mechanically galvanized or black phosphate coating
- Flat head with nibs for easy countersinking and pull-through resistance
- 6-lobe recess for secure driving
- #5 drill point with wings to bore through wood member
- Self-tapping threads to securely fasten into steel member
- Available collated for Quik Drive auto-feed screw driving systems
Simpson Strong-Tie TFG1475R1000 Applications
- Fastening wood to steel with maximum recommended thicknesses of 1/4" to 15/32"
Simpson Strong-Tie TFG1475R1000 Specifications
| Fastener Type | Hand-Drive Screw |
| Application | Fastening Wood-to-Steel |
| Coating/Material | N2000 Mechanically Galvanized |
| Screw Size | #14 |
| Length (in.) | 3 |
| Head Diameter (in.) | 0.46 |
| Drive Type | T30 6-Lobe |
| Head Type | Flat Head |
| Thread Type | Tapping Threads |
| TPI | 14 |
| Max. Grip Length (in.) | 1.94 |
| Point Type | Drill Point with Wings |
| Point Size | 5 |
| Packaging Qty. | 1000 |
NOTE: Use this product in dry, interior and noncorrosive environments only.
