Simpson Anchors | SKU:
TFG1475R50

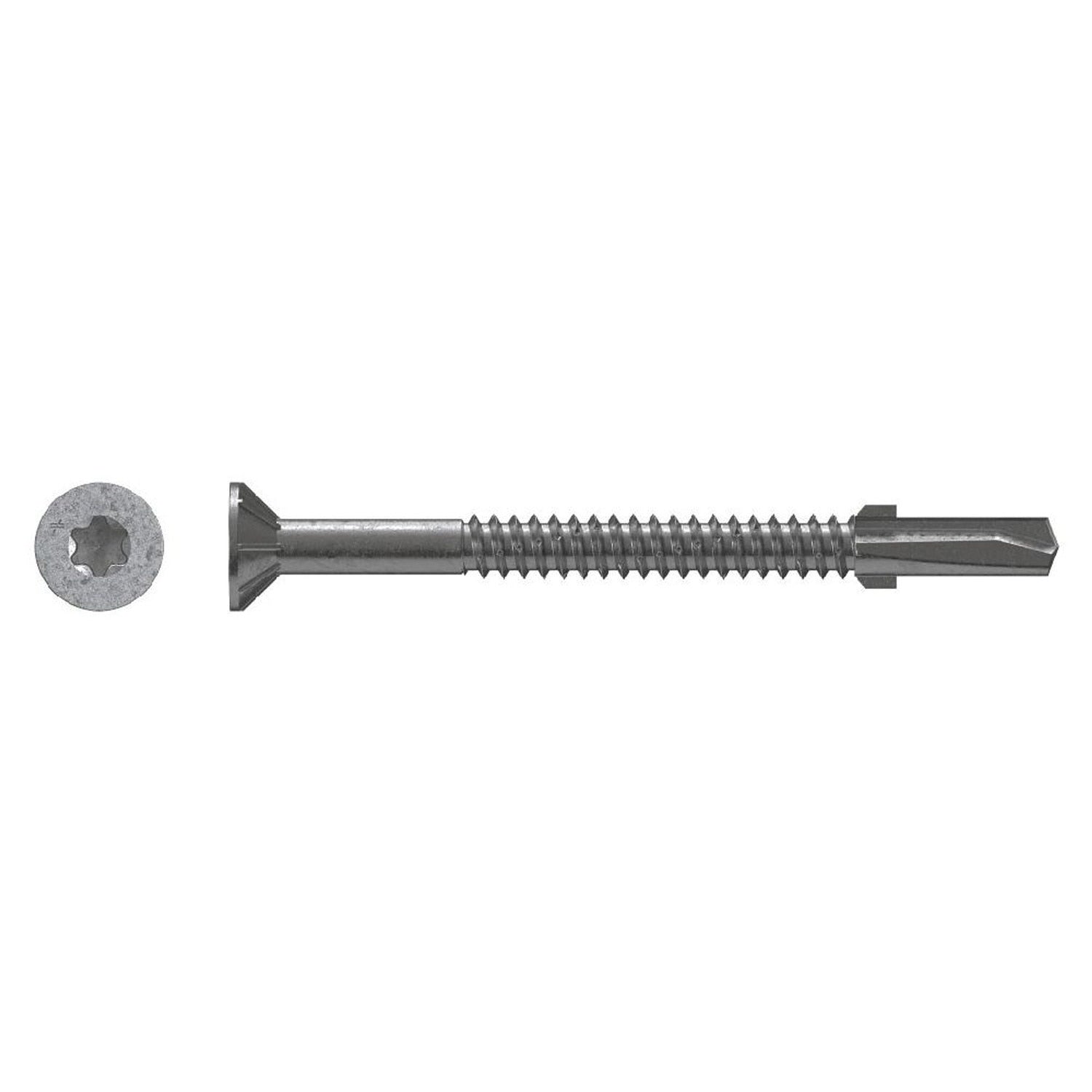

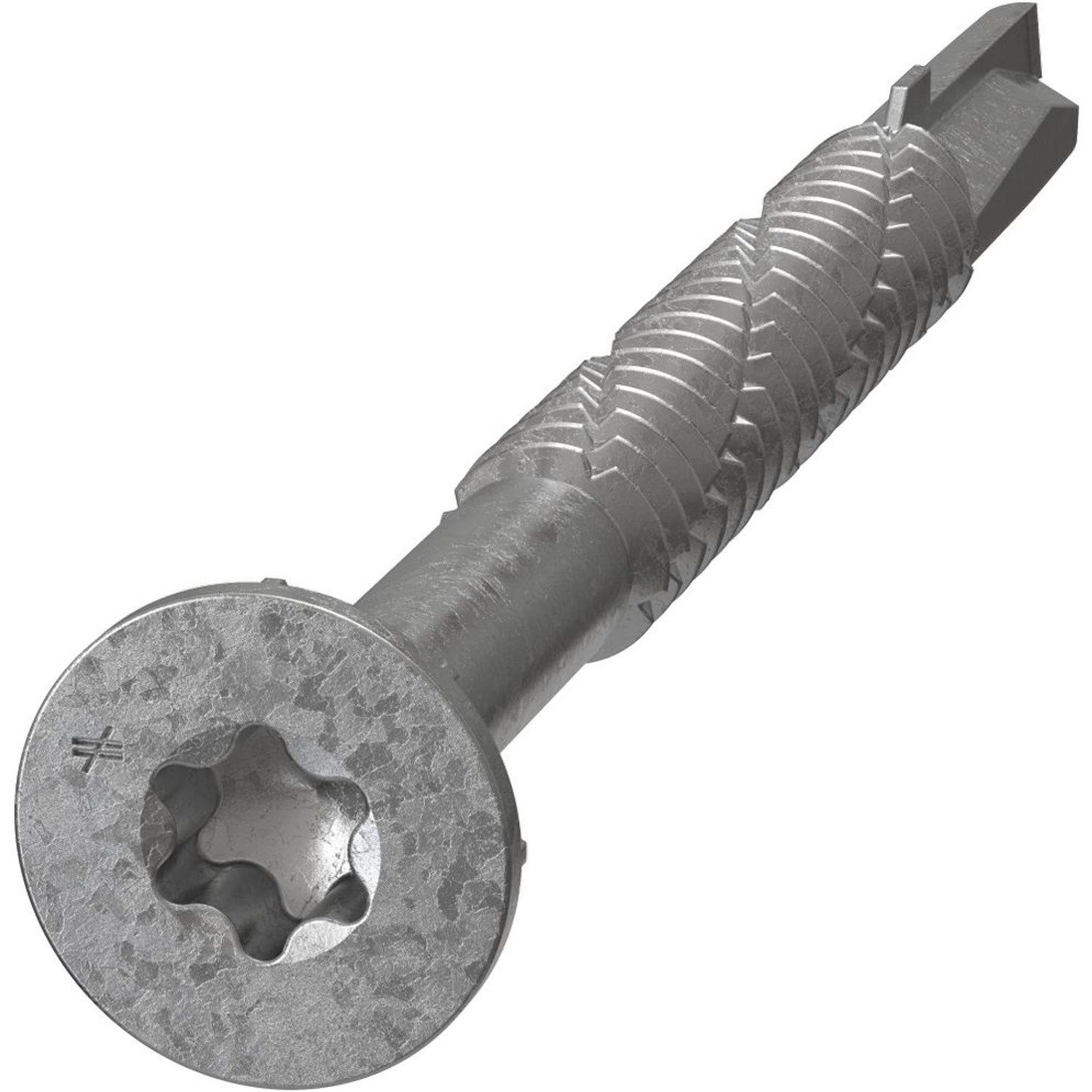

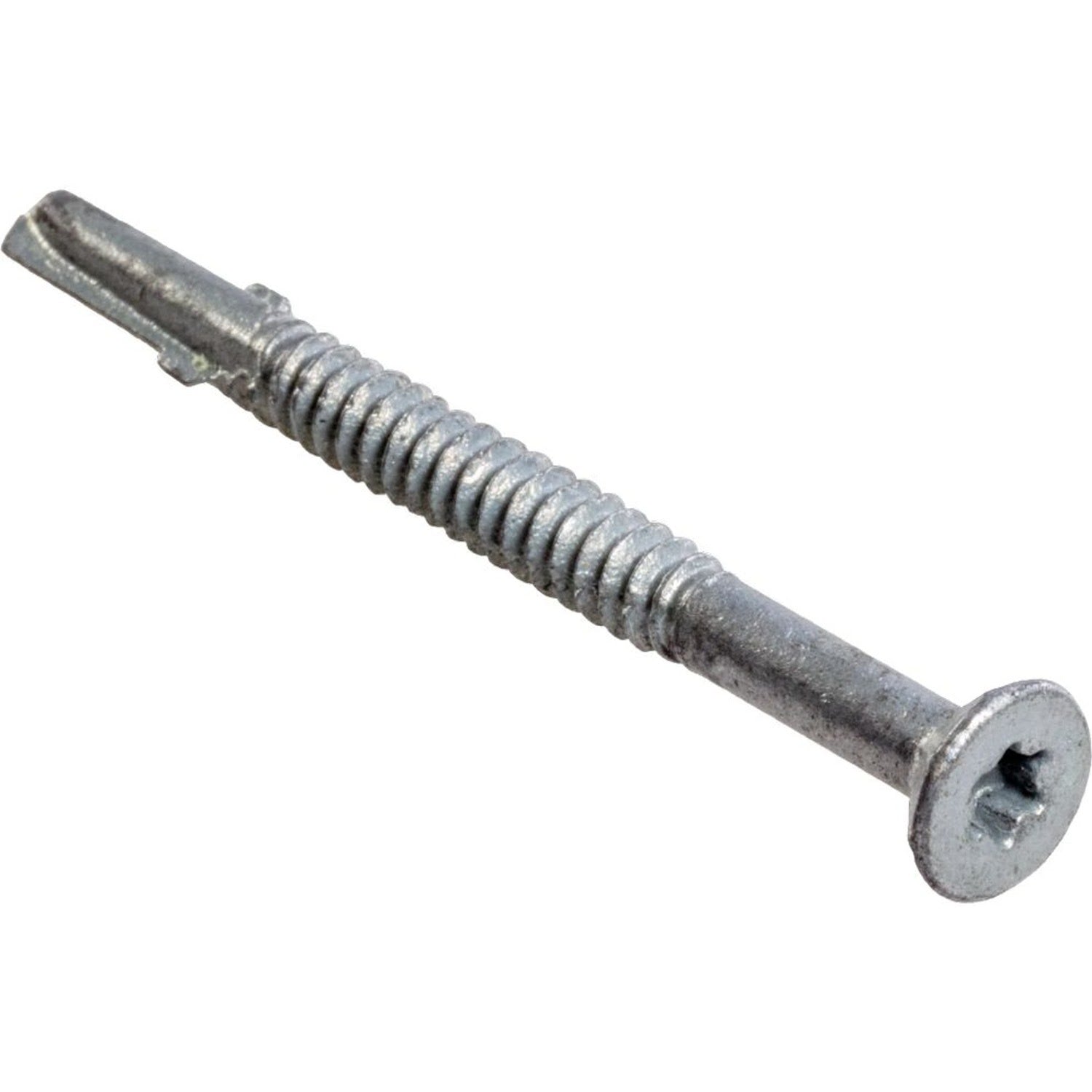

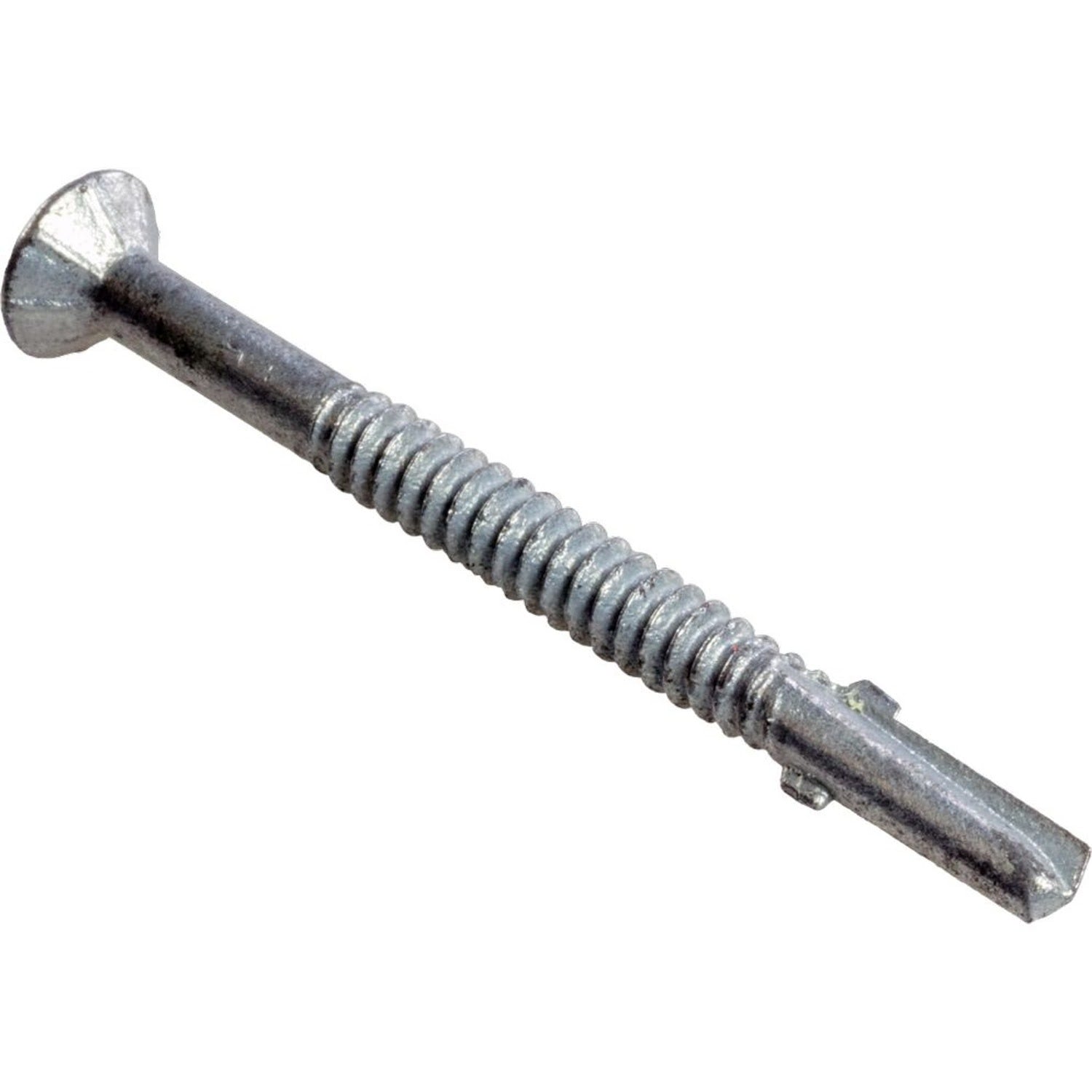

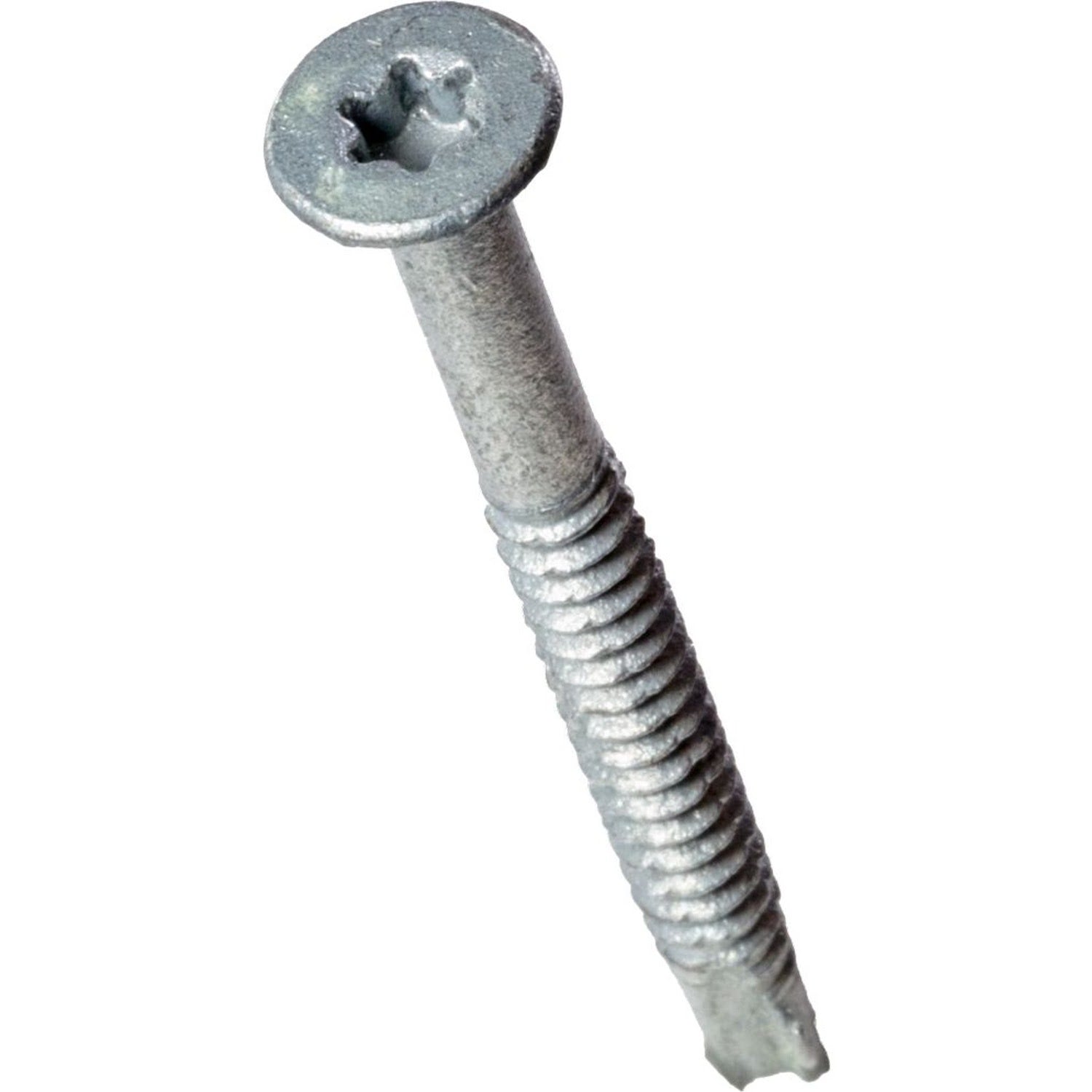

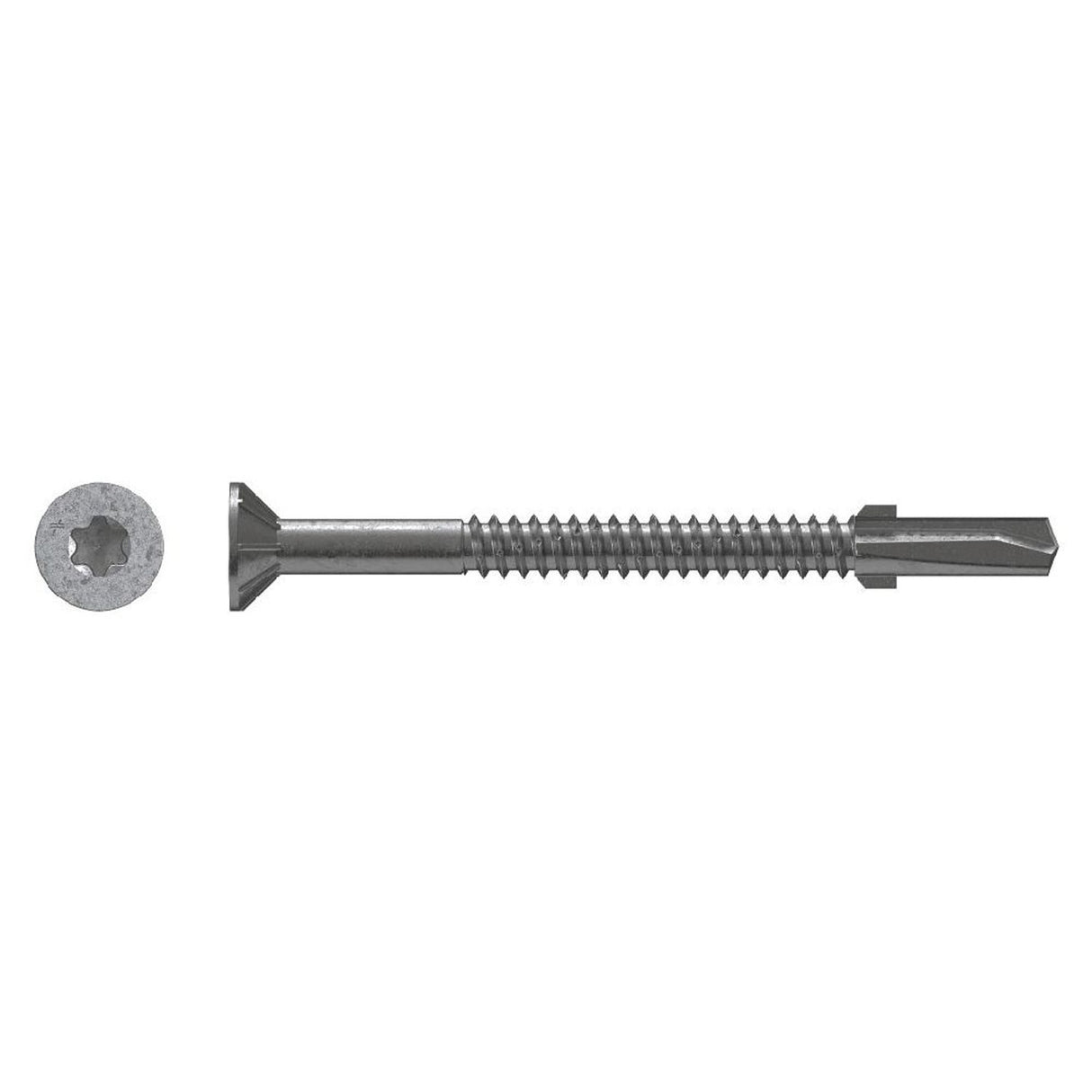

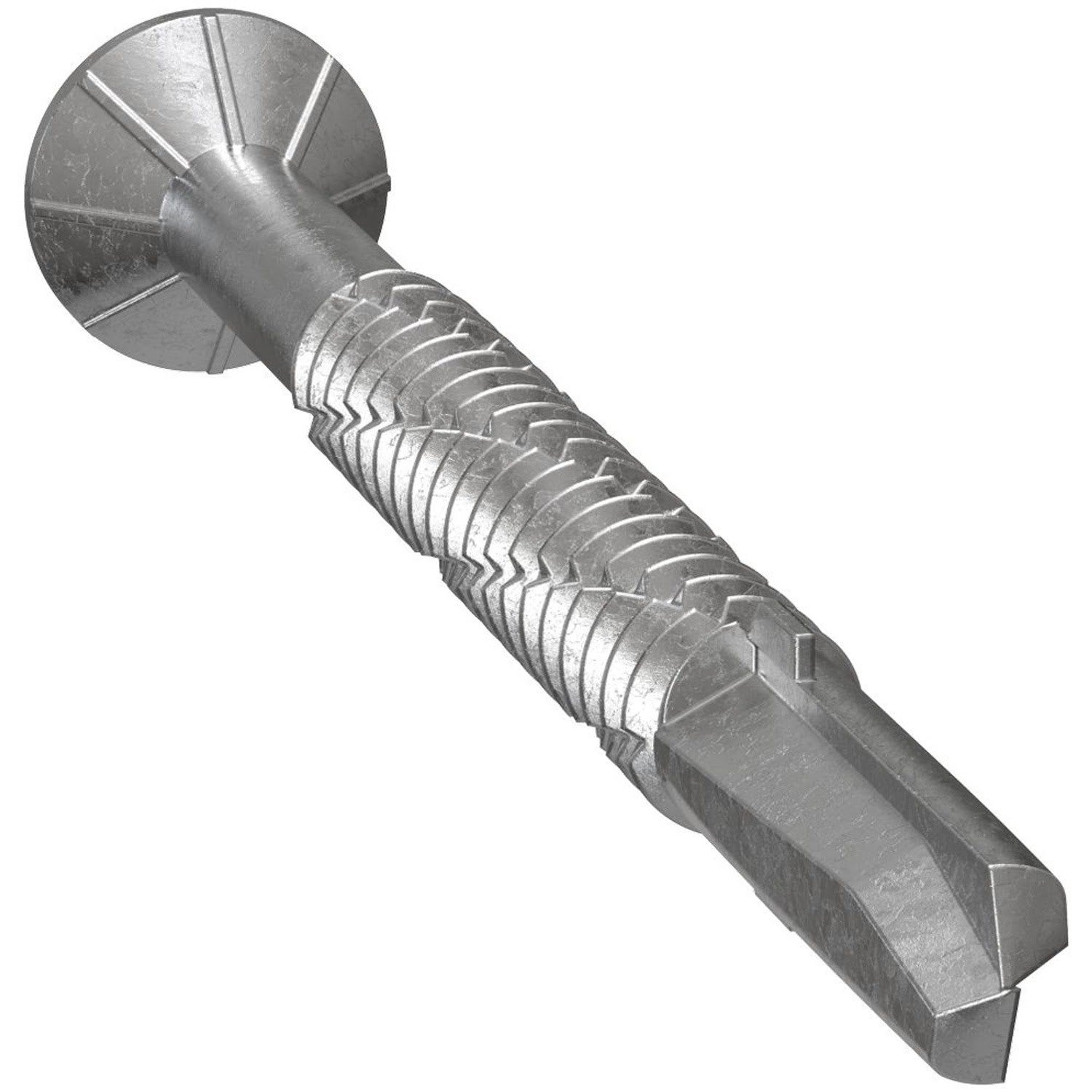

Simpson Strong-Tie TFG1475R50 Strong-Drive (#14 x 3") T30 TF Wood-to-Steel Screw - N2000 Coated (50 Pack)
$26.53
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TFG1475R50 Description
The Strong-Drive TF Wood-to-Steel Screw is designed for fastening wood to steel with a #14 size and 3-inch length, featuring a mechanically galvanized coating for durability.
Simpson Strong-Tie TFG1475R50 Includes
- (50) Strong-Drive TF Wood-to-Steel Screw #14 x 3 in.
Simpson Strong-Tie TFG1475R50 Features
- Mechanically galvanized coating for corrosion resistance
- Flat head with nibs for easy countersinking
- 6-lobe recess for secure driving
- #5 drill point with wings for wood boring
- Self-tapping threads for steel fastening
Simpson Strong-Tie TFG1475R50 Applications
- Fastening wood to steel with thicknesses from 1/4" to 15/32"
Simpson Strong-Tie TFG1475R50 Installation Overview
- Ensure the steel member thickness is between 1/4" and 15/32".
- Align the screw with the wood and steel members.
- Drive the screw using a T30 driver bit until secure.
Simpson Strong-Tie TFG1475R50 Specifications
| Coating/Material | N2000 Mechanically Galvanized |
| Screw Size | #14 |
| Length (in.) | 3 |
| Head Diameter (in.) | 0.46 |
| Drive Type | T30 6-Lobe |
| Head Type | Flat Head |
| Thread Type | Tapping Threads |
| TPI | 14 |
| Max. Grip Length (in.) | 1.94 |
| Point Type | Drill Point with Wings |
| Point Size | 5 |
| Packaging Qty. | 50 |
NOTE: Use this product in dry, interior, and noncorrosive environments only.
