Simpson Anchors | SKU:
TFP1475R50

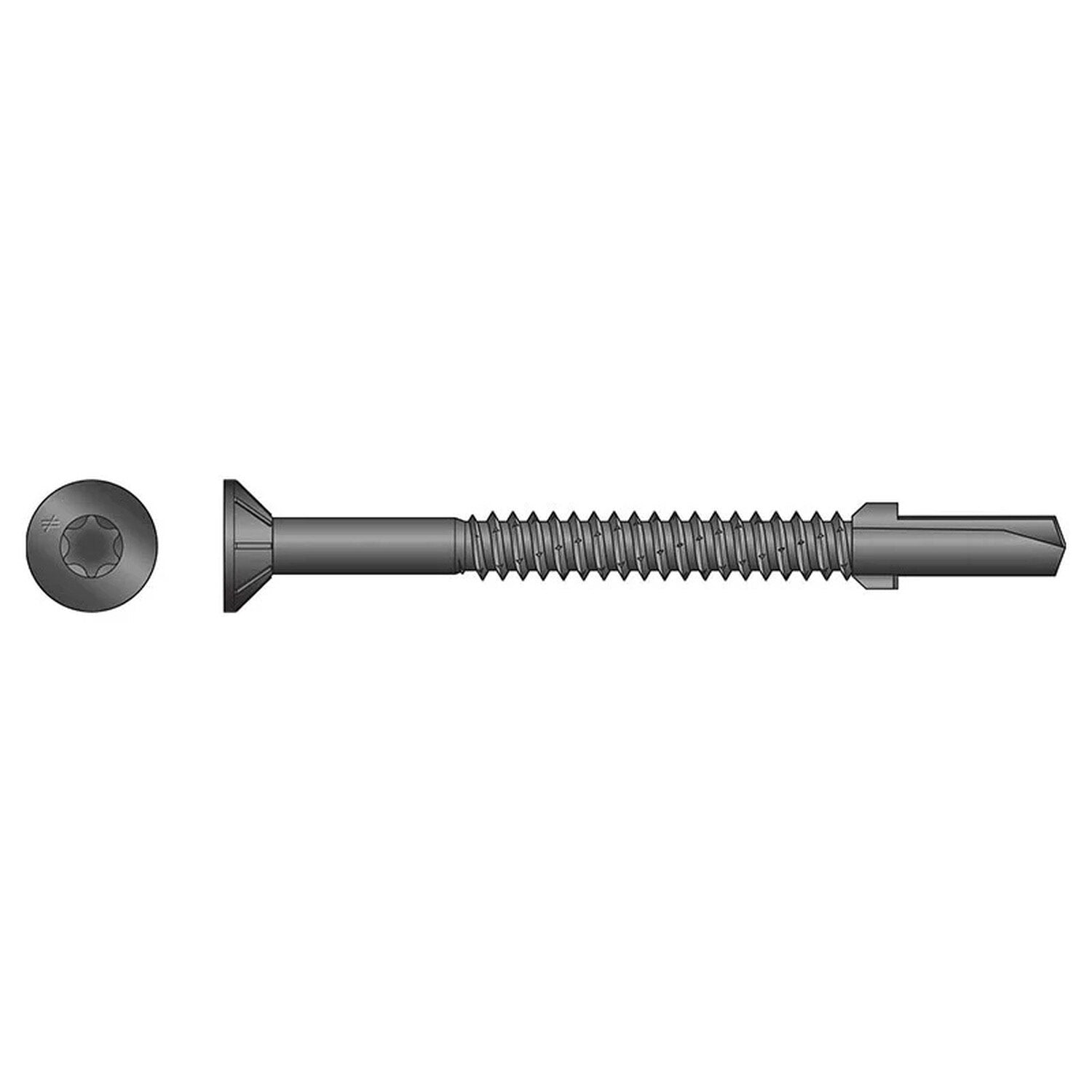

Simpson Strong-Tie TFP1475R50 Strong-Drive (#14 x 3") T30 TF Wood-to-Steel Screw - Black Phosphate Coating (50 Pack)
$20.50
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TFP1475R50 Description
The Simpson Strong-Tie TF Wood-To-Steel Screws are structural fasteners designed to drill through wood and steel up to 15/32" thick, featuring a flat head with nibs for countersinking and a #5 drill point with wings for efficient installation.
Simpson Strong-Tie TFP1475R50 Includes
- (50) #14 x 3 in. TF Wood-to-Steel Screws
- (1) T30 Driver Bit
Simpson Strong-Tie TFP1475R50 Features
- Mechanically galvanized or black phosphate coating
- Flat head with nibs for easy countersinking and pull-through resistance
- 6-lobe recess for secure driving
- #5 drill point with wings to bore through wood member
- Self-tapping threads to securely fasten into steel member
Simpson Strong-Tie TFP1475R50 Applications
- Fastening wood to steel with thicknesses up to 15/32"
- Structural connections in construction projects
Simpson Strong-Tie TFP1475R50 Installation Overview
- Ensure the wood and steel members are properly aligned.
- Use the included driver bit to drive the screw through the wood and into the steel member.
- Verify the screw is fully seated and secure.
Simpson Strong-Tie TFP1475R50 Specifications
| Coating/Material | Black Phosphate Coating |
| Screw Size | #14 |
| Length (in.) | 3 |
| Head Diameter (in.) | 0.46 |
| Drive Type | T30 6-Lobe |
| Head Type | Flat Head |
| Thread Type | Tapping Threads |
| TPI | 14 |
| Max. Grip Length (in.) | 1.94 |
| Point Type | Drill Point with Wings |
| Point Size | 5 |
| Packaging Qty. | 50 |
NOTE: Use this product in dry, interior, and noncorrosive environments only.
