Simpson Hangers | SKU:
THA213

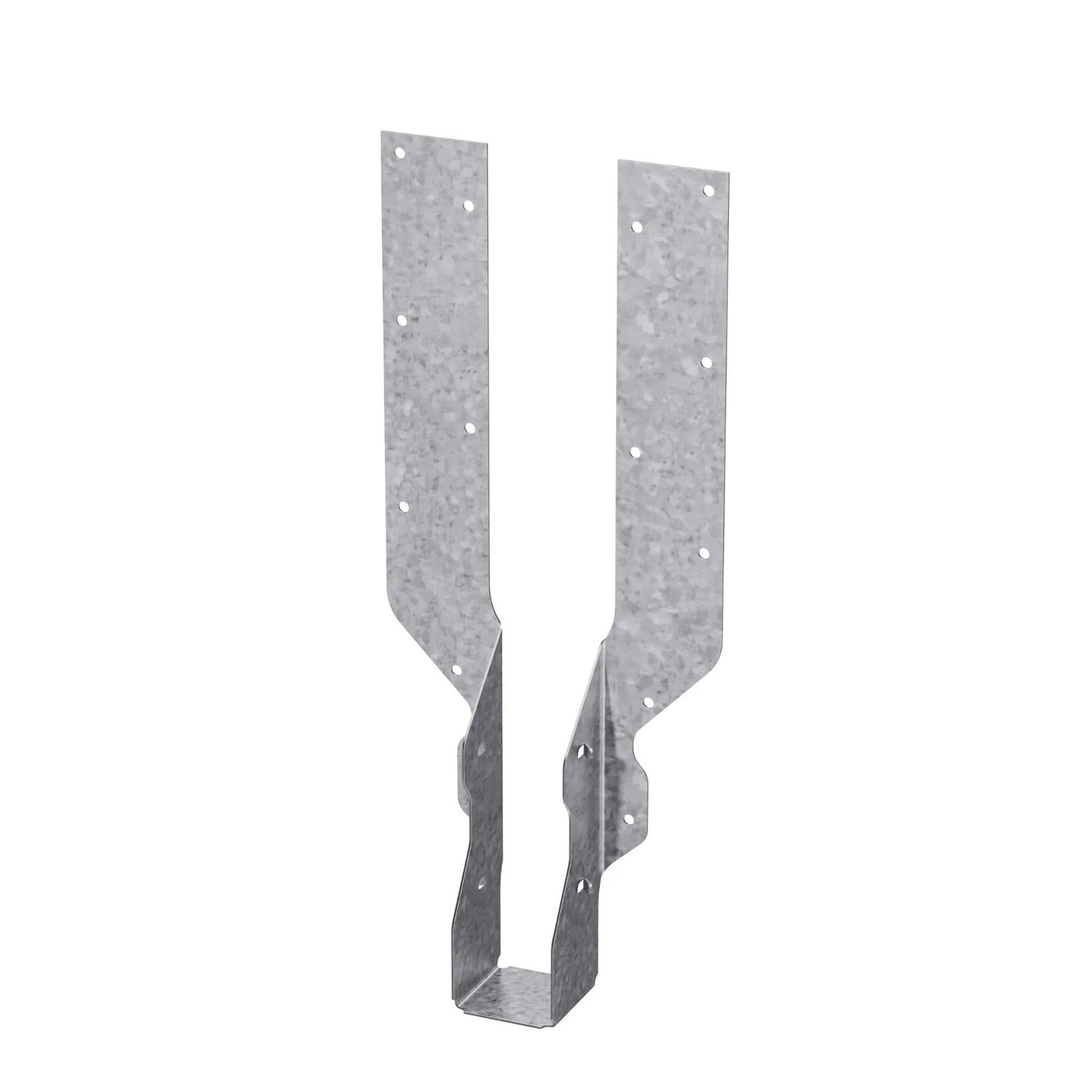

Simpson Strong-Tie THA213 (13-5/16 in.) Adjustable Truss Hanger for 2x Truss
$6.10
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THA213 Description
The Simpson Strong-Tie THA213 Adjustable Truss Hanger is designed for 2x trusses, featuring a G90 galvanized finish for durability and corrosion resistance.
Simpson Strong-Tie THA213 Includes
- (1) THA213 Adjustable Truss Hanger
Simpson Strong-Tie THA213 Features
- Adjustable design for versatile truss applications
- G90 galvanized finish for corrosion resistance
- Compatible with 2x trusses
- Field-formed straps for top flange installation
- PAN nailing to reduce splitting of truss bottom chords
Simpson Strong-Tie THA213 Applications
- Truss support in residential and commercial construction
- Securing 2x trusses in wood-framed structures
- Applications requiring adjustable truss hangers

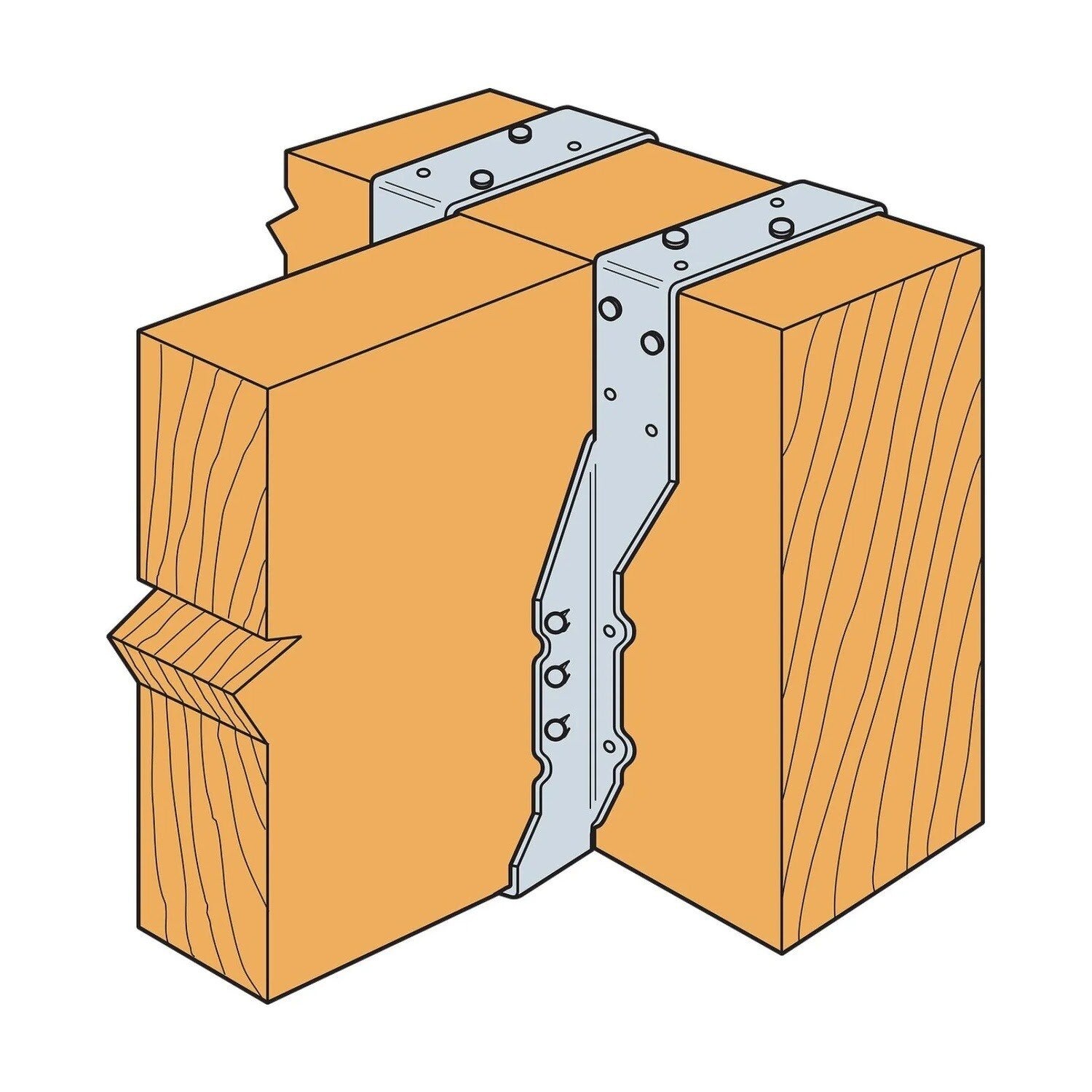

Simpson Strong-Tie THA213 Installation Overview
- Use all specified fasteners as per guidelines.
- For top flange installation, field-form the straps over the header.
- Install top and face nails according to the provided table.
- For face mount installation, fill the lowest 4 face holes with nails.
- Ensure nails penetrate through the corner of the joist into the header.
- Fill the lowest face nails to achieve uplift loads.
Simpson Strong-Tie THA213 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Height | 13-5/16" |
| Width | 1-5/8" |
| Fasteners required | Top - (4) 0.148" x 3" Nails, Face - (2) 0.148" x 3" Nails, Carried Member - (4) 0.148" x 1-1/2" Nails |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
