Simpson Hangers | SKU:
THA218

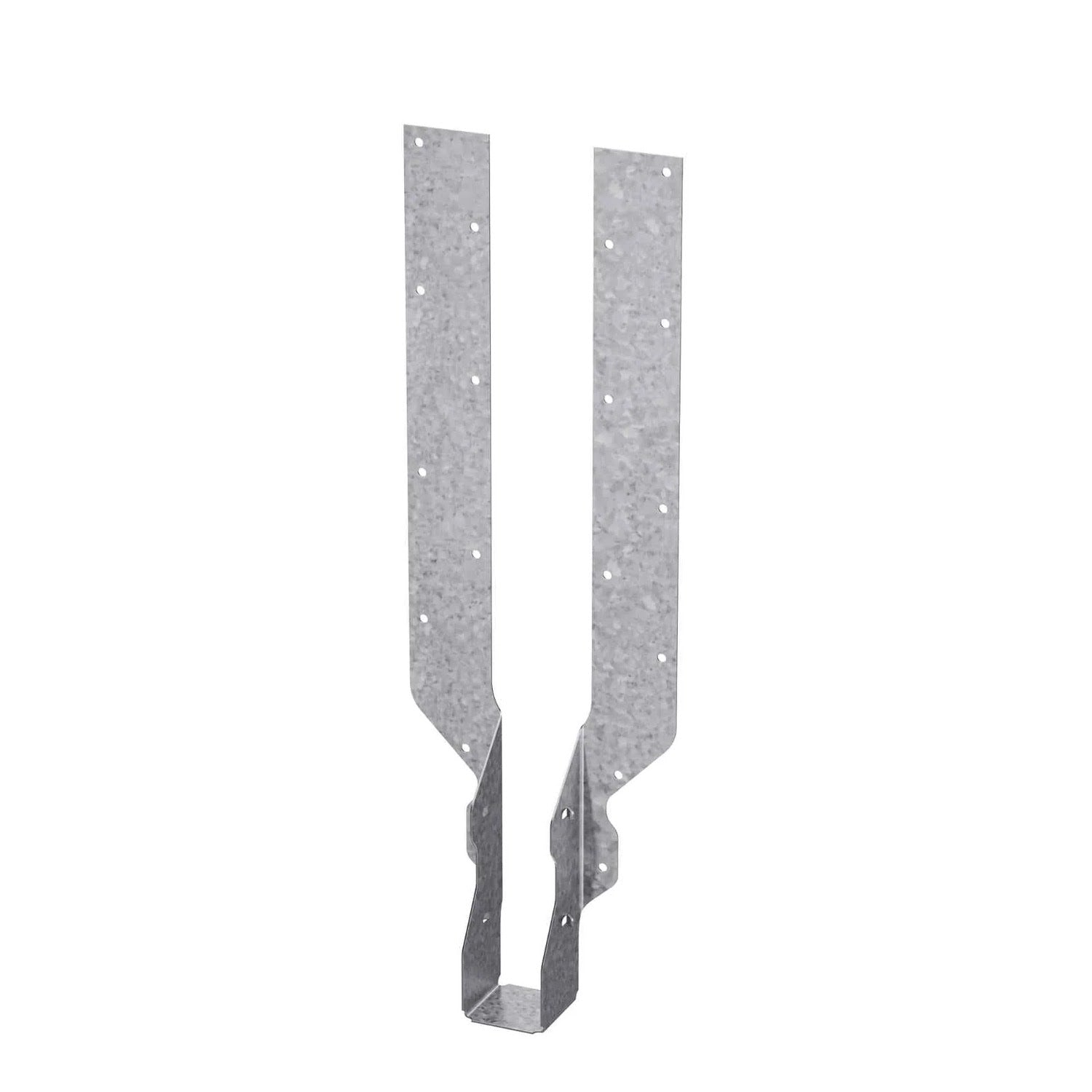

Simpson Strong-Tie THA218 (17-3/16 in.) Adjustable Truss Hanger for 2x Truss
$7.82
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THA218 Description
The Simpson Strong-Tie THA218 Adjustable Truss Hanger features extra long straps for full code nailing and can be field-formed for top flange hanger convenience.
Simpson Strong-Tie THA218 Includes
- (1) THA218 Adjustable Truss Hanger
Simpson Strong-Tie THA218 Features
- Extra long straps for full code nailing
- Field-formed straps for top flange hanger convenience
- PAN nailing to prevent splitting of truss bottom chords
- G90 Galvanized coating for durability
- Requires hot-dip galvanized fasteners meeting ASTM A153 specifications
Simpson Strong-Tie THA218 Applications
- Truss framing requiring adjustable hangers
- Wood construction projects needing secure truss connections
- Structural applications demanding high load capacity

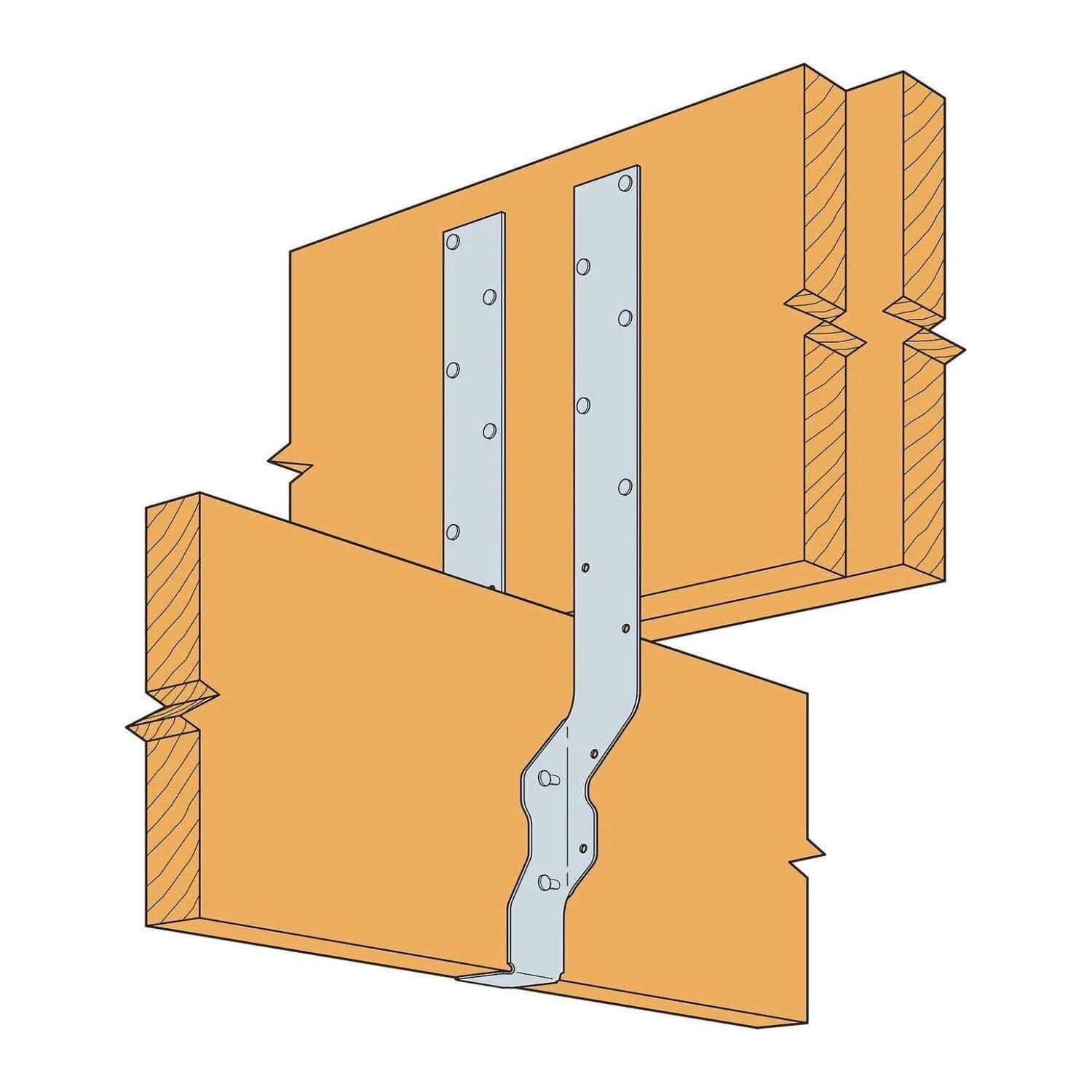

Simpson Strong-Tie THA218 Installation Overview
- Use all specified fasteners
- Straighten double shear nailing tabs for top flange installations
- Field form straps over the header for top flange installation
- Install top and face nails according to specifications
- Fill lowest face nails to achieve uplift loads
Simpson Strong-Tie THA218 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Height | 17-3/16" |
| Width | 1-5/8" |
| Fasteners required | Top - (4) 0.148" x 3" Nails, Face - (2) 0.148" x 3" Nails, Carried Member - (4) 0.148" x 1-1/2" Nails |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
