Simpson Hangers | SKU:
THA222-2

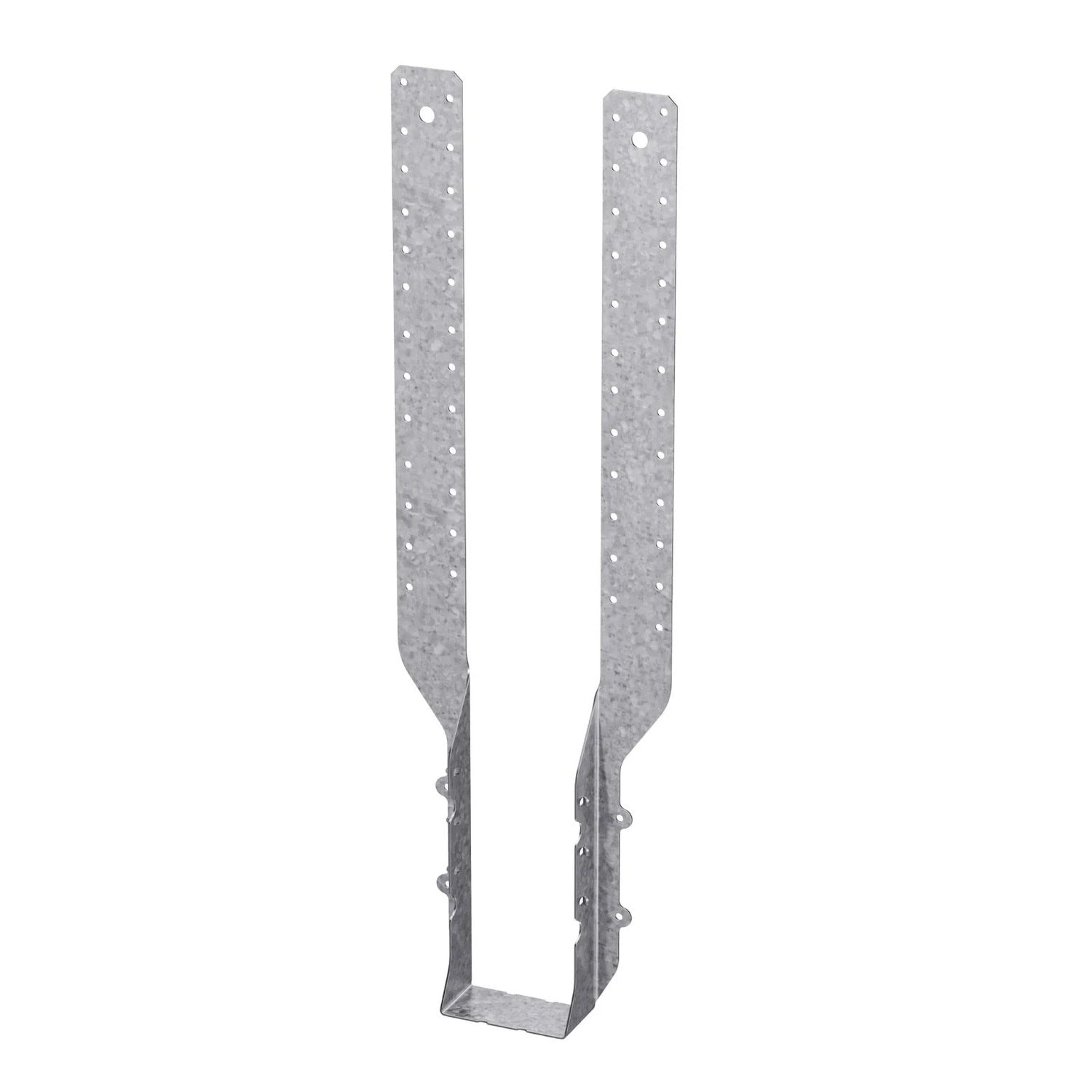

Simpson Strong-Tie THA222-2 (22-3/16 in.) Adjustable Truss Hanger for Double 2x Truss
$11.74
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THA222-2 Description
The Simpson Strong-Tie THA222-2 Adjustable Truss Hanger is designed for double 2x trusses, featuring a G90 galvanized coating for durability and compatibility with hot-dip galvanized fasteners.
Simpson Strong-Tie THA222-2 Includes
- (4) 0.162" x 3-1/2" Nails
- (2) 0.162" x 3-1/2" Nails
- (6) 0.148" x 3" Nails
Simpson Strong-Tie THA222-2 Features
- Adjustable design for versatile truss applications
- G90 galvanized coating for corrosion resistance
- Compatible with hot-dip galvanized fasteners
- Extra long straps for full code nailing
- Field-formable straps for top flange hanger installation
Simpson Strong-Tie THA222-2 Applications
- Truss connections in residential and commercial construction
- Securing double 2x trusses to headers or beams
- Applications requiring adjustable truss hangers

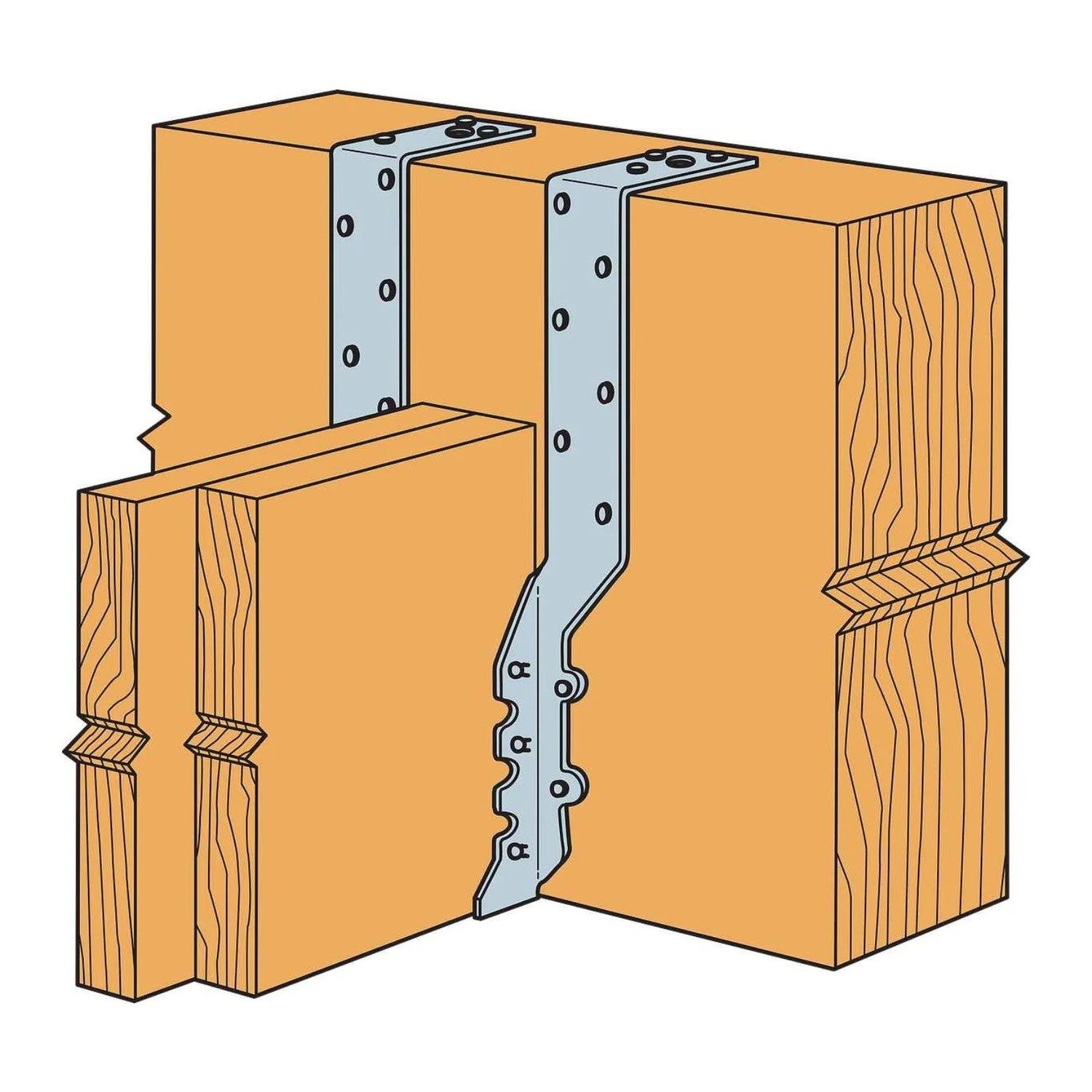

Simpson Strong-Tie THA222-2 Installation Overview
- Use all specified fasteners as per guidelines.
- For top flange installation, field-form straps over the header and install nails as specified.
- For face mount installation, fill the lowest 4 face holes and drive nails at an angle into the header.
- Alternate installation allows top flange configuration using face mount fasteners.
- Ensure lowest face nails are filled to achieve uplift loads.
Simpson Strong-Tie THA222-2 Specifications
| Fasteners required | Top - (4) 0.162" x 3-1/2" Nails, Face - (2) 0.162" x 3-1/2" Nails, Carried Member - (6) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 22-3/16" |
| Width | 3-1/8" |
| Weight | 1.4 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
