Simpson Hangers | SKU:
THA29

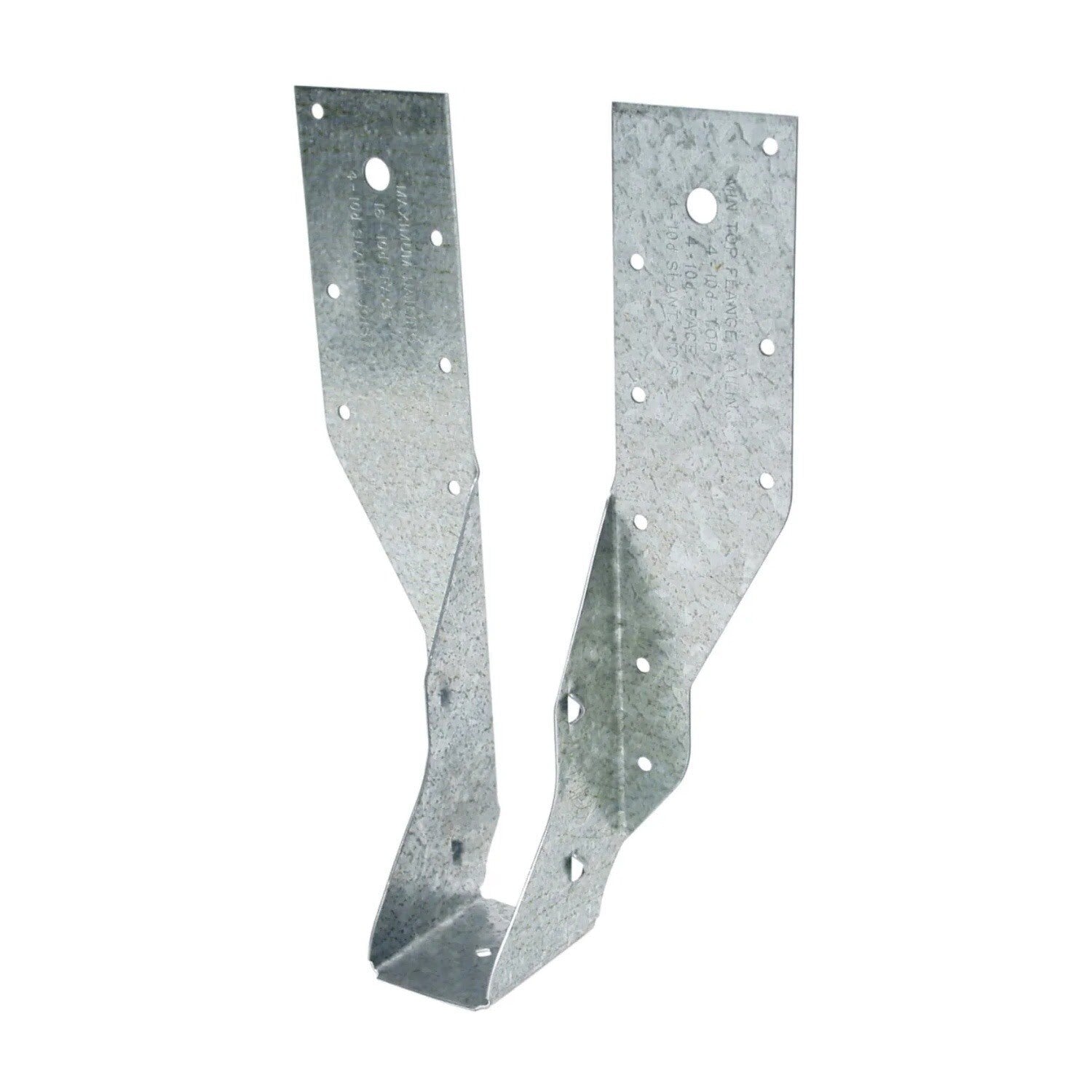

Simpson Strong-Tie THA29 (9-11/16 in.) Adjustable Truss Hanger for 2x Truss
$3.45
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THA29 Description
The THA29 Adjustable Truss Hanger by Simpson Strong-Tie features extra long straps for full code nailing and a G90 Galvanized coating for durability.
Simpson Strong-Tie THA29 Includes
- (1) THA29 Adjustable Truss Hanger
Simpson Strong-Tie THA29 Features
- Extra long straps for full code nailing
- Field-formed straps for top flange hanger convenience
- PAN nailing to prevent splitting of truss bottom chords
- G90 Galvanized coating for corrosion resistance
- Compatible with hot-dip galvanized fasteners meeting ASTM A153 specifications
Simpson Strong-Tie THA29 Applications
- Truss framing requiring adjustable hangers

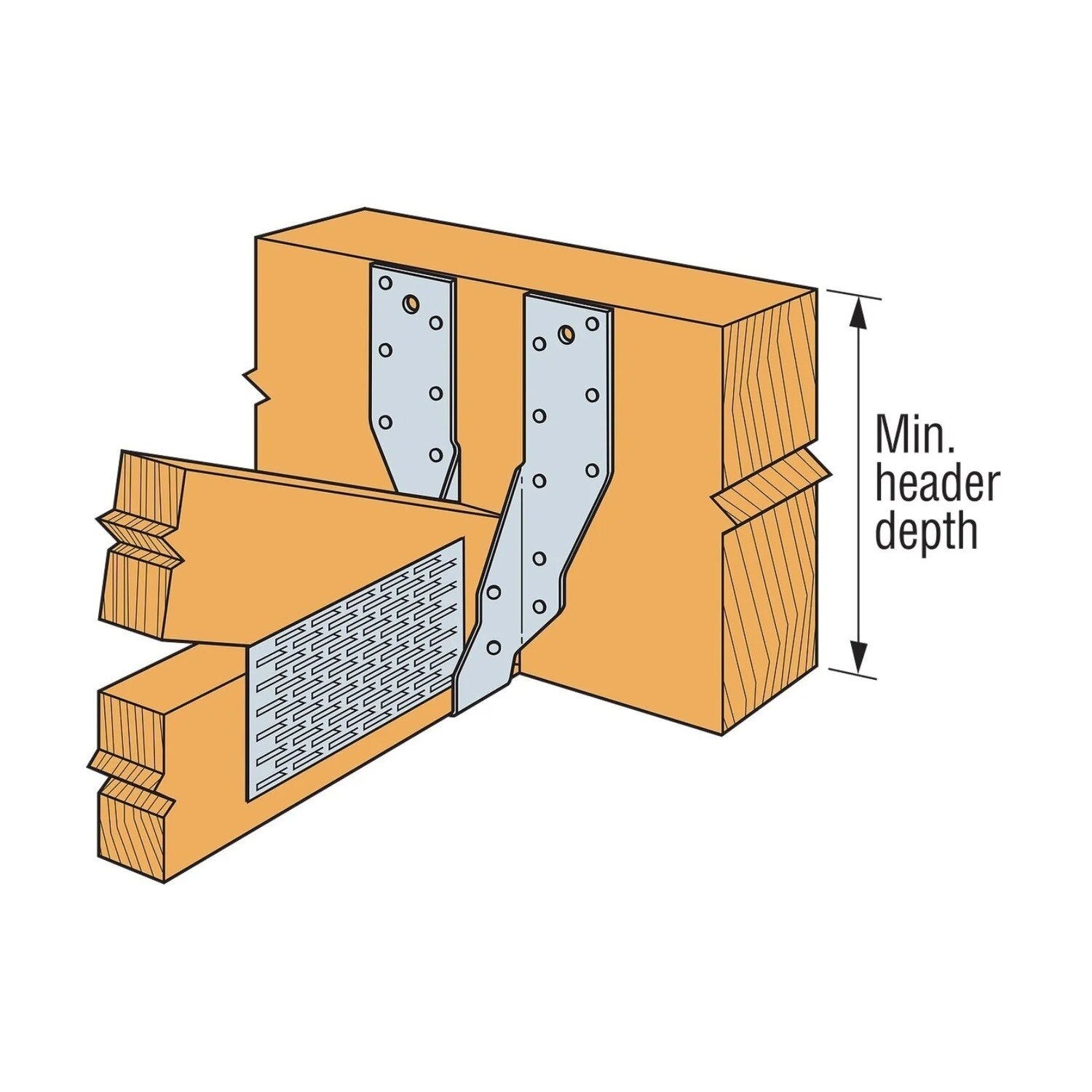

- Top flange hanger installations

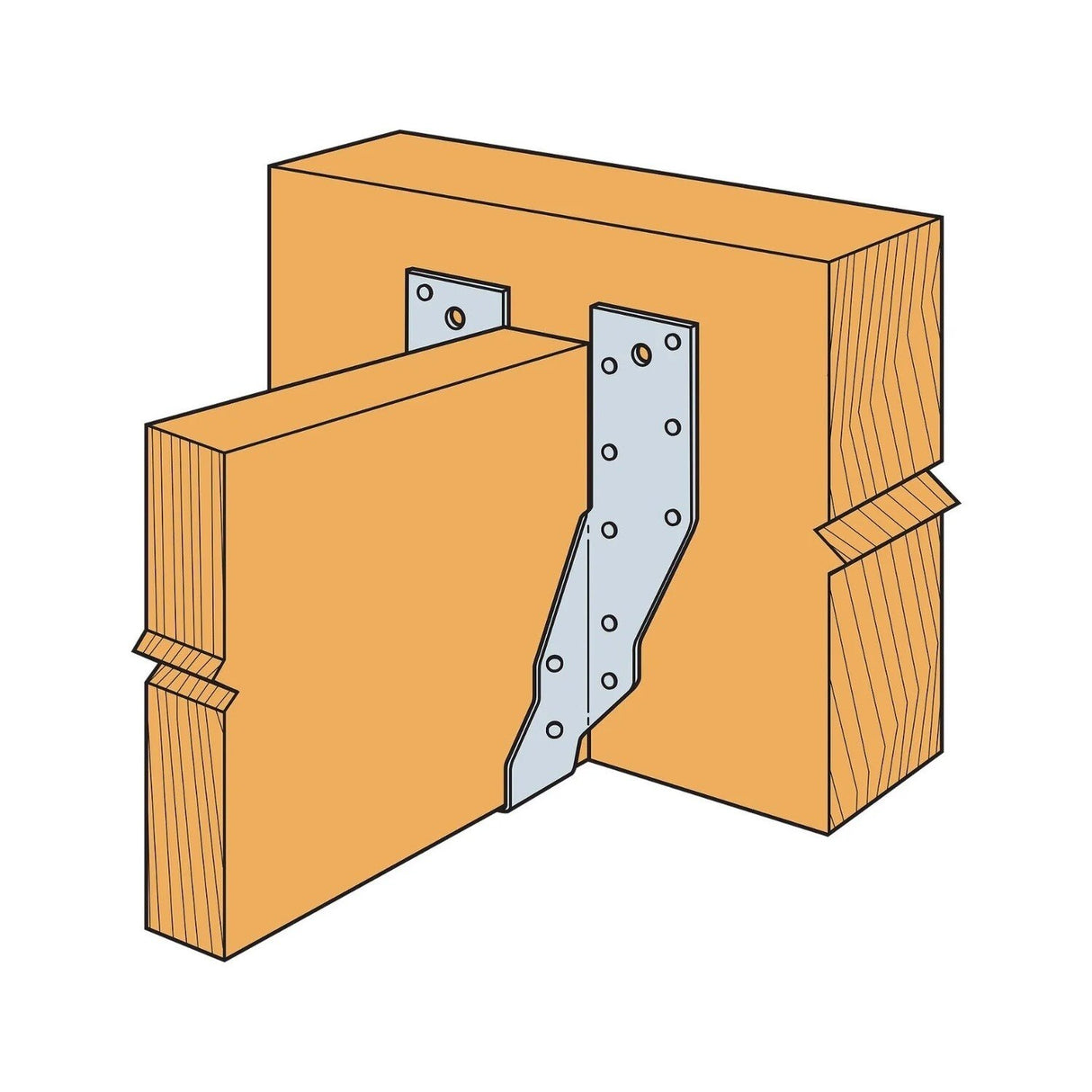

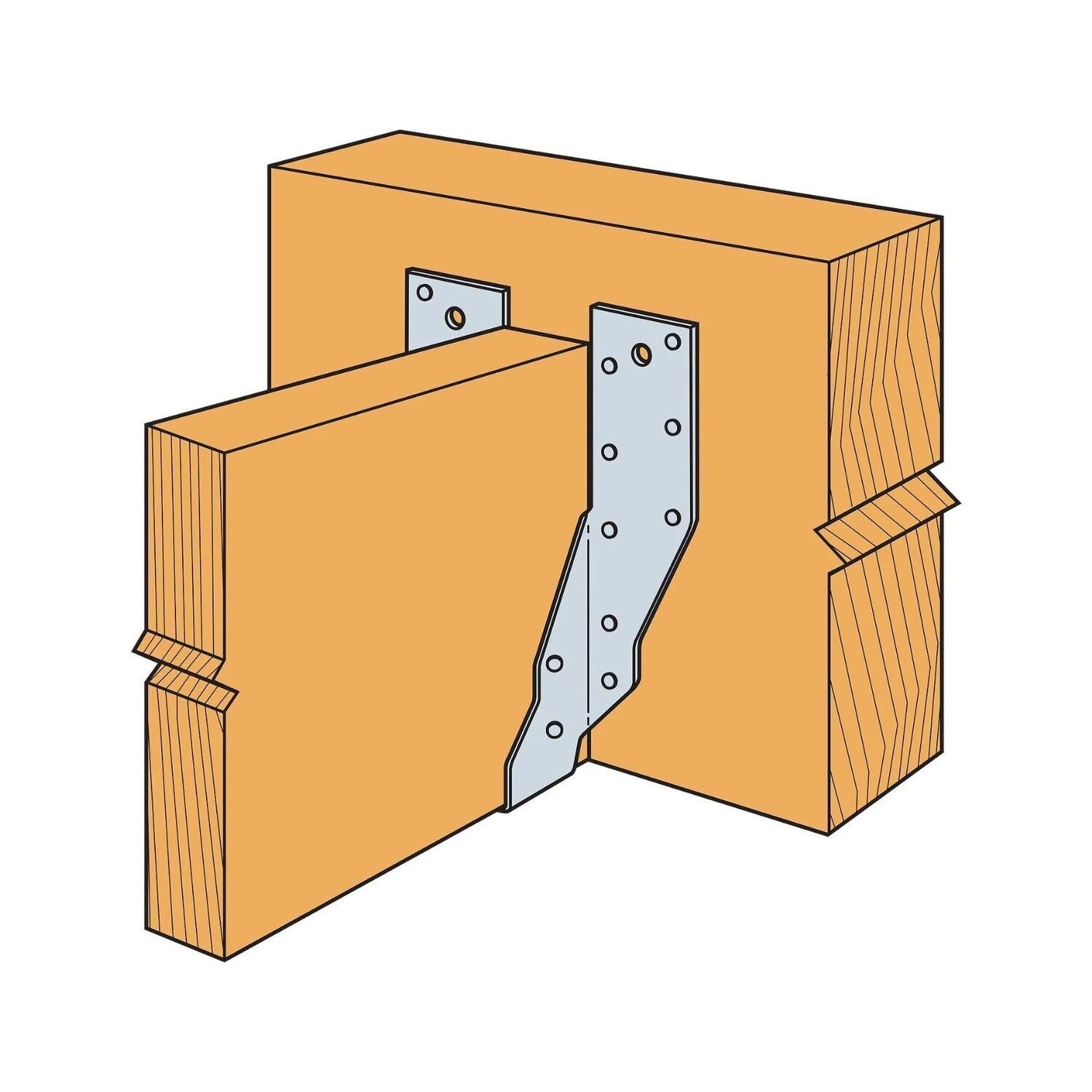

- Face mount hanger applications
- Uplift load applications
Simpson Strong-Tie THA29 Installation Overview
- Use all specified fasteners
- Drive nails at an angle for joist attachment
- Field form straps for top flange installation
- Install nails according to the table for top and face mount configurations
- Fill lowest face nails for uplift loads

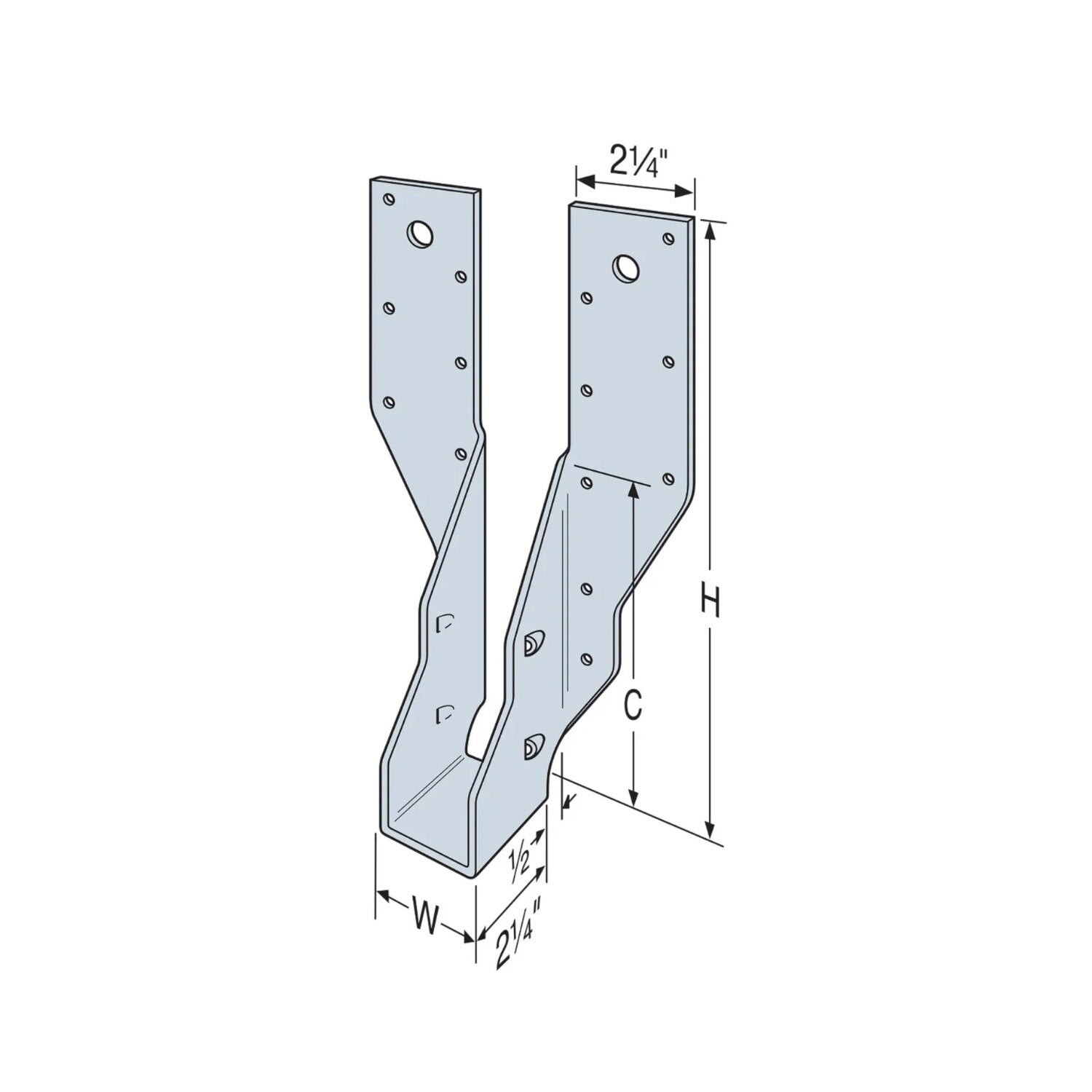

Simpson Strong-Tie THA29 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Height | 9-11/16" |
| Width | 1-5/8" |
| Fasteners required | Top - (4) 0.148" x 3" Nails, Face - (6) 0.148" x 3" Nails, Carried Member - (4) 0.148" x 3" Nails |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
