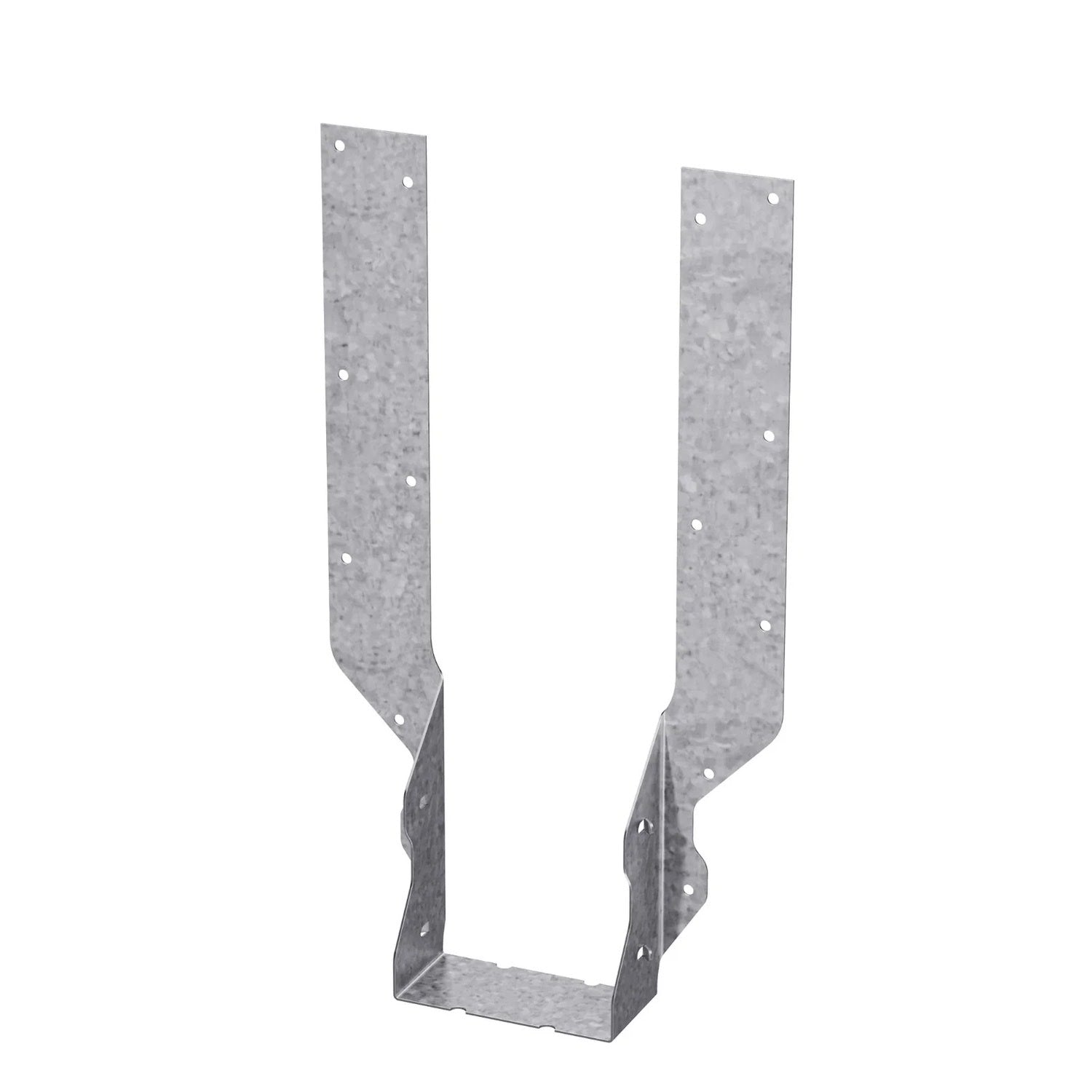

Simpson THA413 Description
The Simpson THA413 Adjustable Truss Hanger is designed for 4x floor trusses, featuring a G90 galvanized finish and extra-long straps for height adjustability.
Simpson THA413 Includes
- (1) Adjustable Truss Hanger for 4x Floor Truss
Simpson THA413 Features
- Extra-long straps for height adjustability
- Top-flange installation convenience
- Dense nail pattern in straps for more installation options
- G90 galvanized coating for corrosion resistance
Simpson THA413 Applications
- Solid sawn lumber connections
- Floor truss installations
- General wood construction
Simpson THA413 Installation Overview
- Use all specified fasteners
- Field form straps over the header for top-flange installation
- Install top and face nails according to the table
- Ensure lowest face nails are filled to achieve uplift loads
Simpson THA413 Specifications
| Material | See table |
| Finish | G90 Galvanized |
| Application | Solid Sawn Lumber |
| Height | 13-5/16" |
| Width | 3-5/8" |
| Gauge | 18 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
