Simpson Hangers | SKU:
THA422

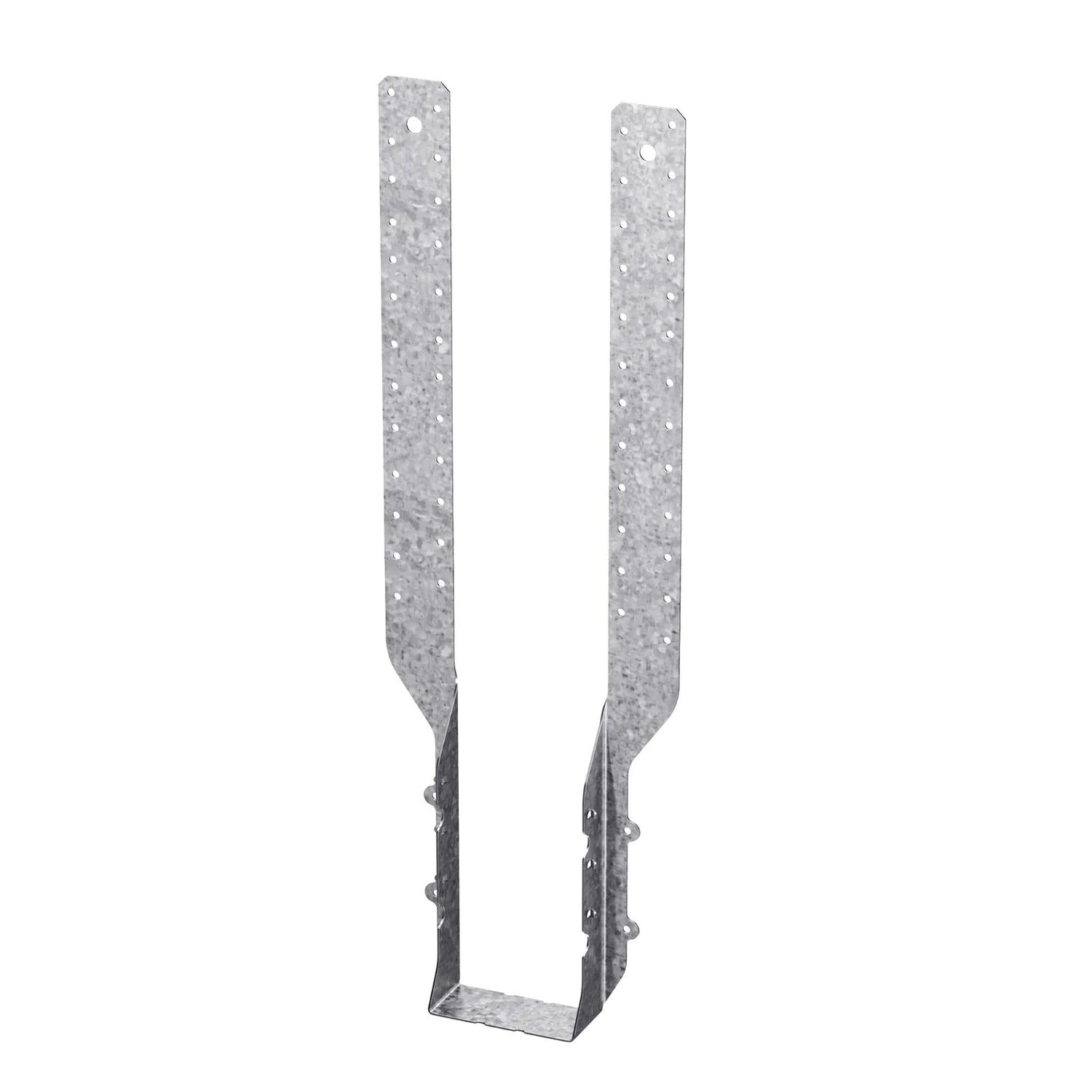

Simpson Strong-Tie THA422 Adjustable Truss Hanger for 4x Floor Truss
$6.54
Unit price
/
Unavailable
Description
Description
Simpson THA422 Description
The Simpson THA422 Adjustable Truss Hanger is designed for 4x floor trusses, featuring a G90 galvanized finish for durability and corrosion resistance.
Simpson THA422 Includes
- (1) Adjustable Truss Hanger for 4x Floor Truss
Simpson THA422 Features
- Extra-long straps for height adjustability and top-flange installation convenience
- Min./max. nailing installation options
- Dense nail pattern in the straps for more installation options and easy top-flange installation
Simpson THA422 Applications
- Solid Sawn Lumber: Provides secure connections for wood trusses
- Floor Trusses: Ideal for supporting 4x floor trusses in construction projects

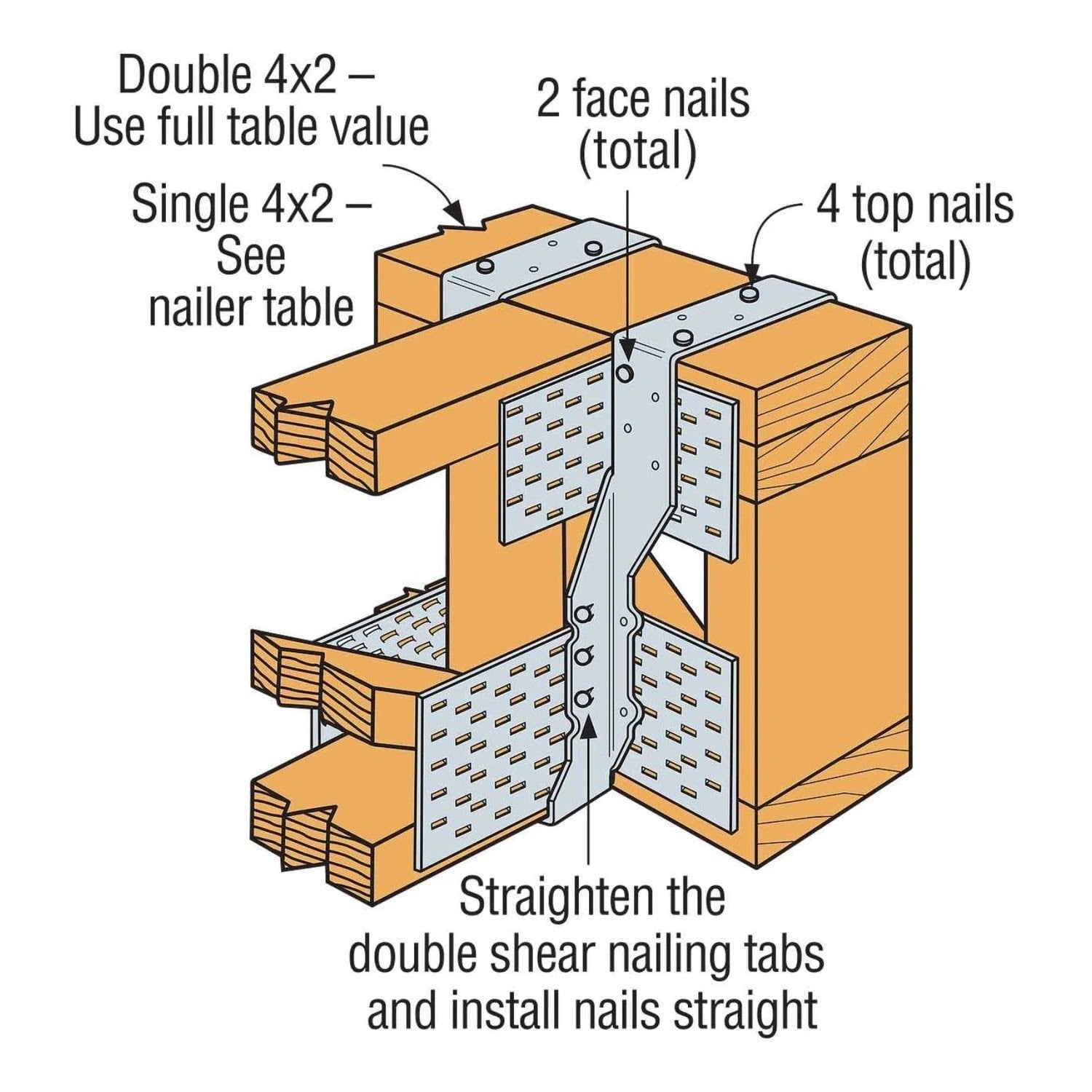

Simpson THA422 Installation Overview
- Use all specified fasteners as per guidelines
- Field form straps over the header for top flange installation
- Install top and face nails according to the table
- Ensure nails penetrate through the corner of the joist into the header
Simpson THA422 Specifications
| Material | Galvanized |
| Finish | G90 Galvanized |
| Height | 22" |
| Width | 3-5/8" |
| Gauge | 16 |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
