Simpson Hangers | SKU:
THA426

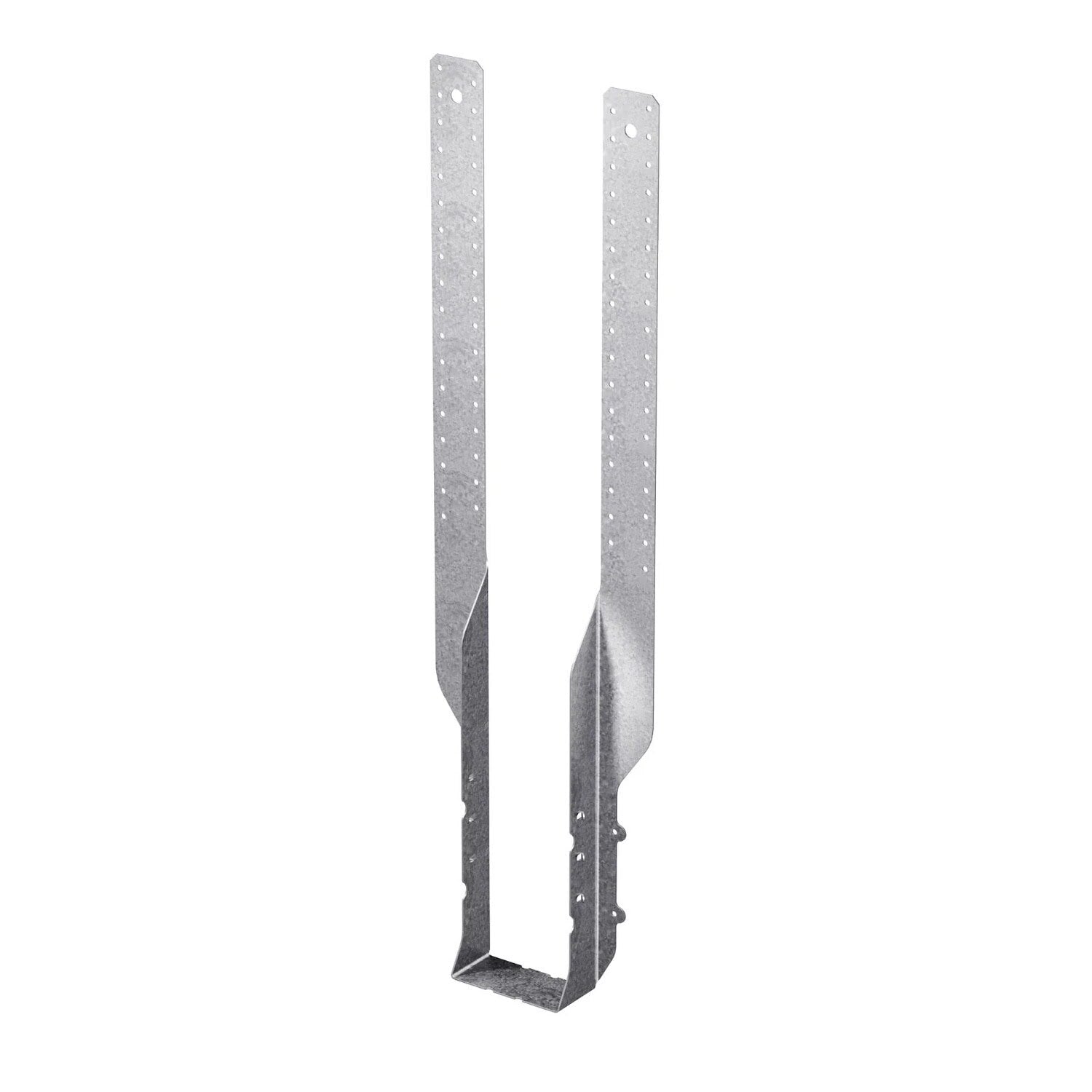

Simpson Strong-Tie THA426 Adjustable Truss Hanger for 4x Floor Truss
$17.12
Unit price
/
Unavailable
Description
Description
Simpson THA426 Description
The Simpson THA426 Adjustable Truss Hanger is designed for 4x floor trusses, featuring extra-long straps for height adjustability and a G90 galvanized finish for durability.
Simpson THA426 Includes
- (1) Adjustable Truss Hanger for 4x Floor Truss
Simpson THA426 Features
- Extra-long straps for height adjustability
- Top-flange installation convenience
- Dense nail pattern in straps for more installation options
- G90 galvanized coating for corrosion resistance
Simpson THA426 Applications
- Solid Sawn Lumber
- Plated Truss Connections
- Wood Construction

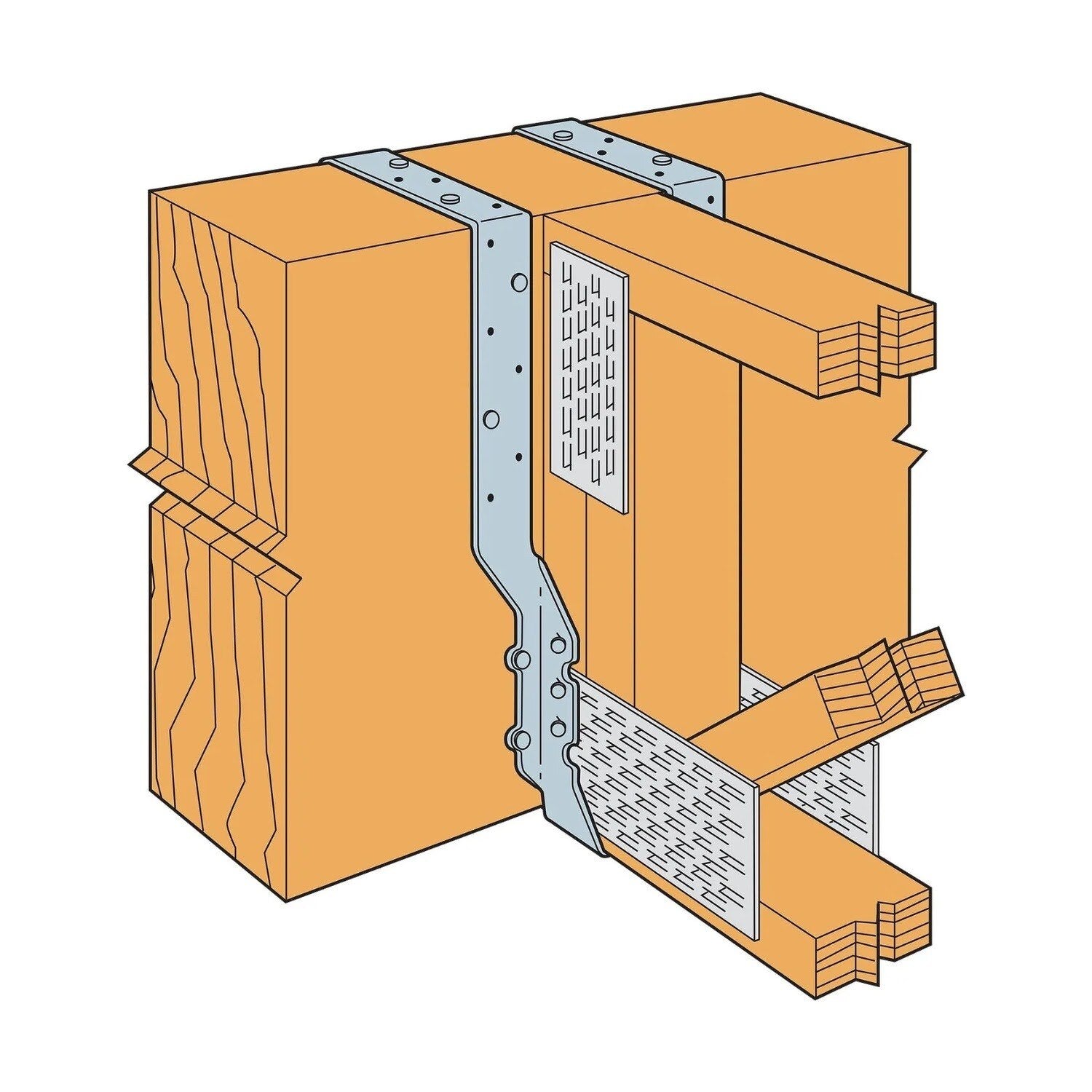

Simpson THA426 Installation Overview
- Use all specified fasteners
- Field form straps over the header for top flange installation
- Install top and face nails according to the table
- Ensure nails penetrate through the joist into the header
- Fill lowest face nails to achieve uplift loads
Simpson THA426 Specifications
| Material | G90 Galvanized |
| Height | 26" |
| Width | 3-5/8" |
| Gauge | 14 |
| Fasteners Required | Top - (4) 0.162" x 3-1/2" Nails, Face - (4) 0.162" x 3-1/2" Nails, Carried Member - (6) 0.162" x 3-1/2" Nails |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
