Simpson Hangers | SKU:
THAC422

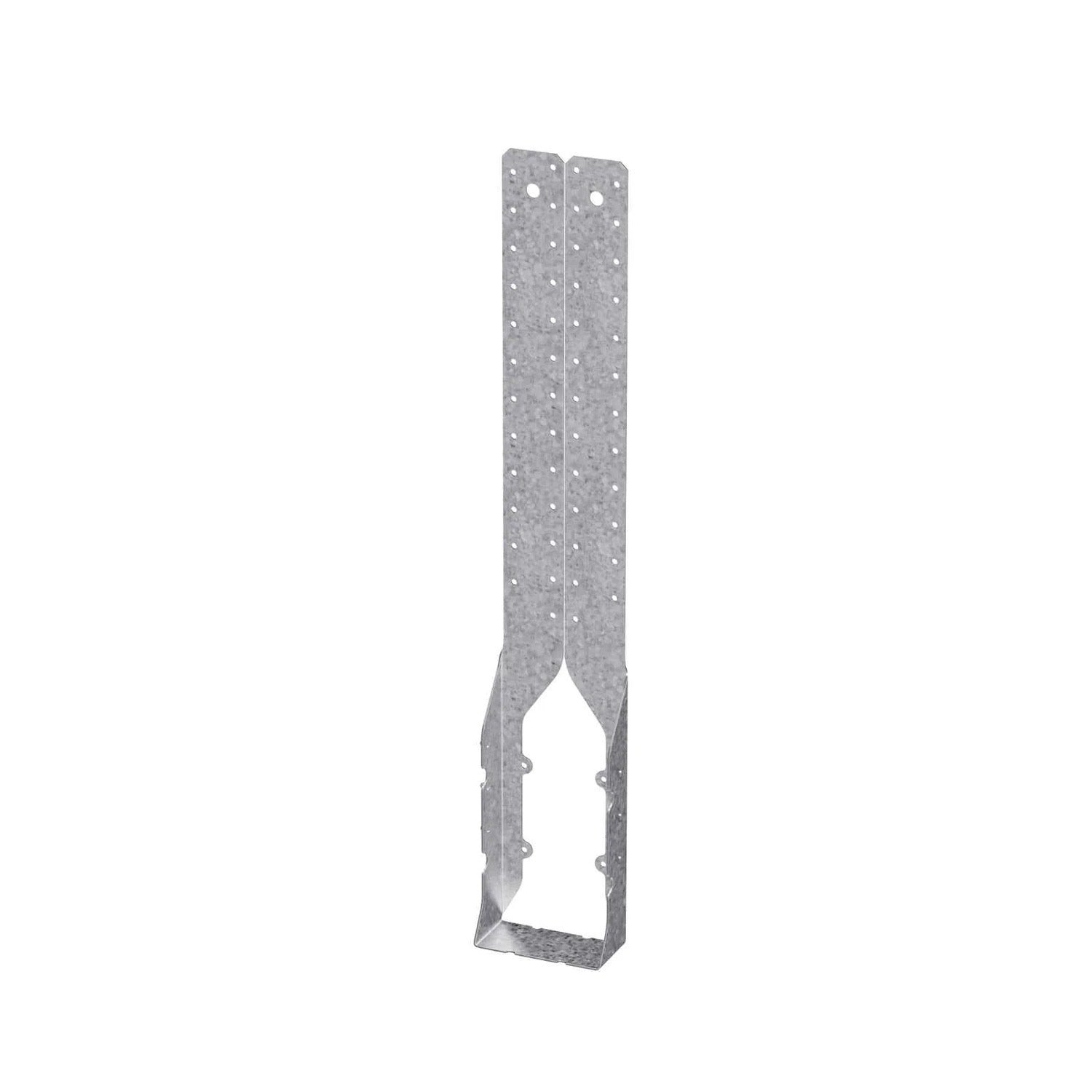

Simpson Strong-Tie THAC422 (4" x 18") Adjustable Concealed-Flange Truss Hanger
$6.87
Unit price
/
Unavailable
Description
Description
Simpson THAC422 Description
The Simpson THAC422 Adjustable Concealed-Flange Truss Hanger is designed for 4x22 applications, featuring a G90 Galvanized finish and concealed flanges for a clean look.
Simpson THAC422 Includes
- (1) Adjustable Concealed-Flange Truss Hanger for 4x22
Simpson THAC422 Features
- Adjustable design for versatile installation
- Concealed flanges for a clean finished appearance
- G90 Galvanized coating for corrosion resistance
- Compatible with hot-dip galvanized fasteners
- Extra long straps for full code nailing
Simpson THAC422 Applications
- Truss framing for residential and commercial structures
- Securing 4x22 truss bottom chords
- Top flange hanger installations

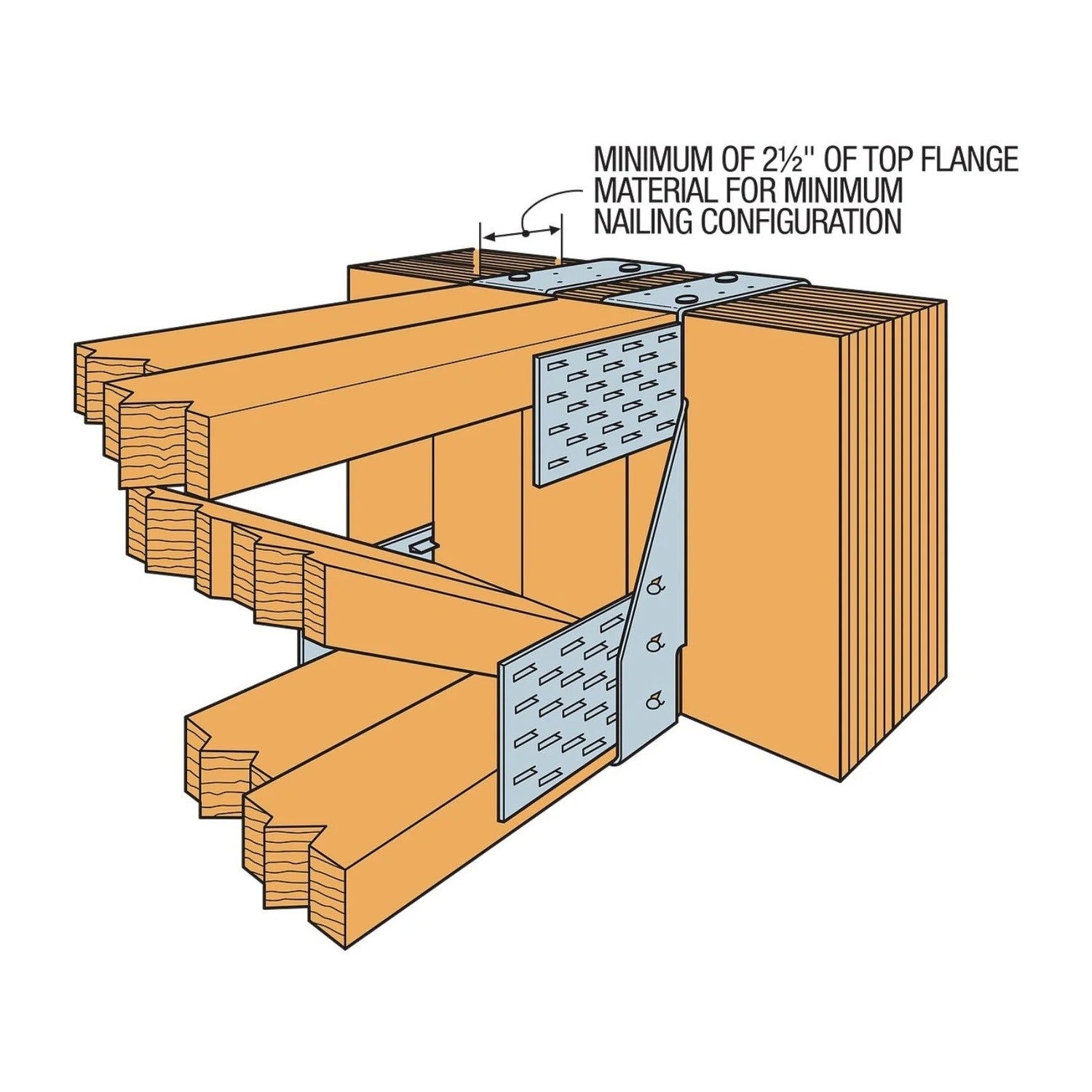

Simpson THAC422 Installation Overview
- Use all specified fasteners
- Field-form straps for top flange installation

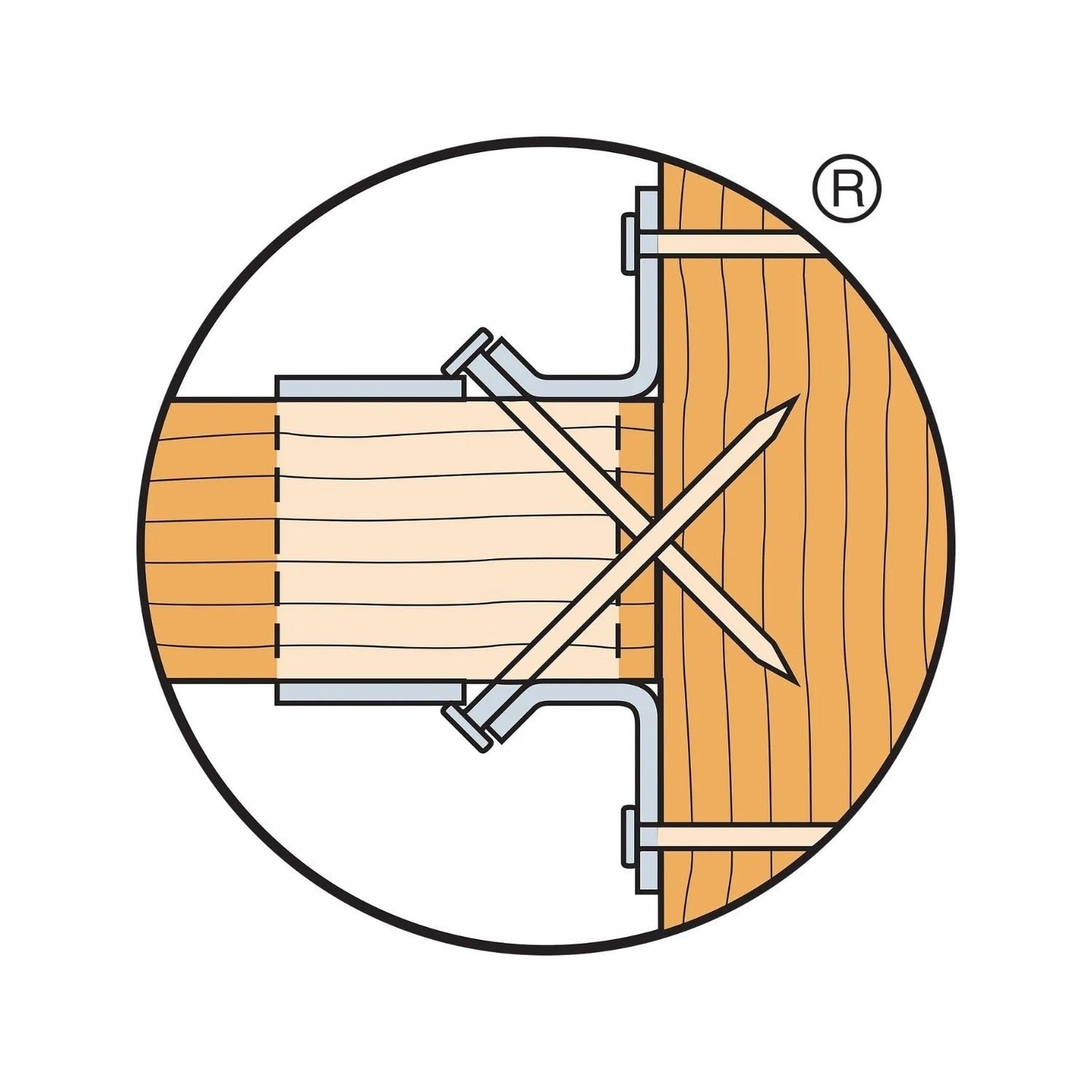

- Install nails straight into the joist for top flange installations
- Fill lowest face nails to achieve uplift loads
Simpson THAC422 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Height | 22" |
| Width | 3-5/8" |
| Fasteners required | Top - (4) 0.162" x 3-1/2" Nails, Face - (2) 0.162" x 3-1/2" Nails, Carried Member - (6) 0.148" x 3" Nails |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
