Simpson Hangers | SKU:
THAC426-2

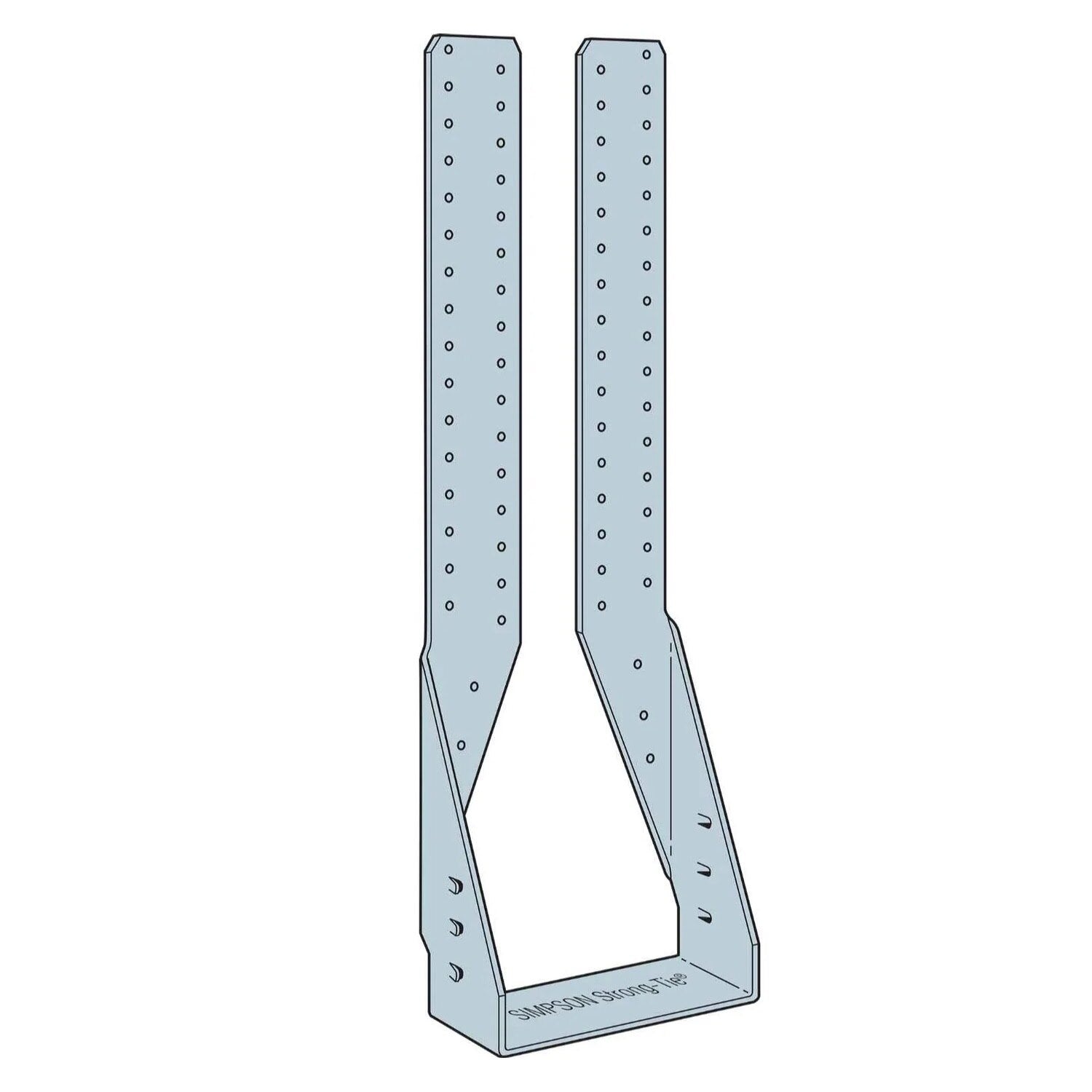

Simpson Strong-Tie THAC426-2 (Double 4" x 26") Adjustable Concealed-Flange Truss Hanger
$66.88
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THAC426-2 Description
The THAC426-2 Adjustable Concealed-Flange Truss Hanger features extra long straps for full code nailing and a clean finished look. It is G90 Galvanized and requires ASTM A153 compliant fasteners.
Simpson Strong-Tie THAC426-2 Includes
- (4) 0.162" x 3-1/2" Nails for Top
- (4) 0.162" x 3-1/2" Nails for Face
- (6) 0.162" x 3-1/2" Nails for Carried Member
Simpson Strong-Tie THAC426-2 Features
- Extra long straps for full code nailing
- Concealed flanges for a clean finished look
- G90 Galvanized coating for durability
- Requires ASTM A153 compliant fasteners
Simpson Strong-Tie THAC426-2 Applications
- Used for truss bottom chords in construction
- Ideal for top flange hanger installations
- Suitable for face mount installations
Simpson Strong-Tie THAC426-2 Installation Overview
- Use all specified fasteners
- For top flange installations, field form straps over the header
- Install top and face nails according to specifications
- For face mount installations, fill the lowest 4 face holes
- Alternate installation allows top flange configuration using tabulated fasteners
- Ensure lowest face nails are filled to achieve uplift loads
Simpson Strong-Tie THAC426-2 Specifications
| Fasteners required | Top - (4) 0.162" x 3-1/2" Nails, Face - (4) 0.162" x 3-1/2" Nails, Carried Member - (6) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 26-1/16" |
| Manufacturer name | Simpson Strong-Tie |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
