Simpson Hangers | SKU:
THAI1.81/22

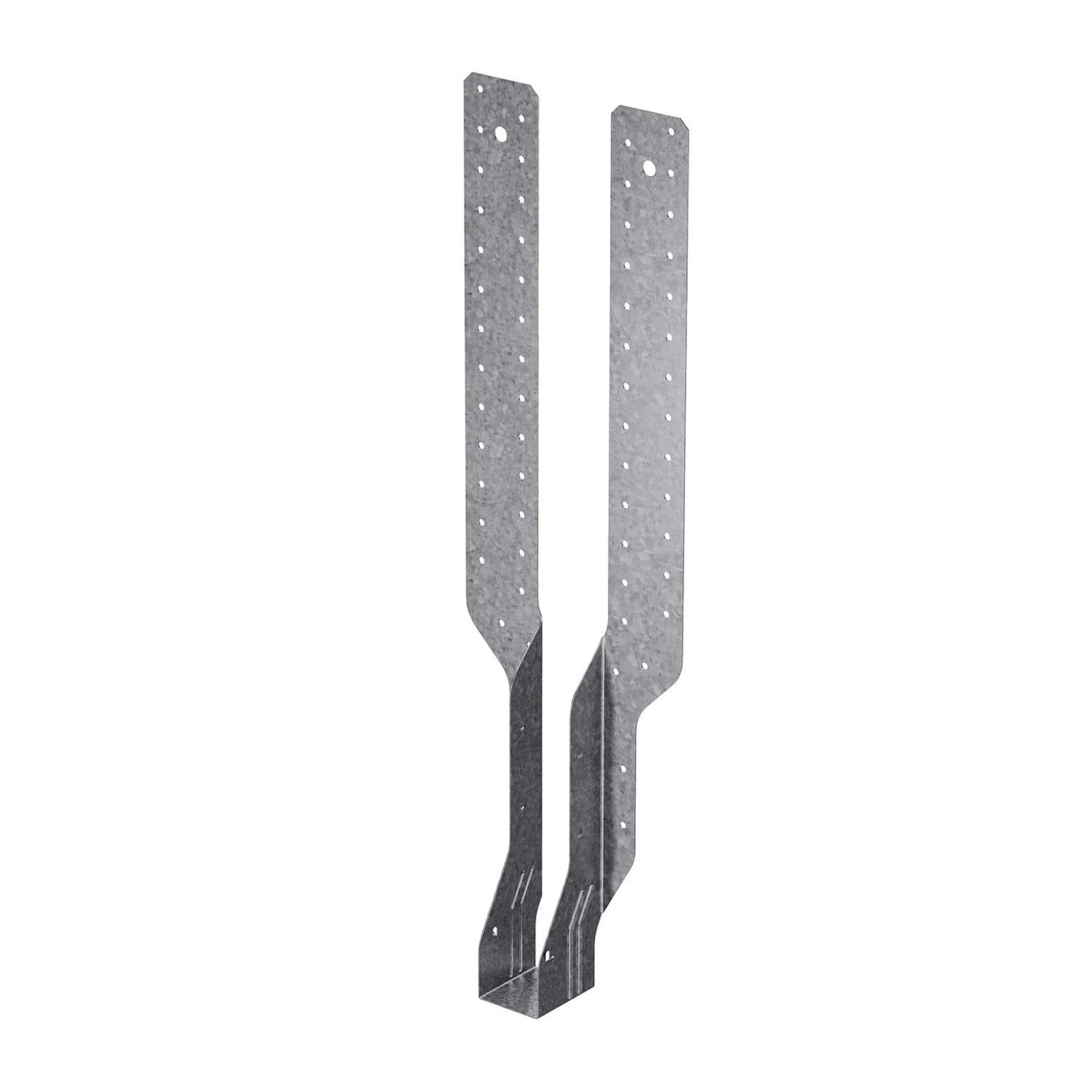

Simpson Strong-Tie THAI1.81/22 (1-3/4 in.) Adjustable Truss Hanger for Engineered Wood
$16.98
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THAI1.81/22 Description
The Simpson THAI Adjustable Hanger is designed for I-joists, featuring extra-long straps for height adjustment and top-flange hanger convenience.
Simpson Strong-Tie THAI1.81/22 Includes
- (1) Adjustable I-Joist Truss Hanger
Simpson Strong-Tie THAI1.81/22 Features
- Designed for I-joists
- Extra-long straps for height adjustment
- Top-flange hanger convenience
- Positive-angle nailing prevents bottom flange separation
- G90 Galvanized finish for durability
Simpson Strong-Tie THAI1.81/22 Applications
- Engineered wood construction
- I-joist installations
- Structural framing requiring adjustable hangers

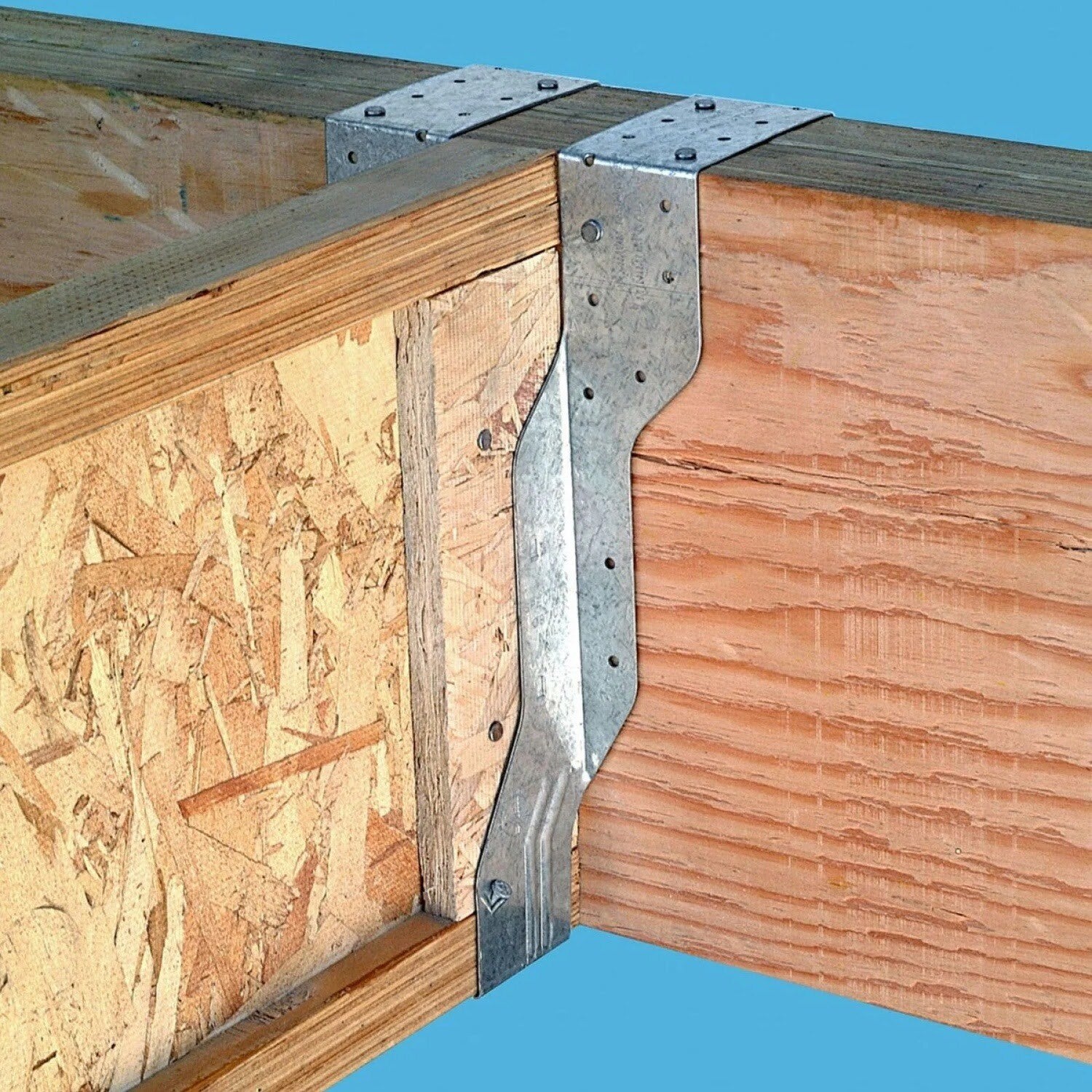

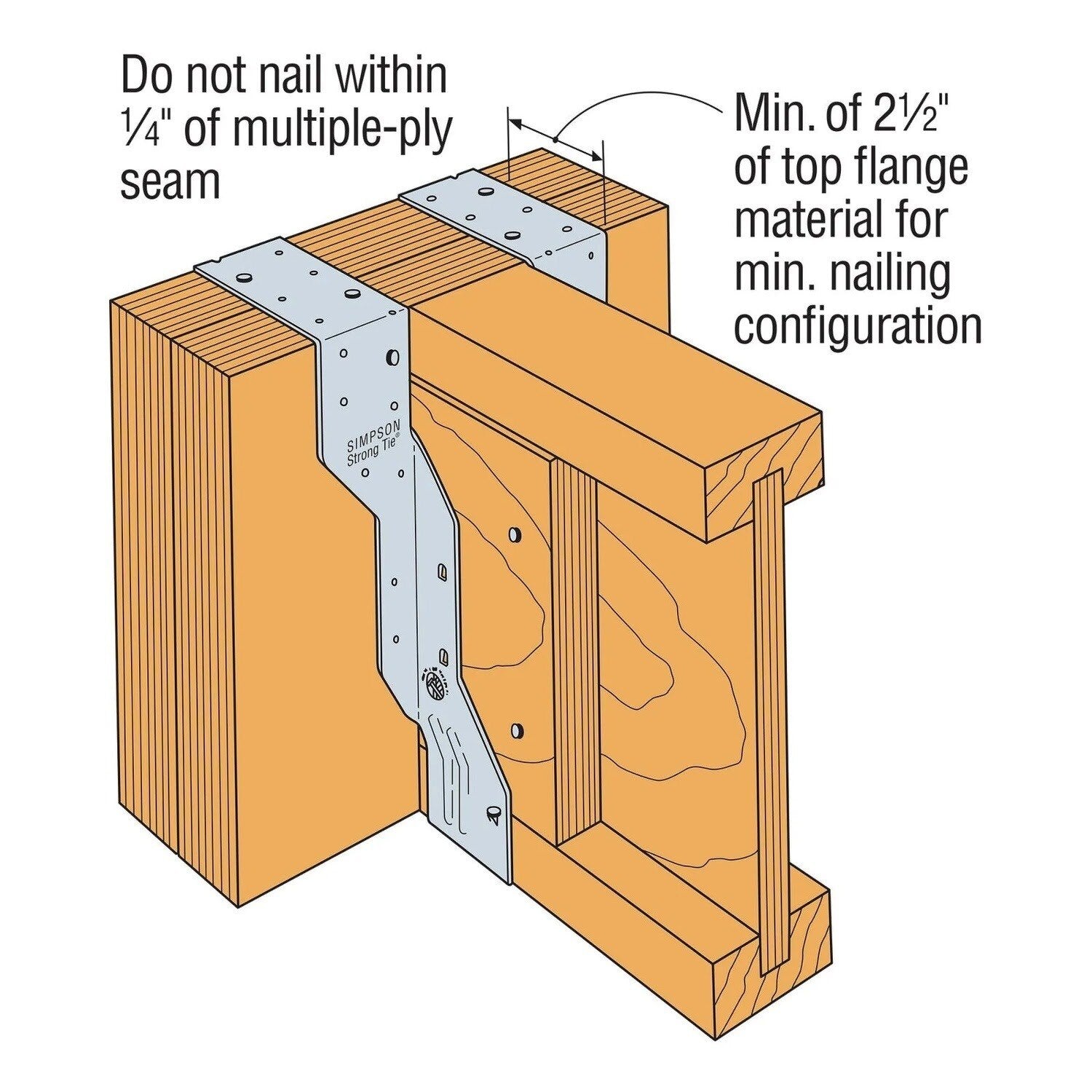

Simpson Strong-Tie THAI1.81/22 Installation Overview
- Factory-order the THAI-2 for hanger width needed
- Use all specified fasteners
- Verify header can accommodate specified fasteners
- Web stiffeners required for all I-joists
- Field-form strap over header by minimum of 2 1/2"
- Fill lowest face nails for uplift loads

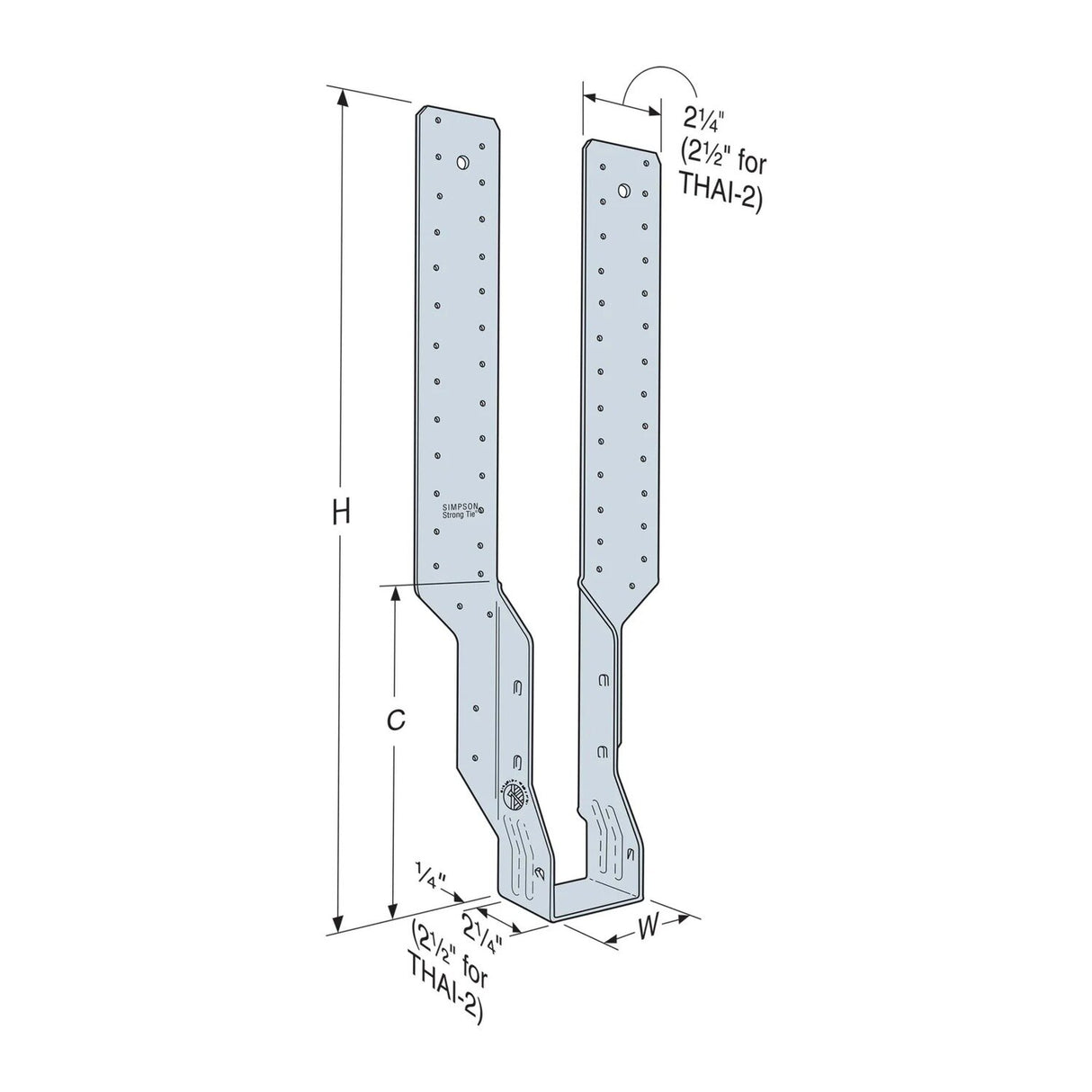

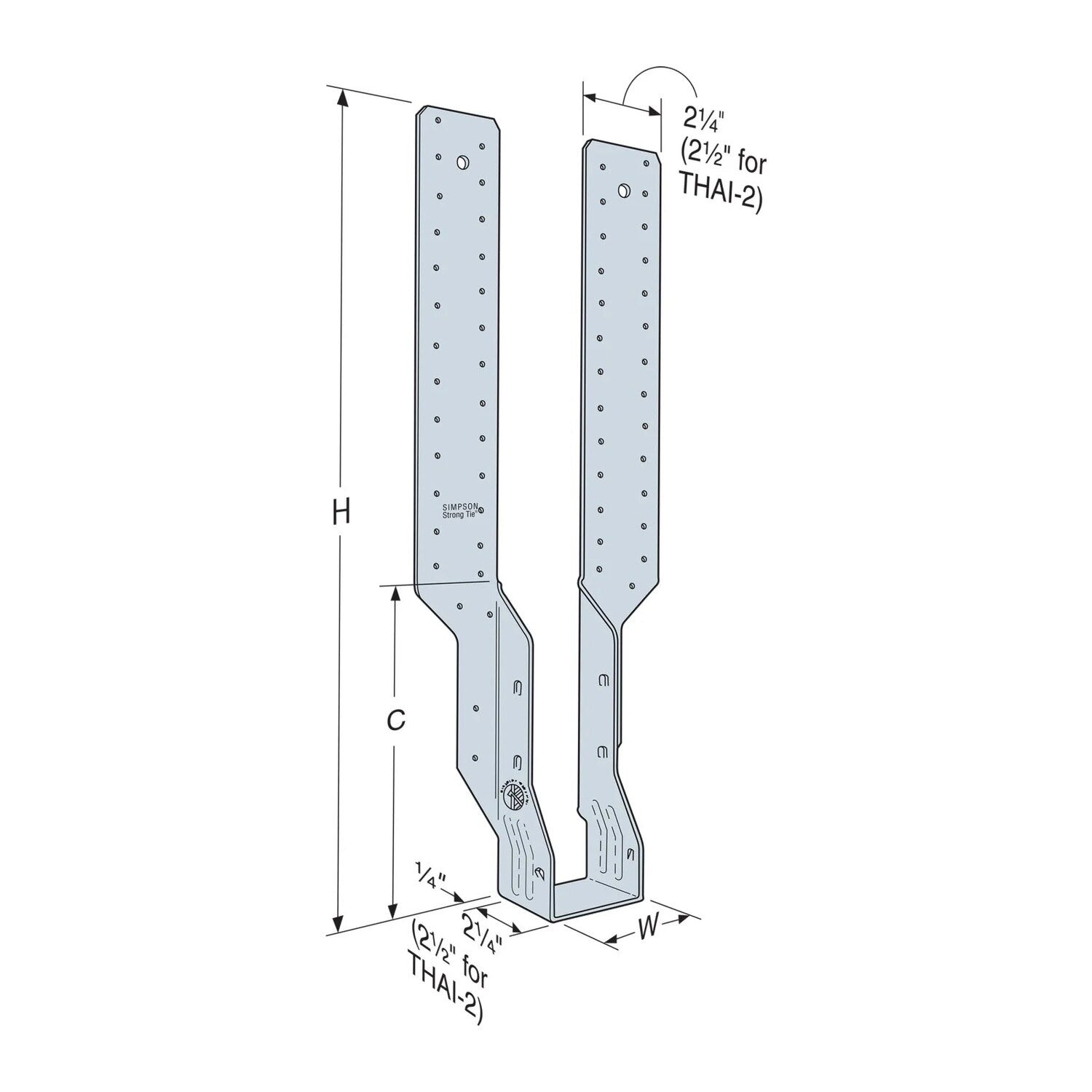

Simpson Strong-Tie THAI1.81/22 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 18 Gauge |
| Height | 22-3/4" |
| Width | 1-13/16" |
| For Treated Lumber | No |
NOTE: Ensure all specified fasteners are used and verify the header can accommodate them.
