Simpson Hangers | SKU:
THAI2.1/22

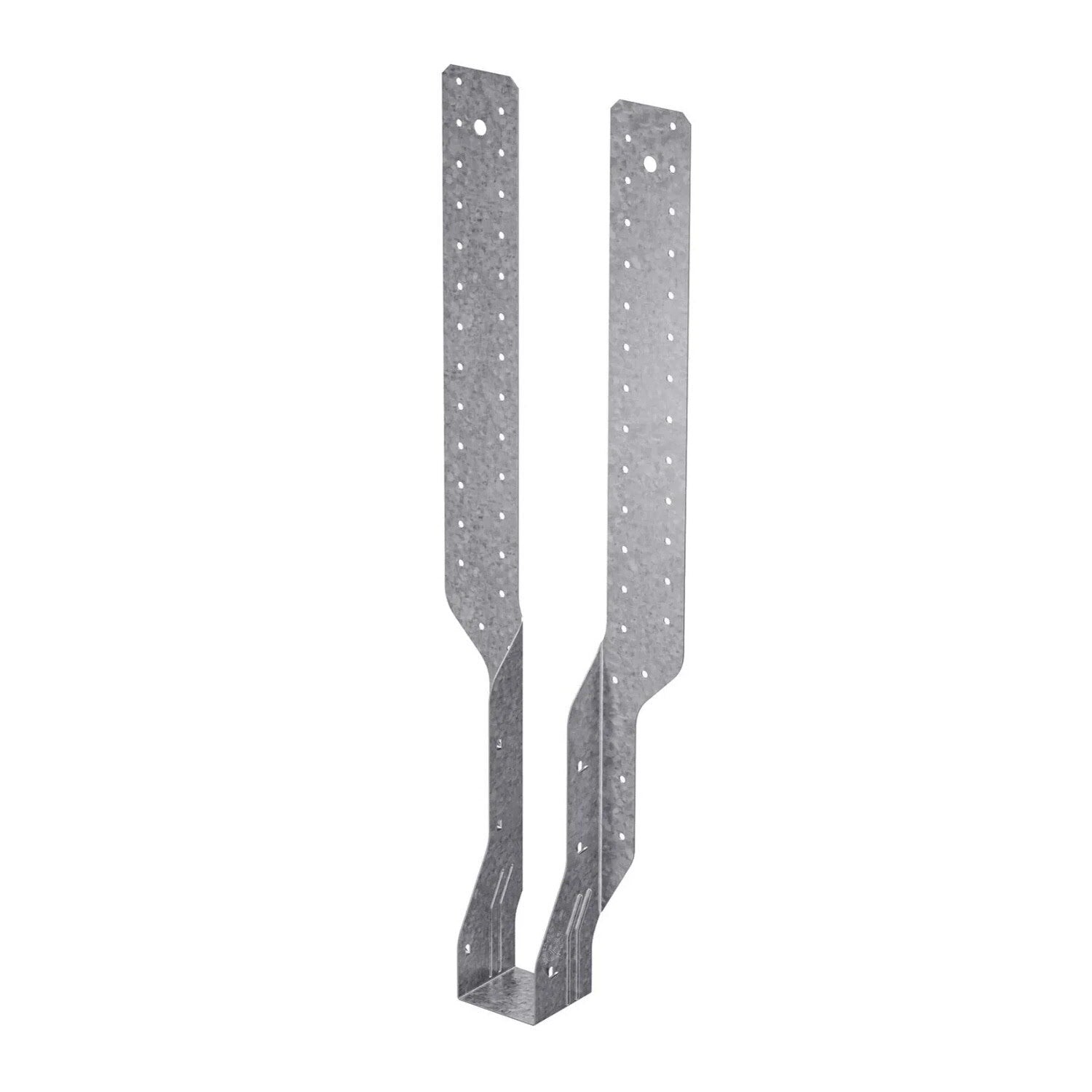

Simpson Strong-Tie THAI2.1/22 Adjustable I-Joist Truss Hanger G90 Galvanized
$20.21
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THAI2.1/22 Description
The Simpson THAI Adjustable Hanger is designed for I-joists and features extra-long straps for height adjustment and top-flange hanger convenience.
Simpson Strong-Tie THAI2.1/22 Includes
- (1) Adjustable I-Joist Truss Hanger
Simpson Strong-Tie THAI2.1/22 Features
- Designed for I-joists
- Extra-long straps for height adjustment
- Top-flange hanger convenience
- Positive-angle nailing prevents bottom flange separation
- G90 Galvanized finish for durability
Simpson Strong-Tie THAI2.1/22 Applications
- I-joist installations requiring adjustable hangers
- Structural framing applications
- Earthquake or wind load scenarios

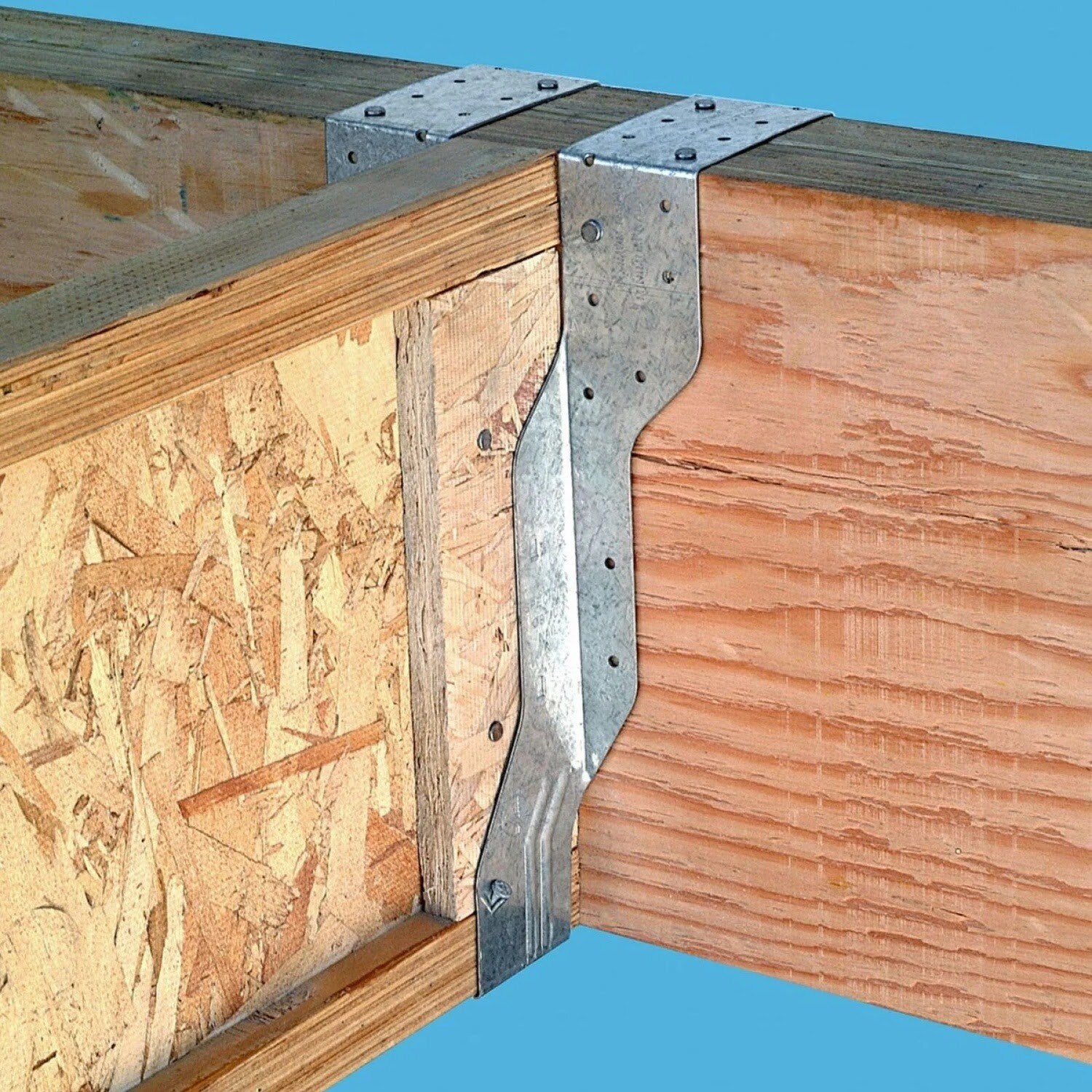

Simpson Strong-Tie THAI2.1/22 Installation Overview
- Prepare the header and verify it can take the specified fasteners.
- Form the straps to the required height.
- Attach the hanger using the specified fasteners.
- Ensure the I-joist is securely seated in the hanger.
Simpson Strong-Tie THAI2.1/22 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Top: Min - (4) 0.148 x 1-1/2” OR (4) 0.148 x 3” Face: Min - (2) 0.148 x 1-1/2” OR (2) 0.148 x 3” Max - (20) 0.148 x 3” Joist: Min - (2) 0.148 x 1-1/2” Max - (2) 0.148 x 1-1/2” |
| For Treated Lumber | No |
| Height | 22-9/16" |
| Thickness | 18 Gauge |
| Width | 2-1/8" |

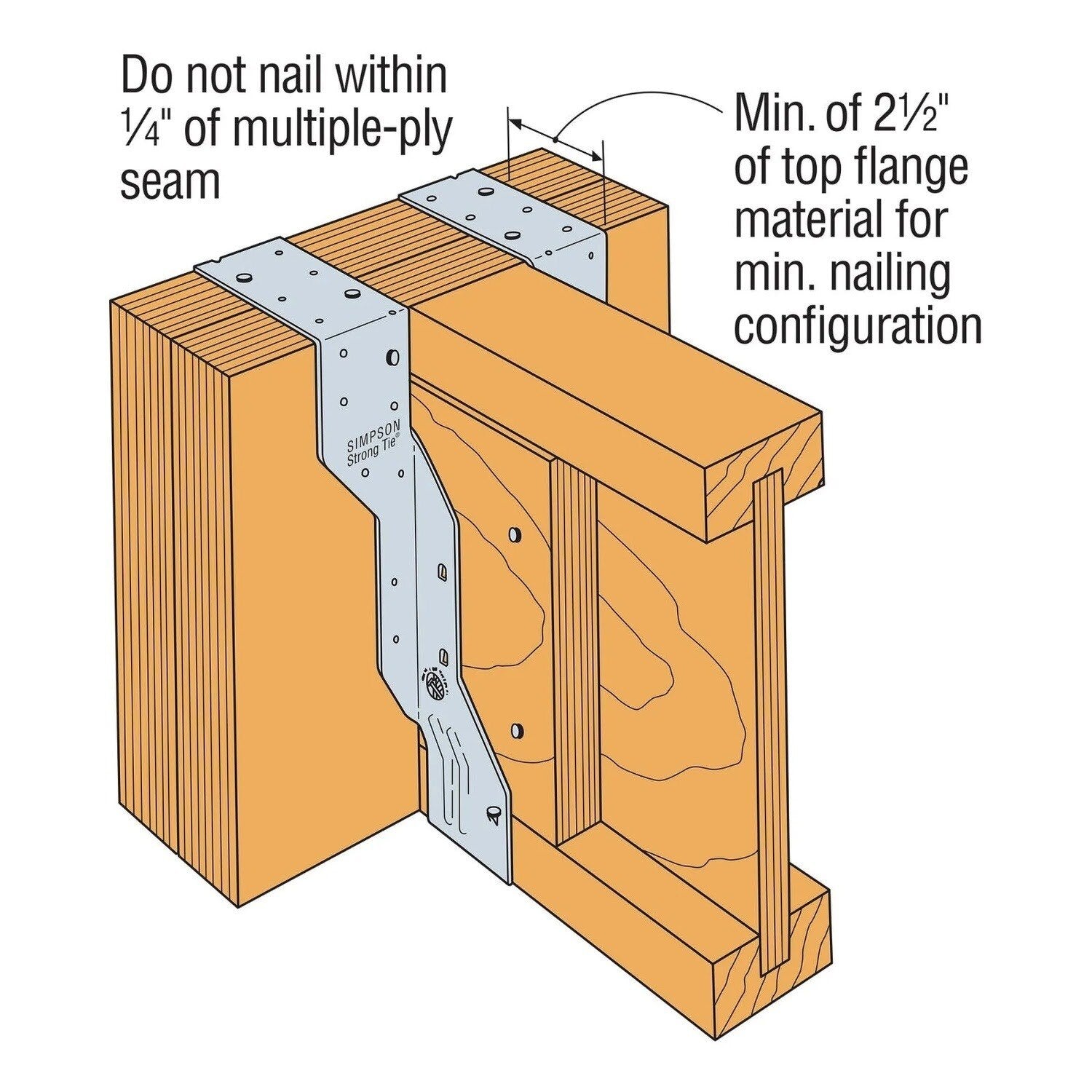

NOTE: Use all specified fasteners. Verify that the header can take the fasteners specified in the table.
