Simpson Hangers | SKU:
THAI222

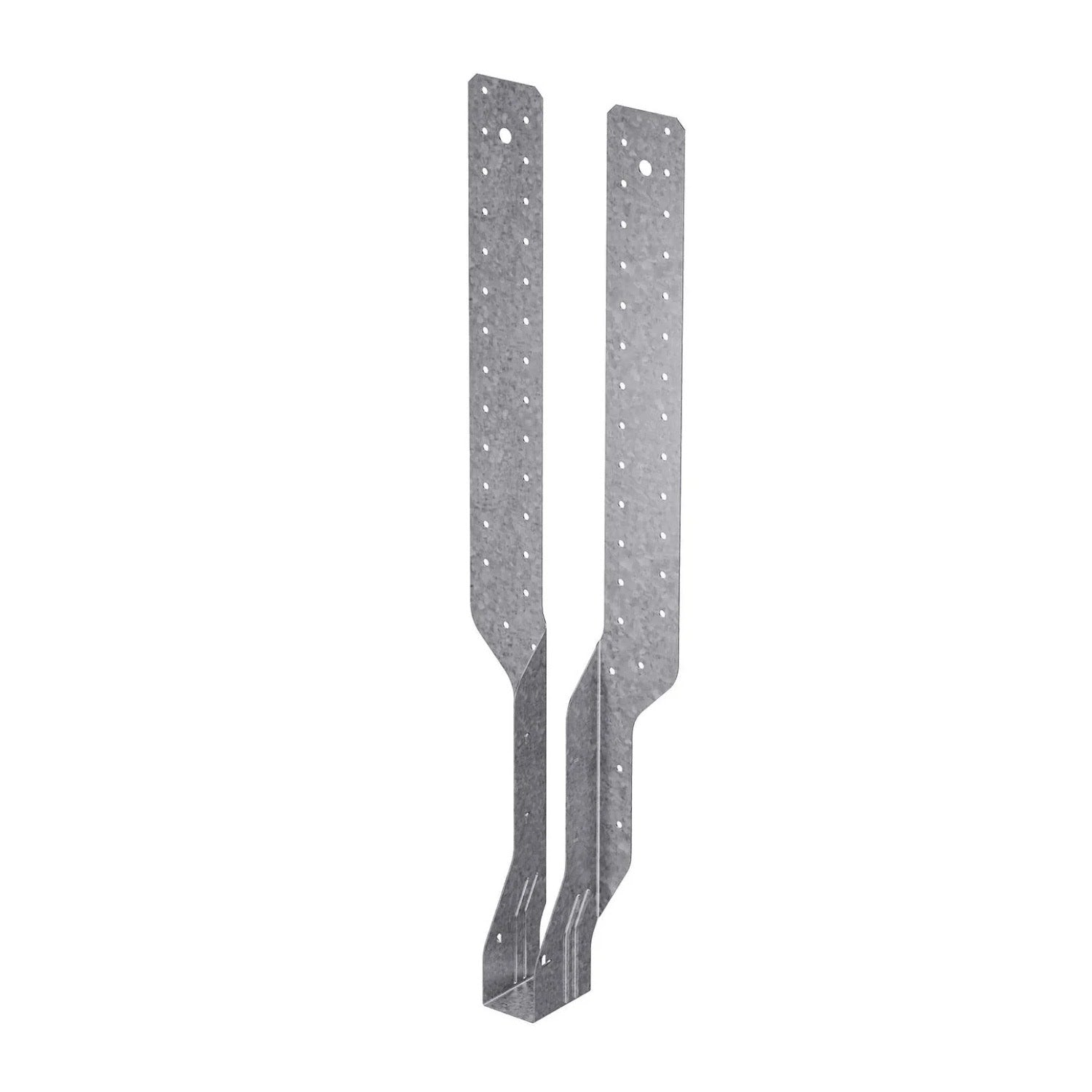

Simpson Strong-Tie THAI222 (1-1/2 in.) Adjustable I-Joist Truss Hanger G90 Galvanized
$18.84
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THAI222 Description

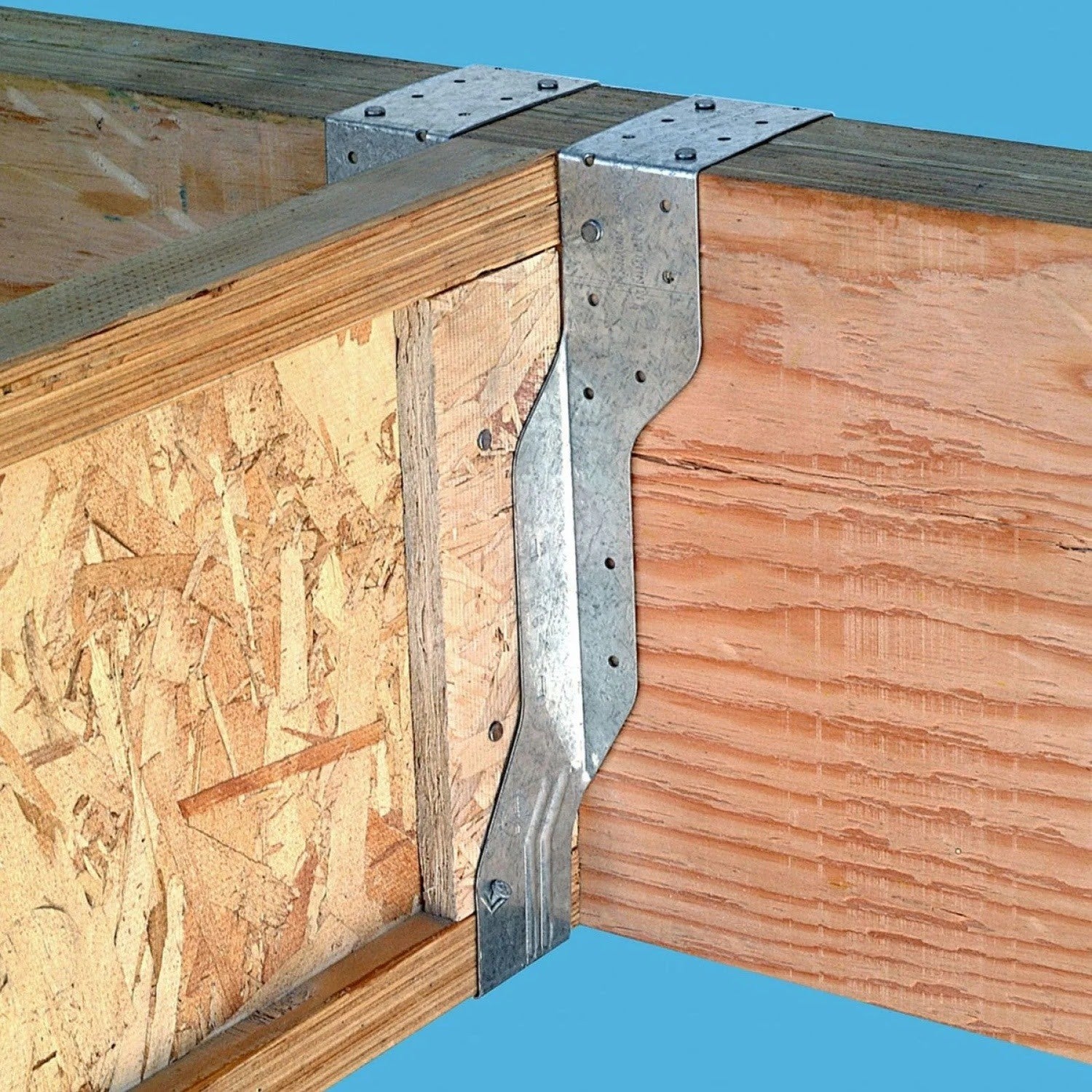

The Simpson THAI222 Adjustable I-Joist Truss Hanger is designed for I-joists, featuring extra-long straps for height adjustment and top-flange hanger convenience.
Simpson Strong-Tie THAI222 Includes
- (1) Adjustable I-Joist Truss Hanger
Simpson Strong-Tie THAI222 Features
- Designed for I-joists
- Extra-long straps for height adjustment
- Top-flange hanger convenience
- Positive-angle nailing prevents bottom flange separation
- G90 Galvanized finish for durability
Simpson Strong-Tie THAI222 Applications
- Securing I-joists in construction projects
- Providing adjustable height for truss hangers
- Ensuring structural integrity in earthquake or wind-prone areas

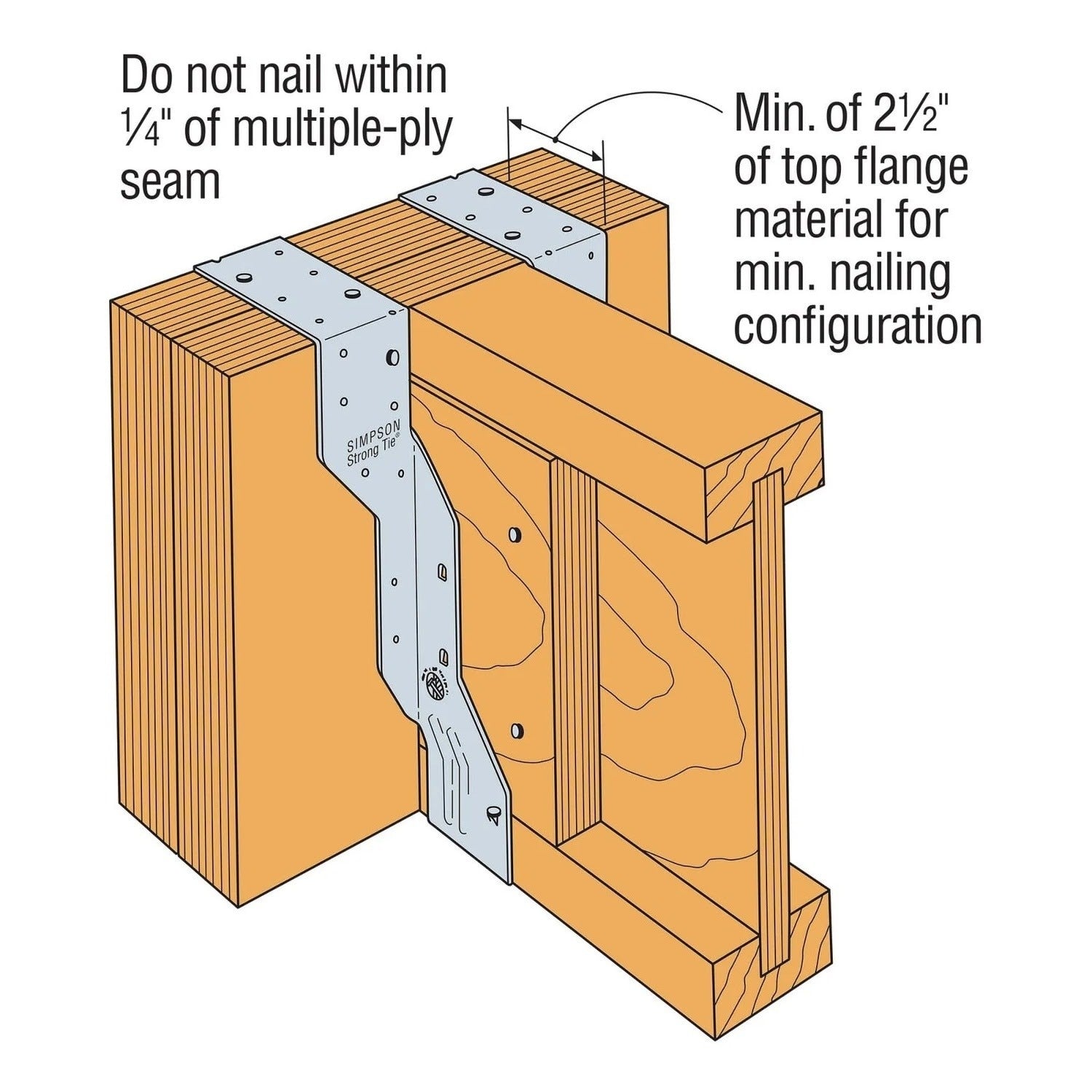

Simpson Strong-Tie THAI222 Installation Overview
- Prepare the header and I-joist for installation.
- Form the straps to the required height.
- Attach the hanger using specified fasteners.
- Ensure positive-angle nailing to prevent flange separation.
- Verify all fasteners are securely installed.

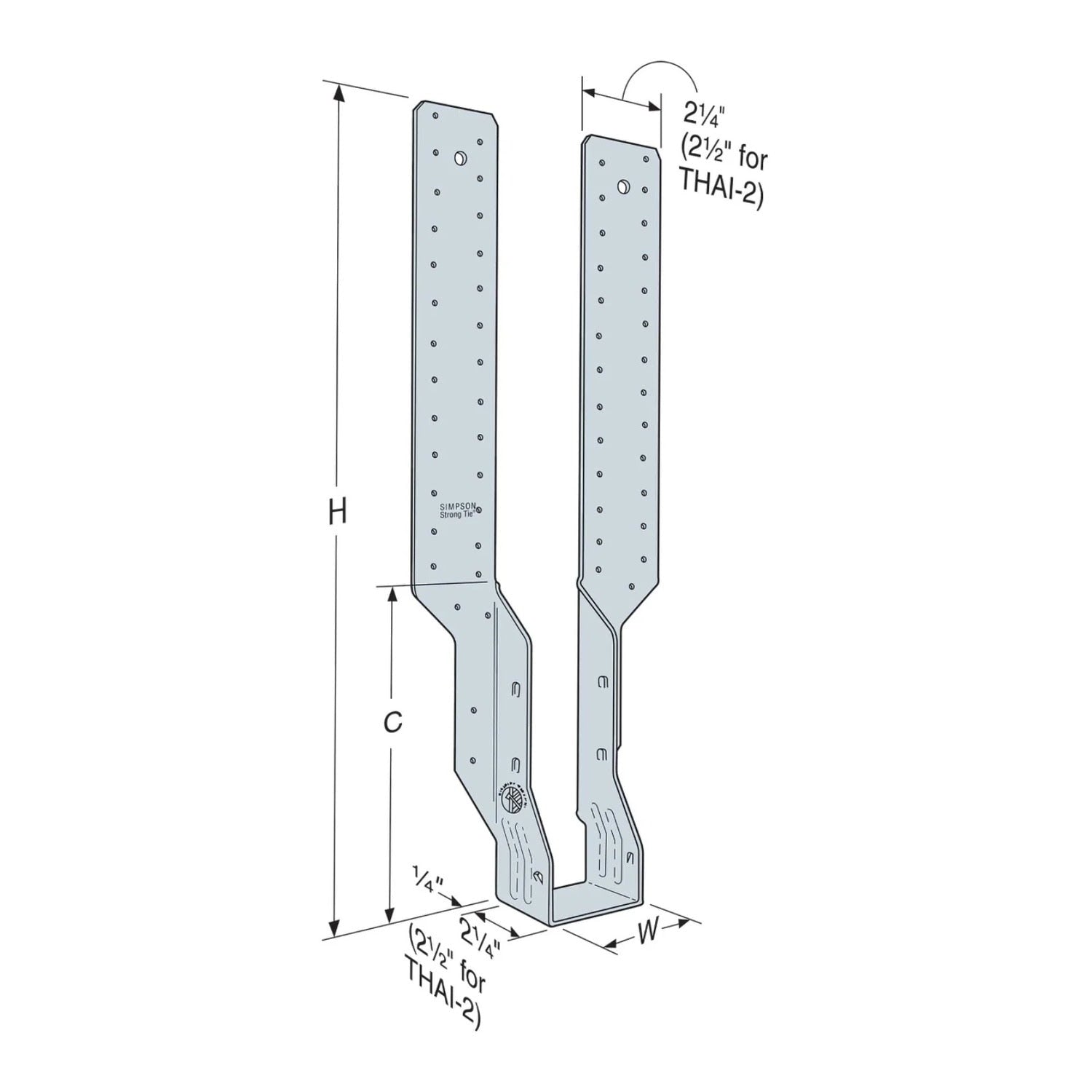

Simpson Strong-Tie THAI222 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Top: Min - (4) 0.148 x 1-1/2” OR (4) 0.148 x 3” Face: Min - (2) 0.148 x 1-1/2” OR (2) 0.148 x 3” Max - (20) 0.148 x 3” Joist: Min - (2) 0.148 x 1-1/2” Max - (2) 0.148 x 1-1/2” |
| For Treated Lumber | No |
| Height | 22-7/8" |
| Thickness | 18 Gauge |
| Width | 1-9/16" |
NOTE: Use all specified fasteners. Verify that the header can take the fasteners specified in the table.
