Simpson Hangers | SKU:
THAI322
Simpson Strong-Tie THAI322 (2-1/2 in.) Adjustable I-Joist Truss Hanger for Engineered Wood
$17.44
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THAI322 Description

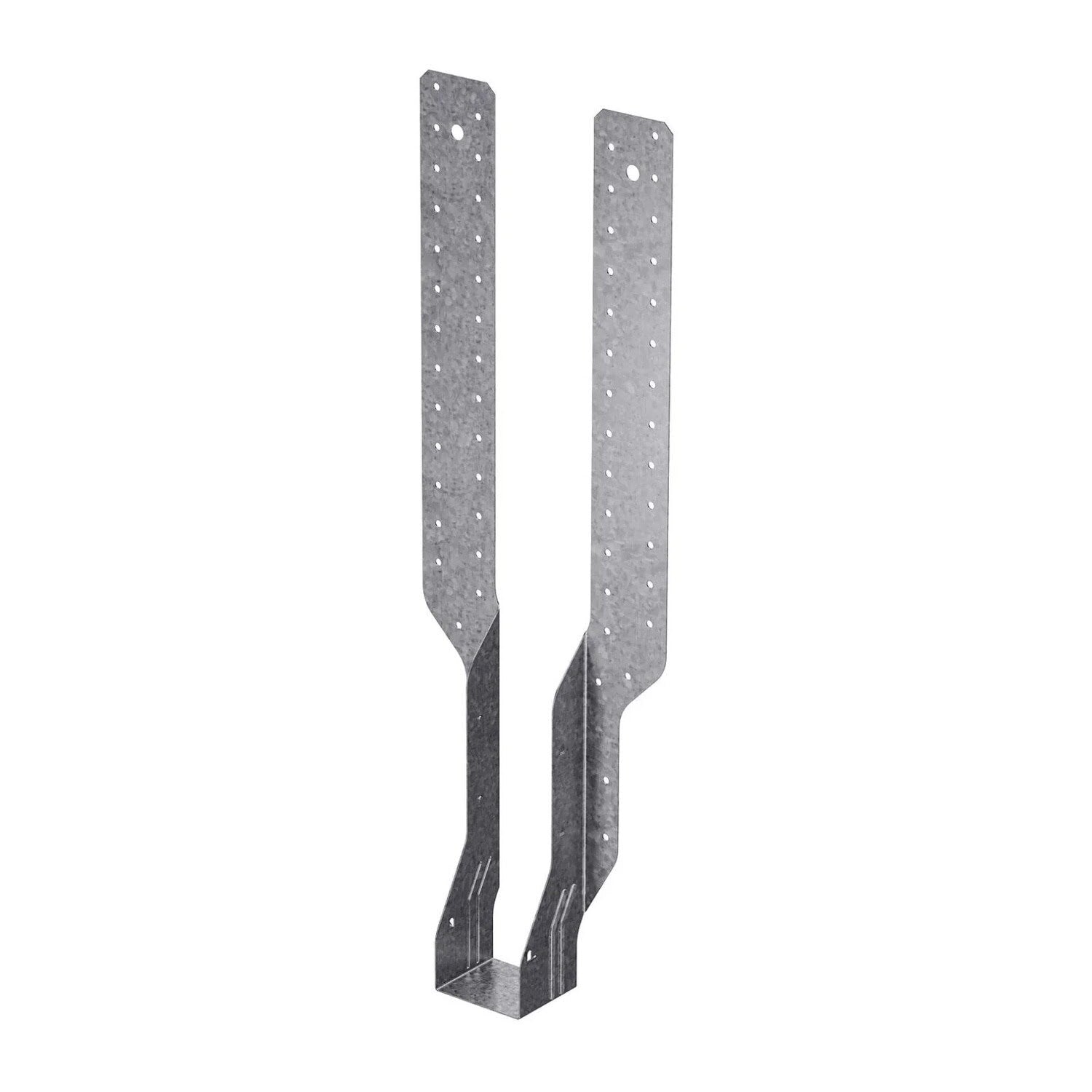

The Simpson THAI322 Adjustable I-Joist Truss Hanger is designed for engineered wood applications, featuring extra-long straps for height adjustment and top-flange hanger convenience.
Simpson Strong-Tie THAI322 Includes
- (1) Adjustable I-Joist Truss Hanger
Simpson Strong-Tie THAI322 Features
- Extra-long straps for height adjustment
- Top-flange hanger convenience
- Positive-angle nailing prevents bottom flange separation
- Designed for I-joists
- G90 Galvanized finish for durability
Simpson Strong-Tie THAI322 Applications
- Engineered wood construction
- I-joist installations
- Structural framing requiring adjustable hangers

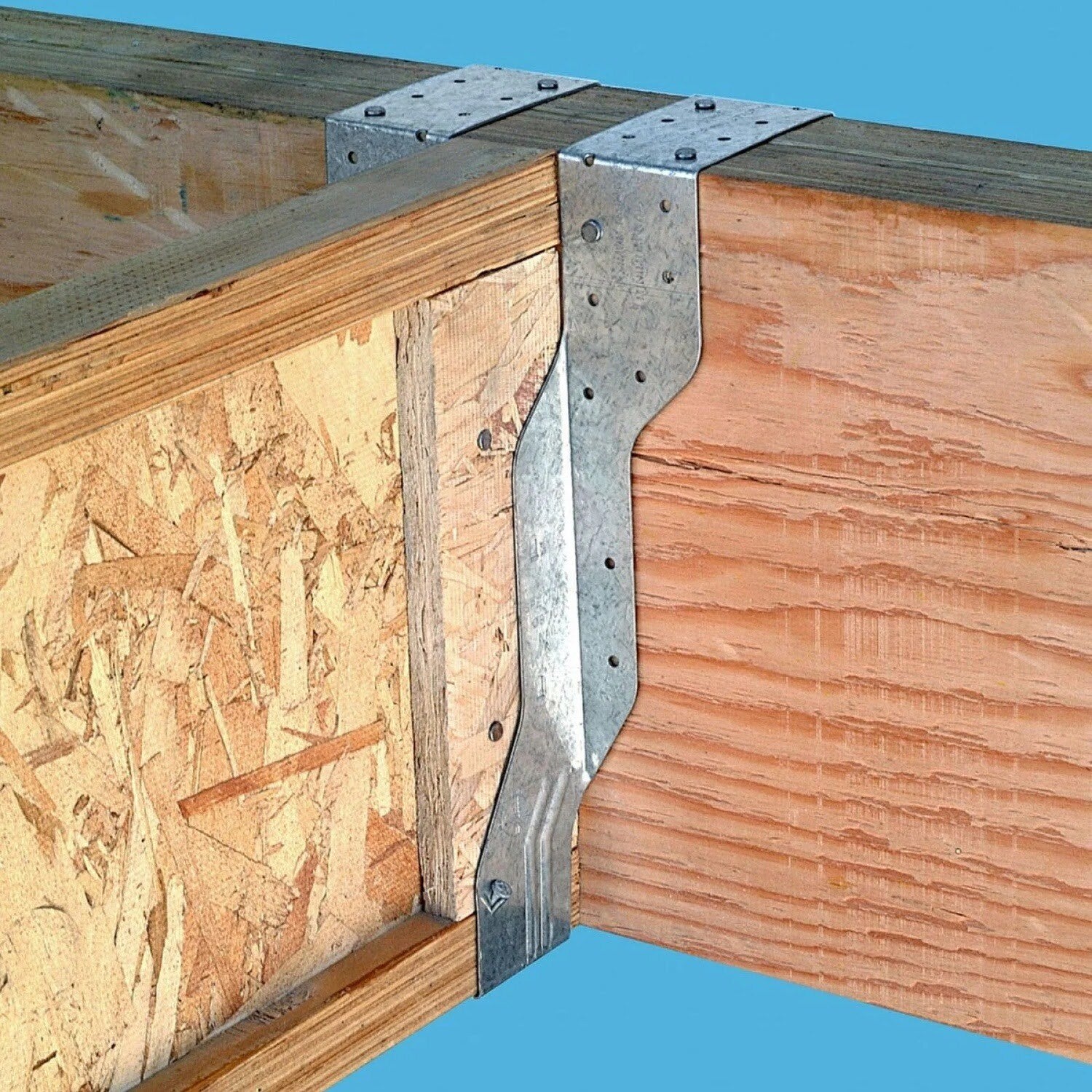

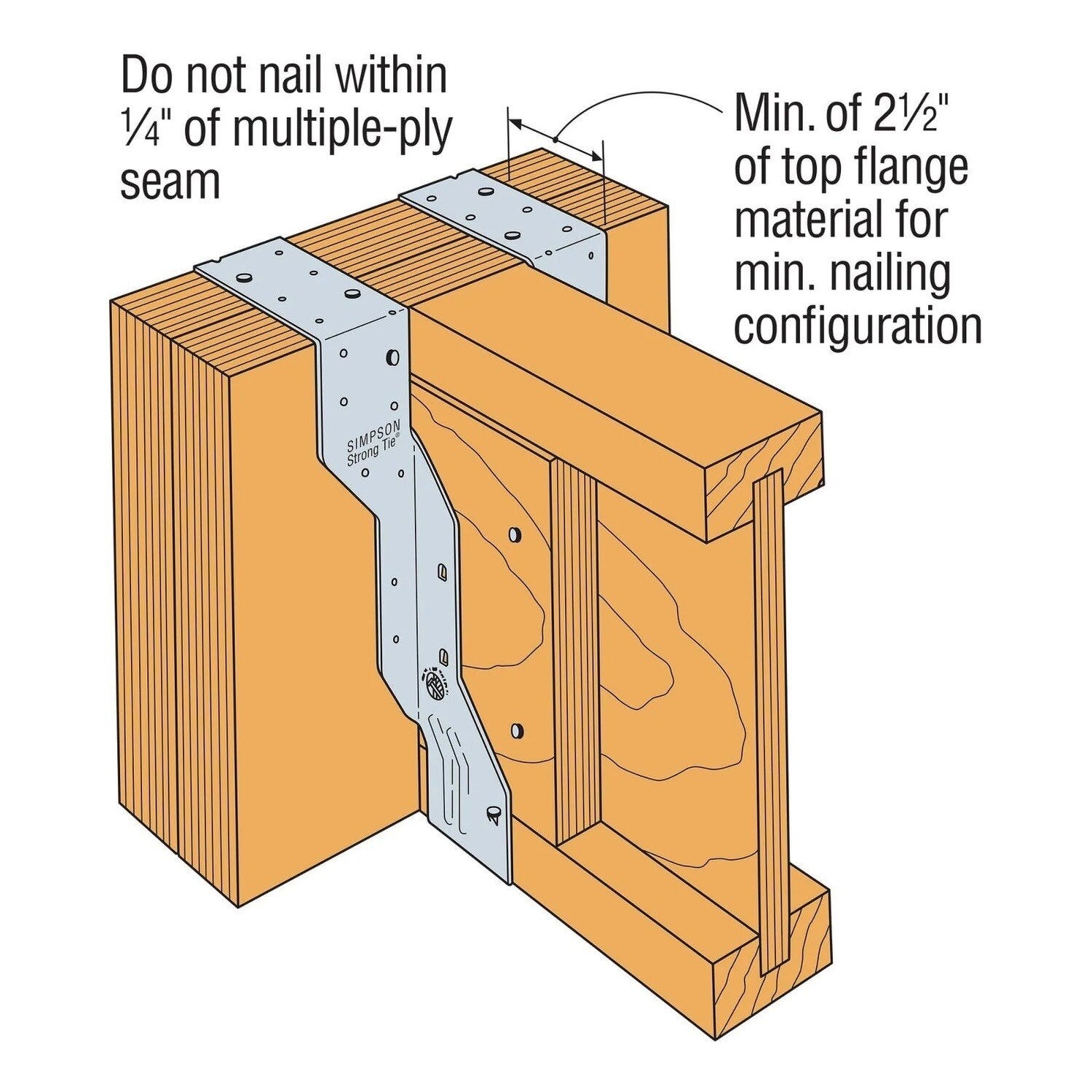

Simpson Strong-Tie THAI322 Installation Overview
- Order the THAI-2 for the required hanger width.
- Use all specified fasteners and verify header compatibility.
- Install web stiffeners for all I-joists.
- Field-form straps over the top of the header by a minimum of 2 1/2".
- Fill lowest face nails to achieve uplift loads.

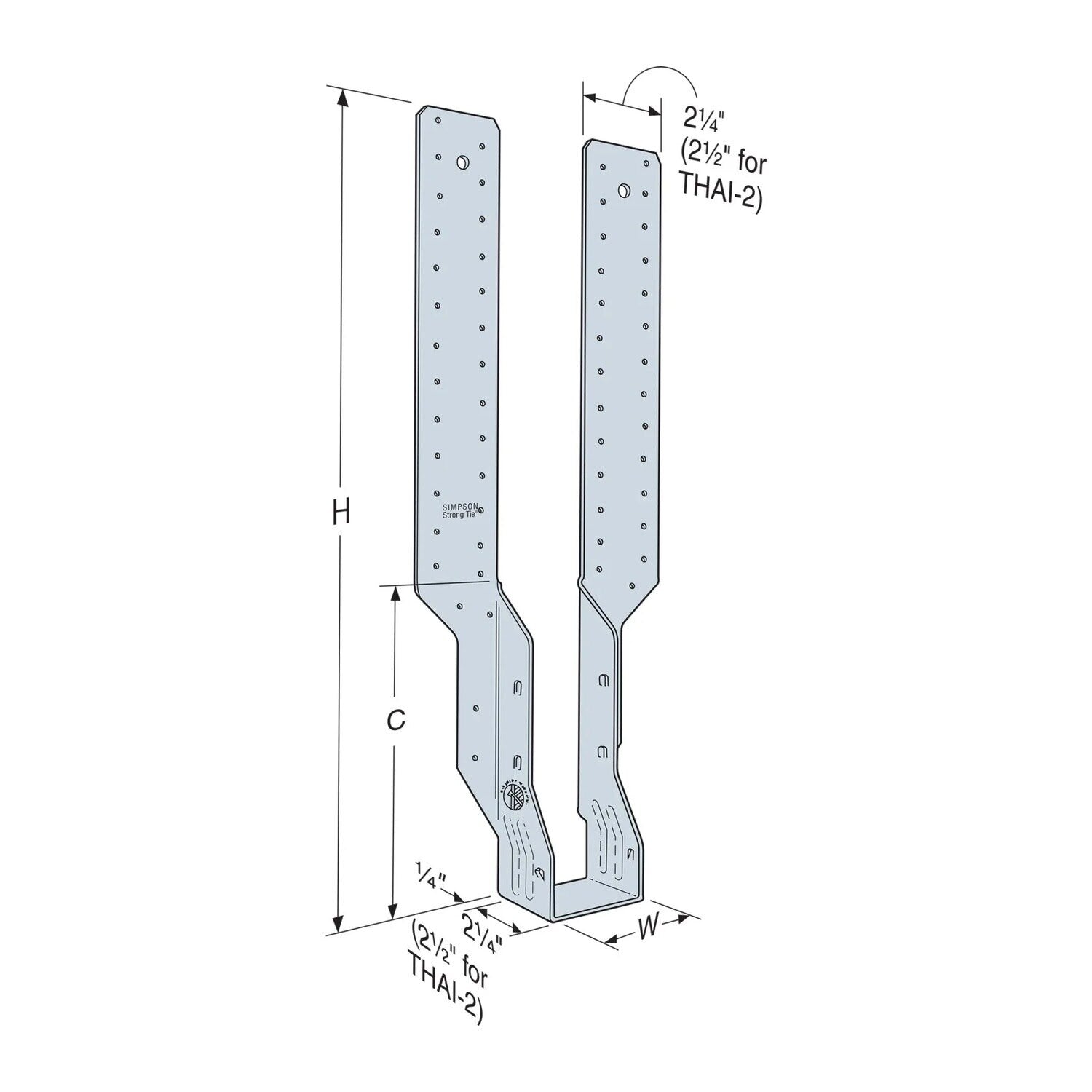

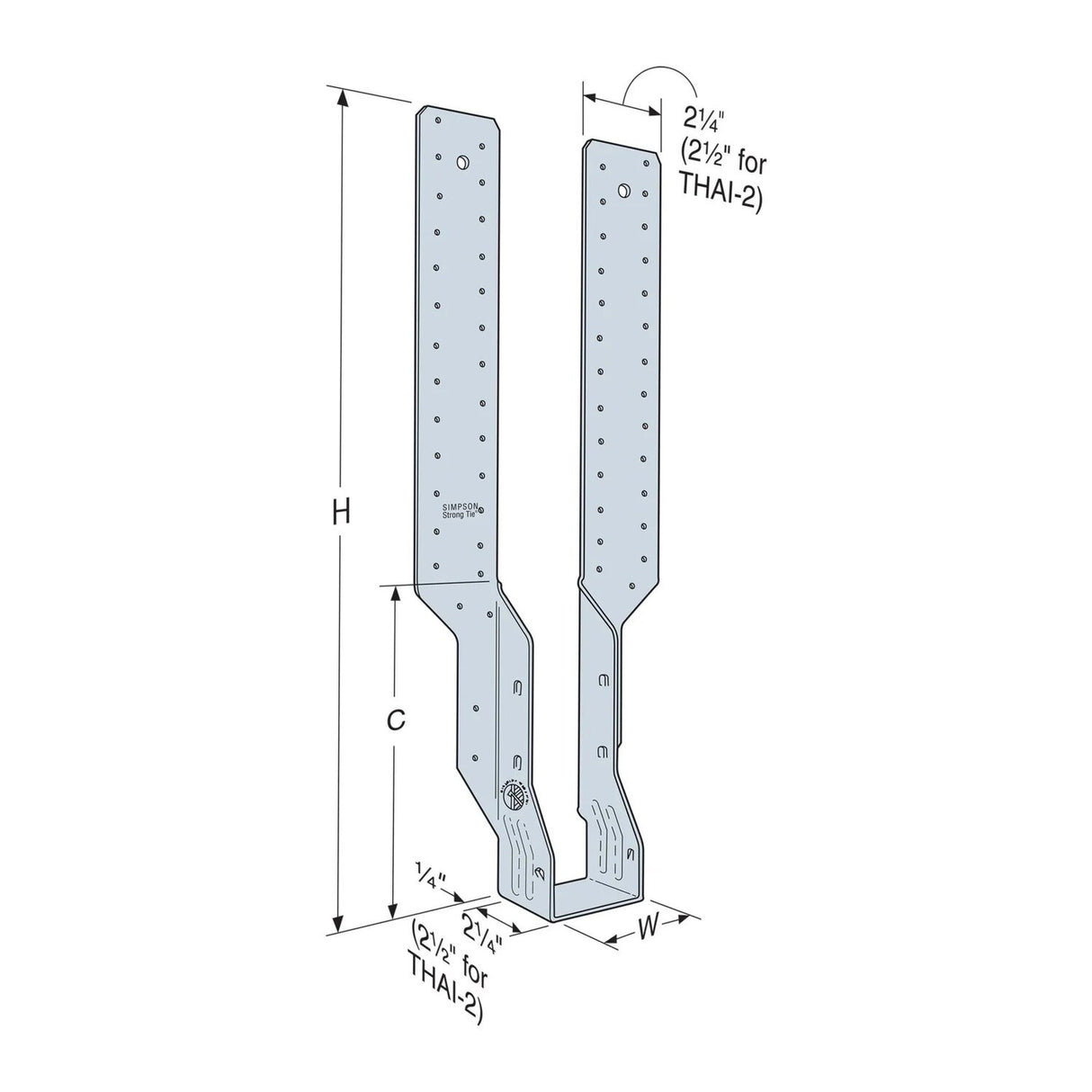

Simpson Strong-Tie THAI322 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 18 Gauge |
| Height | 22-3/8" |
| Width | 2-9/16" |
| For Treated Lumber | No |
NOTE: Ensure all specified fasteners are used and verify the header can accommodate them.
