Simpson Hangers | SKU:
THAI3522
Simpson Strong-Tie THAI3522 (2-1/4 in. to 2-5/16 in.) Adjustable I-Joist Truss Hanger for Engineered Wood
$17.44
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THAI3522 Description

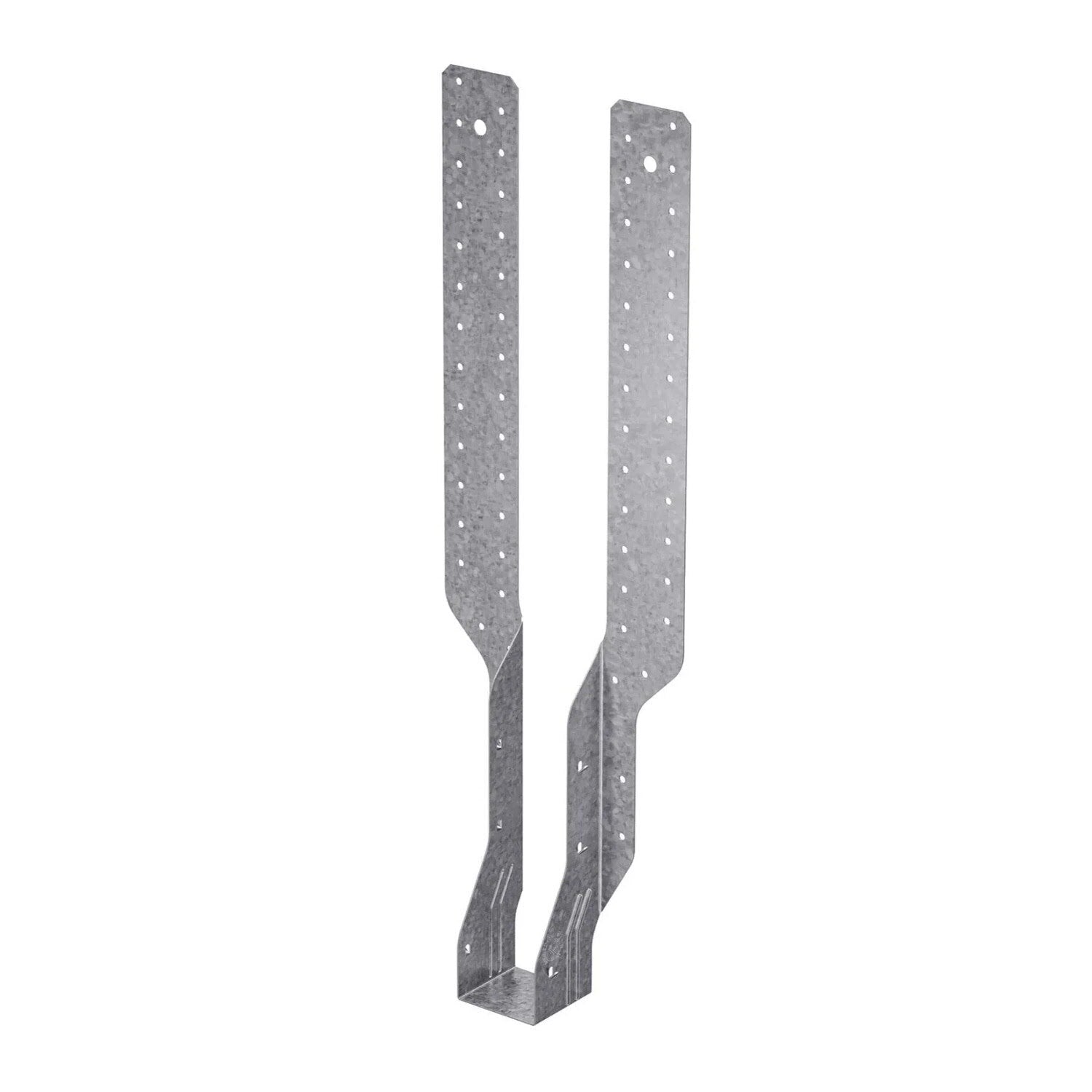

The Simpson THAI3522 Adjustable I-Joist Truss Hanger is designed for engineered wood applications, featuring extra-long straps for height adjustment and top-flange hanger convenience.
Simpson Strong-Tie THAI3522 Includes
- (1) Adjustable I-Joist Truss Hanger
Simpson Strong-Tie THAI3522 Features
- Extra-long straps for height adjustment
- Top-flange hanger convenience
- Positive-angle nailing prevents bottom flange separation
- Designed for I-joists
- G90 Galvanized finish for durability
Simpson Strong-Tie THAI3522 Applications
- Engineered wood construction
- I-joist installations
- Truss hanger applications

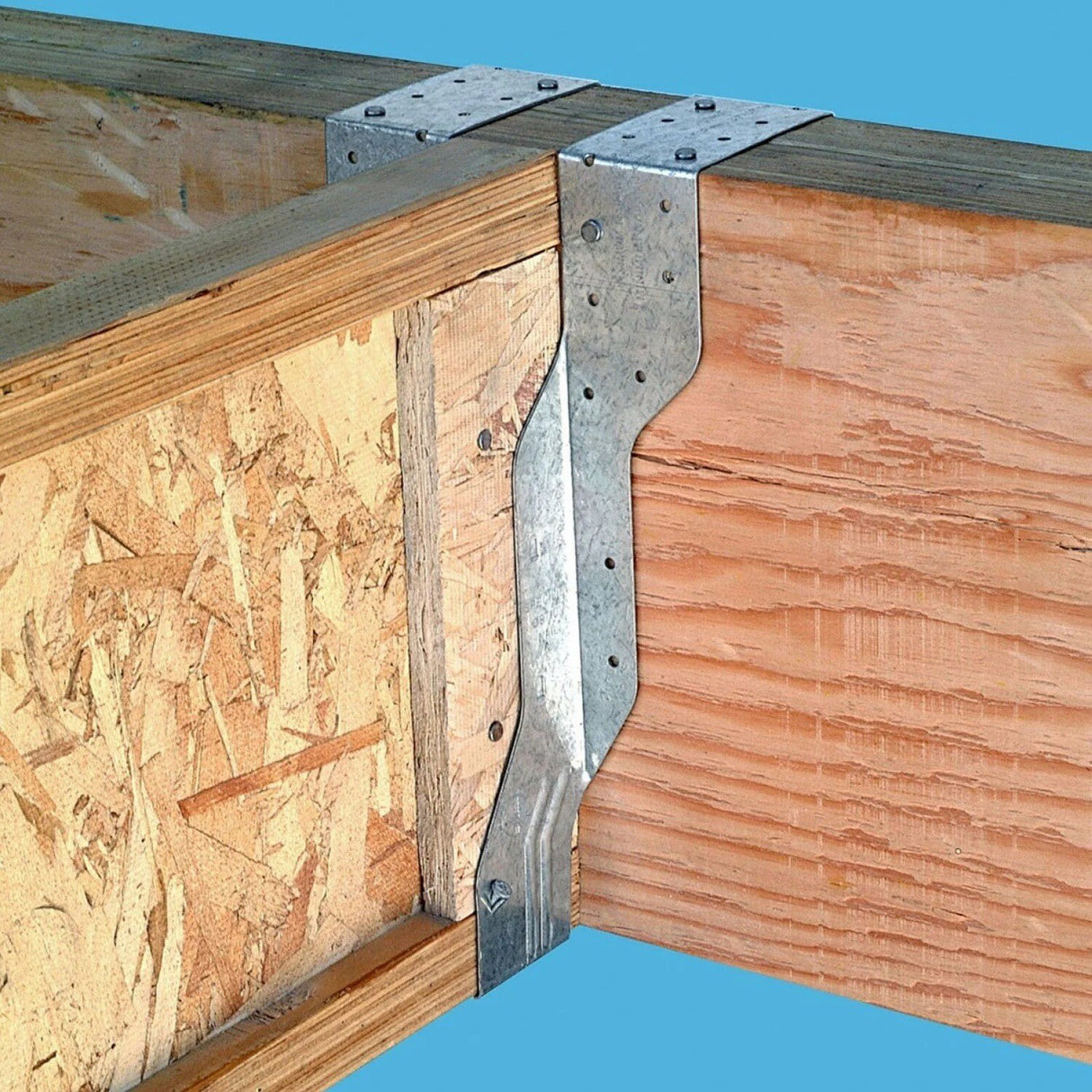

Simpson Strong-Tie THAI3522 Installation Overview
- Factory-order the THAI-2 for hanger width needed
- Use all specified fasteners
- Web stiffeners are required for all I-joists used with these hangers

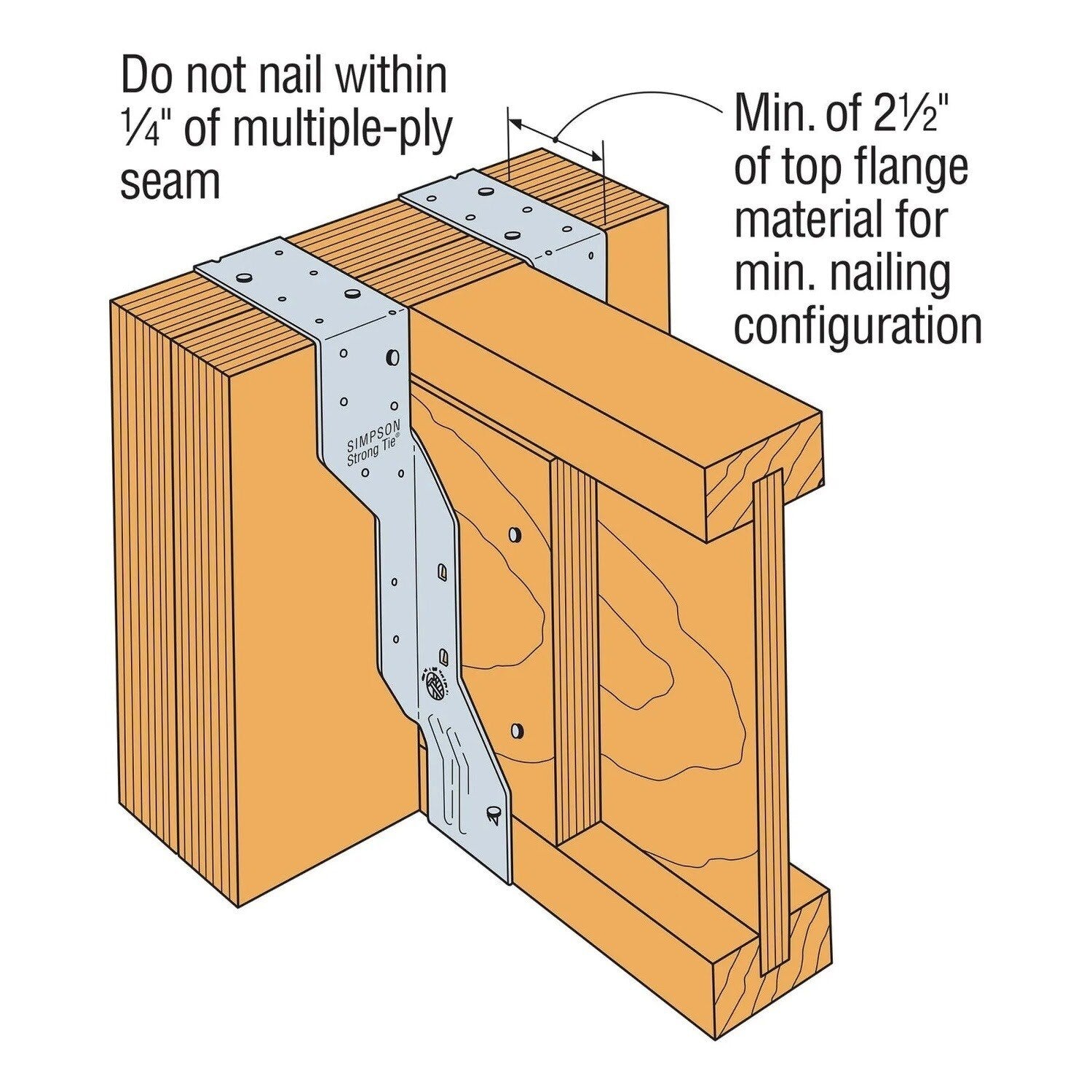

- Field-form the strap over the top of the header by a minimum of 2 1/2"
- Fill lowest face nails to achieve uplift loads
Simpson Strong-Tie THAI3522 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 18 Gauge |
| Height | 22-1/2" |
| Width | 2-5/16" |
| For Treated Lumber | No |
NOTE: Ensure all specified fasteners are used and verify the header can accommodate the fasteners as per the table.
