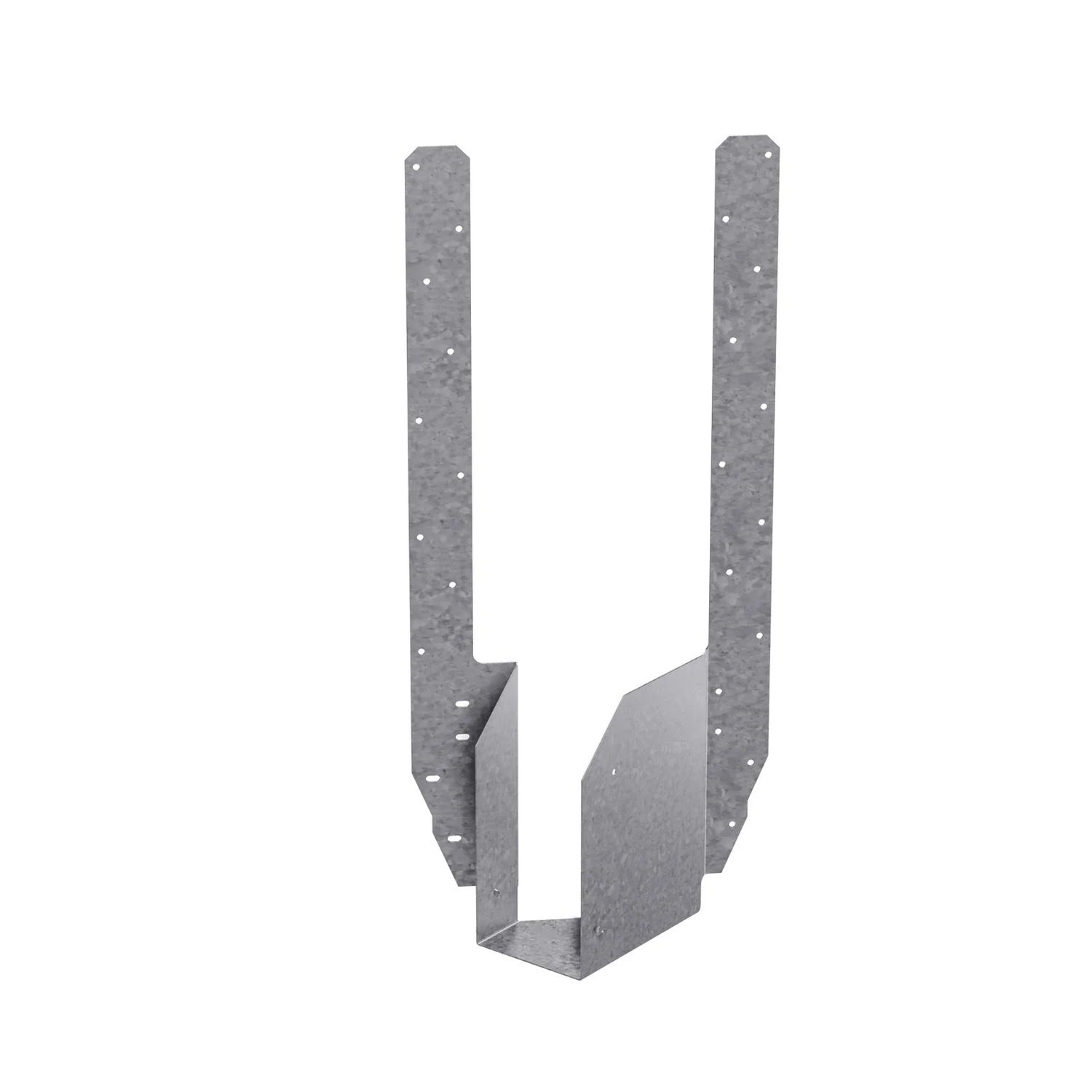

Simpson Strong-Tie THAL422 Description
The THAL422 Adjustable Truss Hanger is designed for 4x2 floor trusses and 4x beams, featuring a standard skew of 45 degrees and a G90 Galvanized coating for durability.
Simpson Strong-Tie THAL422 Includes
- (1) Adjustable Truss Hanger for 4x Floor Truss, Skewed Left 45 Degree
Simpson Strong-Tie THAL422 Features
- Designed for 4x2 floor trusses and 4x beams
- Standard skew of 45 degrees
- G90 Galvanized coating for durability
- Requires hot-dip galvanized fasteners meeting ASTM A153 specifications
Simpson Strong-Tie THAL422 Applications
- Floor truss installations requiring adjustable hangers
- Beam support in residential and commercial construction
- Applications needing skewed hanger configurations

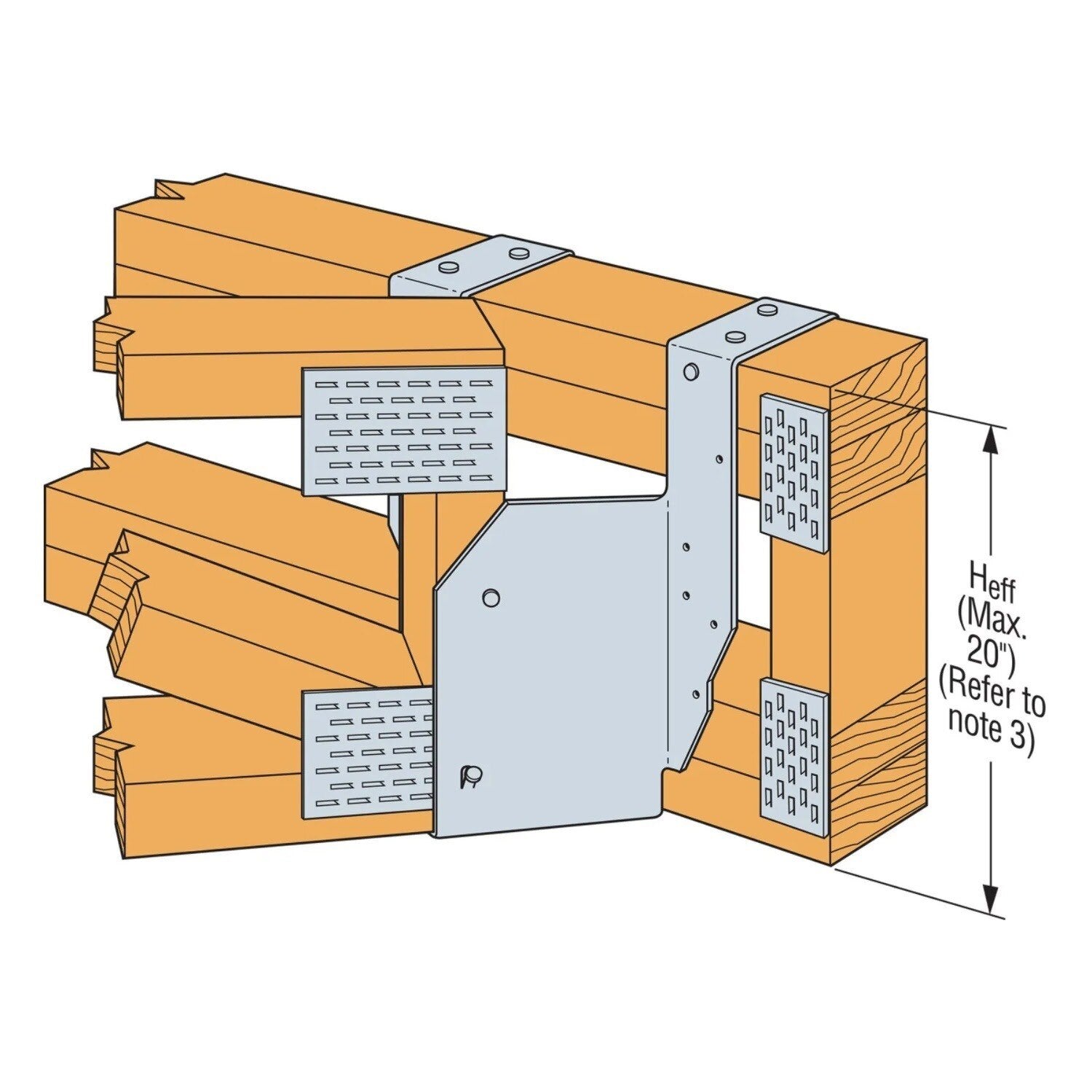

Simpson Strong-Tie THAL422 Installation Overview
- Use all specified fasteners
- For joist attachment, drive nails at an angle to penetrate through the corner of the joist into the header
- Field form straps over the header for top flange installation
- Install top and face nails according to the table
- Fill the lowest face nails to achieve uplift loads
Simpson Strong-Tie THAL422 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Height | 22-5/8" |
| Width | 3-5/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
823381
