Simpson Hangers | SKU:
THAR422
Simpson Strong-Tie THAR422 (22-5/8 in.) Adjustable Truss Hanger for 4x Floor Truss, Skewed Right
$62.88
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THAR422 Description

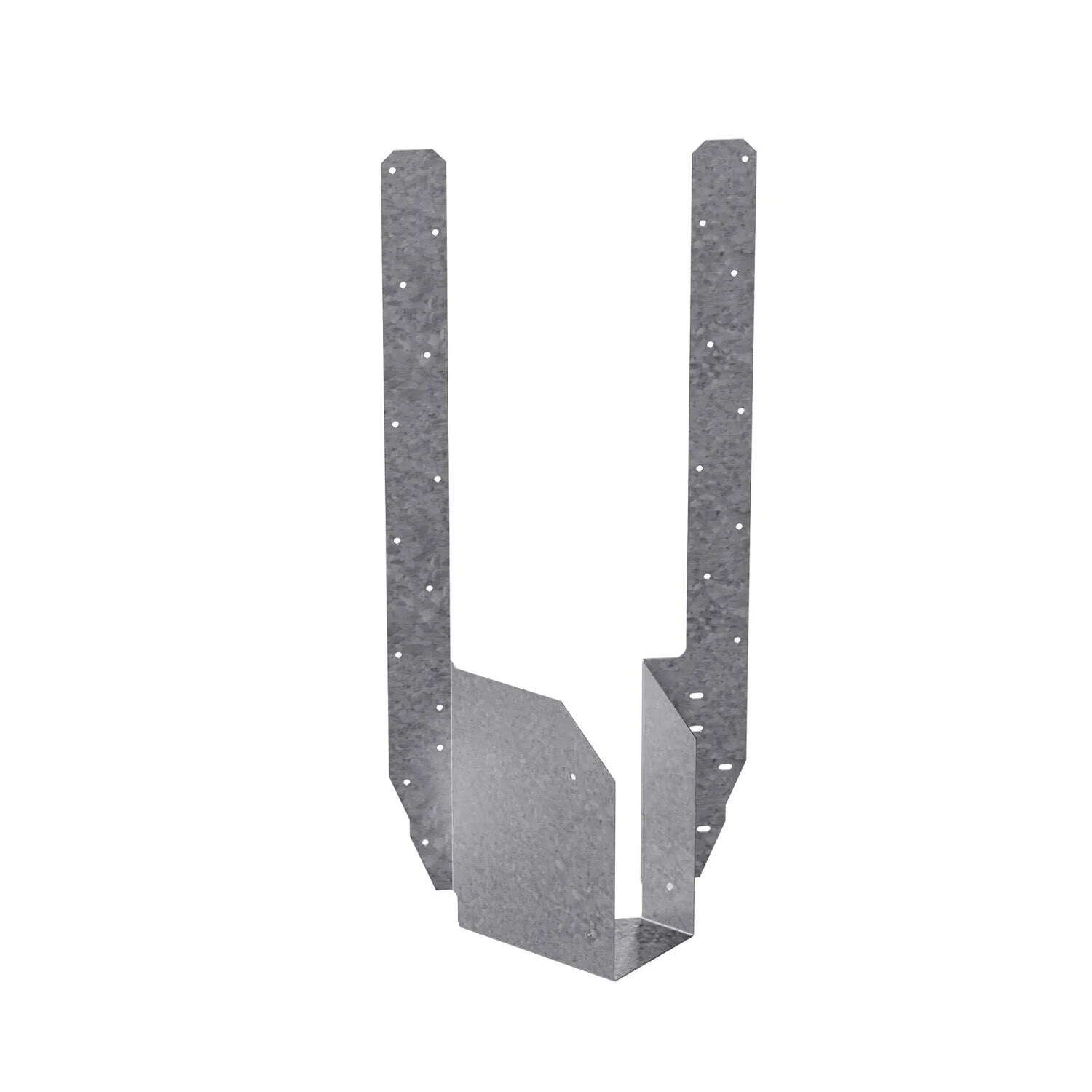

The THAR422 Adjustable Truss Hanger is designed for 4x2 floor trusses and 4x beams, featuring a 45° skew and G90 Galvanized coating for durability.
Simpson Strong-Tie THAR422 Includes
- (1) THAR422 Adjustable Truss Hanger
Simpson Strong-Tie THAR422 Features
- Designed for 4x2 floor trusses and 4x beams
- Standard skew of 45°
- G90 Galvanized coating for corrosion resistance
- Requires hot-dip galvanized fasteners meeting ASTM A153
Simpson Strong-Tie THAR422 Applications
- Floor truss installations requiring a 45° skew
- Beam support in construction projects

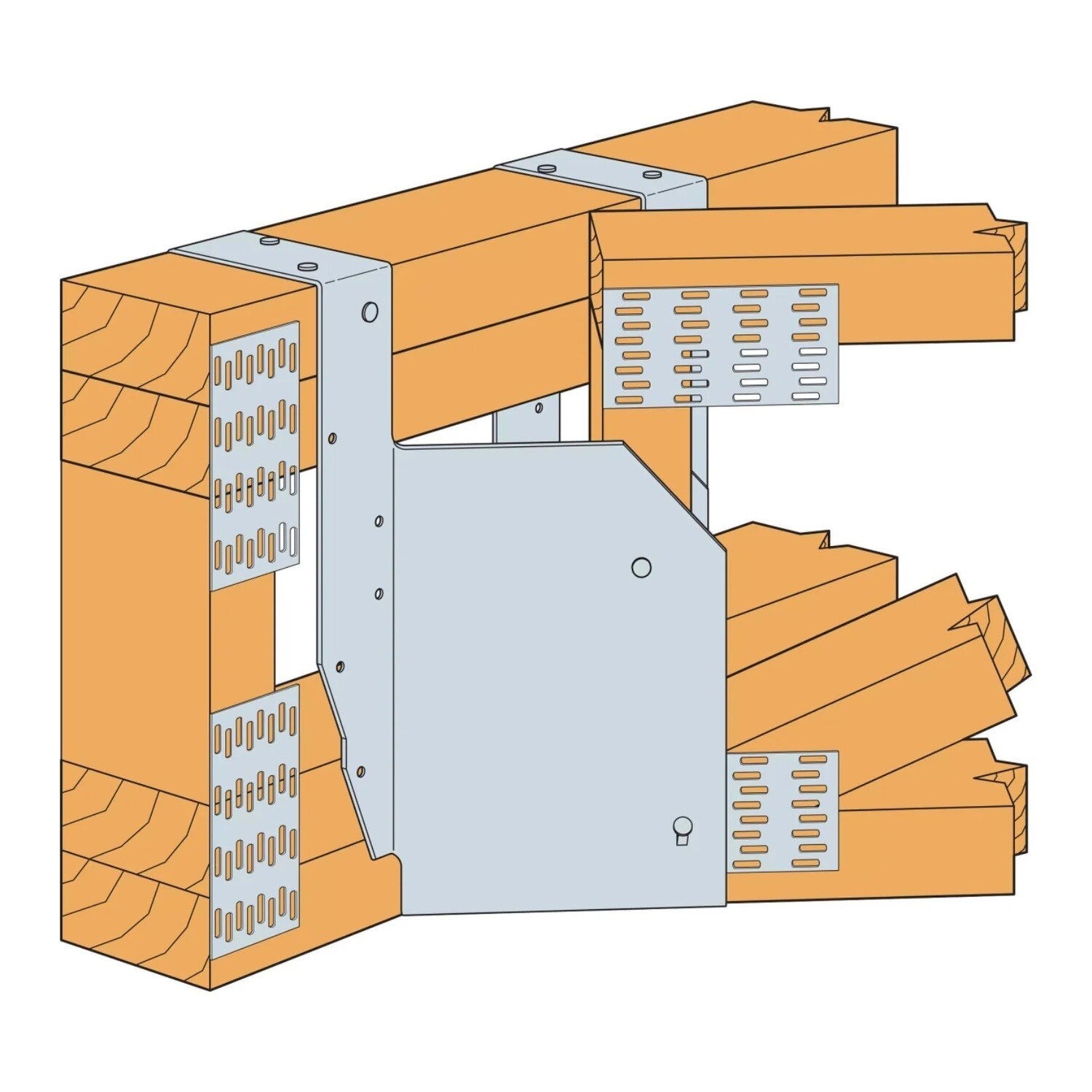

Simpson Strong-Tie THAR422 Installation Overview
- Use all specified fasteners.
- For top flange installation, straps must be field-formed over the header.
- Install top and face nails according to the table.
- For face mount installation, fill the lowest 4 face holes with nails.
- Ensure nails penetrate through the corner of the joist into the header.
Simpson Strong-Tie THAR422 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Height | 22-5/8" |
| Width | 3-5/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
