Simpson Hangers | SKU:
THASL29-2

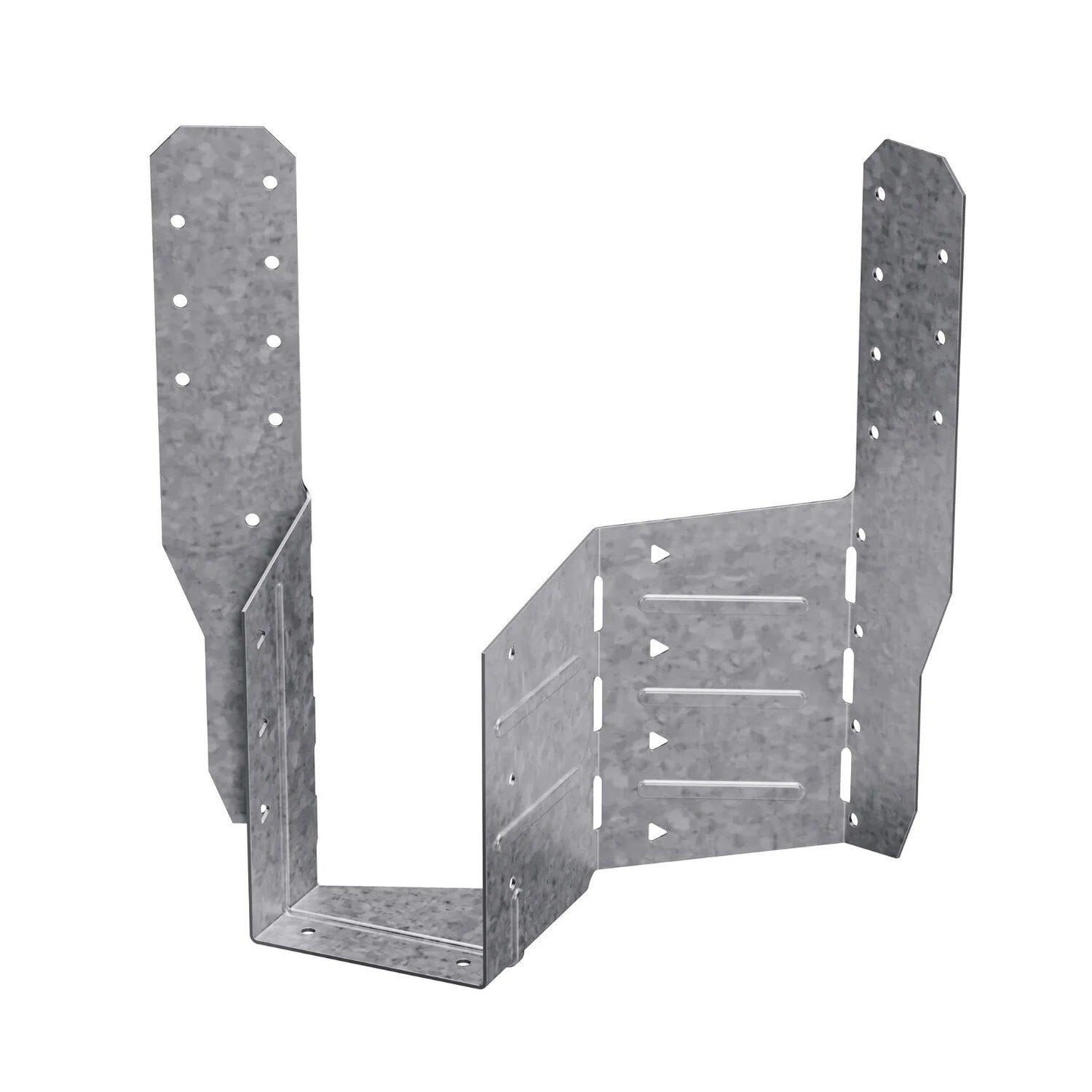

Simpson Strong-Tie THASL29-2 (Double 2" x 9") Adjustable Truss Hanger, Skewed Left
$73.03
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THASL29-2 Description
The Simpson Strong-Tie THASL29-2 is an adjustable truss hanger designed for double 2x9 lumber, skewed left, with a G90 galvanized finish for durability.
Simpson Strong-Tie THASL29-2 Includes
- (1) Adjustable Truss Hanger
Simpson Strong-Tie THASL29-2 Features
- Adjustable height for versatile applications
- Field skewable from 22 1/2° to 75°
- G90 Galvanized coating for corrosion resistance
- Designed for double 2x9 lumber
- Requires ASTM A153 hot-dip galvanized fasteners
Simpson Strong-Tie THASL29-2 Applications
- Truss connections in wood-framed structures
- Adjustable skew applications for angled connections
- Residential and commercial framing projects
Simpson Strong-Tie THASL29-2 Installation Overview
- Use all specified fasteners.
- Factory skewed to 22 1/2°; can be field skewed up to 75°.
- Fill all triangle holes for 22 1/2° skew installations.
- Fill fastener holes in the bottom of the hanger seat.
- Field-form straps over the header a minimum of 2" for top flange installations.
Simpson Strong-Tie THASL29-2 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Height | 9-7/8" |
| Width | 3-1/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
