Simpson Hangers | SKU:
THASL29

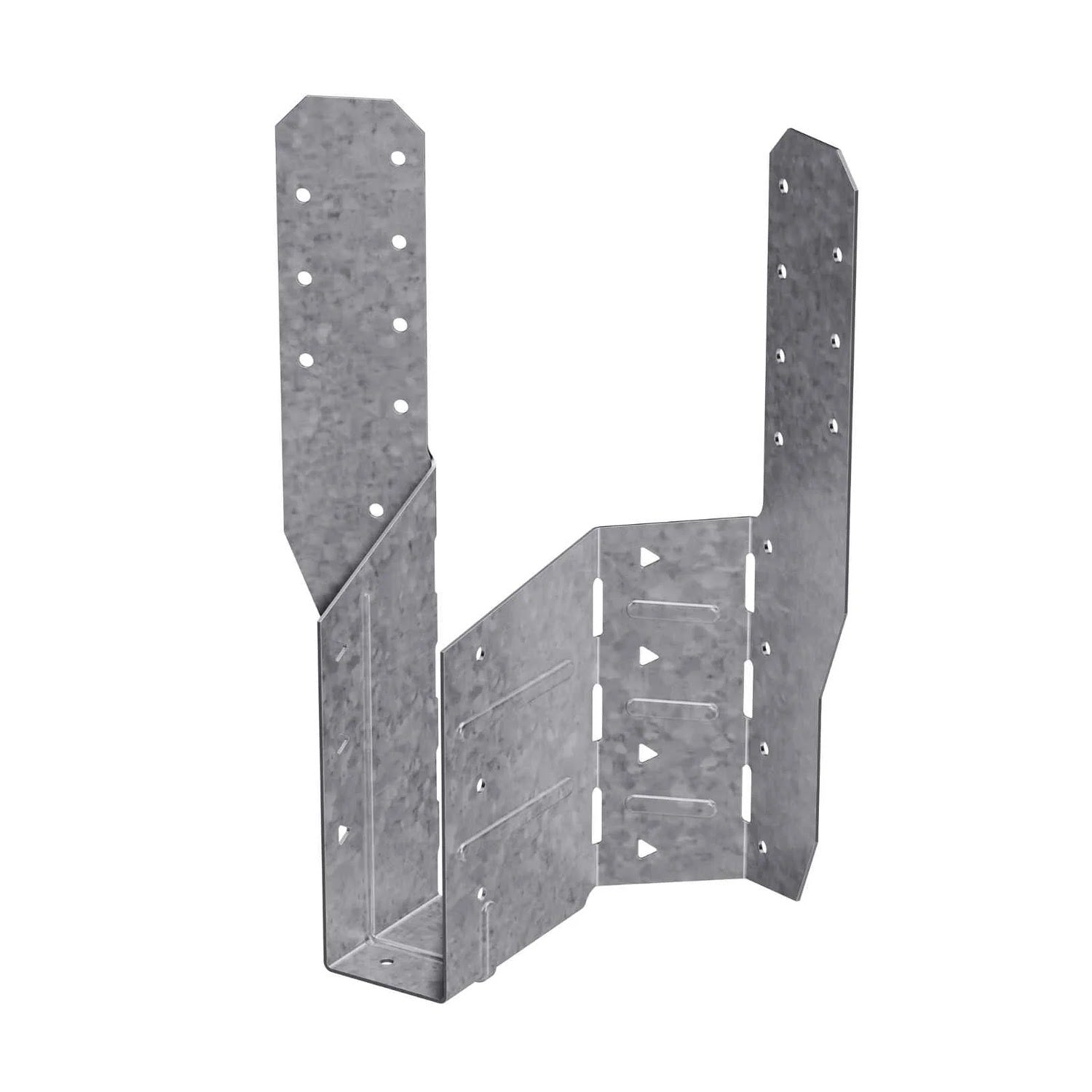

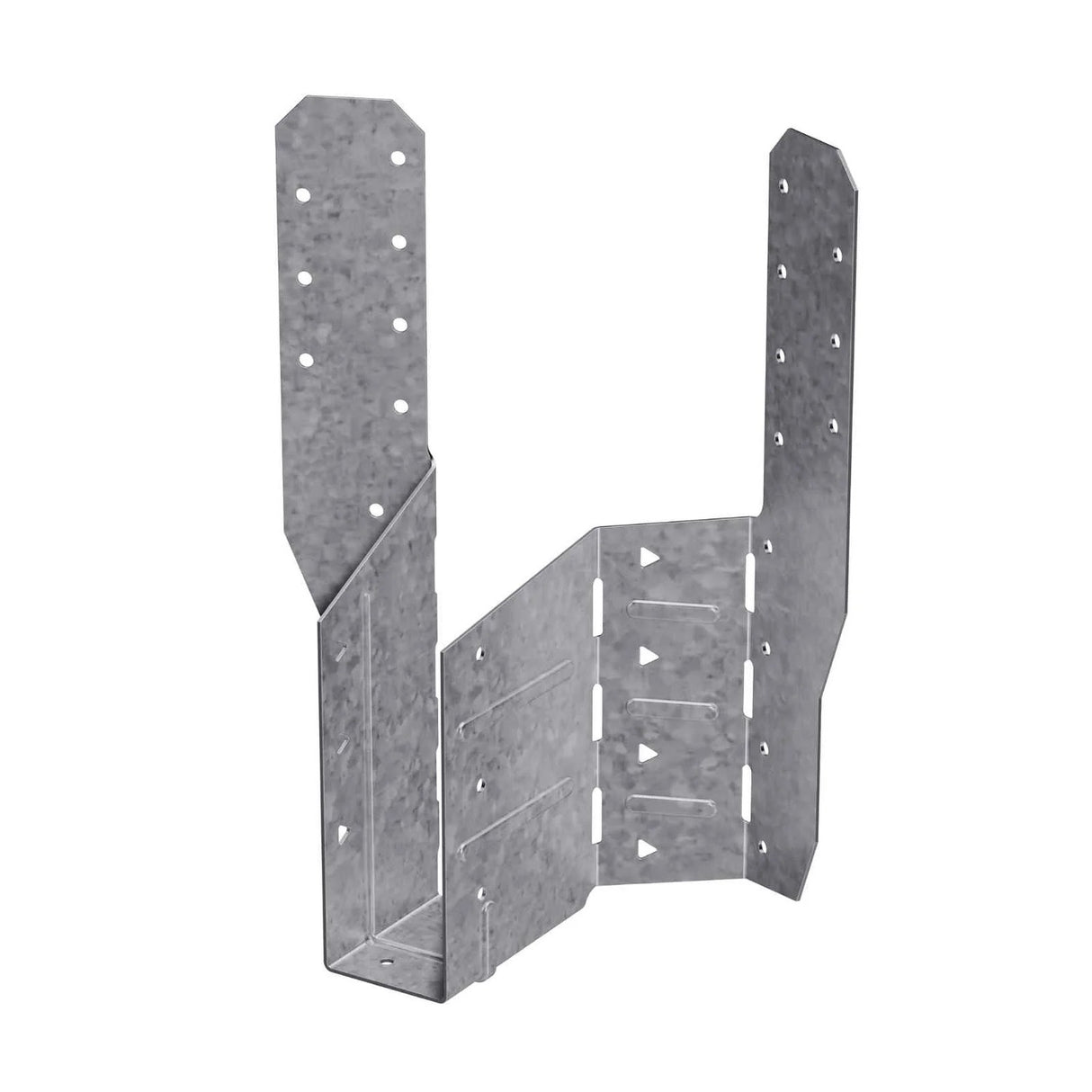

Simpson Strong-Tie THASL29 Adjustable Truss Hanger (2x9, Skewed Left)
$63.15
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THASL29 Description
The THASL29 Adjustable Truss Hanger from Simpson Strong-Tie offers height adjustability and field skewability, making it a versatile choice for various construction needs.
Simpson Strong-Tie THASL29 Includes
- (1) THASL29 Adjustable Truss Hanger
Simpson Strong-Tie THASL29 Features
- Height adjustability for versatile applications
- Field skewable from 22 1/2° to 75°
- G90 Galvanized coating for corrosion resistance
- Requires hot-dip galvanized fasteners meeting ASTM A153
Simpson Strong-Tie THASL29 Applications
- Truss connections in wood-framed structures
- Adjustable skew applications in residential and commercial construction

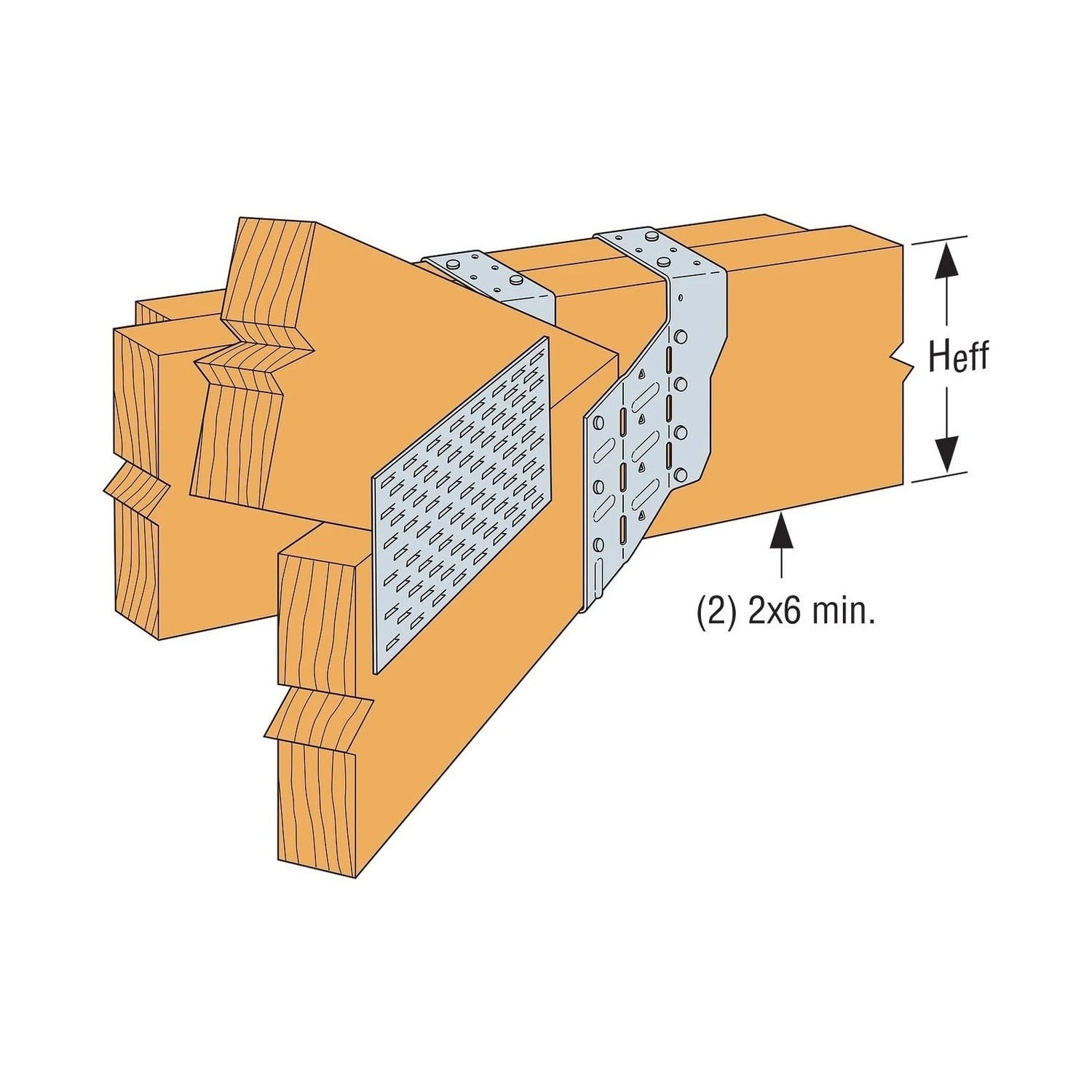

Simpson Strong-Tie THASL29 Installation Overview
- Use all specified fasteners
- Factory skewed to 22 1/2° and field skewable up to 75°
- Fill all triangle holes for 22 1/2° skew installations
- Fill fastener holes in the bottom of the hanger seat
- Field-form straps over the header a minimum of 2" for top flange installations

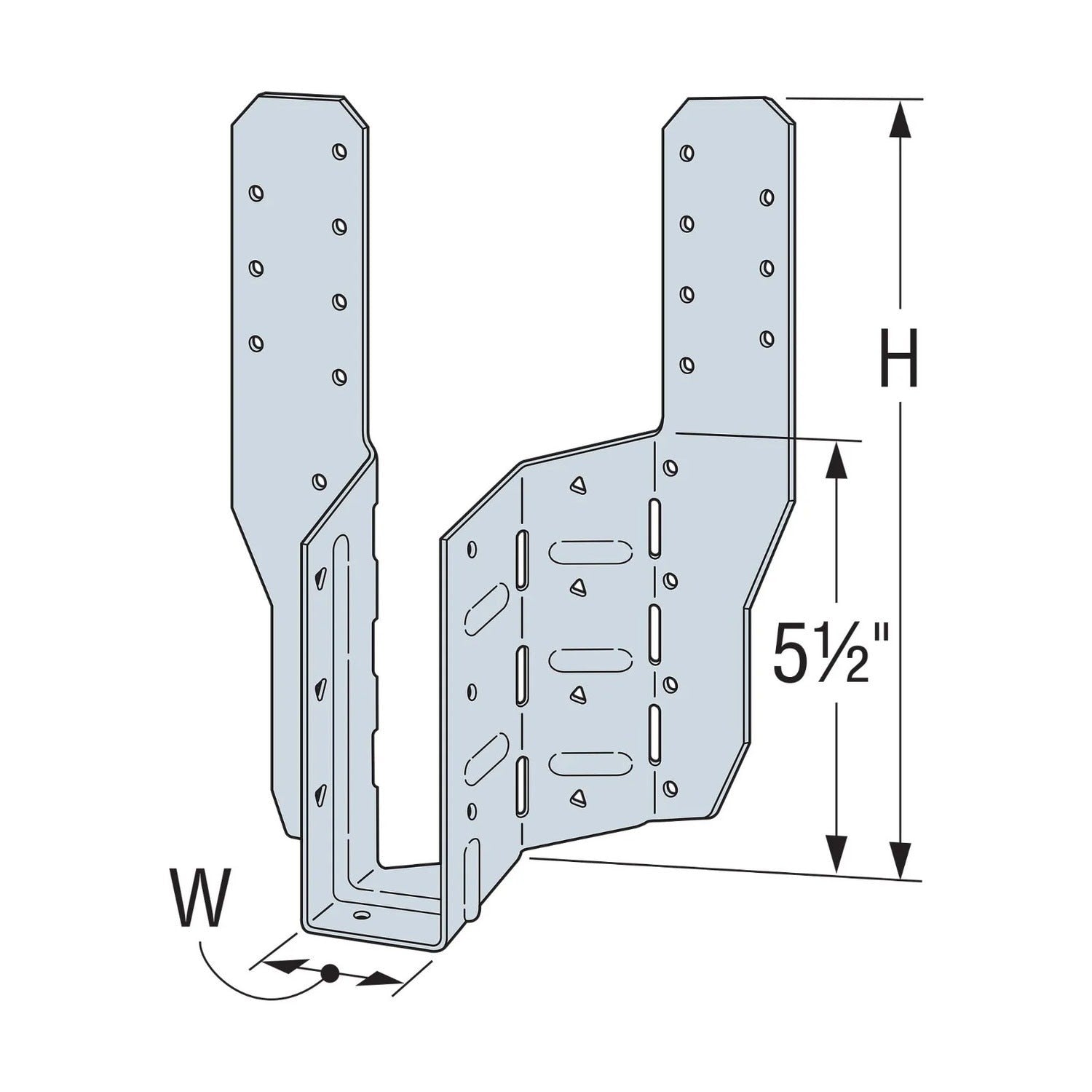

Simpson Strong-Tie THASL29 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Height | 9-7/8" |
| Width | 1-5/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
