Simpson Hangers | SKU:
THASL422

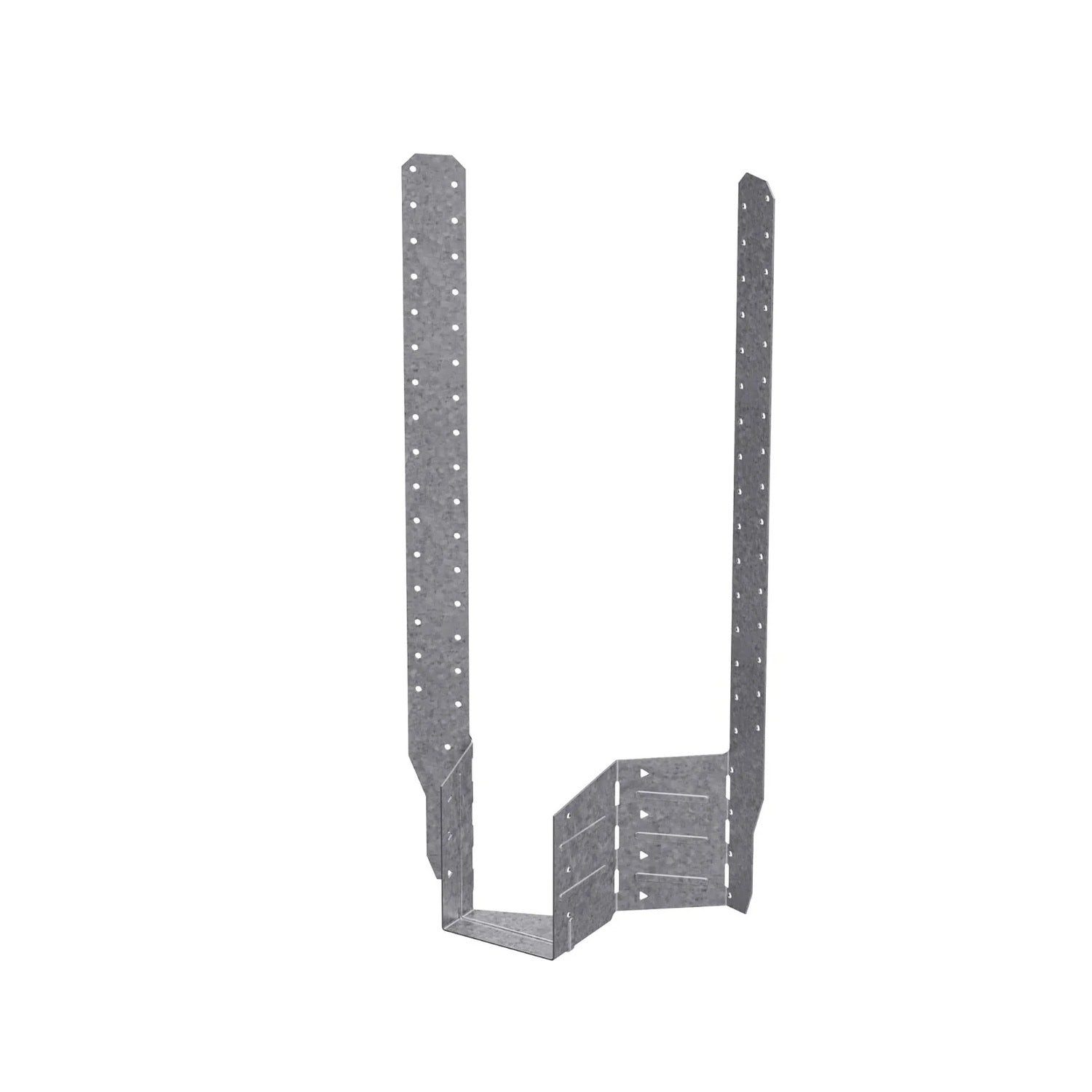

Simpson Strong-Tie THASL422 Adjustable Truss Hanger (4x22, Skewed Left)
$132.18
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THASL422 Description
The THASL422 Adjustable Truss Hanger combines height adjustability with field skewability, offering flexibility for installers and eliminating the need for special orders.
Simpson Strong-Tie THASL422 Includes
- (1) Adjustable Truss Hanger for 4x22 Skewed Left
Simpson Strong-Tie THASL422 Features
- Height adjustability for versatile installation
- Field skewability from 22 1/2° to 75°
- G90 Galvanized coating for durability
- Compatible with hot-dip galvanized fasteners meeting ASTM A153 specifications
Simpson Strong-Tie THASL422 Applications
- Truss installation requiring adjustable skew angles
- Structural framing in residential and commercial projects
- Support for carrying members in face-mount installations

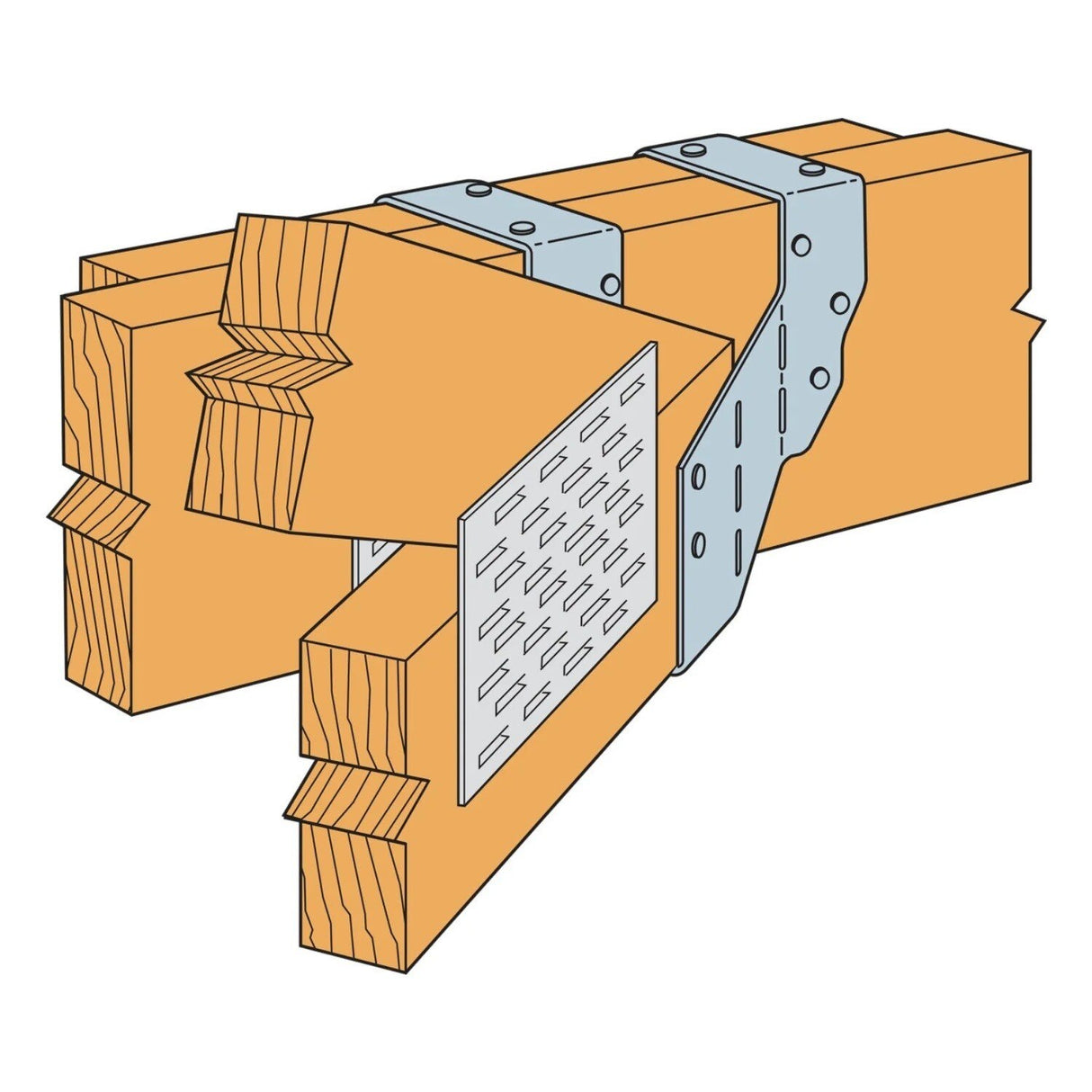

Simpson Strong-Tie THASL422 Installation Overview
- Use all specified fasteners
- Factory skewed to 22 1/2° and may be field skewed up to 75°
- Fill all triangle holes for 22 1/2° skew installations
- Fill fastener holes in the bottom of the hanger seat
- Field-form top flange straps over the header a minimum of 2"
- For face-mount installations, install carrying member fasteners into the lowest holes
Simpson Strong-Tie THASL422 Specifications
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | No |
| Height | 22" |
| Manufacturer name | Simpson Strong-Tie |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
