Simpson Hangers | SKU:
THASR29-2

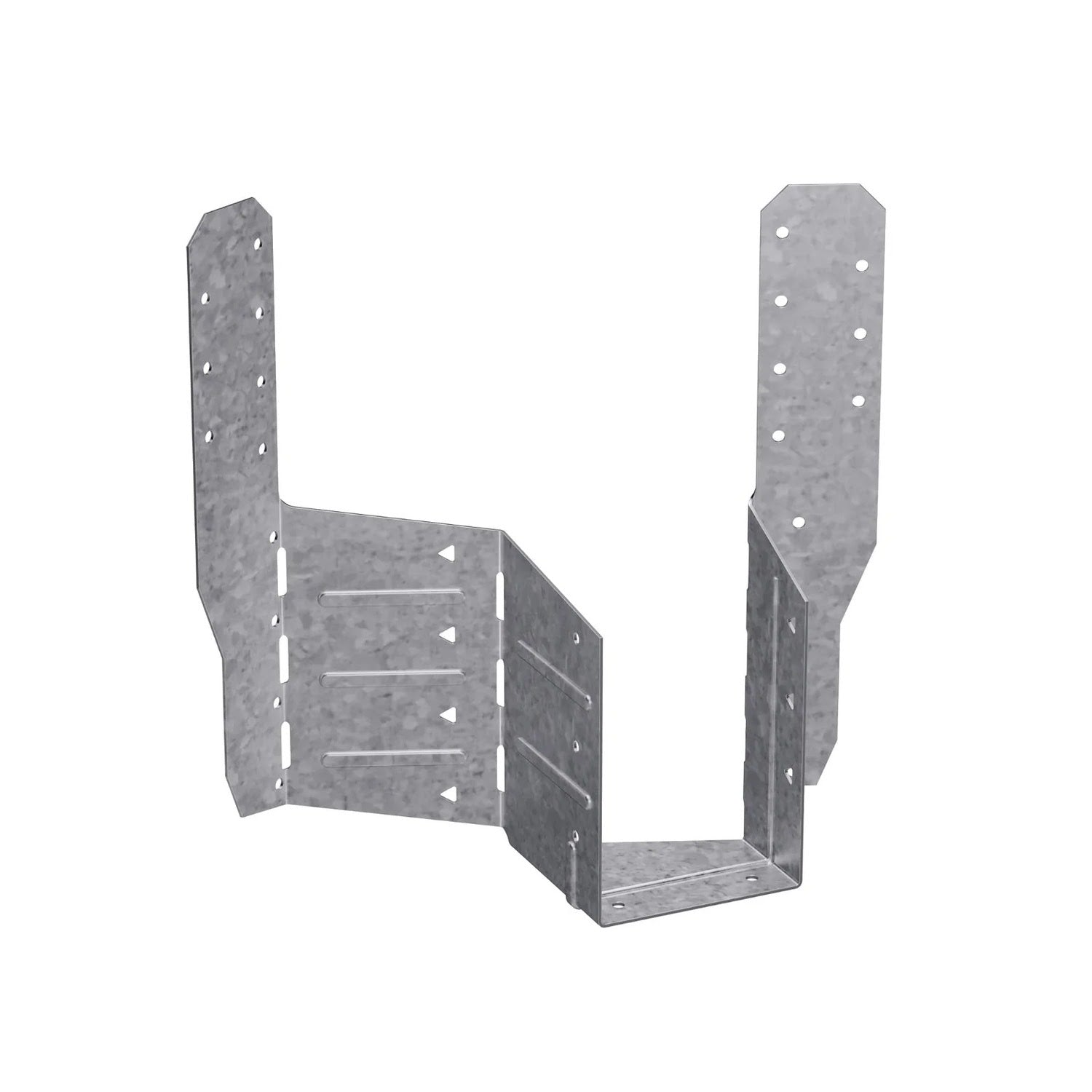

Simpson Strong-Tie THASR29-2 Adjustable Truss Hanger for Double 2x9, Skewed Right
$73.03
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THASR29-2 Description
The THASR29-2 Adjustable Truss Hanger combines height adjustability with field skewability, offering flexibility for installers and eliminating the need for special orders.
Simpson Strong-Tie THASR29-2 Includes
- (1) Adjustable Truss Hanger for Double 2x9, Skewed Right
Simpson Strong-Tie THASR29-2 Features
- Height adjustability for versatile installation
- Field skewability from 22 1/2° to 75°
- G90 Galvanized coating for durability
- Compatible with hot-dip galvanized fasteners meeting ASTM A153 specifications
Simpson Strong-Tie THASR29-2 Applications
- Truss support in construction projects
- Adjustable skew applications for truss hangers
- Residential and commercial framing requiring adjustable hangers
Simpson Strong-Tie THASR29-2 Installation Overview
- Use all specified fasteners
- Factory skewed to 22 1/2° and may be field skewed up to 75°
- Fill all triangle holes for 22 1/2° skew installations
- Fill fastener holes in the bottom of the hanger seat
- Field-form straps over the header a minimum of 2" for top flange installations
Simpson Strong-Tie THASR29-2 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Height | 9-7/8" |
| Width | 3-1/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
