Simpson Hangers | SKU:
THASR29

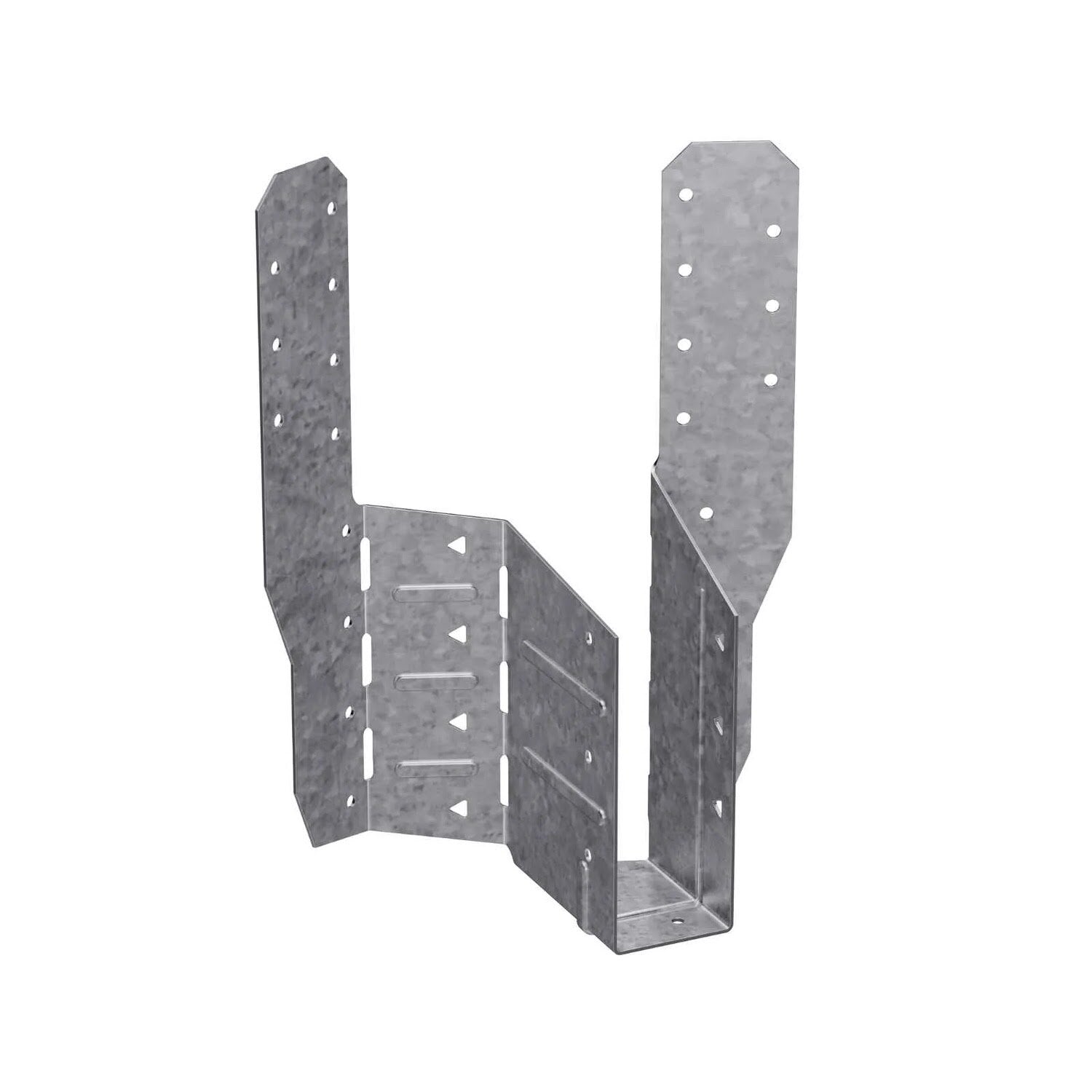

Simpson Strong-Tie THASR29 (2x9) Adjustable Truss Hanger, Skewed Right
$63.15
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THASR29 Description
The THASR29 Adjustable Truss Hanger from Simpson Strong-Tie offers height adjustability and field skewability, making it a versatile choice for various construction needs.
Simpson Strong-Tie THASR29 Includes
- (1) THASR29 Adjustable Truss Hanger
Simpson Strong-Tie THASR29 Features
- Height adjustability for versatile applications
- Field skewability from 22 1/2° to 75°
- G90 Galvanized coating for corrosion resistance
- Compatible with hot-dip galvanized fasteners meeting ASTM A153
Simpson Strong-Tie THASR29 Applications
- Used in wood-framed construction for truss support
- Ideal for applications requiring adjustable skew angles

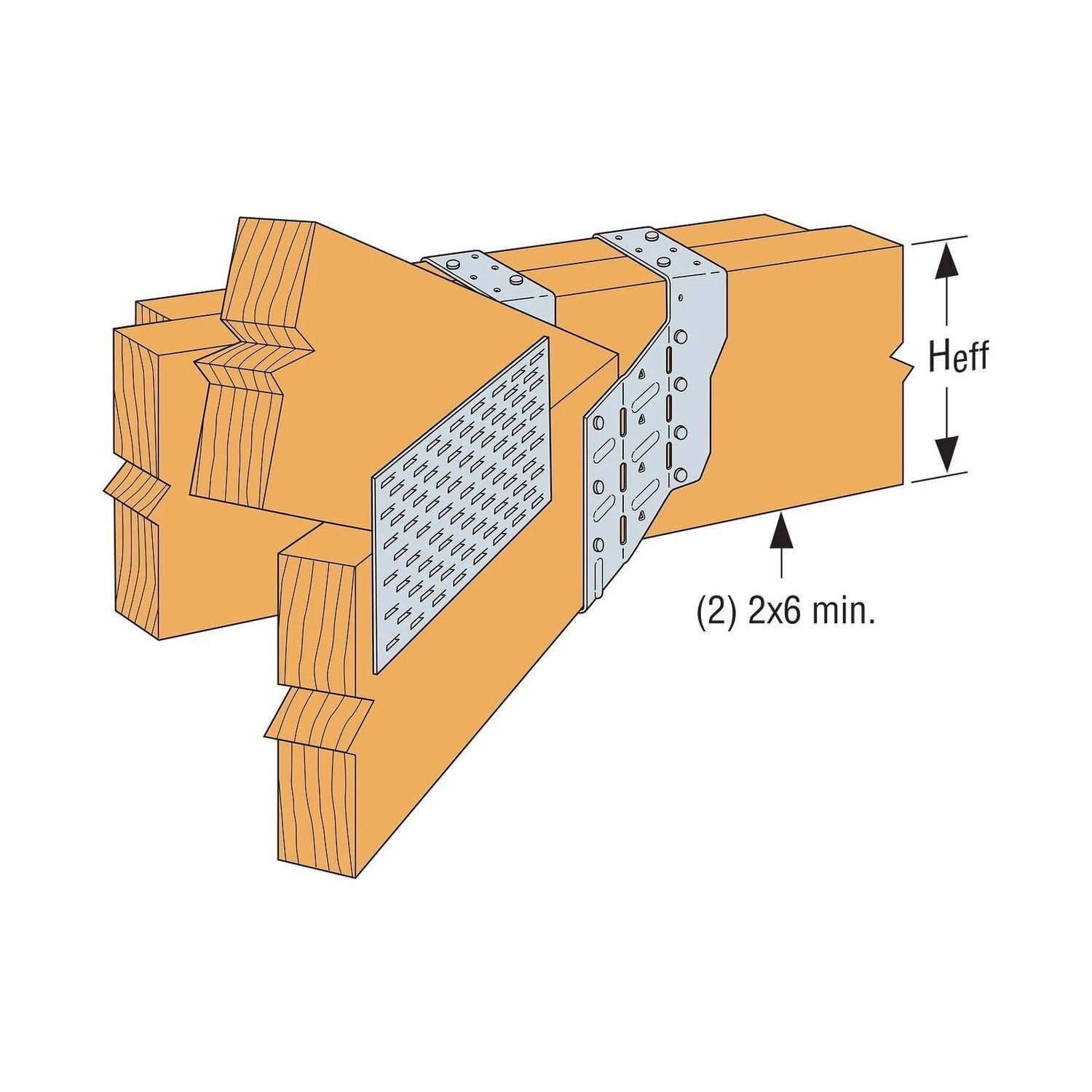

Simpson Strong-Tie THASR29 Installation Overview
- Use all specified fasteners.
- Factory skewed to 22 1/2°; can be field skewed up to 75°.
- Fill all triangle holes for 22 1/2° skew installations.
- For top flange installations, straps must be field-formed over the header a minimum of 2".
- For face-mount installations, install carrying member fasteners into the lowest holes.

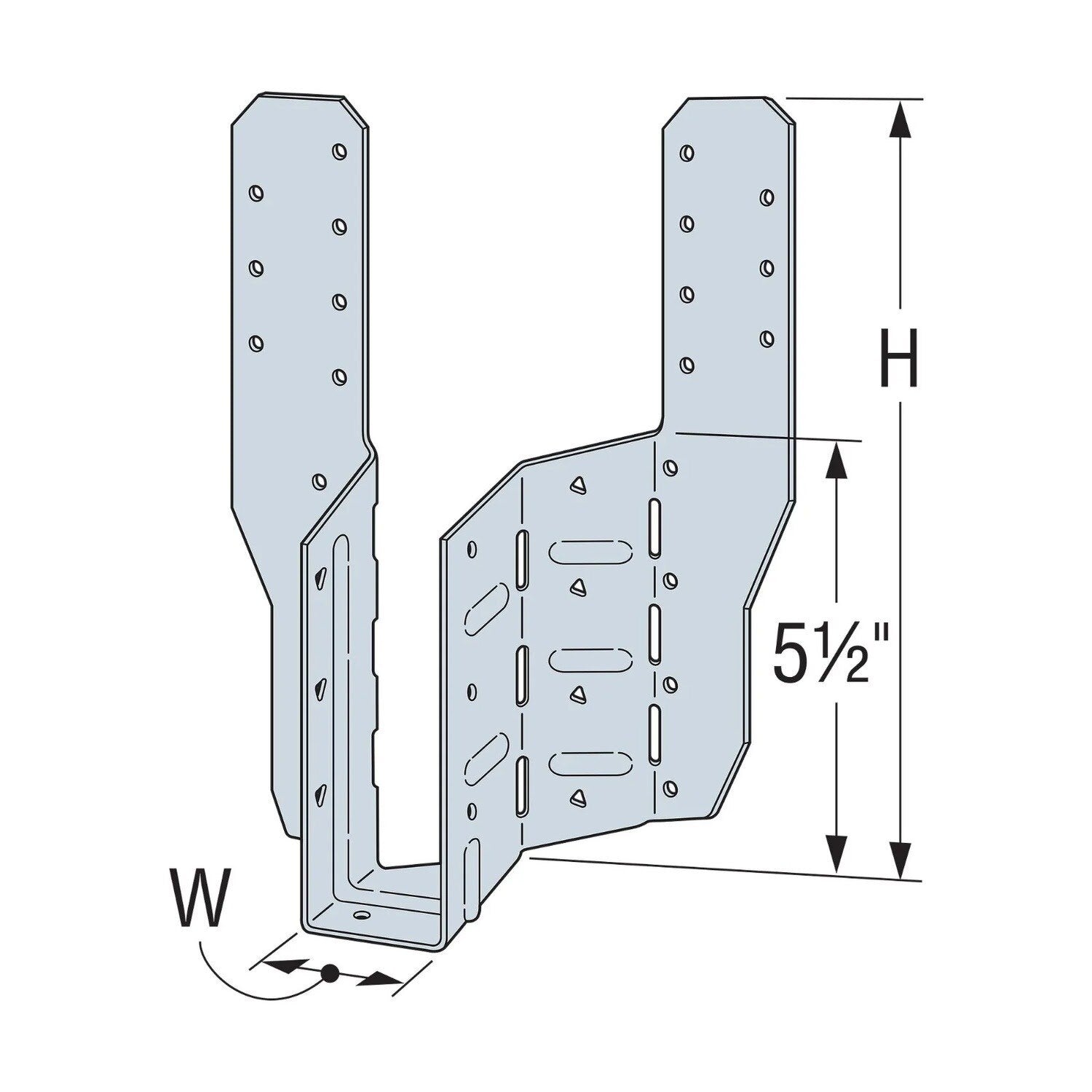

Simpson Strong-Tie THASR29 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Height | 9-7/8" |
| Width | 1-5/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
